NEW Pelcotec™ Etched Si CDMS ISO

Available as NIST Traceable or as Certified against NIST Standard

Easy to use and very useful for quick and precise SEM, FE-SEM, FIB, CD-SEM, LM, and AFM magnification calibration in the X axis from the etched lines.

Fully-featured and traceable calibration standards for a wide measurement range. They are made using the latest semiconductor and MEMS manufacturing techniques for etching features yielding superior line edge quality (Line edge roughness of +/- 0.3nm per 1um length of line edge) and are ideal for low keV imaging (≤1keV).

The Pelcotec™ Etched Si CDMS Calibration Standard is available in two feature size ranges individually certified to a NIST standard in an ISO 17205:2017 accredited calibration laboratory. Recertification of these ISO critical dimension standards in an ISO 17205:2017 accredited calibration laboratory is available.

Pelcotec™ Etched Si CDMS-1T-ISO
Fully traceable at the wafer level to a NIST standard (ISO 17025:2017 Sampling Scope of Accreditation). Has features from 2.0mm to 1um for a magnification range from 10x - 20,000x; ideal for desktop SEMs and low to medium magnification applications.
Representative CDMS-1T-ISO Traceable Certificate (325KB PDF)

Pelcotec™ Etched Si CDMS -0.1T-ISO
Fully traceable at the wafer level to a NIST standard (ISO 17025:2017 Sampling Scope of Accreditation). Has features from 2.0mm to 100nm for a magnification range from 10x - 200,000x; for all SEM and most FE-SEM applications.
Representative CDMS-0.1T-ISO Traceable Certificate (328KB PDF)

* Pelcotec™ Etched Si CDMS-1C-ISO
Individually certified in an ISO 17205:2017 accredited calibration laboratory against a NIST standard. Has features from 2.0mm to 1µm for a magnification range from 10x - 20,000x; ideal for desk top SEMs and low to medium magnification applications.
Representative CDMS-1C-ISO Conformance Certificate (3680KB PDF)

* Pelcotec™ Etched Si CDMS-0.1C-ISO
Individually certified in an ISO 17205:2017 accredited calibration laboratory against a NIST standard with features from 2.0mm to 100nm for a magnification range up to 10x - 200,000x; for all SEM and most FE-SEM applications.
Representative CDMS-0.1C-ISO Conformance Certificate (477KB PDF)

Pelcotec™ Technical Notes for CDMS ISO - Critical Dimension Magnification Standards (149KB PDF)

* Recertification in an ISO 17025:2017 accredited calibration laboratory available.

500nm, 250nm and 100nm lines are only on the Etched Si CDMS-0.1T-ISO and 0.1C-ISO products

Feature sizes for the Pelcotec™ Etched Si CDMS-1T-IS0 and -1C-ISO are:
2mm, 1mm, 0.5mm, 0.25mm, 10µm, 5µm, 2µm and 1µm

Feature sizes for the Pelcotec™ Etched Si CDMS-0.1T-ISO and -0.1C-ISO are:
2mm, 1mm, 0.5mm, 0.25mm, 10µm, 5µm, 2µm, 1µm, 500nm, 250nm and 100nm

Comparison Table Below

	Pelcotec™ Etched Si CDMS-1-ISO	Pelcotec™ Etched Si CDMS-0.1-ISO
Substrate: High conductivity silicon (resistivity of 0.001 - 0.002 Ohm/cm)	✓	✓
Substrate size: 2.5 x 2.5mm	✓	✓
Substrate thickness: 525 ±10µm	✓	✓
Unique serial identification number per chip	—	✓

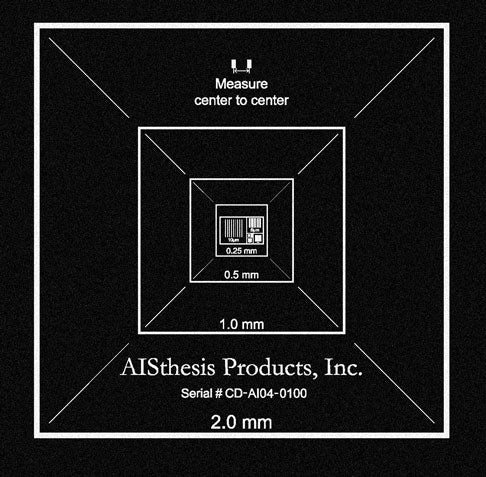

Calibration squares at 2mm, 1mm, 0.5mm, 0.25mm	✓	✓

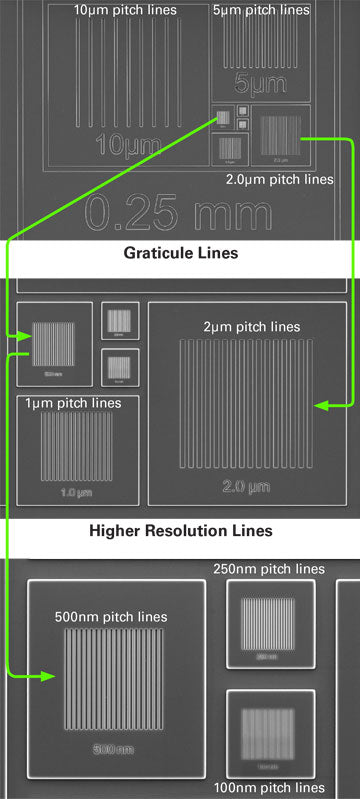

Graticule lines perpendicular to the X axis ruled at 10µm, 5µm, 2µm and 1µm pitch	✓	✓
High Resolution version only - Additional graticule lines perpendicular to X axis ruled at 500, 250 and 100nm pitch	—	✓
Traceable at the wafer level to NIST (ISO 17025:2017 Sampling Scope of Accreditation)	T versions	T versions
Direct certification of CDMS chip to a NIST standard (ISO 17025:2017 Sampling Scope of Accreditation)	C versions	C versions
Recertification of CDMS chip to a NIST standard (ISO 17025:2017 Sampling Scope of Accreditation) available	C versions only	C versions only
Available unmounted	✓	✓
SEM mounts A-R available	✓	✓
Precision better than 0.3%	✓	✓
Line edge roughness of +/- 0.3nm per 1um length of line edge	✓	✓
Measurements reported with an uncertainty (k=2)* of ±0.012μm	✓	✓

* Reported uncertainties represent expanded uncertainties expressed at approximately the 95%confidence level using a coverage factor of k = 2. The reported expanded measurement uncertainty is stated as the standard measurement uncertainty multiplied by the coverage factor K such that the coverage probability corresponds to the approximately 95%.



Etched Si CDMS product supplied with certification to ISO 17025:2017 requirement
from AISthesis Products, Inc., as an ISO/IEC 17025:2017 accredited calibration laboratory.


Certificate Number: 4904.01

The Pelcotec™ Etched Si CDMS ISO Critical Dimensions and Magnification Standards are made on an ultra flat silicon substrate with a precision etched lines for features sets from 100nm to 2µm. Due to its sturdy construction, the CDMS standard can be cleaned using a plasma cleaner on low settings.

The smaller features are nested for easy navigation and quick calibration. The accuracy of the features is 0.3% or better. The actual size of the standard is 2.5 x 2.5mm with a thickness of 525µm ±10µm. There is no coating on the Si surface. Each Pelcotec™ Etched Si CDMS ISO Calibration Standard has a unique identification number.

They are available either unmounted or mounted on SEM holders A-R. For AFM applications the Pelcotec™ Etched Si CDMS ISO is mounted on a 12mm AFM disc; for LM applications it is mounted on a 25 x 75mm glass slide.

The Etched Si CDMS standard may also be mounted on a custom mount of your choice.

Store the Pelcotec™ CDMS Calibration Standard in a vacuum desiccator such as the PELCO® SEM Sample Stub Vacuum Desiccator.
