Needles, Picks, Probes, Pin Vise, Holders, Dissection Tools



PELCO^® Long, Microscopic Needle Holder, Stainless Steel

1350-5

Long, stainless steel, microscopic needle holder with plastic handle, total length 240mm (9-1/2"). Accepts needles up to 0.66mm (0.026") diameter. Ideal for difficult to reach spots and use in fluids where corrosion resistance is needed. Stainless steel shank Ø3.5mm (0.64"), plastic handle Ø6.35mm (1/4"), total length 240mm (9.45").
For stainless steel Micro Needles, see below.

---

---



Micro Picks

13531

13532

Stainless Steel, for dissecting, manipulating, or holding small tissues or objects, wooden handle, needle diameter 0.63mm (0.025").

---

---

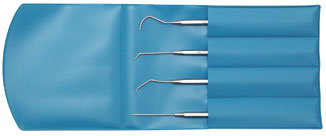

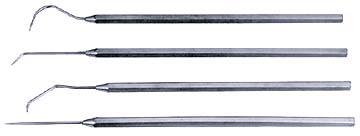

Micro Probes

13551 to 13554

13550

Probing, picking, poking or moving; set of 4 probes with very fine flexible tips. Made of stainless steel, tempered spring wire. Set of 4 comes in vinyl pouch. Probes and pouch may be ordered separately.

---

---



Eyelash with Handle

113

A carefully selected No. 1 Superfine eyelash is attached to a finely balanced wooden handle for delicate manipulation of ultra-thin sections in the knife boat of an ultramicrotome or wherever delicate teasing or manipulation is required. These special eyelashes are chosen due to their excellent taper and strength and are of the highest quality available. Tip shown actual size.

---

---



Ultrafine Single Deer Hair

119

Selected, single deer hair brush for manipulating thin sections on water or separating small particles using a microscope. The ultrafine deer hair is attached to a 6-1/4" (159mm) long wooden handle.

---

---



Pin Vise and Micro Needles

This quality pin vise, with a wide choice of micro needles, is ideally suited for probing, picking, scribing, cleaning, marking and similar fine work. There is a wide choice of fine pointed needles for different grades of precision work.

• Straight stainless steel needles with 0.25, 0.40 and 0.55 mm diameter
• Angled stainless steel needle with 0.25, 0.40 and 0.55 mm diameter
• Very fine and straight short micro needle with a 0.1mm diameter
• Sharp carbon tool steel needle (nickel plated) with a diameter of 0.35mm.

The stainless steel micro needles are more flexible and suitable for probing, picking and sorting. They are also more chemically resistant. The carbon steel needle is stiffer and harder and more suitable for marking, scribing and cleaning applications.

13560 Brass Pin Vise with Steel Collet



Pin Vise Holding Needle
13562-10



Pin Vise Holding
Needle
13561-50 (image 2x)

The Precision Pin Vise has a knurled brass handle for a firm grip and a precision carbon steel collet for holding the needles. 80mm (3-1/8") long. The maximum needle diameter capacity for the pin vise is 0.70mm (0.028").

---

---



Micro Needles for Pin Vise

13561-10,20,30,50; 13562-10,20,30

13565-10

The wide selection of micro needles are also compatible with the Long Microscopic Needle Holder, 1350-5, (top of page).

---

---



Pin Vise with Straight Stainless Steel Needles

13561

Pin Vise #13560 complete with a pack of 10 Straight Stainless Steel Micro Needles (#13561-10), 0.25mm diameter.

---

---



Pin Vise with Angled Stainless Steel Needles

13562

Pin Vise #13560 complete with a pack of 10 Angled Stainless Steel Micro Needles (#13562-10), 0.25mm diameter.

---

---



Pin Vise with Straight, Sharp Carbon Steel Needles

13565

Pin Vise #13560 complete with a pack of 10 Straight, Sharp Carbon Steel (nickel plated) Micro Needles (#13565-10), 0.35mm diameter.

---

---



Ultrafine Tungsten Manipulator Probe

13570 Ultrafine Tungsten Manipulator Probe



13570 Ultrafine Tungsten
Manipulator Probe
(image 2x)

The Ultrafine Tungsten Manipulator Probe consists of a fine tungsten needle with 0.6um radius in a quality precision pin vise. The ultrafine point is ideally suitable for probing and manipulating very small particles or feature under a microscope. The tungsten needle has a diameter of 0.52mm (0.020"), a length of 25mm (1") and a sharp tip radius of 0.6µm. The precision pin vise has knurled brass handle for a firm grip and a precision carbon steel collet for holding the tungsten probe. 80mm (3-1/8") long. The maximum probe diameter for the pin vise is 0.70mm (0.028"). The sharp tungsten needle can also be used in other needle holders or for custom made probing systems.

---

---



"Catwhisker Probe" with 0.07µm Tip Radius, Tungsten Tip

Inset Magnified ~6x

99-15864

A specialized ultraminiature flexible probe for micromanipulator use. Total length is 1-7/16" (36.5mm), shaft diameter is 0.020" (0.51mm). Other applications may be developed because of the extremely fine tip and its unique design which allows the probe tip to "flex", reducing pressure on the tip.

This probe may be used in the Pin Vise #13560 or the Long Microscopic Needle Holder #1350-5, shown above.

---

---



Speedles

13580

Removing Protective Cap from Speedle

Blade Widths:
Large (red) 800µm
Medium (green) 560µm
Medium Fine (blue) 360µm
Fine (gold) 200µm
Extra Fine (black) 180µm

Speedles are miniature needle-like spatulas with five different blade sizes from 180–800µm. Handles are color coded for easy identification, includes protective cap. Ideal for making micro dispersions directly on SEM specimen stubs. Properly shaped for applying micro amount of adhesive for tacking down specimens. Can also be used for applying small droplets of oil. Another use is specimen manipulation under the light microscope. Overall length 2-1/2" (63.5mm), sold in sets of five (one of each size), or as individual pieces.

---

---



Angle Tip Probe

13225

Made of stainless steel, highly polished with smooth rounded tip.



---

---

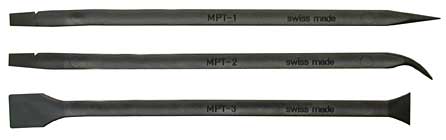

PELCO^® Carbo-Probe™ CP, ESD Safe PEEK Probes

5094, 5095, 5096

5097 Set of three Carbo-Probes™ in plastic pouch

The PELCO^®  Carbo-Probe™ CP tools are made of ESD safe PEEK (polyetheretherketone) reinforced with conducting carbon fibers. They are wear resistant and the soft tips do not scratch delicate surfaces. Ideal for positioning small specimens/parts/components. Also suited for forensic and microscopy sampling applications. Three different types or a complete set. Available with a straight or curved point being flat on the opposite end or as a double spatula. Temperature resistant up to 300°C (575°F)

---

---



PELCO^® Nylon-Probe

13557-3

The PELCO^® Nylon-Probe has the same design and dimensions as the PELCO^® Carbo-Probe™ tools but is made of stabilized glass fiber reinforced nylon. This material exhibits high strength, good wear resistance and moderate to good chemical resistance. Temperature resistant up to 120°C (248°F)
