NE7N Horizontal Micrometer Scale 10mm/0.1mm with Crossline & 10mm Square

NE7N Horizontal Micrometer Scale 10mm/0.1mm with Crossline & 10mm Square

Pattern

NE7N

Description

Horizontal Scale 10mm/0.1mm + Crossline + Square

Key features

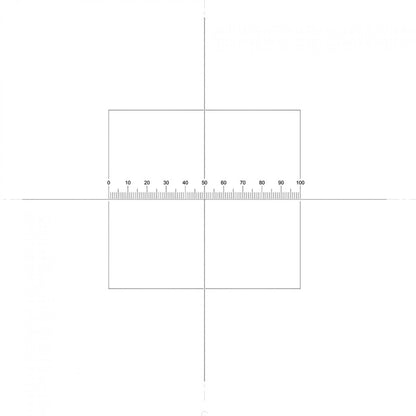

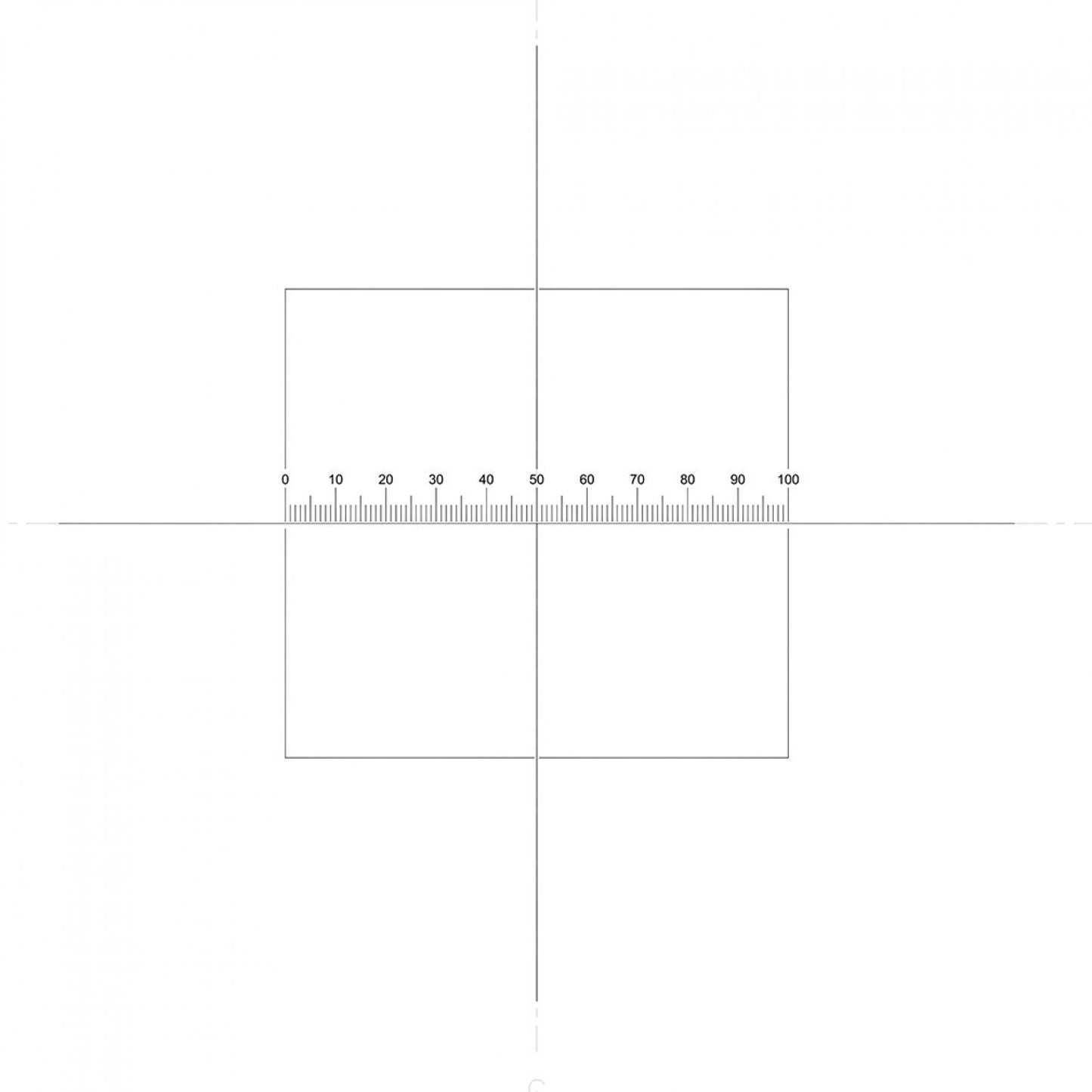

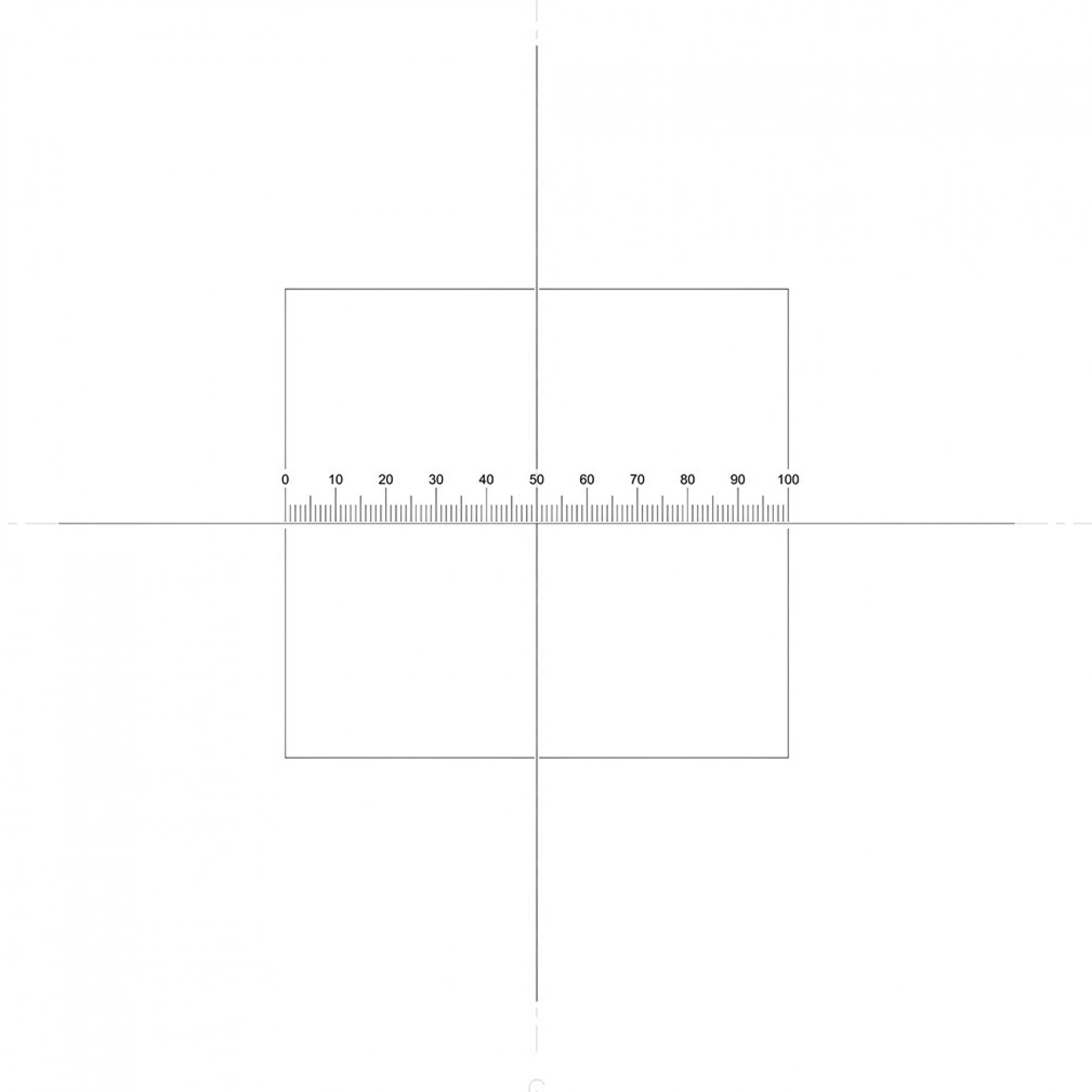

Eyepiece Reticle with 10mm Horizontal Micrometer Scale subdivided into100 divisions of 0.1mm (100µm) with centered Crossline for alignment and 10mm Square

Line Thickness

0.010mm +/-0.003mm

Glass Type and Thickness

Soda Lime 1.5mm thick

Scale Length Tolerance

+/-0.005mm

Diameter Tolerance

+0/-0.1mm

Divisional Marker Lengths

0.675mm, 0.515mm, 0.330mm

Documentation

SDS

Technical Notes

🚚 Estimated Delivery: 5 - 6 weeks from payment confirmation

View full details
Variant Variant total Quantity Price Variant total
NE7N Horizontal Micrometer Scale 10mm/0.1mm with Crossline & 10mm Square, 16mm diameter (Unit: each)01B16205
NE7N Horizontal Micrometer Scale 10mm/0.1mm with Crossline & 10mm Square, 16mm diameter (Unit: each)01B16205
1.263,78 lei/ea		 0,00 lei
1.263,78 lei/ea 0,00 lei
NE7N Horizontal Micrometer Scale 10mm/0.1mm with Crossline & 10mm Square, 19mm diameter (Unit: each)01B19205
NE7N Horizontal Micrometer Scale 10mm/0.1mm with Crossline & 10mm Square, 19mm diameter (Unit: each)01B19205
1.263,78 lei/ea		 0,00 lei
1.263,78 lei/ea 0,00 lei
NE7N Horizontal Micrometer Scale 10mm/0.1mm with Crossline & 10mm Square, 20.4mm diameter (Unit: each)01B20.4205
NE7N Horizontal Micrometer Scale 10mm/0.1mm with Crossline & 10mm Square, 20.4mm diameter (Unit: each)01B20.4205
1.263,78 lei/ea		 0,00 lei
1.263,78 lei/ea 0,00 lei
NE7N Horizontal Micrometer Scale 10mm/0.1mm with Crossline & 10mm Square, 21mm diameter (Unit: each)01B21205
NE7N Horizontal Micrometer Scale 10mm/0.1mm with Crossline & 10mm Square, 21mm diameter (Unit: each)01B21205
1.263,78 lei/ea		 0,00 lei
1.263,78 lei/ea 0,00 lei
NE7N Horizontal Micrometer Scale 10mm/0.1mm with Crossline & 10mm Square, 23mm diameter (Unit: each)01B23205
NE7N Horizontal Micrometer Scale 10mm/0.1mm with Crossline & 10mm Square, 23mm diameter (Unit: each)01B23205
1.263,78 lei/ea		 0,00 lei
1.263,78 lei/ea 0,00 lei
NE7N Horizontal Micrometer Scale 10mm/0.1mm with Crossline & 10mm Square, 24mm diameter (Unit: each)01B24205
NE7N Horizontal Micrometer Scale 10mm/0.1mm with Crossline & 10mm Square, 24mm diameter (Unit: each)01B24205
1.821,57 lei/ea		 0,00 lei
1.821,57 lei/ea 0,00 lei
NE7N Horizontal Micrometer Scale 10mm/0.1mm with Crossline & 10mm Square, 24.5mm diameter (Unit: each)01B24.5205
NE7N Horizontal Micrometer Scale 10mm/0.1mm with Crossline & 10mm Square, 24.5mm diameter (Unit: each)01B24.5205
1.821,57 lei/ea		 0,00 lei
1.821,57 lei/ea 0,00 lei
NE7N Horizontal Micrometer Scale 10mm/0.1mm with Crossline & 10mm Square, 25mm diameter (Unit: each)01B25205
NE7N Horizontal Micrometer Scale 10mm/0.1mm with Crossline & 10mm Square, 25mm diameter (Unit: each)01B25205
1.821,57 lei/ea		 0,00 lei
1.821,57 lei/ea 0,00 lei
NE7N Horizontal Micrometer Scale 10mm/0.1mm with Crossline & 10mm Square, 26mm diameter (Unit: each)01B26205
NE7N Horizontal Micrometer Scale 10mm/0.1mm with Crossline & 10mm Square, 26mm diameter (Unit: each)01B26205
1.821,57 lei/ea		 0,00 lei
1.821,57 lei/ea 0,00 lei
NE7N Horizontal Micrometer Scale 10mm/0.1mm with Crossline & 10mm Square, 27mm diameter (Unit: each)01B27205
NE7N Horizontal Micrometer Scale 10mm/0.1mm with Crossline & 10mm Square, 27mm diameter (Unit: each)01B27205
1.821,57 lei/ea		 0,00 lei
1.821,57 lei/ea 0,00 lei
NE7N Horizontal Micrometer Scale 10mm/0.1mm with Crossline & 10mm Square, other diameter (Unit: each)NE7NOTHER
NE7N Horizontal Micrometer Scale 10mm/0.1mm with Crossline & 10mm Square, other diameter (Unit: each)NE7NOTHER
2.527,55 lei/ea		 0,00 lei
2.527,55 lei/ea 0,00 lei
