NE77 Horizontal Micrometer Scale, 5mm/0.05mm with Crossline

NE77 Horizontal Micrometer Scale, 5mm/0.05mm with Crossline

Pattern

NE77

Description

Horizontal Scale 5mm/0.05mm + Crosslines

Key features

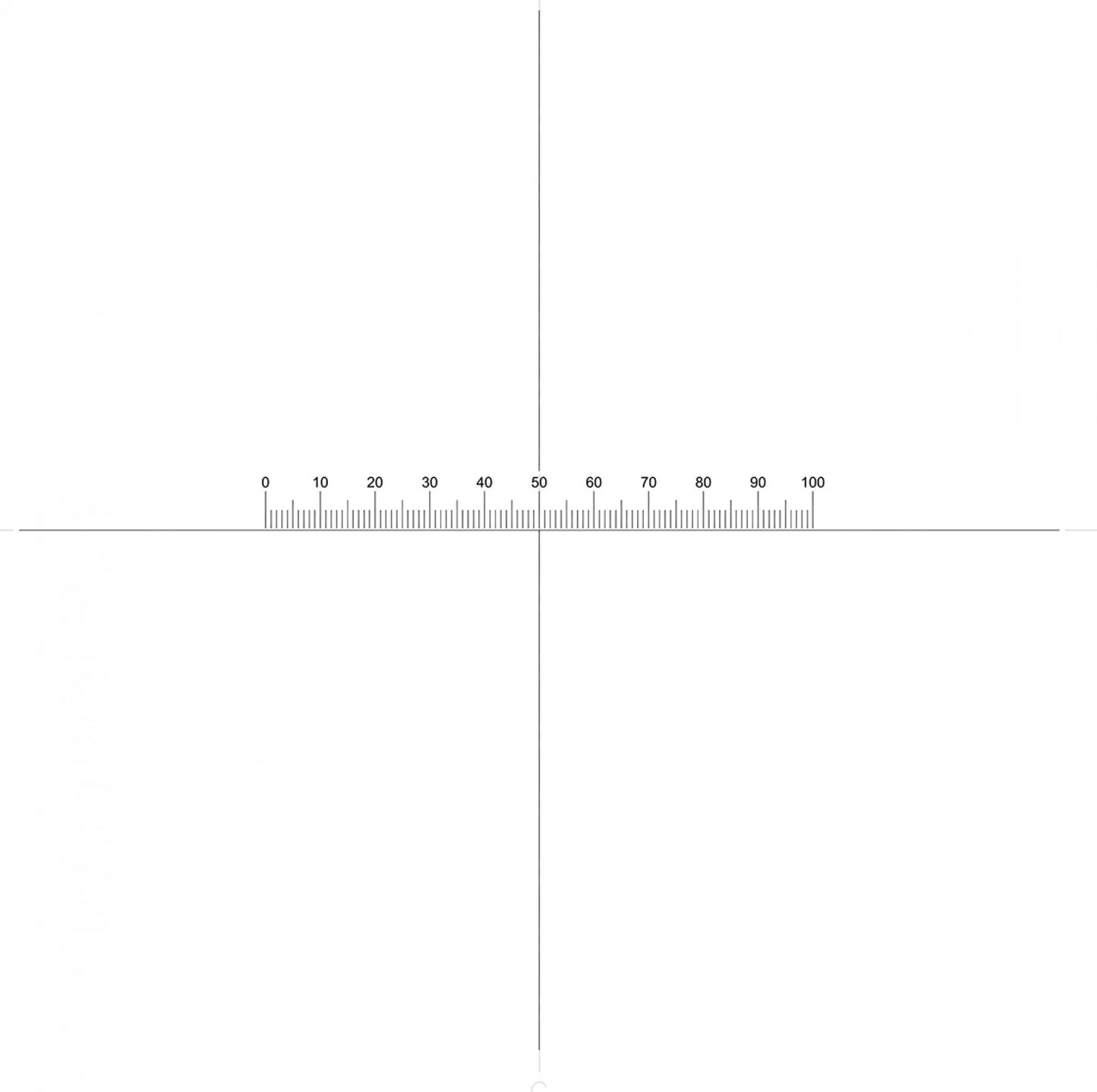

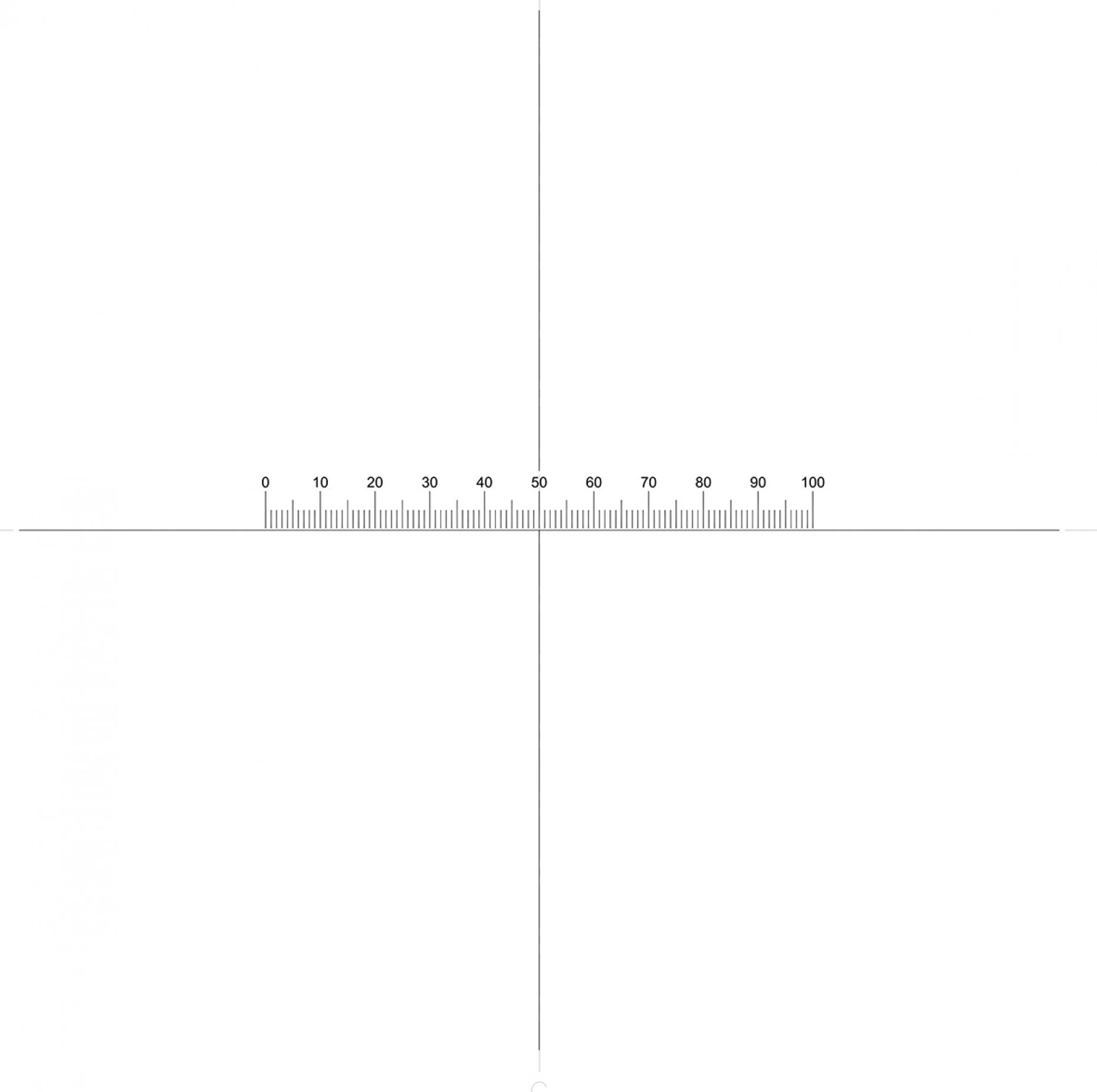

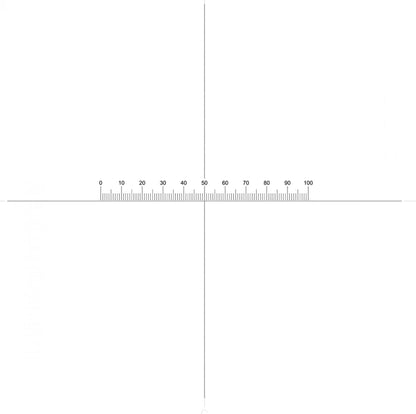

Eyepiece Reticle with 5mm Horizontal Micrometer Scale subdivided into 100 divisions of 0.05mm (50µm), with centered crosslines

Line Thickness

0.005mm +/-0.002mm

Glass Type and Thickness

Soda Lime 1.5mm thick

Scale Length Tolerance

+/-0.005mm

Diameter Tolerance

+0/-0.1mm

Divisional Marker Lengths

0.340mm, 0.260mm, 0.165mm

Orientation

Correct reading through glass

Documentation

SDS

Technical Notes

🚚 Estimated Delivery: 5 - 6 weeks from payment confirmation

View full details
Variant Variant total Quantity Price Variant total
NE77 Horizontal Micrometer Scale, 5mm/0.05mm with Crossline, 16mm diameter (Unit: each)01B16233
NE77 Horizontal Micrometer Scale, 5mm/0.05mm with Crossline, 16mm diameter (Unit: each)01B16233
1.266,02 lei/ea		 0,00 lei
1.266,02 lei/ea 0,00 lei
NE77 Horizontal Micrometer Scale, 5mm/0.05mm with Crossline, 19mm diameter (Unit: each)01B19233
NE77 Horizontal Micrometer Scale, 5mm/0.05mm with Crossline, 19mm diameter (Unit: each)01B19233
1.266,02 lei/ea		 0,00 lei
1.266,02 lei/ea 0,00 lei
NE77 Horizontal Micrometer Scale, 5mm/0.05mm with Crossline, 20.4mm diameter (Unit: each)01B20.4233
NE77 Horizontal Micrometer Scale, 5mm/0.05mm with Crossline, 20.4mm diameter (Unit: each)01B20.4233
1.266,02 lei/ea		 0,00 lei
1.266,02 lei/ea 0,00 lei
NE77 Horizontal Micrometer Scale, 5mm/0.05mm with Crossline, 21mm diameter (Unit: each)01B21233
NE77 Horizontal Micrometer Scale, 5mm/0.05mm with Crossline, 21mm diameter (Unit: each)01B21233
1.266,02 lei/ea		 0,00 lei
1.266,02 lei/ea 0,00 lei
NE77 Horizontal Micrometer Scale, 5mm/0.05mm with Crossline, 23mm diameter (Unit: each)01B23233
NE77 Horizontal Micrometer Scale, 5mm/0.05mm with Crossline, 23mm diameter (Unit: each)01B23233
1.266,02 lei/ea		 0,00 lei
1.266,02 lei/ea 0,00 lei
NE77 Horizontal Micrometer Scale, 5mm/0.05mm with Crossline, 24mm diameter (Unit: each)01B24233
NE77 Horizontal Micrometer Scale, 5mm/0.05mm with Crossline, 24mm diameter (Unit: each)01B24233
1.821,57 lei/ea		 0,00 lei
1.821,57 lei/ea 0,00 lei
NE77 Horizontal Micrometer Scale, 5mm/0.05mm with Crossline, 24.5mm diameter (Unit: each)01B24.5233
NE77 Horizontal Micrometer Scale, 5mm/0.05mm with Crossline, 24.5mm diameter (Unit: each)01B24.5233
1.821,57 lei/ea		 0,00 lei
1.821,57 lei/ea 0,00 lei
NE77 Horizontal Micrometer Scale, 5mm/0.05mm with Crossline, 25mm diameter (Unit: each)01B25233
NE77 Horizontal Micrometer Scale, 5mm/0.05mm with Crossline, 25mm diameter (Unit: each)01B25233
1.821,57 lei/ea		 0,00 lei
1.821,57 lei/ea 0,00 lei
NE77 Horizontal Micrometer Scale, 5mm/0.05mm with Crossline, 26mm diameter (Unit: each)01B26233
NE77 Horizontal Micrometer Scale, 5mm/0.05mm with Crossline, 26mm diameter (Unit: each)01B26233
1.821,57 lei/ea		 0,00 lei
1.821,57 lei/ea 0,00 lei
NE77 Horizontal Micrometer Scale, 5mm/0.05mm with Crossline, 27mm diameter (Unit: each)01B27233
NE77 Horizontal Micrometer Scale, 5mm/0.05mm with Crossline, 27mm diameter (Unit: each)01B27233
1.821,57 lei/ea		 0,00 lei
1.821,57 lei/ea 0,00 lei
NE77 Horizontal Micrometer Scale, 5mm/0.05mm with Crossline, other diameter (Unit: each)NE77OTHER
NE77 Horizontal Micrometer Scale, 5mm/0.05mm with Crossline, other diameter (Unit: each)NE77OTHER
2.531,73 lei/ea		 0,00 lei
2.531,73 lei/ea 0,00 lei
