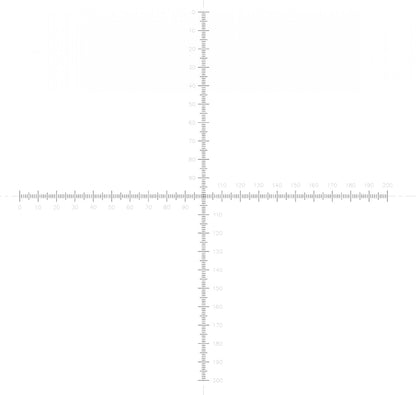

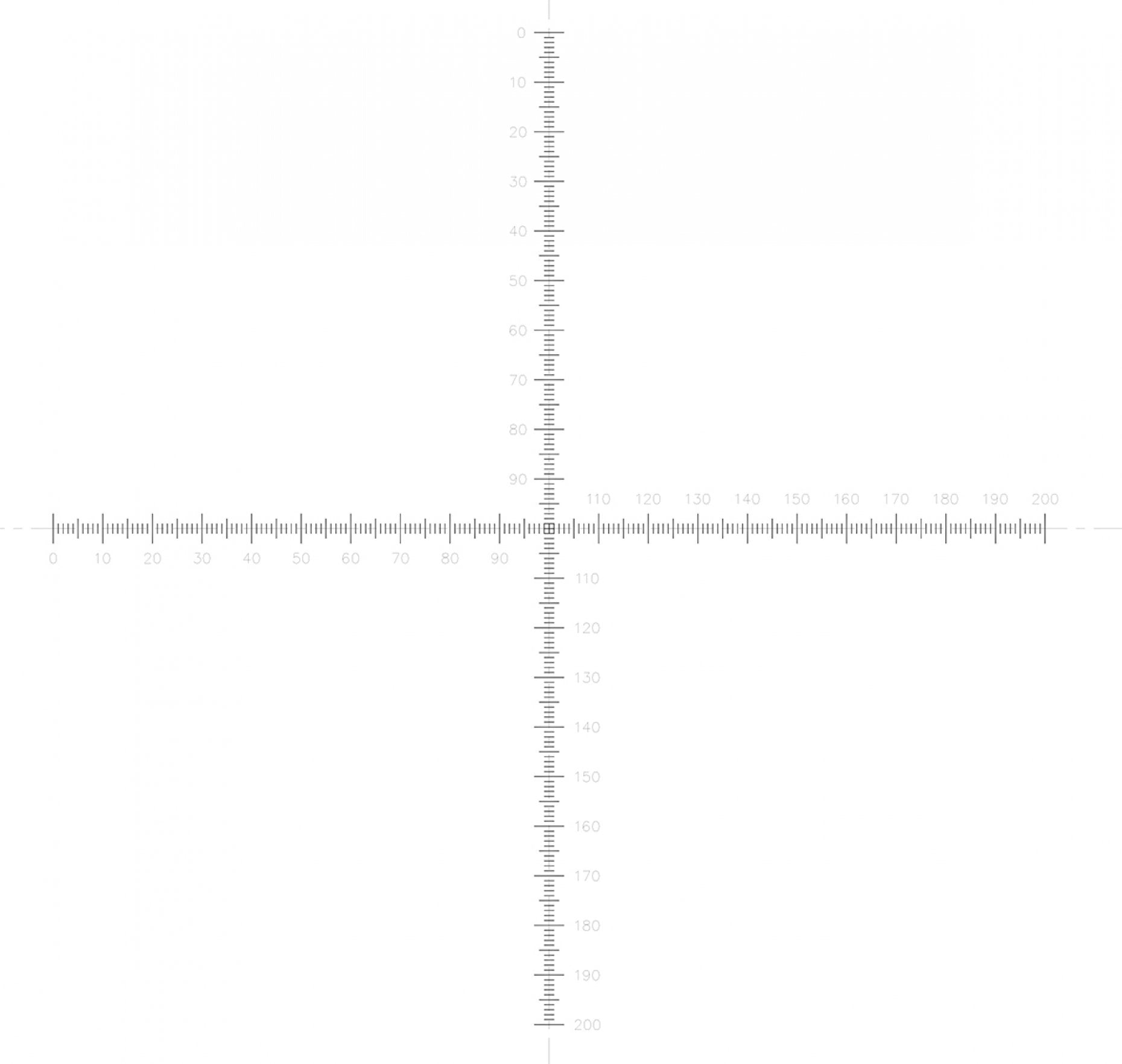

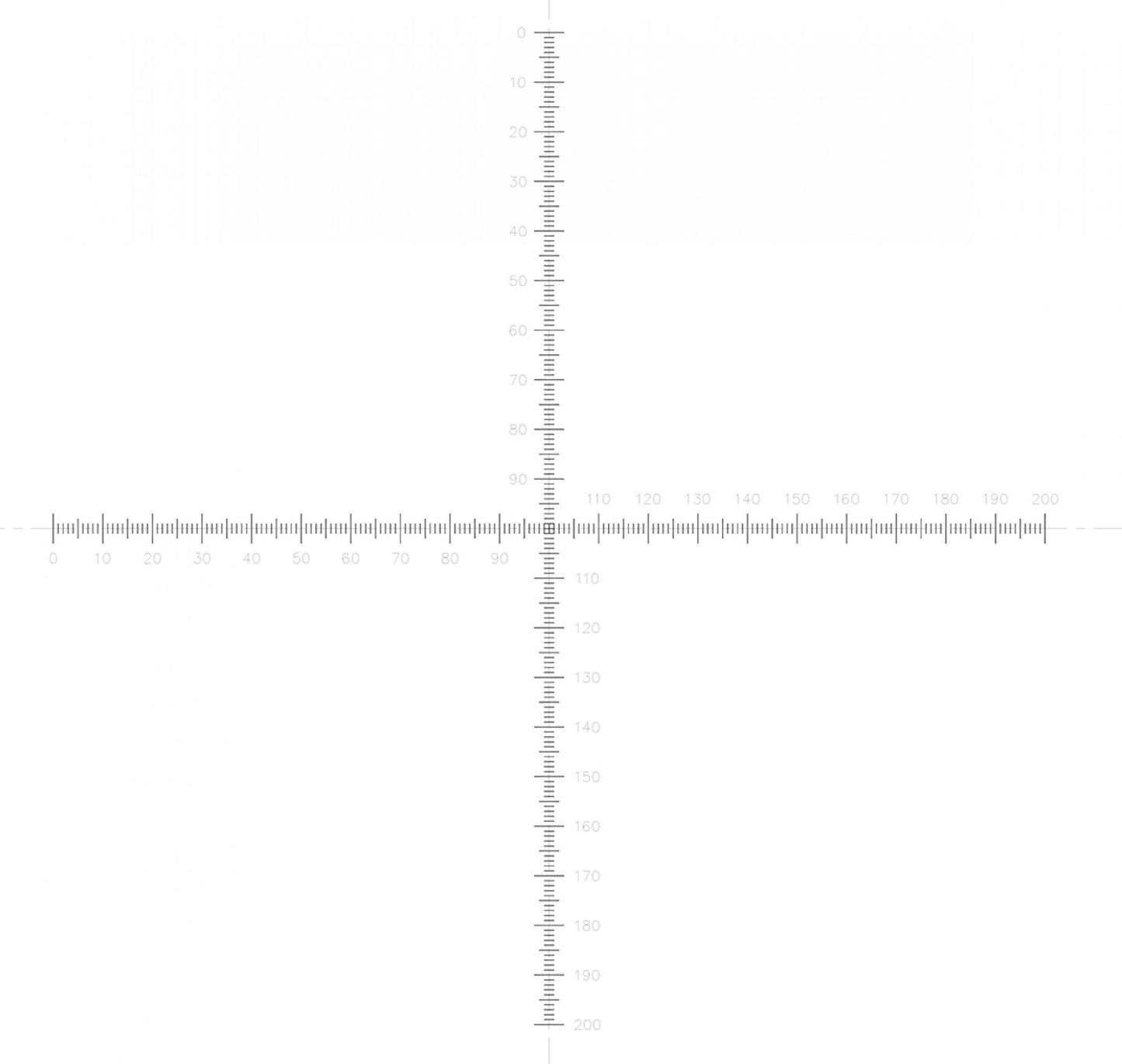

NE72 Crossed micrometer scales, 20mm scales subdivided into 0.1mm divisions

NE72 Crossed micrometer scales, 20mm scales subdivided into 0.1mm divisions

Pattern

NE72

Description

Crossed Scales 20mm/0.1mm

Key features

Eyepiece Reticle with 20mm Crossed micrometer scales subdivided into 200 divisions of 0.1mm (100µm)

Line Thickness

0.012mm +/-0.003mm

Glass Type and Thickness

Soda Lime 1.5mm thick

Scale Length Tolerance

+/-0.005mm

Diameter Tolerance

+0/-0.1mm

Divisional Marker Lengths

0.6mm, 0.4mm, 0.2mm

Orientation

Correct reading through glass

Documentation

SDS

Technical Notes

🚚 Estimated Delivery: 5 - 6 weeks from payment confirmation

View full details
Variant Variant total Quantity Price Variant total
NE72 Crossed micrometer scales, 20mm scales subdivided into 0.1mm divisions, 23mm diameter (Unit: each)01B23303
NE72 Crossed micrometer scales, 20mm scales subdivided into 0.1mm divisions, 23mm diameter (Unit: each)01B23303
1.391,54 lei/ea		 0,00 lei
1.391,54 lei/ea 0,00 lei
NE72 Crossed micrometer scales, 20mm scales subdivided into 0.1mm divisions, 24mm diameter (Unit: each)01B24303
NE72 Crossed micrometer scales, 20mm scales subdivided into 0.1mm divisions, 24mm diameter (Unit: each)01B24303
1.776,63 lei/ea		 0,00 lei
1.776,63 lei/ea 0,00 lei
NE72 Crossed micrometer scales, 20mm scales subdivided into 0.1mm divisions, 24.5mm diameter (Unit: each)01B24.5303
NE72 Crossed micrometer scales, 20mm scales subdivided into 0.1mm divisions, 24.5mm diameter (Unit: each)01B24.5303
1.776,63 lei/ea		 0,00 lei
1.776,63 lei/ea 0,00 lei
NE72 Crossed micrometer scales, 20mm scales subdivided into 0.1mm divisions, 25mm diameter (Unit: each)01B25303
NE72 Crossed micrometer scales, 20mm scales subdivided into 0.1mm divisions, 25mm diameter (Unit: each)01B25303
1.776,63 lei/ea		 0,00 lei
1.776,63 lei/ea 0,00 lei
NE72 Crossed micrometer scales, 20mm scales subdivided into 0.1mm divisions, 26mm diameter (Unit: each)01B26303
NE72 Crossed micrometer scales, 20mm scales subdivided into 0.1mm divisions, 26mm diameter (Unit: each)01B26303
1.776,63 lei/ea		 0,00 lei
1.776,63 lei/ea 0,00 lei
NE72 Crossed micrometer scales, 20mm scales subdivided into 0.1mm divisions, 27mm diameter (Unit: each)01B27303
NE72 Crossed micrometer scales, 20mm scales subdivided into 0.1mm divisions, 27mm diameter (Unit: each)01B27303
1.776,63 lei/ea		 0,00 lei
1.776,63 lei/ea 0,00 lei
NE72 Crossed micrometer scales, 20mm scales subdivided into 0.1mm divisions, other diameter (Unit: each)NE72OTHER
NE72 Crossed micrometer scales, 20mm scales subdivided into 0.1mm divisions, other diameter (Unit: each)NE72OTHER
2.277,60 lei/ea		 0,00 lei
2.277,60 lei/ea 0,00 lei
