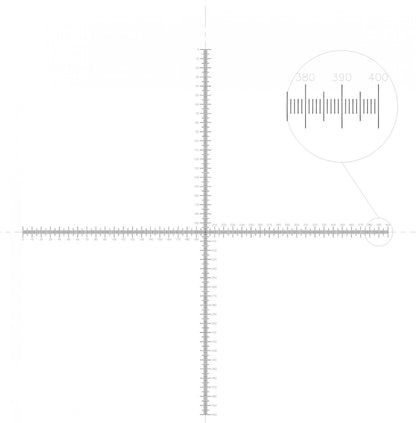

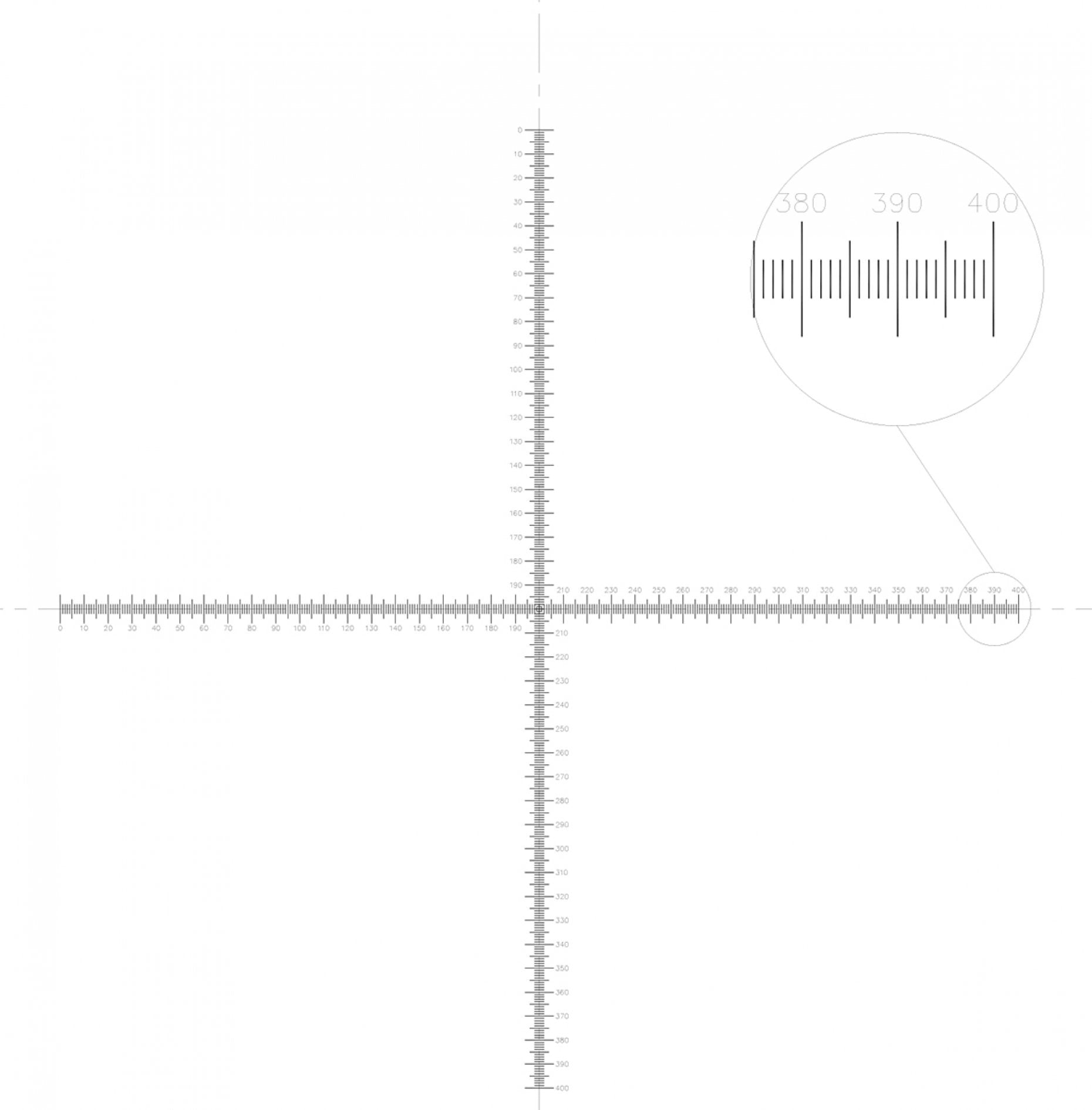

NE70 Crossed micrometer scales, 0.8" scales subdivided into 2" divisions

NE70 Crossed micrometer scales, 0.8" scales subdivided into 2" divisions

Pattern

NE70

Description

Crossed Scales 0.8''/0.002''

Key features

Eyepiece Reticle with 0.8 inch Crossed scales subdivided into 400 divisions of 0.002 inch

Line Thickness

0.007mm +/-0.002

Glass Type and Thickness

Soda Lime 1.5mm thick

Scale Length Tolerance

+/-0.005mm

Diameter Tolerance

+0/-0.1mm

Divisional Marker Lengths

0.61mm, 0.405mm, 0.20mm

Orientation

Correct reading through glass

Documentation

SDS

Technical Notes

🚚 Estimated Delivery: 5 - 6 weeks from payment confirmation

View full details
Variant Variant total Quantity Price Variant total
NE70 Crossed micrometer scales, 0.8" scales subdivided into 2" divisions, 21mm diameter (Unit: each)01B21301
NE70 Crossed micrometer scales, 0.8" scales subdivided into 2" divisions, 21mm diameter (Unit: each)01B21301
1.391,54 lei/ea		 0,00 lei
1.391,54 lei/ea 0,00 lei
NE70 Crossed micrometer scales, 0.8" scales subdivided into 2" divisions, 23mm diameter (Unit: each)01B23301
NE70 Crossed micrometer scales, 0.8" scales subdivided into 2" divisions, 23mm diameter (Unit: each)01B23301
1.391,54 lei/ea		 0,00 lei
1.391,54 lei/ea 0,00 lei
NE70 Crossed micrometer scales, 0.8" scales subdivided into 2" divisions, 24mm diameter (Unit: each)01B24301
NE70 Crossed micrometer scales, 0.8" scales subdivided into 2" divisions, 24mm diameter (Unit: each)01B24301
1.776,63 lei/ea		 0,00 lei
1.776,63 lei/ea 0,00 lei
NE70 Crossed micrometer scales, 0.8" scales subdivided into 2" divisions, 24.5mm diameter (Unit: each)01B24.5301
NE70 Crossed micrometer scales, 0.8" scales subdivided into 2" divisions, 24.5mm diameter (Unit: each)01B24.5301
1.776,63 lei/ea		 0,00 lei
1.776,63 lei/ea 0,00 lei
NE70 Crossed micrometer scales, 0.8" scales subdivided into 2" divisions, 25mm diameter (Unit: each)01B25301
NE70 Crossed micrometer scales, 0.8" scales subdivided into 2" divisions, 25mm diameter (Unit: each)01B25301
1.776,63 lei/ea		 0,00 lei
1.776,63 lei/ea 0,00 lei
NE70 Crossed micrometer scales, 0.8" scales subdivided into 2" divisions, 26mm diameter (Unit: each)01B26301
NE70 Crossed micrometer scales, 0.8" scales subdivided into 2" divisions, 26mm diameter (Unit: each)01B26301
1.776,63 lei/ea		 0,00 lei
1.776,63 lei/ea 0,00 lei
NE70 Crossed micrometer scales, 0.8" scales subdivided into 2" divisions, 27mm diameter (Unit: each)01B27301
NE70 Crossed micrometer scales, 0.8" scales subdivided into 2" divisions, 27mm diameter (Unit: each)01B27301
1.776,63 lei/ea		 0,00 lei
1.776,63 lei/ea 0,00 lei
NE70 Crossed micrometer scales, 0.8" scales subdivided into 2" divisions, other diameter (Unit: each)NE70OTHER
NE70 Crossed micrometer scales, 0.8" scales subdivided into 2" divisions, other diameter (Unit: each)NE70OTHER
2.277,60 lei/ea		 0,00 lei
2.277,60 lei/ea 0,00 lei
