NE7 Horizontal Micrometer Scale 10mm/0.1mm with Crosslines

NE7 Horizontal Micrometer Scale 10mm/0.1mm with Crosslines

Pattern

NE7

Description

Horizontal Scale 10mm/0.1mm + Crossline

Key features

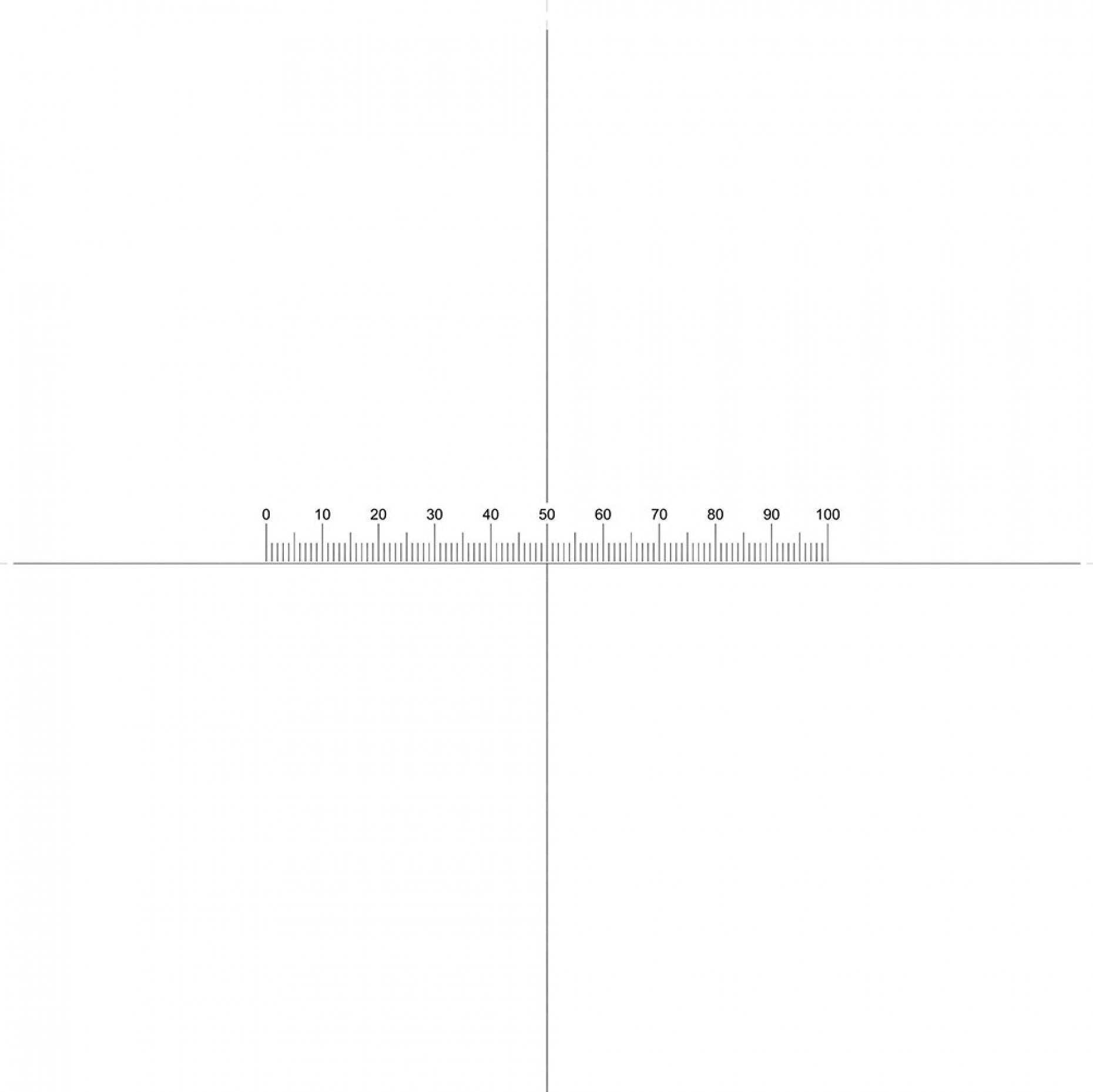

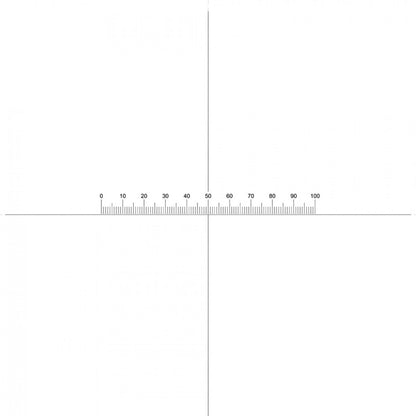

Eyepiece Reticle with 10mm Horizontal Micrometer Scale subdivided into 100 divisions of 0.1mm (100µm) with centered Crossline for alignment

Line Thickness

0.010mm +/-0.003mm

Glass Type and Thickness

Soda Lime 1.5mm thick

Scale Length Tolerance

+/-0.005mm

Diameter Tolerance

+0/-0.1mm

Divisional Marker Lengths

0.675mm, 10.515mm, 0.330mm

Orientation

Correct reading through glass

Documentation

SDS

Technical Notes

🚚 Estimated Delivery: 5 - 6 weeks from payment confirmation

View full details
Variant Variant total Quantity Price Variant total
NE7 Horizontal Micrometer Scale 10mm/0.1mm with Crosslines, 16mm diameter (Unit: each)01B16204
NE7 Horizontal Micrometer Scale 10mm/0.1mm with Crosslines, 16mm diameter (Unit: each)01B16204
1.263,78 lei/ea		 0,00 lei
1.263,78 lei/ea 0,00 lei
NE7 Horizontal Micrometer Scale 10mm/0.1mm with Crosslines, 19mm diameter (Unit: each)01B19204
NE7 Horizontal Micrometer Scale 10mm/0.1mm with Crosslines, 19mm diameter (Unit: each)01B19204
1.263,78 lei/ea		 0,00 lei
1.263,78 lei/ea 0,00 lei
NE7 Horizontal Micrometer Scale 10mm/0.1mm with Crosslines, 20.4mm diameter (Unit: each)01B20.4204
NE7 Horizontal Micrometer Scale 10mm/0.1mm with Crosslines, 20.4mm diameter (Unit: each)01B20.4204
1.263,78 lei/ea		 0,00 lei
1.263,78 lei/ea 0,00 lei
NE7 Horizontal Micrometer Scale 10mm/0.1mm with Crosslines, 21mm diameter (Unit: each)01B21204
NE7 Horizontal Micrometer Scale 10mm/0.1mm with Crosslines, 21mm diameter (Unit: each)01B21204
1.263,78 lei/ea		 0,00 lei
1.263,78 lei/ea 0,00 lei
NE7 Horizontal Micrometer Scale 10mm/0.1mm with Crosslines, 23mm diameter (Unit: each)01B23204
NE7 Horizontal Micrometer Scale 10mm/0.1mm with Crosslines, 23mm diameter (Unit: each)01B23204
1.263,78 lei/ea		 0,00 lei
1.263,78 lei/ea 0,00 lei
NE7 Horizontal Micrometer Scale 10mm/0.1mm with Crosslines, 24mm diameter (Unit: each)01B24204
NE7 Horizontal Micrometer Scale 10mm/0.1mm with Crosslines, 24mm diameter (Unit: each)01B24204
1.821,57 lei/ea		 0,00 lei
1.821,57 lei/ea 0,00 lei
NE7 Horizontal Micrometer Scale 10mm/0.1mm with Crosslines, 24.5mm diameter (Unit: each)01B24.5204
NE7 Horizontal Micrometer Scale 10mm/0.1mm with Crosslines, 24.5mm diameter (Unit: each)01B24.5204
1.821,57 lei/ea		 0,00 lei
1.821,57 lei/ea 0,00 lei
NE7 Horizontal Micrometer Scale 10mm/0.1mm with Crosslines, 25mm diameter (Unit: each)01B25204
NE7 Horizontal Micrometer Scale 10mm/0.1mm with Crosslines, 25mm diameter (Unit: each)01B25204
1.821,57 lei/ea		 0,00 lei
1.821,57 lei/ea 0,00 lei
NE7 Horizontal Micrometer Scale 10mm/0.1mm with Crosslines, 26mm diameter (Unit: each)01B26204
NE7 Horizontal Micrometer Scale 10mm/0.1mm with Crosslines, 26mm diameter (Unit: each)01B26204
1.821,57 lei/ea		 0,00 lei
1.821,57 lei/ea 0,00 lei
NE7 Horizontal Micrometer Scale 10mm/0.1mm with Crosslines, 27mm diameter (Unit: each)01B27204
NE7 Horizontal Micrometer Scale 10mm/0.1mm with Crosslines, 27mm diameter (Unit: each)01B27204
1.821,57 lei/ea		 0,00 lei
1.821,57 lei/ea 0,00 lei
NE7 Horizontal Micrometer Scale 10mm/0.1mm with Crosslines, other diameter (Unit: each)NE7OTHER
NE7 Horizontal Micrometer Scale 10mm/0.1mm with Crosslines, other diameter (Unit: each)NE7OTHER
1.821,57 lei/ea		 0,00 lei
1.821,57 lei/ea 0,00 lei
