NE54 Vertical Lines 0.2mm apart

NE54 Vertical Lines 0.2mm apart

Pattern

NE54

Description

Vertical Gauge Lines 0.2mm apart + Horizontal Line

Key features

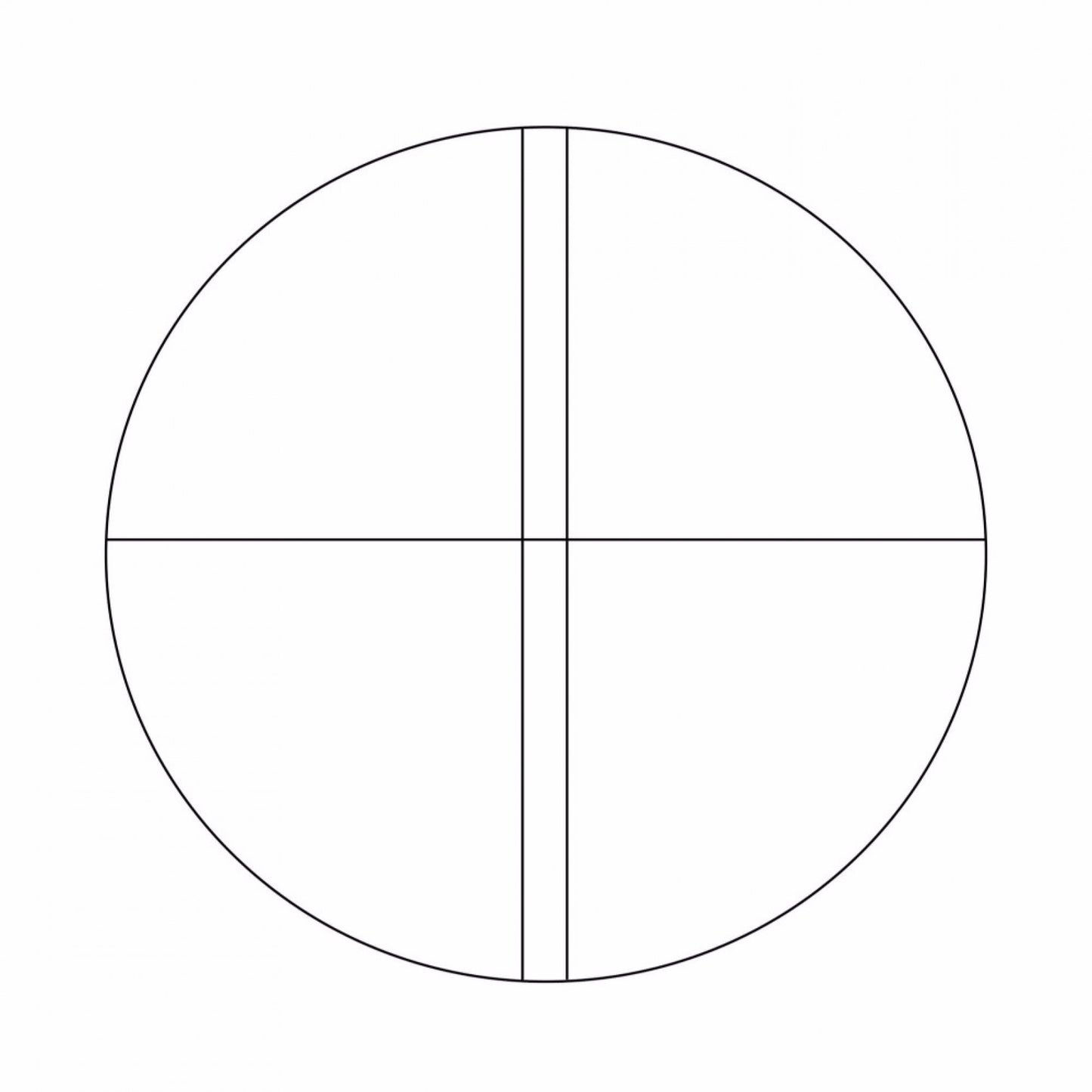

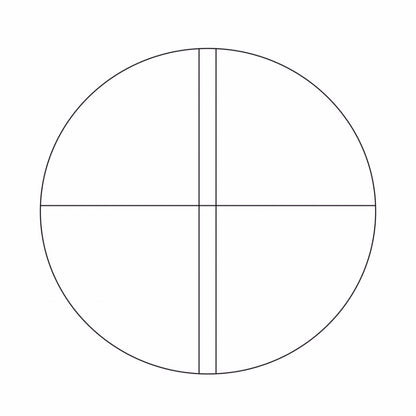

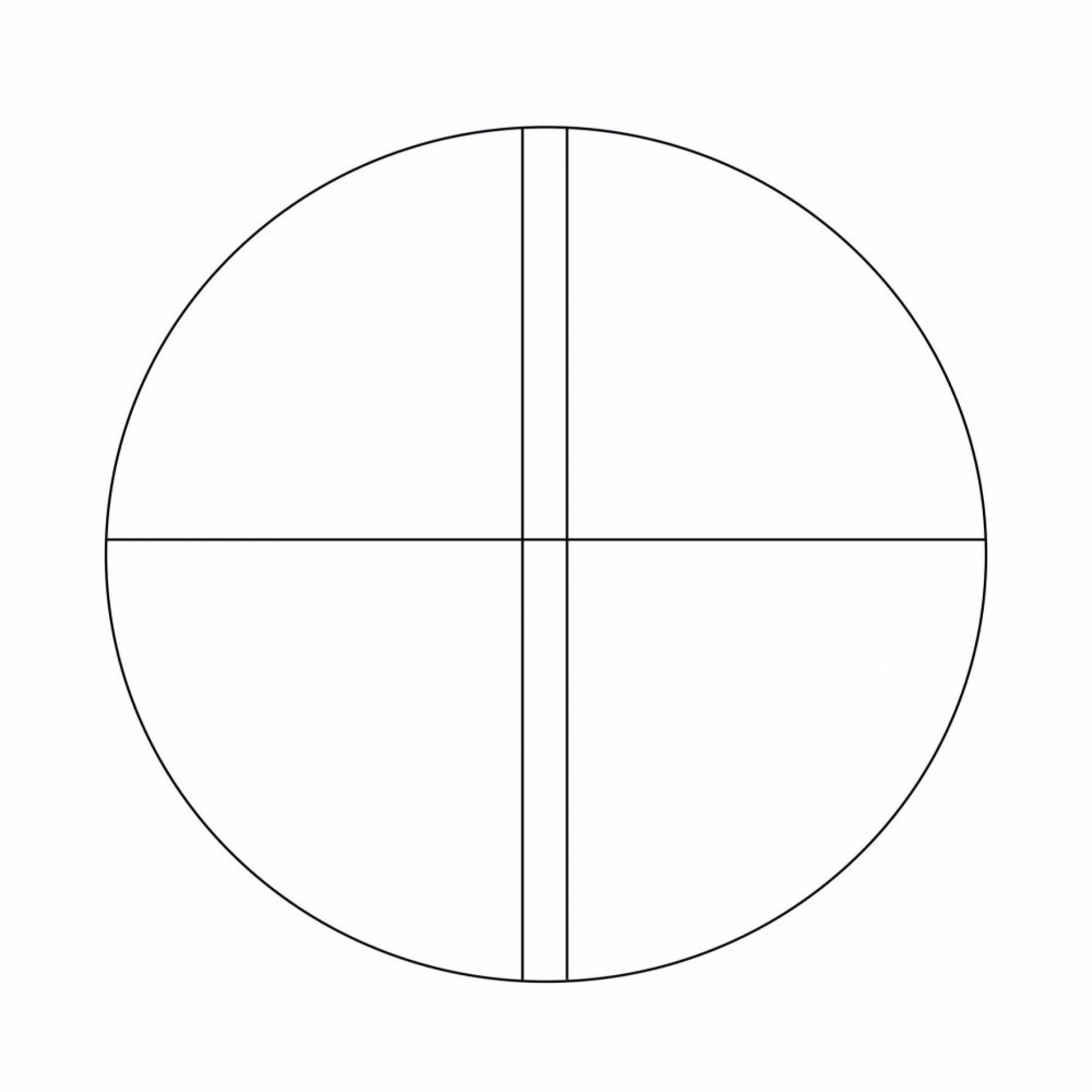

Eyepiece Reticle with two Vertical gauge lines 0.2mm apart and a single horizontal line.
Lines extend to the edge of the reticle

Line Thickness

0.01mm +/-0.002mm

Glass Type and Thickness

Soda Lime 1.5mm thick

Diameter Tolerance

+0/-0.1mm

Image Size

Entire field of view

Orientation

Correct reading through glass

Documentation

SDS

Technical Notes

View full details
Variant Variant total Quantity Price Variant total
NE54 Vertical Lines 0.2mm apart, 16mm diameter (Unit: each)01B16239
NE54 Vertical Lines 0.2mm apart, 16mm diameter (Unit: each)01B16239
512,20 lei/ea		 0,00 lei
512,20 lei/ea 0,00 lei
NE54 Vertical Lines 0.2mm apart, 19mm diameter (Unit: each)01B19239
NE54 Vertical Lines 0.2mm apart, 19mm diameter (Unit: each)01B19239
512,20 lei/ea		 0,00 lei
512,20 lei/ea 0,00 lei
NE54 Vertical Lines 0.2mm apart, 20.4mm diameter (Unit: each)01B20.4239
NE54 Vertical Lines 0.2mm apart, 20.4mm diameter (Unit: each)01B20.4239
512,20 lei/ea		 0,00 lei
512,20 lei/ea 0,00 lei
NE54 Vertical Lines 0.2mm apart, 21mm diameter (Unit: each)01B21239
NE54 Vertical Lines 0.2mm apart, 21mm diameter (Unit: each)01B21239
512,20 lei/ea		 0,00 lei
512,20 lei/ea 0,00 lei
NE54 Vertical Lines 0.2mm apart, 23mm diameter (Unit: each)01B23239
NE54 Vertical Lines 0.2mm apart, 23mm diameter (Unit: each)01B23239
512,20 lei/ea		 0,00 lei
512,20 lei/ea 0,00 lei
NE54 Vertical Lines 0.2mm apart, 24mm diameter (Unit: each)01B24239
NE54 Vertical Lines 0.2mm apart, 24mm diameter (Unit: each)01B24239
653,70 lei/ea		 0,00 lei
653,70 lei/ea 0,00 lei
NE54 Vertical Lines 0.2mm apart, 24.5mm diameter (Unit: each)01B24.5239
NE54 Vertical Lines 0.2mm apart, 24.5mm diameter (Unit: each)01B24.5239
653,70 lei/ea		 0,00 lei
653,70 lei/ea 0,00 lei
NE54 Vertical Lines 0.2mm apart, 25mm diameter (Unit: each)01B25239
NE54 Vertical Lines 0.2mm apart, 25mm diameter (Unit: each)01B25239
653,70 lei/ea		 0,00 lei
653,70 lei/ea 0,00 lei
NE54 Vertical Lines 0.2mm apart, 26mm diameter (Unit: each)01B26239
NE54 Vertical Lines 0.2mm apart, 26mm diameter (Unit: each)01B26239
653,70 lei/ea		 0,00 lei
653,70 lei/ea 0,00 lei
NE54 Vertical Lines 0.2mm apart, 27mm diameter (Unit: each)01B27239
NE54 Vertical Lines 0.2mm apart, 27mm diameter (Unit: each)01B27239
653,70 lei/ea		 0,00 lei
653,70 lei/ea 0,00 lei
NE54 Vertical Lines 0.2mm apart, other diameter (Unit: each)NE54OTHER
NE54 Vertical Lines 0.2mm apart, other diameter (Unit: each)NE54OTHER
1.024,30 lei/ea		 0,00 lei
1.024,30 lei/ea 0,00 lei
