NE53 Vertical lines 0.1mm apart and horizontal line

NE53 Vertical lines 0.1mm apart and horizontal line

Pattern

NE53

Description

Vertical Gauge Lines 0.1mm apart + Horizontal Line

Key features

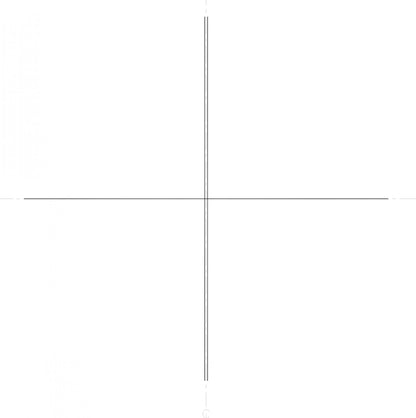

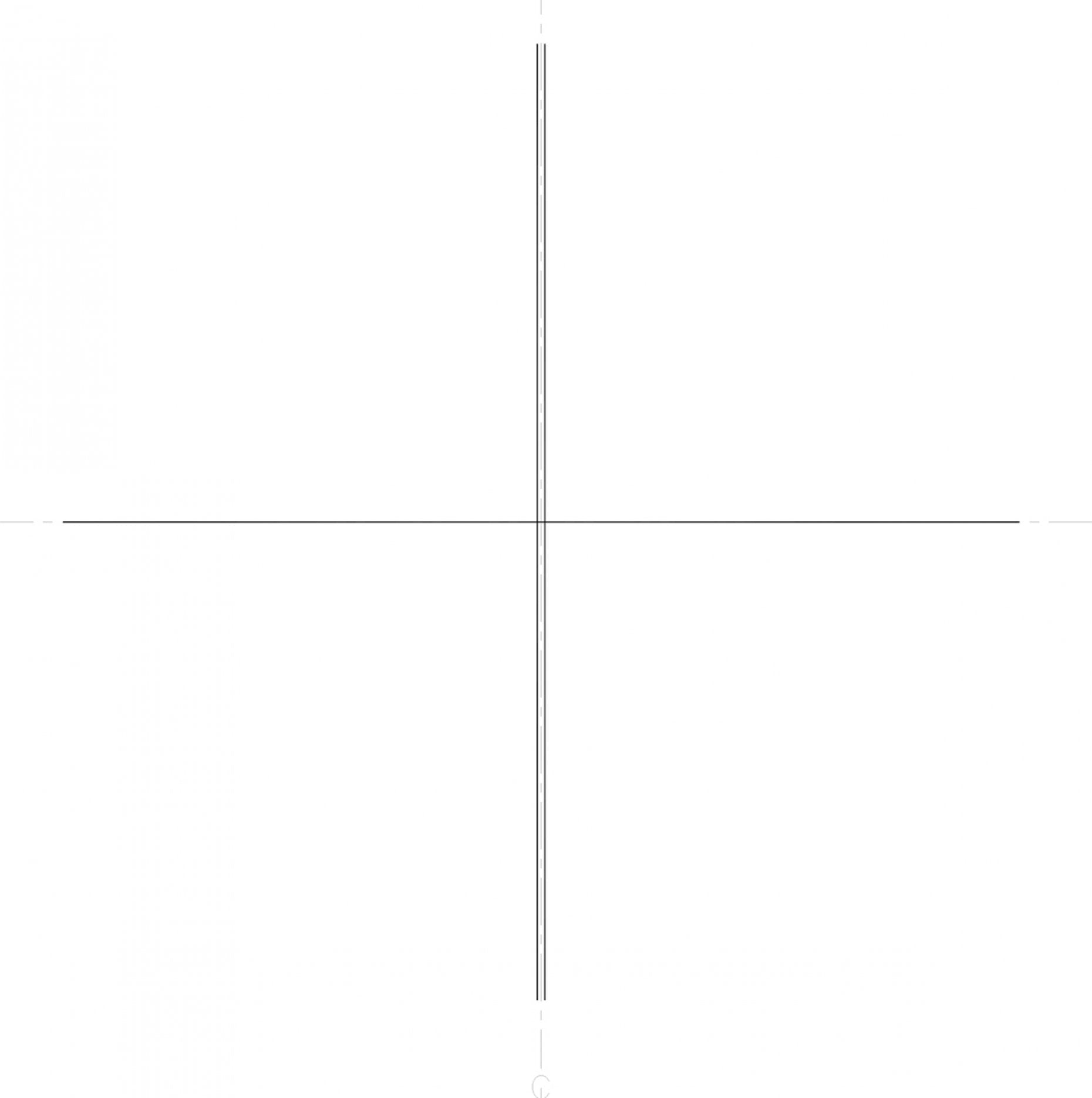

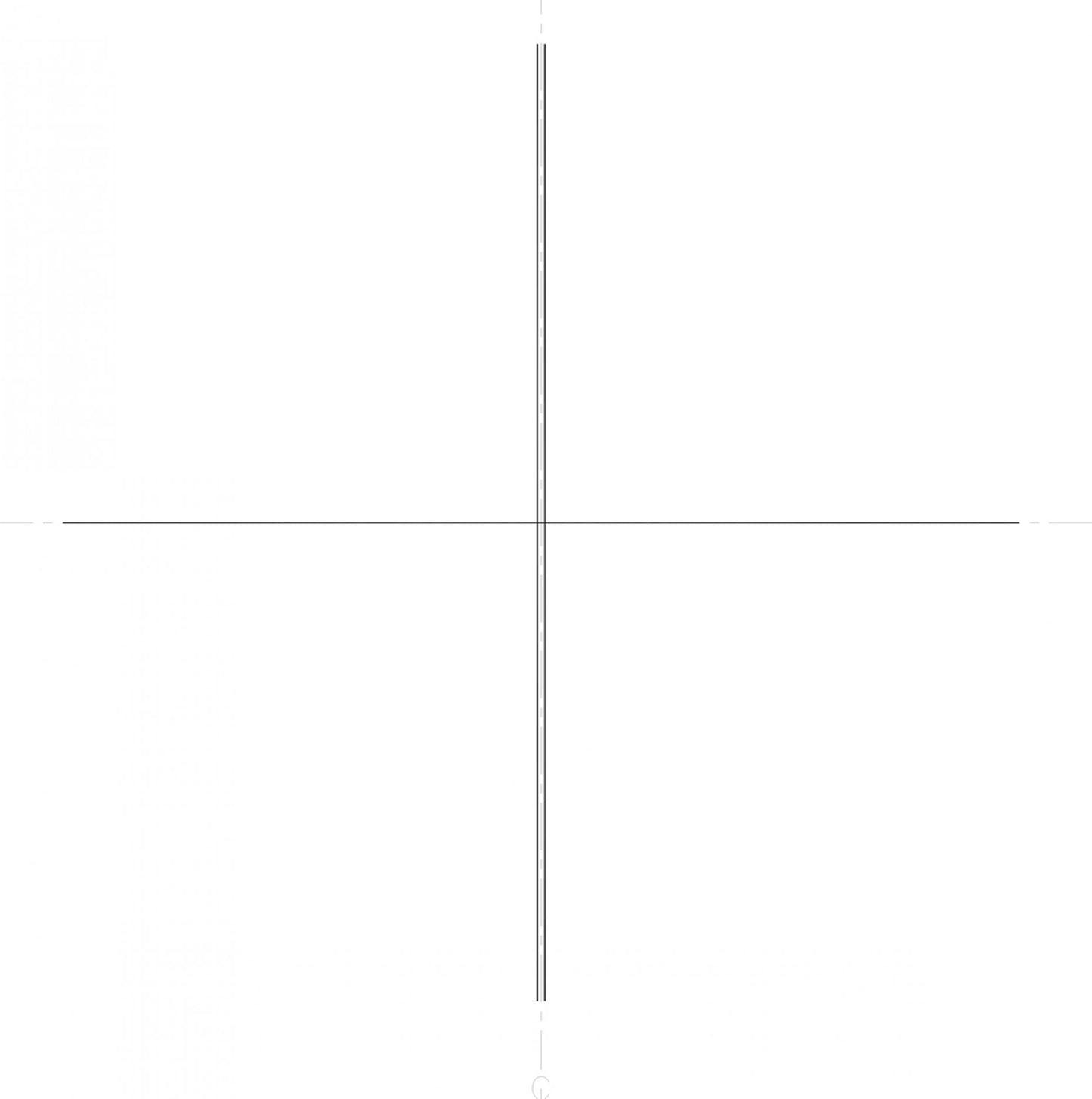

Eyepiece Reticle with two Vertical gauge lines 0.1mm apart and a single horizontal line. Lines extend to the edge of the reticle

Line Thickness

0.013mm +/-0.003mm

Glass Type and Thickness

Soda Lime 1.5mm thick

General Tolerance

+/-0.005mm

Diameter Tolerance

+0/-0.1mm

Orientation

Correct reading through glass

Documentation

SDS

Technical Notes

🚚 Estimated Delivery: 5 - 6 weeks from payment confirmation

View full details
Variant Variant total Quantity Price Variant total
NE53 Vertical lines 0.1mm apart and horizontal line, 16mm diameter (Unit: each)01B16230
NE53 Vertical lines 0.1mm apart and horizontal line, 16mm diameter (Unit: each)01B16230
1.392,07 lei/ea		 0,00 lei
1.392,07 lei/ea 0,00 lei
NE53 Vertical lines 0.1mm apart and horizontal line, 19mm diameter (Unit: each)01B19230
NE53 Vertical lines 0.1mm apart and horizontal line, 19mm diameter (Unit: each)01B19230
1.392,07 lei/ea		 0,00 lei
1.392,07 lei/ea 0,00 lei
NE53 Vertical lines 0.1mm apart and horizontal line, 20.4mm diameter (Unit: each)01B20.4230
NE53 Vertical lines 0.1mm apart and horizontal line, 20.4mm diameter (Unit: each)01B20.4230
1.392,07 lei/ea		 0,00 lei
1.392,07 lei/ea 0,00 lei
NE53 Vertical lines 0.1mm apart and horizontal line, 21mm diameter (Unit: each)01B21230
NE53 Vertical lines 0.1mm apart and horizontal line, 21mm diameter (Unit: each)01B21230
1.392,07 lei/ea		 0,00 lei
1.392,07 lei/ea 0,00 lei
NE53 Vertical lines 0.1mm apart and horizontal line, 23mm diameter (Unit: each)01B23230
NE53 Vertical lines 0.1mm apart and horizontal line, 23mm diameter (Unit: each)01B23230
1.392,07 lei/ea		 0,00 lei
1.392,07 lei/ea 0,00 lei
NE53 Vertical lines 0.1mm apart and horizontal line, 24mm diameter (Unit: each)01B24230
NE53 Vertical lines 0.1mm apart and horizontal line, 24mm diameter (Unit: each)01B24230
1.776,63 lei/ea		 0,00 lei
1.776,63 lei/ea 0,00 lei
NE53 Vertical lines 0.1mm apart and horizontal line, 24.5mm diameter (Unit: each)01B24.5230
NE53 Vertical lines 0.1mm apart and horizontal line, 24.5mm diameter (Unit: each)01B24.5230
1.776,63 lei/ea		 0,00 lei
1.776,63 lei/ea 0,00 lei
NE53 Vertical lines 0.1mm apart and horizontal line, 25mm diameter (Unit: each)01B25230
NE53 Vertical lines 0.1mm apart and horizontal line, 25mm diameter (Unit: each)01B25230
1.776,63 lei/ea		 0,00 lei
1.776,63 lei/ea 0,00 lei
NE53 Vertical lines 0.1mm apart and horizontal line, 26mm diameter (Unit: each)01B26230
NE53 Vertical lines 0.1mm apart and horizontal line, 26mm diameter (Unit: each)01B26230
1.776,63 lei/ea		 0,00 lei
1.776,63 lei/ea 0,00 lei
NE53 Vertical lines 0.1mm apart and horizontal line, 27mm diameter (Unit: each)01B27230
NE53 Vertical lines 0.1mm apart and horizontal line, 27mm diameter (Unit: each)01B27230
1.776,63 lei/ea		 0,00 lei
1.776,63 lei/ea 0,00 lei
NE53 Vertical lines 0.1mm apart and horizontal line, other diameter (Unit: each)NE53OTHER
NE53 Vertical lines 0.1mm apart and horizontal line, other diameter (Unit: each)NE53OTHER
2.783,93 lei/ea		 0,00 lei
2.783,93 lei/ea 0,00 lei
