NE41 Horizontal Scale 10mm/0.05mm

NE41 Horizontal Scale 10mm/0.05mm

Pattern

NE41

Description

Horizontal Scale 10mm/0.05mm

Key features

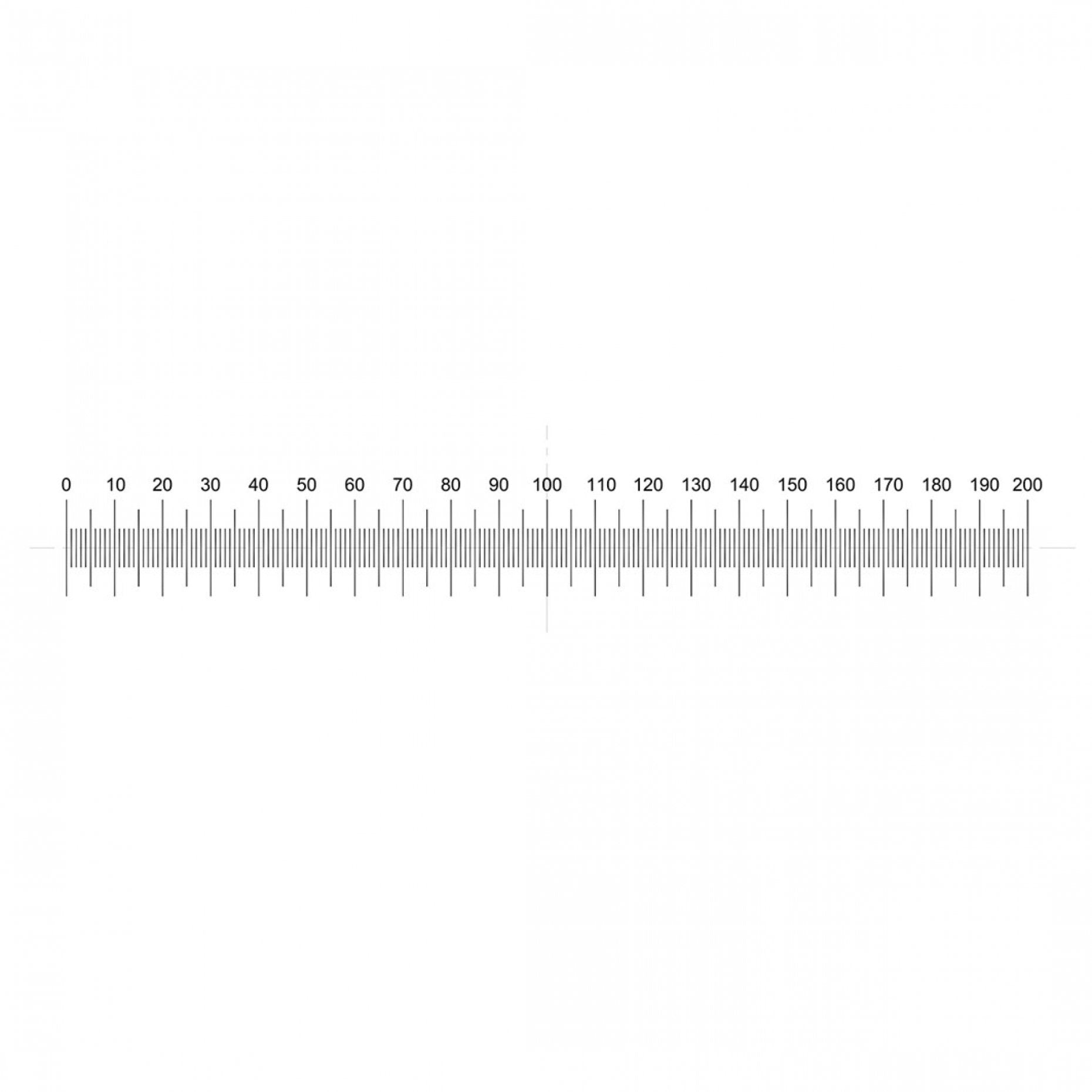

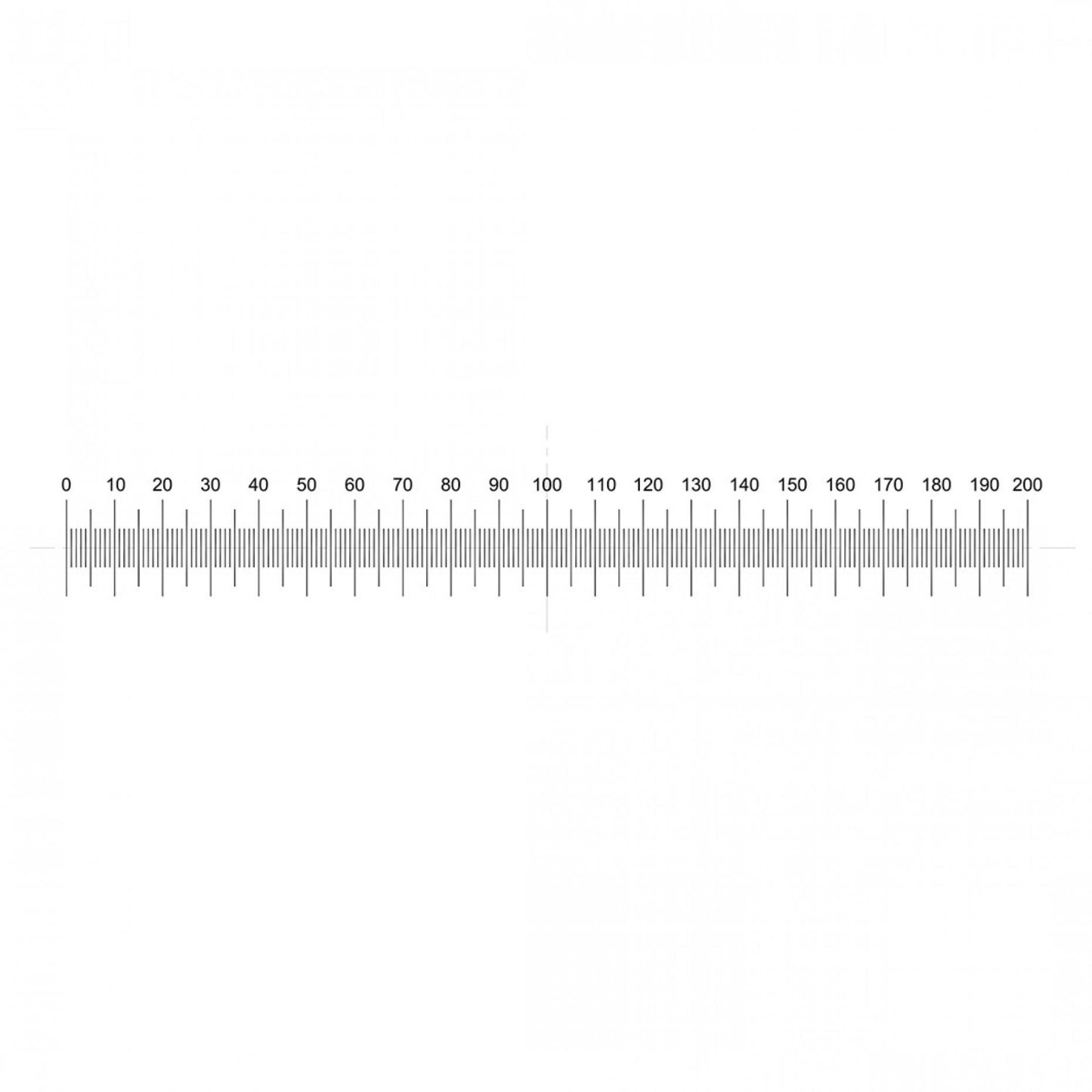

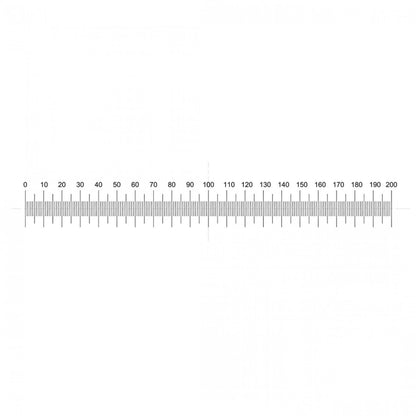

Eyepiece Reticle with 10mm Horizontal Scale subdivided into 200 divisions of 0.05mm (50µm)

Line Thickness

0.007mm +/-0.003mm

Glass Type and Thickness

Soda Lime 1.5mm thick

Scale Length Tolerance

+/-0.005mm

Diameter Tolerance

+0/-0.1mm

Divisional Marker Lengths

1mm, 0.8mm, 0.4mm

Orientation

Correct reading through glass

Documentation

SDS

Technical Notes

🚚 Estimated Delivery: 5 - 6 weeks from payment confirmation

View full details
Variant Variant total Quantity Price Variant total
NE41 Horizontal Scale 10mm/0.05mm, 16mm diameter (Unit: each)01B16223
NE41 Horizontal Scale 10mm/0.05mm, 16mm diameter (Unit: each)01B16223
1.263,78 lei/ea		 0,00 lei
1.263,78 lei/ea 0,00 lei
NE41 Horizontal Scale 10mm/0.05mm, 19mm diameter (Unit: each)01B19223
NE41 Horizontal Scale 10mm/0.05mm, 19mm diameter (Unit: each)01B19223
1.263,78 lei/ea		 0,00 lei
1.263,78 lei/ea 0,00 lei
NE41 Horizontal Scale 10mm/0.05mm, 20.4mm diameter (Unit: each)01B20.4223
NE41 Horizontal Scale 10mm/0.05mm, 20.4mm diameter (Unit: each)01B20.4223
1.263,78 lei/ea		 0,00 lei
1.263,78 lei/ea 0,00 lei
NE41 Horizontal Scale 10mm/0.05mm, 21mm diameter (Unit: each)01B21223
NE41 Horizontal Scale 10mm/0.05mm, 21mm diameter (Unit: each)01B21223
1.263,78 lei/ea		 0,00 lei
1.263,78 lei/ea 0,00 lei
NE41 Horizontal Scale 10mm/0.05mm, 23mm diameter (Unit: each)01B23223
NE41 Horizontal Scale 10mm/0.05mm, 23mm diameter (Unit: each)01B23223
1.263,78 lei/ea		 0,00 lei
1.263,78 lei/ea 0,00 lei
NE41 Horizontal Scale 10mm/0.05mm, 24mm diameter (Unit: each)01B24223
NE41 Horizontal Scale 10mm/0.05mm, 24mm diameter (Unit: each)01B24223
1.821,57 lei/ea		 0,00 lei
1.821,57 lei/ea 0,00 lei
NE41 Horizontal Scale 10mm/0.05mm, 24.5mm diameter (Unit: each)01B24.5223
NE41 Horizontal Scale 10mm/0.05mm, 24.5mm diameter (Unit: each)01B24.5223
1.821,57 lei/ea		 0,00 lei
1.821,57 lei/ea 0,00 lei
NE41 Horizontal Scale 10mm/0.05mm, 25mm diameter (Unit: each)01B25223
NE41 Horizontal Scale 10mm/0.05mm, 25mm diameter (Unit: each)01B25223
1.821,57 lei/ea		 0,00 lei
1.821,57 lei/ea 0,00 lei
NE41 Horizontal Scale 10mm/0.05mm, 26mm diameter (Unit: each)01B26223
NE41 Horizontal Scale 10mm/0.05mm, 26mm diameter (Unit: each)01B26223
1.821,57 lei/ea		 0,00 lei
1.821,57 lei/ea 0,00 lei
NE41 Horizontal Scale 10mm/0.05mm, 27mm diameter (Unit: each)01B27223
NE41 Horizontal Scale 10mm/0.05mm, 27mm diameter (Unit: each)01B27223
1.821,57 lei/ea		 0,00 lei
1.821,57 lei/ea 0,00 lei
NE41 Horizontal Scale 10mm/0.05mm, other diameter (Unit: each)NE41OTHER
NE41 Horizontal Scale 10mm/0.05mm, other diameter (Unit: each)NE41OTHER
2.527,55 lei/ea		 0,00 lei
2.527,55 lei/ea 0,00 lei
