NE28 Horizontal Scale 1mm/0.01mm

NE28 Horizontal Scale 1mm/0.01mm

Pattern

NE28

Description

Horizontal Scale 1mm/0.01mm

Key features

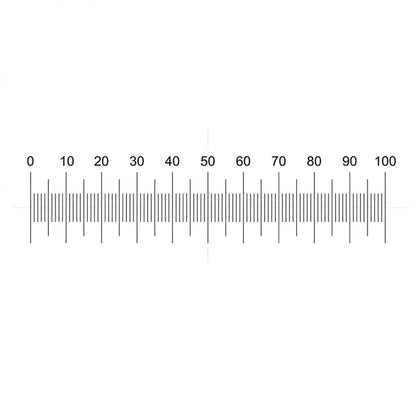

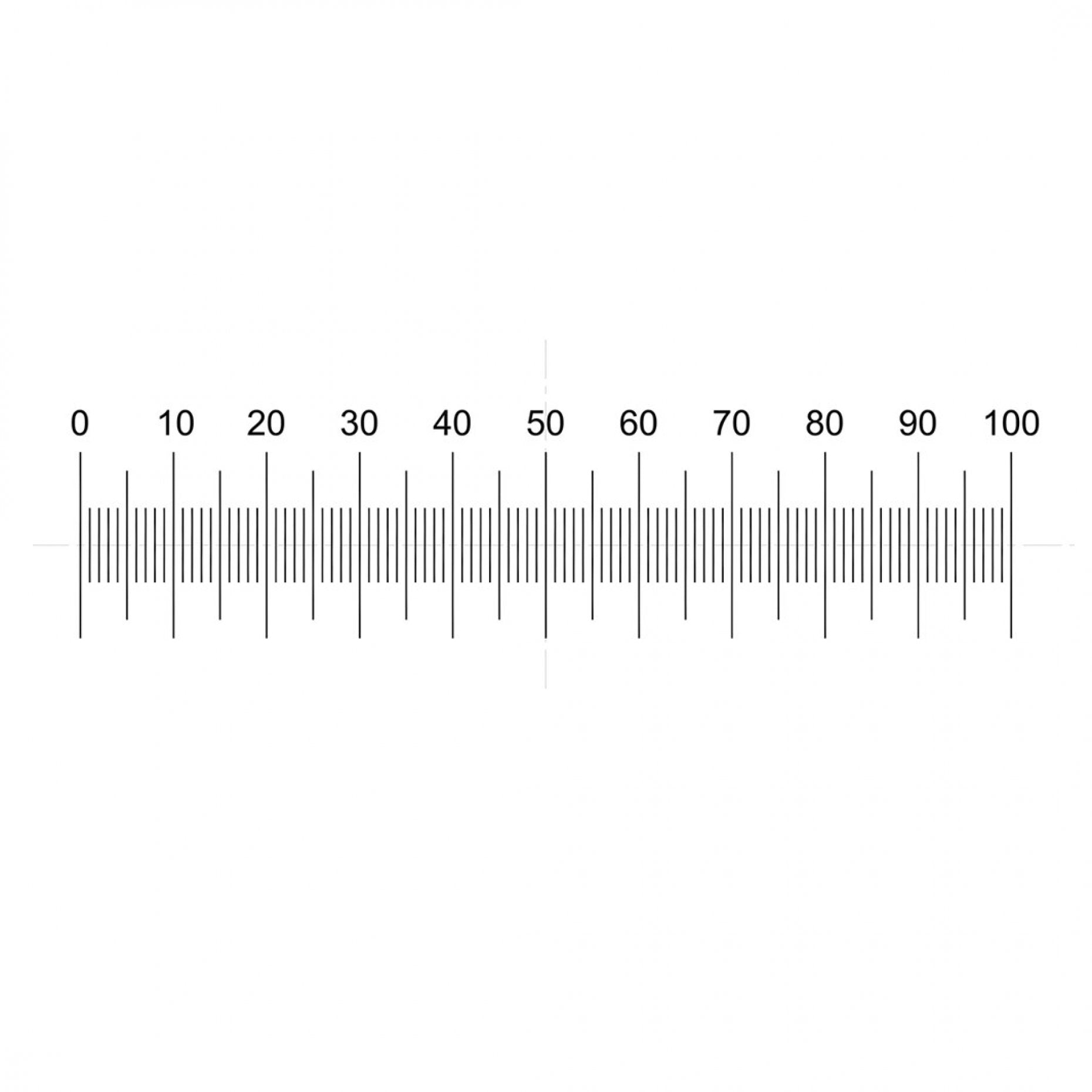

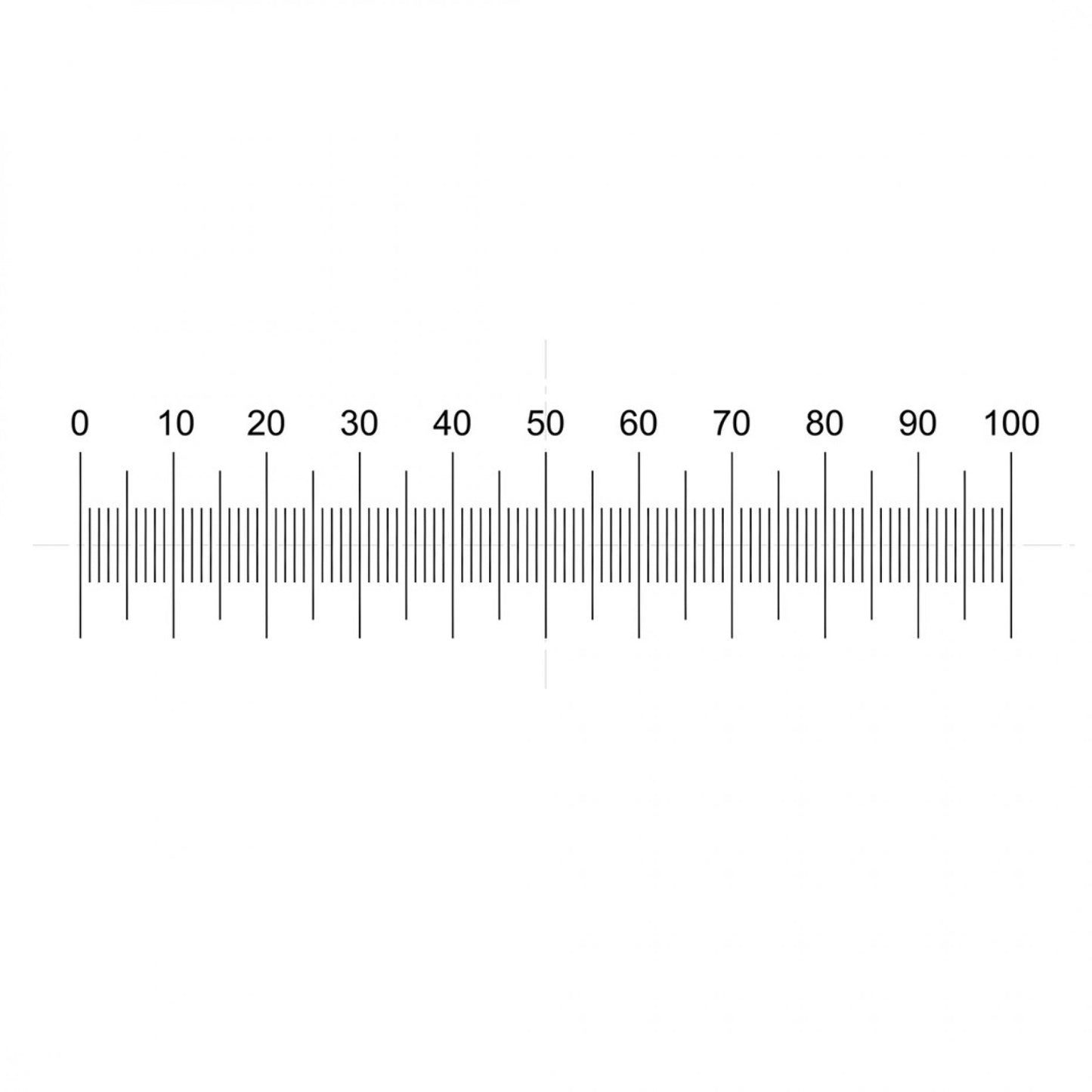

Eyepiece Reticle with 1mm Horizontal Scale subdivided into 100 divisions of 0.01mm (10µm)

Note: This is a scale of 1mm length in 0.01mm divisions. It is very small to view easily with a 10x magnification ocular. Consider this carefully before ordering. You may be better using a longer scale such as our NE1.

Line Thickness

0.003mm +/-0.001mm

Glass Type and Thickness

Soda Lime 1.5mm thick

Scale Length Tolerance

+/-0.002mm

Diameter Tolerance

+0/-0.1mm

Divisional Marker Lengths

0.175mm, 0.125mm, 0.075mm

Orientation

Correct reading through glass

Documentation

SDS

Technical Notes

View full details
Variant Variant total Quantity Price Variant total
NE28 Horizontal Scale 1mm/0.01mm, 16mm diameter (Unit: each)01B16217
NE28 Horizontal Scale 1mm/0.01mm, 16mm diameter (Unit: each)01B16217
512,20 lei/ea		 0,00 lei
512,20 lei/ea 0,00 lei
NE28 Horizontal Scale 1mm/0.01mm, 19mm diameter (Unit: each)01B19217
NE28 Horizontal Scale 1mm/0.01mm, 19mm diameter (Unit: each)01B19217
512,20 lei/ea		 0,00 lei
512,20 lei/ea 0,00 lei
NE28 Horizontal Scale 1mm/0.01mm, 20.4mm diameter (Unit: each)01B20.4217
NE28 Horizontal Scale 1mm/0.01mm, 20.4mm diameter (Unit: each)01B20.4217
512,20 lei/ea		 0,00 lei
512,20 lei/ea 0,00 lei
NE28 Horizontal Scale 1mm/0.01mm, 21mm diameter (Unit: each)01B21217
NE28 Horizontal Scale 1mm/0.01mm, 21mm diameter (Unit: each)01B21217
512,20 lei/ea		 0,00 lei
512,20 lei/ea 0,00 lei
NE28 Horizontal Scale 1mm/0.01mm, 23mm diameter (Unit: each)01B23217
NE28 Horizontal Scale 1mm/0.01mm, 23mm diameter (Unit: each)01B23217
512,20 lei/ea		 0,00 lei
512,20 lei/ea 0,00 lei
NE28 Horizontal Scale 1mm/0.01mm, 24mm diameter (Unit: each)01B24217
NE28 Horizontal Scale 1mm/0.01mm, 24mm diameter (Unit: each)01B24217
653,70 lei/ea		 0,00 lei
653,70 lei/ea 0,00 lei
NE28 Horizontal Scale 1mm/0.01mm, 24.5mm diameter (Unit: each)01B24.5217
NE28 Horizontal Scale 1mm/0.01mm, 24.5mm diameter (Unit: each)01B24.5217
653,70 lei/ea		 0,00 lei
653,70 lei/ea 0,00 lei
NE28 Horizontal Scale 1mm/0.01mm, 25mm diameter (Unit: each)01B25217
NE28 Horizontal Scale 1mm/0.01mm, 25mm diameter (Unit: each)01B25217
653,70 lei/ea		 0,00 lei
653,70 lei/ea 0,00 lei
NE28 Horizontal Scale 1mm/0.01mm, 26mm diameter (Unit: each)01B26217
NE28 Horizontal Scale 1mm/0.01mm, 26mm diameter (Unit: each)01B26217
653,70 lei/ea		 0,00 lei
653,70 lei/ea 0,00 lei
NE28 Horizontal Scale 1mm/0.01mm, 27mm diameter (Unit: each)01B27217
NE28 Horizontal Scale 1mm/0.01mm, 27mm diameter (Unit: each)01B27217
653,70 lei/ea		 0,00 lei
653,70 lei/ea 0,00 lei
NE28 Horizontal Scale 1mm/0.01mm, other diameter (Unit: each)NE28OTHER
NE28 Horizontal Scale 1mm/0.01mm, other diameter (Unit: each)NE28OTHER
1.024,30 lei/ea		 0,00 lei
1.024,30 lei/ea 0,00 lei
