NE18 Crossed Micrometer Scales 5mm/0.05mm

NE18 Crossed Micrometer Scales 5mm/0.05mm

Pattern

NE18

Description

Crossed Scales 5mm/0.05mm

Key features

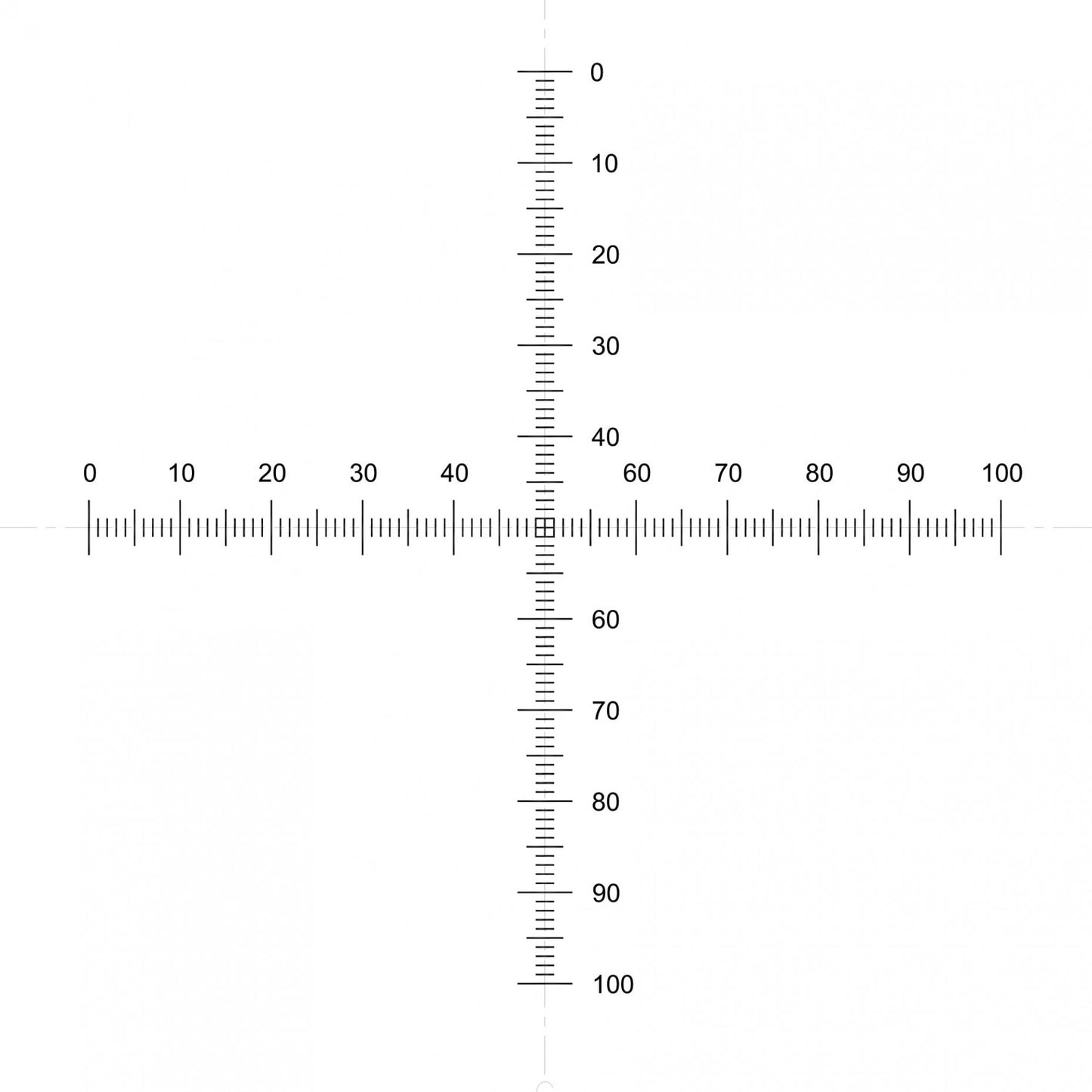

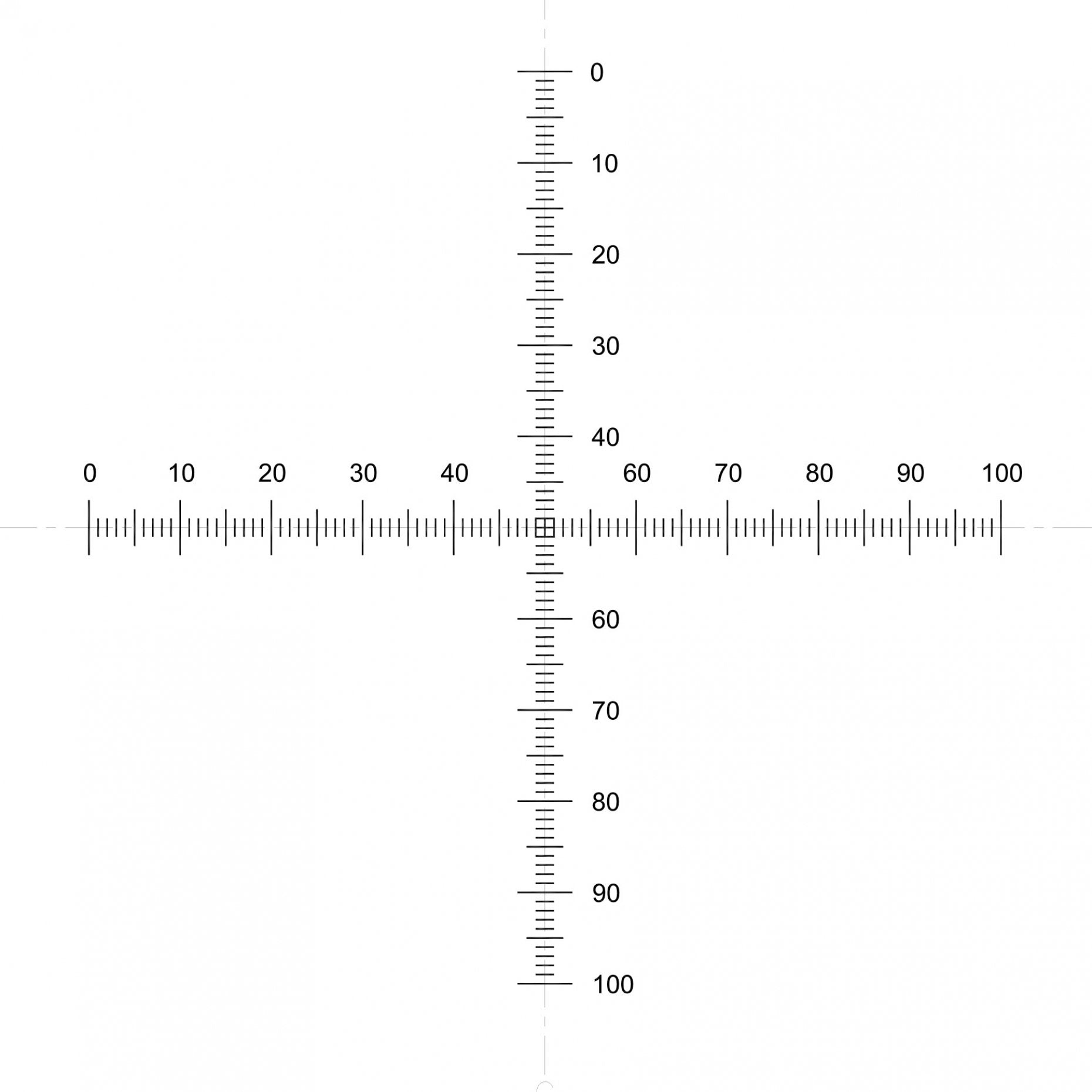

Eyepiece Reticle with 5mm Crossed Micrometer Scales subdivided into 100 divisions of 0.05mm (50µm)

Line Thickness

0.009mm +/-0.003mm

Glass Type and Thickness

Soda Lime 1.5mm thick

Scale Length Tolerance

+/-0.005mm

Diameter Tolerance

+0/-0.1mm

Divisional Marker Lengths

0.3mm, 0.2mm, 0.1mm

Orientation

Correct reading through glass

Documentation

SDS

Technical Notes

🚚 Estimated Delivery: 5 - 6 weeks from payment confirmation

View full details
Variant Variant total Quantity Price Variant total
NE18 Crossed Micrometer Scales 5mm/0.05mm, 16mm diameter (Unit: each)01B16213
NE18 Crossed Micrometer Scales 5mm/0.05mm, 16mm diameter (Unit: each)01B16213
459,35 lei/ea		 0,00 lei
459,35 lei/ea 0,00 lei
NE18 Crossed Micrometer Scales 5mm/0.05mm, 19mm diameter (Unit: each)01B19213
NE18 Crossed Micrometer Scales 5mm/0.05mm, 19mm diameter (Unit: each)01B19213
459,35 lei/ea		 0,00 lei
459,35 lei/ea 0,00 lei
NE18 Crossed Micrometer Scales 5mm/0.05mm, 20.4mm diameter (Unit: each)01B20.4213
NE18 Crossed Micrometer Scales 5mm/0.05mm, 20.4mm diameter (Unit: each)01B20.4213
459,35 lei/ea		 0,00 lei
459,35 lei/ea 0,00 lei
NE18 Crossed Micrometer Scales 5mm/0.05mm, 21mm diameter (Unit: each)01B21213
NE18 Crossed Micrometer Scales 5mm/0.05mm, 21mm diameter (Unit: each)01B21213
459,35 lei/ea		 0,00 lei
459,35 lei/ea 0,00 lei
NE18 Crossed Micrometer Scales 5mm/0.05mm, 23mm diameter (Unit: each)01B23213
NE18 Crossed Micrometer Scales 5mm/0.05mm, 23mm diameter (Unit: each)01B23213
459,35 lei/ea		 0,00 lei
459,35 lei/ea 0,00 lei
NE18 Crossed Micrometer Scales 5mm/0.05mm, 24mm diameter (Unit: each)01B24213
NE18 Crossed Micrometer Scales 5mm/0.05mm, 24mm diameter (Unit: each)01B24213
586,25 lei/ea		 0,00 lei
586,25 lei/ea 0,00 lei
NE18 Crossed Micrometer Scales 5mm/0.05mm, 24.5mm diameter (Unit: each)01B24.5213
NE18 Crossed Micrometer Scales 5mm/0.05mm, 24.5mm diameter (Unit: each)01B24.5213
586,25 lei/ea		 0,00 lei
586,25 lei/ea 0,00 lei
NE18 Crossed Micrometer Scales 5mm/0.05mm, 25mm diameter (Unit: each)01B25213
NE18 Crossed Micrometer Scales 5mm/0.05mm, 25mm diameter (Unit: each)01B25213
586,25 lei/ea		 0,00 lei
586,25 lei/ea 0,00 lei
NE18 Crossed Micrometer Scales 5mm/0.05mm, 26mm diameter (Unit: each)01B26213
NE18 Crossed Micrometer Scales 5mm/0.05mm, 26mm diameter (Unit: each)01B26213
586,25 lei/ea		 0,00 lei
586,25 lei/ea 0,00 lei
NE18 Crossed Micrometer Scales 5mm/0.05mm, 27mm diameter (Unit: each)01B27213
NE18 Crossed Micrometer Scales 5mm/0.05mm, 27mm diameter (Unit: each)01B27213
586,25 lei/ea		 0,00 lei
586,25 lei/ea 0,00 lei
NE18 Crossed Micrometer Scales 5mm/0.05mm, other diameter (Unit: each)NE18OTHER
NE18 Crossed Micrometer Scales 5mm/0.05mm, other diameter (Unit: each)NE18OTHER
897,09 lei/ea		 0,00 lei
897,09 lei/ea 0,00 lei
