NE17 Crossed Micrometer Scales 10mm/0.1mm

NE17 Crossed Micrometer Scales 10mm/0.1mm

Pattern

NE17

Description

Crossed Scales 10mm/0.1mm

Key features

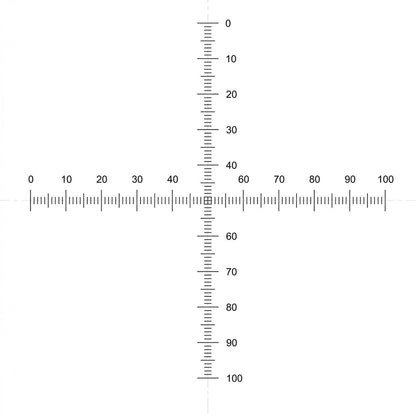

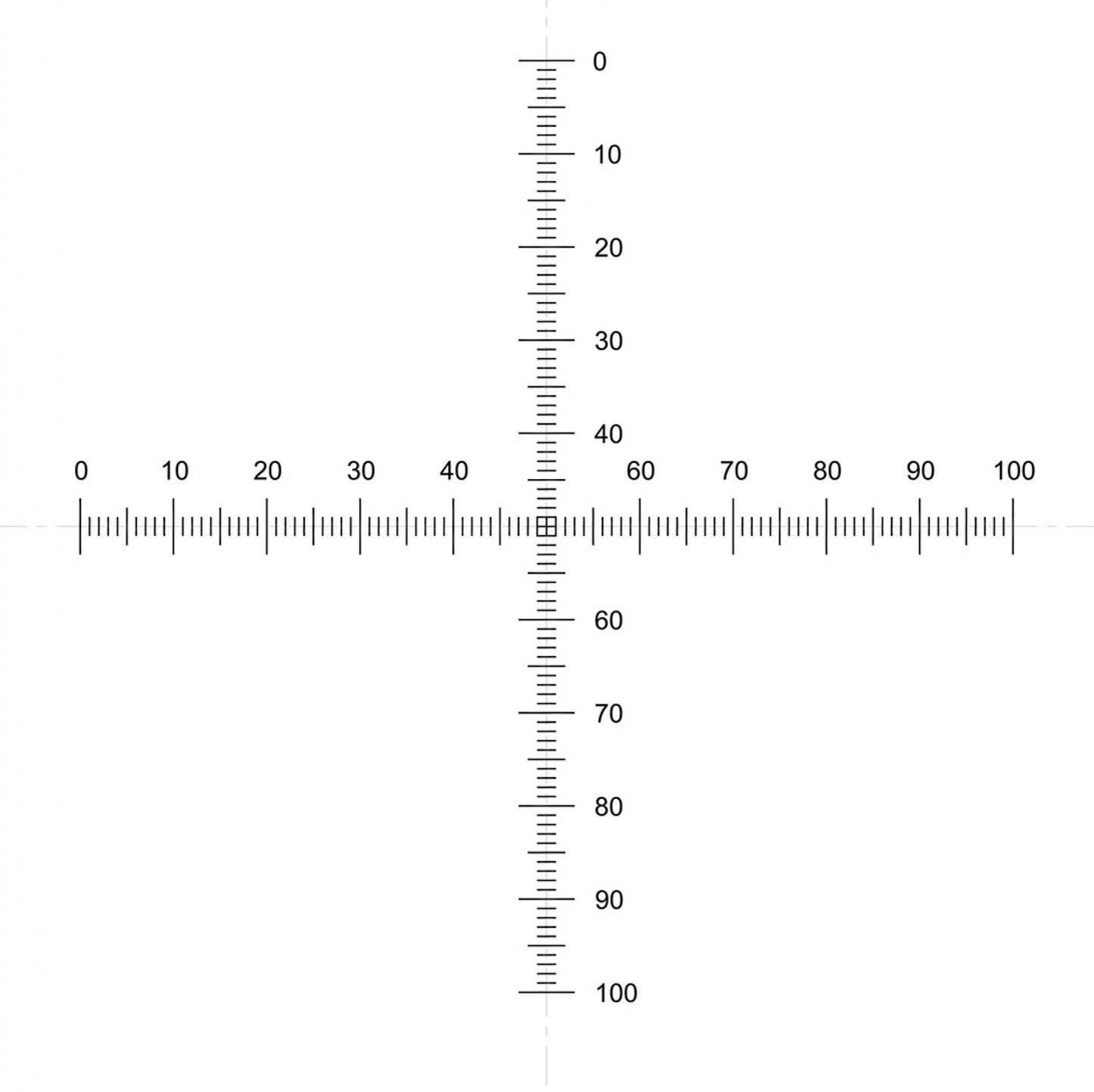

Eyepiece Reticle with 10mm Crossed Micrometer Scales subdivided into 100 divisions of 0.1mm (100µm)

Line Thickness

0.013mm +/-0.003mm

Glass Type and Thickness

Soda Lime 1.5mm thick

Scale Length Tolerance

+/-0.005mm

Diameter Tolerance

+0/-0.1mm

Divisional Marker Lengths

0.6mm, 0.4mm, 0.2mm

Orientation

Correct reading through glass

Documentation

SDS

Technical Notes

🚚 Estimated Delivery: 5 - 6 weeks from payment confirmation

View full details
Variant Variant total Quantity Price Variant total
NE17 Crossed Micrometer Scales 10mm/0.1mm, 16mm diameter (Unit: each)01B16212
NE17 Crossed Micrometer Scales 10mm/0.1mm, 16mm diameter (Unit: each)01B16212
1.392,07 lei/ea		 0,00 lei
1.392,07 lei/ea 0,00 lei
NE17 Crossed Micrometer Scales 10mm/0.1mm, 19mm diameter (Unit: each)01B19212
NE17 Crossed Micrometer Scales 10mm/0.1mm, 19mm diameter (Unit: each)01B19212
1.392,07 lei/ea		 0,00 lei
1.392,07 lei/ea 0,00 lei
NE17 Crossed Micrometer Scales 10mm/0.1mm, 20mm diameter (Unit: each)01B20212
NE17 Crossed Micrometer Scales 10mm/0.1mm, 20mm diameter (Unit: each)01B20212
1.392,07 lei/ea		 0,00 lei
1.392,07 lei/ea 0,00 lei
NE17 Crossed Micrometer Scales 10mm/0.1mm, 20.4mm diameter (Unit: each)01B20.4212
NE17 Crossed Micrometer Scales 10mm/0.1mm, 20.4mm diameter (Unit: each)01B20.4212
1.392,07 lei/ea		 0,00 lei
1.392,07 lei/ea 0,00 lei
NE17 Crossed Micrometer Scales 10mm/0.1mm, 21mm diameter (Unit: each)01B21212
NE17 Crossed Micrometer Scales 10mm/0.1mm, 21mm diameter (Unit: each)01B21212
1.392,07 lei/ea		 0,00 lei
1.392,07 lei/ea 0,00 lei
NE17 Crossed Micrometer Scales 10mm/0.1mm, 23mm diameter (Unit: each)01B23212
NE17 Crossed Micrometer Scales 10mm/0.1mm, 23mm diameter (Unit: each)01B23212
1.392,07 lei/ea		 0,00 lei
1.392,07 lei/ea 0,00 lei
NE17 Crossed Micrometer Scales 10mm/0.1mm, 24mm diameter (Unit: each)01B24212
NE17 Crossed Micrometer Scales 10mm/0.1mm, 24mm diameter (Unit: each)01B24212
1.776,63 lei/ea		 0,00 lei
1.776,63 lei/ea 0,00 lei
NE17 Crossed Micrometer Scales 10mm/0.1mm, 24.5mm diameter (Unit: each)01B24.5212
NE17 Crossed Micrometer Scales 10mm/0.1mm, 24.5mm diameter (Unit: each)01B24.5212
1.776,63 lei/ea		 0,00 lei
1.776,63 lei/ea 0,00 lei
NE17 Crossed Micrometer Scales 10mm/0.1mm, 25mm diameter (Unit: each)01B25212
NE17 Crossed Micrometer Scales 10mm/0.1mm, 25mm diameter (Unit: each)01B25212
1.776,63 lei/ea		 0,00 lei
1.776,63 lei/ea 0,00 lei
NE17 Crossed Micrometer Scales 10mm/0.1mm, 26mm diameter (Unit: each)01B26212
NE17 Crossed Micrometer Scales 10mm/0.1mm, 26mm diameter (Unit: each)01B26212
1.776,63 lei/ea		 0,00 lei
1.776,63 lei/ea 0,00 lei
NE17 Crossed Micrometer Scales 10mm/0.1mm, 27mm diameter (Unit: each)01B27212
NE17 Crossed Micrometer Scales 10mm/0.1mm, 27mm diameter (Unit: each)01B27212
1.776,63 lei/ea		 0,00 lei
1.776,63 lei/ea 0,00 lei
NE17 Crossed Micrometer Scales 10mm/0.1mm, other diameter (Unit: each)NE17OTHER
NE17 Crossed Micrometer Scales 10mm/0.1mm, other diameter (Unit: each)NE17OTHER
2.519,74 lei/ea		 0,00 lei
2.519,74 lei/ea 0,00 lei
