NE120 Horizontal Micrometer Scale 20mm/0.1mm

NE120 Horizontal Micrometer Scale 20mm/0.1mm

Pattern

NE120

Description

Horizontal Scale 20mm/0.1mm

Key features

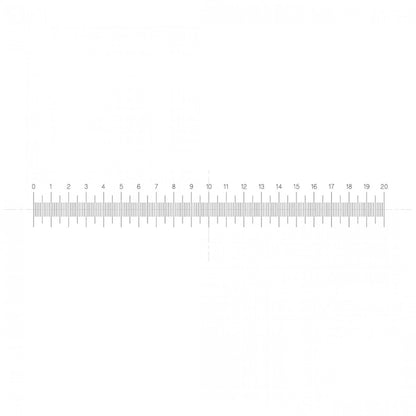

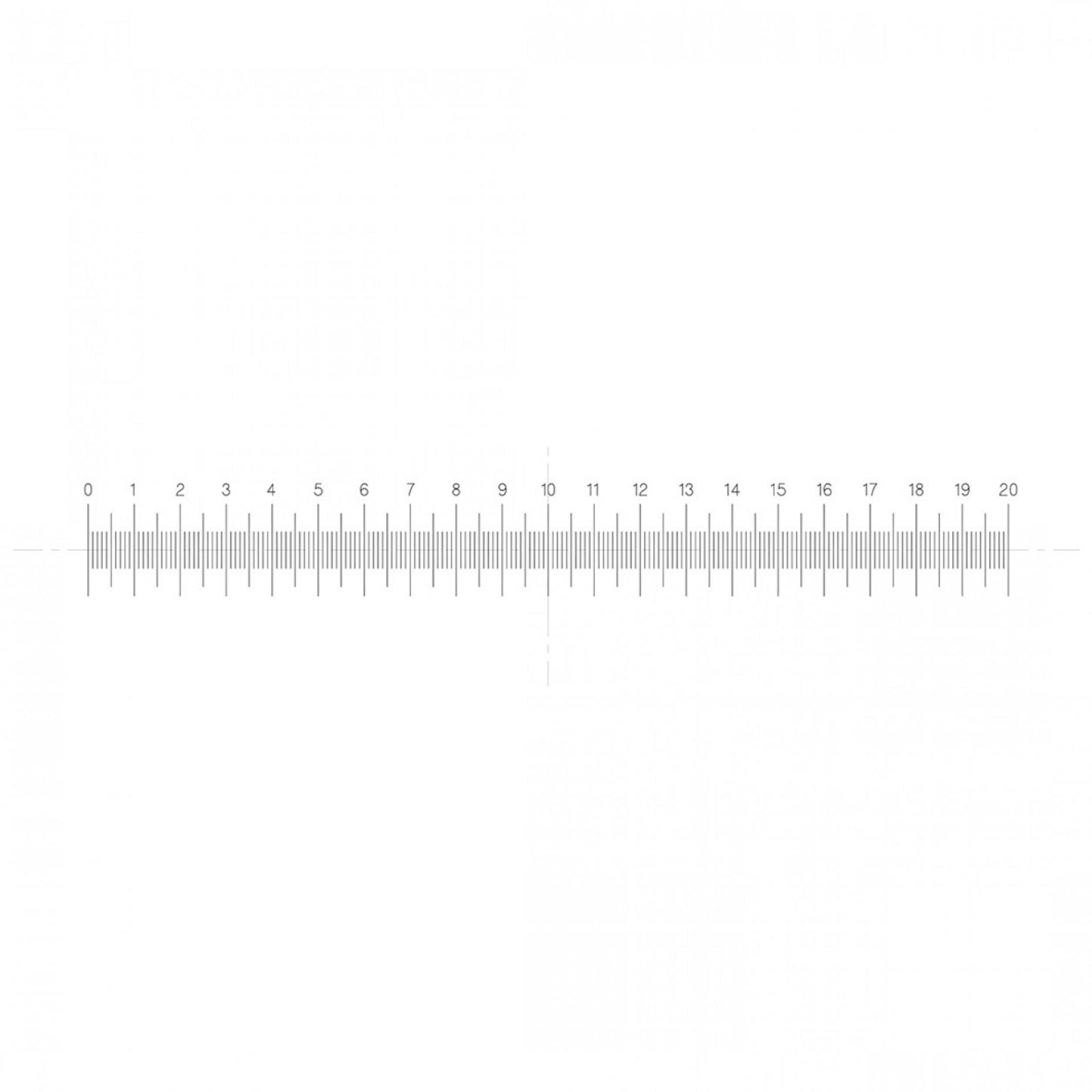

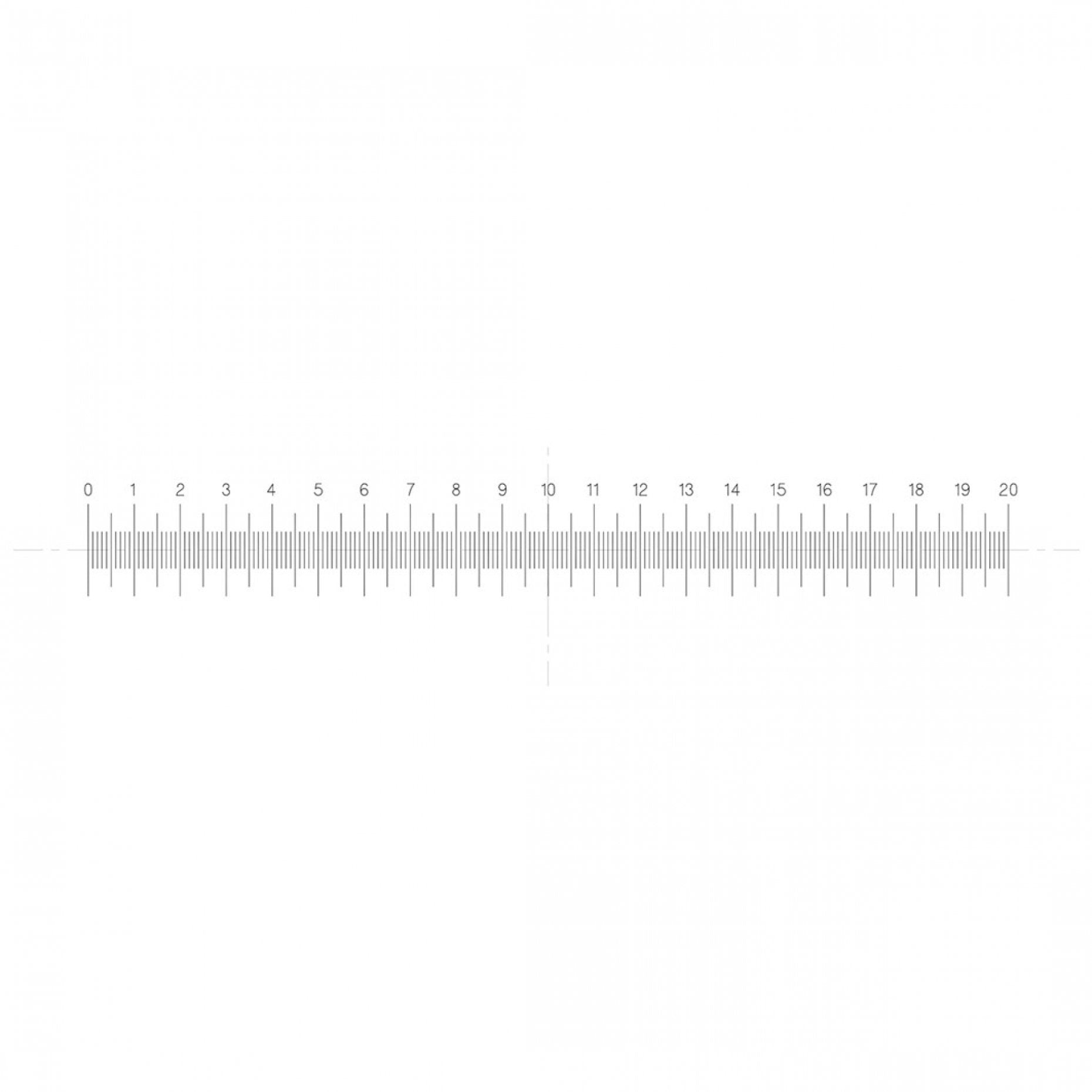

Eyepiece Reticle with 20mm Horizontal Micrometer Scale subdivided into 200 divisions of 0.1mm (100µm)

Line Thickness

0.010mm +/-0.003mm

Glass Type and Thickness

Soda Lime 1.5mm thick

Scale Length Tolerance

+/-0.005mm

Diameter Tolerance

+0/-0.1mm

Divisional Marker Lengths

2mm, 1.6mm, 0.8mm

Orientation

Correct reading through glass

Documentation

SDS

Technical Notes

🚚 Estimated Delivery: 5 - 6 weeks from payment confirmation

View full details
Variant Variant total Quantity Price Variant total
NE120 Horizontal Micrometer Scale 20mm/0.1mm, 23mm diameter (Unit: each)01B23320
NE120 Horizontal Micrometer Scale 20mm/0.1mm, 23mm diameter (Unit: each)01B23320
1.392,07 lei/ea		 0,00 lei
1.392,07 lei/ea 0,00 lei
NE120 Horizontal Micrometer Scale 20mm/0.1mm, 24mm diameter (Unit: each)01B24320
NE120 Horizontal Micrometer Scale 20mm/0.1mm, 24mm diameter (Unit: each)01B24320
1.776,63 lei/ea		 0,00 lei
1.776,63 lei/ea 0,00 lei
NE120 Horizontal Micrometer Scale 20mm/0.1mm, 24.5mm diameter (Unit: each)01B24.5320
NE120 Horizontal Micrometer Scale 20mm/0.1mm, 24.5mm diameter (Unit: each)01B24.5320
1.776,63 lei/ea		 0,00 lei
1.776,63 lei/ea 0,00 lei
NE120 Horizontal Micrometer Scale 20mm/0.1mm, 25mm diameter (Unit: each)01B25320
NE120 Horizontal Micrometer Scale 20mm/0.1mm, 25mm diameter (Unit: each)01B25320
1.776,63 lei/ea		 0,00 lei
1.776,63 lei/ea 0,00 lei
NE120 Horizontal Micrometer Scale 20mm/0.1mm, 26mm diameter (Unit: each)01B26320
NE120 Horizontal Micrometer Scale 20mm/0.1mm, 26mm diameter (Unit: each)01B26320
1.776,63 lei/ea		 0,00 lei
1.776,63 lei/ea 0,00 lei
NE120 Horizontal Micrometer Scale 20mm/0.1mm, 27mm diameter (Unit: each)01B27320
NE120 Horizontal Micrometer Scale 20mm/0.1mm, 27mm diameter (Unit: each)01B27320
1.776,63 lei/ea		 0,00 lei
1.776,63 lei/ea 0,00 lei
NE120 Horizontal Micrometer Scale 20mm/0.1mm, other diameter (Unit: each)NE120OTHER
NE120 Horizontal Micrometer Scale 20mm/0.1mm, other diameter (Unit: each)NE120OTHER
2.783,93 lei/ea		 0,00 lei
2.783,93 lei/ea 0,00 lei
