Multi75 series for force modulation mode

Multi75 series for force modulation mode

Technical Data:
  Value Range
Resonant Freq. 75 kHz +/-15 kHz
Force Constant 3 N/m 1 - 7 N/m
Length 225 µm +/-10 µm
Mean Width 28 µm +/-5 µm
Thickness 3 µm +/-1 µm
Tip Height 17 µm +/-2 µm
Tip Set Back 15 µm +/-5 µm
Tip Radius <10 nm (Multi75; Multi75Al; Multi75GD)
<25nm (ElectriMulti75; Multi75GB)
<60nm (MagneticMulti75)
<15 nm (Multi75DLC)
Also see individual probes.
Half Cone Angle 20°-25° along cantilever axis
25°-30° from side
10°-at the apex
Contact Resistance 300 ohms on platinum thin film surface

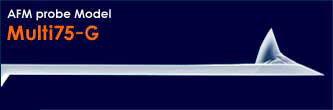

Multi75-G Tip radius <10nm
Application: Force Modulation, Light Tapping
General: Rotated Monolithic Silicon Probe
Symmetric Tip Shape
Alignment Grooves
(Chipsize 3.4 x 1.6 x 0.3mm)
Coating: None



Multi75Al Tip radius <10nm
Application: Force Modulation, Light Tapping
General:

Rotated Monolithic Silicon Probe
Symmetric Tip Shape With or without Alignment Grooves
(Chipsize 3.4 x 1.6 x 0.3mm)
Coating: 30nm Al for enhanced reflectivity

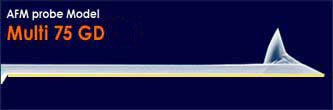

Multi75GD Tip radius <10nm
Application: Force Modulation, Light Tapping
General: Rotated Monolithic Silicon Probe
Symmetric Tip Shape
(Chipsize 3.4 x 1.6 x 0.3mm)
Coating: 70nm Au on back of cantilever

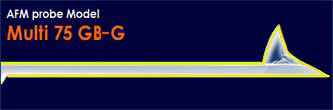

Multi75GB Tip radius <25nm
Application: Force Modulation, Light Tapping, special application
General: Rotated Monolithic Silicon Probe
Symmetric Tip Shape
Alignment Grooves
(Chipsize 3.4 x 1.6 x 0.3mm)
Coating: 70nm Au on both sides of cantilever

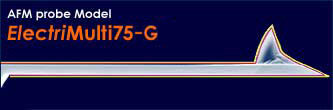

ElectriMulti75-G Tip radius <25nm
Application: Force Modulation, Light Tapping and Electric Modes like:
• Scanning Capacitance Microscopy (SCM)
• Electrostatic Force Microscopy (EFM)
• Kelvin Probe Force Microscopy (KFM)
• Scanning Probe lithography
General: Rotated Monolithic Silicon Probe
Symmetric Tip Shape
Alignment Grooves
(Chip size 3.4 x 1.6 x 0.3mm)
Coating: Electrically conductive Cr/Pt on both sides of cantilever. 5nm Cr covered with 25nm Pt.

Contact Resistance: 300 ohms on Pt thin film surface

MagneticMulti75 Tip radius <60nm
Application: Magnetic Force Microscopy (MFM)
General:

Rotated Monolithic Silicon Probe
Symmetric Tip Shape
Alignment Grooves
(Chip size 3.4 x 1.6 x 0.3mm)
Coating: Tip side - Magnetic
Detector side - Aluminum

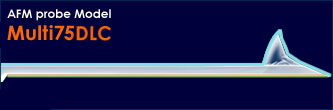

Multi75DLC Tip radius <15nm
Application: Force Modulation Mode, Pulsed Force Mode (PFM)
General: Rotated Monolithic Silicon Probe
Symmetric Tip Shape
Alignment Grooves
(Chipsize 3.4 x 1.6 x 0.3mm)
Coating: Diamond-Like-Coating on tip side of cantilever, 15nm thick
Aluminum Reflex coating on detector side of cantilever, 30nm thick
This probe uses an "on scan angle" symmetric tip to provide a more symmetric representation of features over 200nm.







Documentation

SDS

Technical Notes

View full details
Variant Variant total Quantity Price Variant total
Silicon AFM Probes, Multi 75 -G, no coating (Unit: pkg/10)MULTI75-G-10
Silicon AFM Probes, Multi 75 -G, no coating (Unit: pkg/10)MULTI75-G-10
1.320,00 lei/ea		 0,00 lei
1.320,00 lei/ea 0,00 lei
Silicon AFM Probes, Multi 75 -G, no coating (Unit: pkg/50)MULTI75-G-50
Silicon AFM Probes, Multi 75 -G, no coating (Unit: pkg/50)MULTI75-G-50
5.610,00 lei/ea		 0,00 lei
5.610,00 lei/ea 0,00 lei
Silicon AFM Probes, Multi 75 Al, Aluminum Reflex coating with Alignment Grooves (Unit: pkg/10)MULTI75AL-G-10
Silicon AFM Probes, Multi 75 Al, Aluminum Reflex coating with Alignment Grooves (Unit: pkg/10)MULTI75AL-G-10
1.478,40 lei/ea		 0,00 lei
1.478,40 lei/ea 0,00 lei
Silicon AFM Probes, Multi 75 Al -G, Aluminum Reflex coating with Alignment Grooves (Unit: pkg/50)MULTI75AL-G-50
Silicon AFM Probes, Multi 75 Al -G, Aluminum Reflex coating with Alignment Grooves (Unit: pkg/50)MULTI75AL-G-50
5.874,00 lei/ea		 0,00 lei
5.874,00 lei/ea 0,00 lei
Silicon AFM Probes, Multi 75 GD, Au coated (Unit: pkg/10)MULTI75GD-10
Silicon AFM Probes, Multi 75 GD, Au coated (Unit: pkg/10)MULTI75GD-10
1.716,00 lei/ea		 0,00 lei
1.716,00 lei/ea 0,00 lei
Silicon AFM Probes, Multi 75 GD, Au coated (Unit: pkg/50)MULTI75GD-50
Silicon AFM Probes, Multi 75 GD, Au coated (Unit: pkg/50)MULTI75GD-50
7.128,00 lei/ea		 0,00 lei
7.128,00 lei/ea 0,00 lei
Silicon AFM Probes, Multi 75 GB -G, overall Au coated (Unit: pkg/10)MULTI75GB-G-10
Silicon AFM Probes, Multi 75 GB -G, overall Au coated (Unit: pkg/10)MULTI75GB-G-10
1.716,00 lei/ea		 0,00 lei
1.716,00 lei/ea 0,00 lei
Silicon AFM Probes, Multi 75 GB -G, overall Au coated (Unit: pkg/50)MULTI75GB-G-50
Silicon AFM Probes, Multi 75 GB -G, overall Au coated (Unit: pkg/50)MULTI75GB-G-50
7.128,00 lei/ea		 0,00 lei
7.128,00 lei/ea 0,00 lei
Silicon AFM Probes, ElectriMulti 75 -G, overall Cr/Pt coated with Alignment Grooves (Unit: pkg/10)MULTI75E-G-10
Silicon AFM Probes, ElectriMulti 75 -G, overall Cr/Pt coated with Alignment Grooves (Unit: pkg/10)MULTI75E-G-10
1.584,00 lei/ea		 0,00 lei
1.584,00 lei/ea 0,00 lei
Silicon AFM Probes, ElectriMulti 75 -G, overall Cr/Pt coated with Alignment Grooves (Pkg/50)MULTI75E-G-50
Silicon AFM Probes, ElectriMulti 75 -G, overall Cr/Pt coated with Alignment Grooves (Pkg/50)MULTI75E-G-50
6.930,00 lei/ea		 0,00 lei
6.930,00 lei/ea 0,00 lei
Silicon AFM Probes, MagneticMulti 75 -G, Magnetic/Al coated (Unit: pkg/10)MULTI75M-G-10
Silicon AFM Probes, MagneticMulti 75 -G, Magnetic/Al coated (Unit: pkg/10)MULTI75M-G-10
1.584,00 lei/ea		 0,00 lei
1.584,00 lei/ea 0,00 lei
Silicon AFM Probes, MagneticMulti 75 -G, Magnetic/Al coated (Unit: pkg/50)MULTI75M-G-50
Silicon AFM Probes, MagneticMulti 75 -G, Magnetic/Al coated (Unit: pkg/50)MULTI75M-G-50
6.930,00 lei/ea		 0,00 lei
6.930,00 lei/ea 0,00 lei
Silicon AFM Probes, Multi 75 DLC, DLC coating on tip (Unit: 10)MULTI75DLC-10
Silicon AFM Probes, Multi 75 DLC, DLC coating on tip (Unit: 10)MULTI75DLC-10
1.980,00 lei/ea		 0,00 lei
1.980,00 lei/ea 0,00 lei
Silicon AFM Probes, Multi 75 DLC, DLC coating on tip (Unit: pkg/50)MULTI75DLC-50
Silicon AFM Probes, Multi 75 DLC, DLC coating on tip (Unit: pkg/50)MULTI75DLC-50
8.250,00 lei/ea		 0,00 lei
8.250,00 lei/ea 0,00 lei
