Modular SEM Stage Adapters

15370, 15370-25

T-Base Adapter for Hitachi S-800, S-4000, S-4100, S-4200, S-4300, S-4500, S-4700 and S-3600N SEMs

Specimen exchange T-base adapter incorporates an aluminum body and self-aligning double sided brass thread block to facilitate smooth insertion on the SEM stage and to prevent binding. Can be used with any of the Modular SEM Specimen Holders if the SEM stage travel permits this. Includes M4 screw.

15370-1

New Style T-Base Adapter for Hitachi S-4800, SU-70, SU6600, SU8200 and SU8000 series FESEMs

Made of vacuum grade aluminum with counterpart for airlock manipulator and locking rod. Can be used with any of the Modular SEM Specimen Holders if the SEM stage travel permits this. Includes M4 screw.

15366-3400

Dovetail Stage Adapter for Hitachi SEM S-3400N

Made of vacuum grade aluminum to fit on Hitachi S-3400N SEM. Can be used with any of the Modular SEM Specimen Holders if the SEM stage travel permits this. Includes M4 screw.

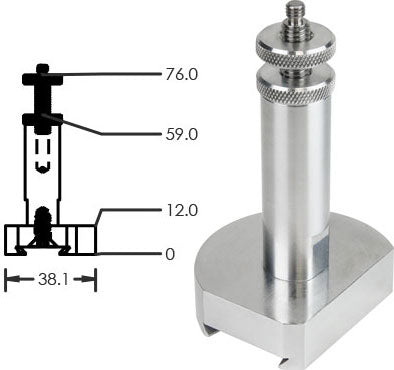

15366-3900

Dovetail Stage Adapter for Hitachi SEM SU3900

Made of vacuum grade aluminum to fit on the Hitachi SU3900 SEM. Can be used with any of the Modular SEM Specimen Holders, provided holder dimensions are compatible. Includes M4 screw so that Modular Specimen Holders can also be attached directly to the dovetail, without pillar.

15366-3500

Dovetail Stage Adapter for Hitachi SEM SU3500/SU3800/SU5000/FlexSEM 1000

Made of vacuum grade aluminum to fit on the Hitachi SU3500 and SU5000 SEM. Use the stub extensions (15373-21, 15373-2, 15365-2 or 15374-2) to increase height. Can be used with any of the Modular SEM Specimen Holders if the SEM stage travel permits this.

15366-3700

Dovetail Stage Adapter for Hitachi SEM S-3700N

Made of vacuum grade aluminum to fit on the Hitachi S-3700N SEM. Can be used with any of the Modular SEM Specimen Holders if the SEM stage travel permits this. Includes M4 screw.

15285

Stage Adapter for Hitachi SEM series S2000/S3000/S3500

This Hitachi stage adapter for the S2000/S3000/S3500 series consists of a round base (Ø15x18mm), 25mm brass pillar and locking ring. The base and locking nut are made of vacuum grade aluminum, the brass pillar has standard M6 thread with an M4 thread on top which is compatible with the Hitachi specimen mounts and specimen holders with an M4 threaded hole. Can be used with any of the Modular SEM Specimen Holders if the SEM stage travel permits this.

15368

15368-2

Stage Adapter for Thermo / FEI / Philips SEM / FESEM and DualBeam Systems

Made of brass pillar and aluminum base and locking nuts. This particular material choice prevents "binding" of parts in the SEM stage. Available in standard version with standard pillar, base and two locking nuts and short version with short pillar and two locking nuts. Pillar with M6-fine thread and M4 thread on top. Can be used with any of the of the Modular SEM Specimen Holders if the SEM stage travel permits this.

15371

Dovetail Stage Adapter for JEOL SEM: JSM35, JSM50, JSM840 and JXA733

Solid brass Dovetail Stage Adapter can be used on many JEOL SEMs and is compatible with the airlock used on JEOL SEMs.  The 14mm hole in the center is compatible with other JEOL holders. Two Button style adapters are available to connect the Modular SEM specimen holders. The Short Button (15372) is used for the smaller specimen holders only, whereas the Extended Button ( 15372-10) can be used with all Modular SEM Specimen Holders if the SEM stage travel permits this.

15371-67A

Dovetail Stage Adapter for JEOL SEM

JSM7900F/7800F/7200F/7601F/7600F/7500F

/7400F/7100F/7000F/6700F/6500F/IT200

/IT300/IT500/IT500HR/IT510/IT700HR/IT800

Solid brass Dovetail Stage Adapter can be used on the JEOL FESEMs listed above. Can be used with any of the Modular SEM Specimen Holders if the SEM stage travel permits this. Includes M4 screw.

15396

Dovetail Stage Adapter for JEOL SEM

Fits 6510/6390/6380/6360/6010/5700/5600

/5500/5410/5400/5300/T330/T220/T300

/T200/TT100/T20/IT100

Aluminum Dovetail Stage Adapter compatible with the JEOL SEMs listed above. Can be used with any of the Modular SEM Specimen Holders if the SEM stage travel permits this. Includes M4 screw.

15367-25, 15367-40, 15367-20

Cylinder Adapter for JEOL Holders

Made of aluminum in 3 sizes, Ø9.5 x 10mm, Ø12.2 x 10mm, Ø15 x 10mm with M4. Used directly on JEOL holders. Can be used with any of the modular SEM specimen holders.

15397

Dovetail Stage Adapter for ZEISS/LEO SEM

The solid brass dovetail for the ZEISS/LEO SEMs is fully compatible with the ZEISS/LEO dovetail used on the stage or stage height adapters. Two button style adapters are available to connect the Modular SEM Specimen Holders. The Short Button (15372) is used for the smaller specimen holders only, whereas the Extended Button (15372-10) can be used with all Modular SEM Specimen Holders.

15367-10

Stage Adapter for AMRAY SEMs

Made of aluminum, 16mm dia x 25mm H with M4 screw. Can be used with any of the Modular SEM Specimen Holders.

15367-20

Stage Adapter for ISI/ABT/Topcon SEMs

Made of aluminum, 15mm dia x 10mm H with M4 screw. Can also be used on JEOL stage adapters or specimen holders which accommodate the 15mm cylinder stub. Can be used with any of the Modular SEM Specimen Holders.

15367-30

Stage Adapter for CamScan and Tescan SEMs

Made of aluminum, 12.5mm dia x 20mm H with M4 screw. Used with the 12.7mm stage adapter found on the larger stages. Can be used with any of the Modular SEM Specimen Holders.

   15319, 15319-9, 15319-2

Pin Stub Adapters to M4

Standard low profile, short and long pin with M4 threads to convert any of the Modular SEM Specimen Holders into a pin stub type holder. Can be used on Cambridge, Leica, CamScan, Tescan, and Thermo/FEI/Philips SEMs. Short pin for ZEISS/LEO SEMs, long pin for AMRAY SEMs. This arrangement will add height to the total assembly and is not recommended for larger specimen holders or heavy specimens.

Hitachi Stub Extensions

Hitachi Stub Extensions with M4 thread (top and bottom) are intended to accommodate shorter working distance in the SEM. Available in 9, 12, 18, 25mm lengths. Stub extensions can be stacked. Material: brass with stainless steel M4, complete with aluminum locking nut. 12, 18, 25mm extensions come with 4mm thick 16mm Ø locking nut (#15373-22). 9mm extension comes with 2mm thick and 30mm Ø locking nut (#15373-23) included.

15398

JEOL NeoScope Stage Adapter Kit

for use in the JEOL NeoScope JCM-6000 and JCM-5000 Benchtop SEMs

Aluminum stage plate with two adjustable height pillars and locking nut. Includes height guage. Can be used with all modular SEM holders with 35 x 35mm x-y movement that do not exceed total assembly height of 50mm.
