Micro Tools - Technician Sets



Micro-Tool Sets with Hardened Tool Steel Tips

Minitool™ to Micro-Tool Cross Reference Table

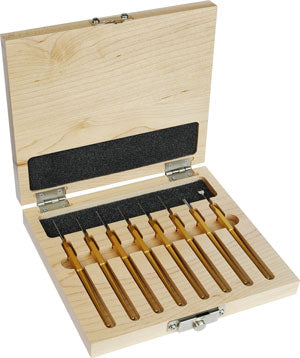

Technician Micro-Tool Set

formerly from the Minitool™ line of precision tools

54440, 54440-1,2,3,4,5,6,7,8

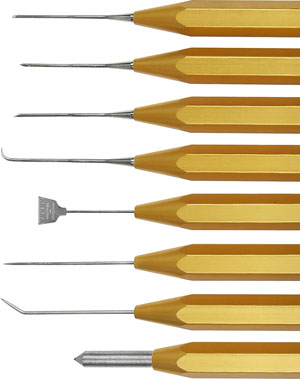

The entire set contains, from top to bottom: Micro-Graver, Oval; Micro-Chisel; Micro-Knife, 20°; Micro-Probe, 90°; Micro Measuring Scale; Micro-Probe, Straight; Micro-Probe 30°; Micro Diamond Scribe.

This set contains eight tool tips with integrated handles that are light-weight, non-rolling and well balanced. The overall tool length is approximately 127mm (5"). Tip size is 0.89mm (0.030") and the material is oil-hardened tool steel, nickel-plated.

---



Precision Cutting Set

formerly from the Minitool™ line of precision tools

Set contains, from top to bottom: Scriber; Chisel; Knife; Triangular Scraper; Oval Graver.

5-piece set with the following specifications: Tip material is hardened steel. The tip size is 1.6mm by 12.7mm long (0.063 x 0.5"). The overall length of the tool is about 124mm (4.88").

An excellent tool for sharpening microtools is the Tweezer Repair Kit.

---

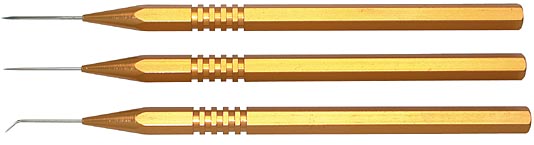

Tinitool Set

nickel-plated hardened steel tips; formerly from the Minitool™ line of precision tools

54442, 54442-11,12,13

The tip size is 0.8mm by 25mm long (0.03 x 1"). The overall length of the tool is about 140mm (5.5"). This set consists of three different tools: Straight Scriber; Sharp Triangular Scraper; Bent Probe.

---

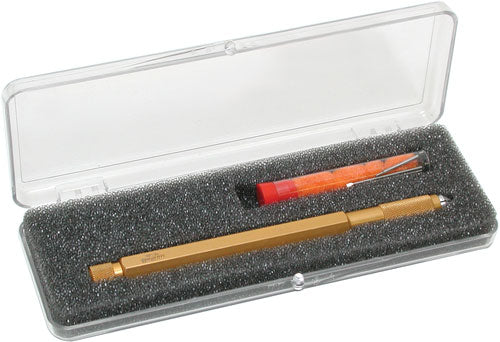

Heavy Duty Micro-Tool Set

formerly from the Minitool™ line of precision tools

The Heavy Duty Micro-Tools are made from fine grain high speed steel and are designed for applications where extra strength is required but without sacrificing the precision of a true Micro-Tool. They are durable and strong Micro-Tools. The interchangeable tool tips are available in 1mm (0.040") tip diameter only and fit the #13662 Precision Vise Handle.

Set includes: Precision Vise Handle, Six Interchangeable Tips listed in the table below, and a Plastic Storage Case.

Tip #	Micro-Tool	Description	1mm (0.040") Tip Diameter
1		Micro-Needle, Long	13711
3		Micro-Chisel	13713
8		Micro-Knife, 20°	13718
9		Micro-Knife, 45°	13719
13		Micro-Engraver, Oval	13717
15		Micro-Diamond Scribe, 60°	13715



---



Needle Probe Set with Interchangeable Tips

formerly from the Minitool™ line of precision tools

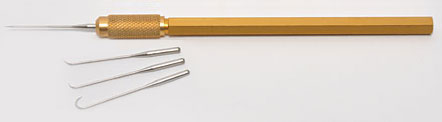

Probe Handle holding the Straight Prober
with three other tips, making up the complete set.



Enlarged view of Probers with dimensions.

The Needle Probe Set includes one lightweight, precision handle and four interchangeable hardened steel tools for manipulating, scribing, spring assembly and probing.
The precision handle is finely balanced, non-rolling, gold color anodized with a split collet mounting and knurled lock nut. Length of the handle is 117.5mm (4.63"). The precision forged tools are made of hardened nickel-plated tool steel, 40mm (1.58") long with a 2mm (0.08") diameter shank reduced to a 0.7mm (0.03") diameter. All tools are tapered to a sharp tip. Shipped in clear plastic, tube container.
