MagFuge® Centrifuge & Stirrer

High-speed Centrifuge (12,500rpm / 9,800 x g) and Magnetic Stirrer in ONE unit.



Made from a durable, chemically-resistant ABS and polycarbonate, the low profile MagFuge^® is easy to clean and maintenance free. Two instruments in one with the functionality of both a high performance centrifuge and a magnetic stirrer. Features and easy to use digital display and one button programming, tool free rotor exchange, and ultra-quiet operation. The MagFuge^® has a 3-year manufacturer's warranty.

MagFuge^® Specifications:

Dimensions	23.5 L x 18.5 W x 12cm H (9.2 x 7.3 x 4.7")
Power	Universal 12V DC input 4 cord sets: Low voltage, double insulated power adapter
Certifications	CE, SGS, RoHS2, WEEE
Operating Temp	Range 2°C to 40°C

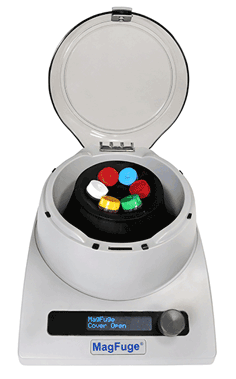

MagFuge^® used as a High-speed Mini Centrifuge

1062 as High-speed Mini Centrifuge

• Ideal for most protocols requiring fast spins, and appropriate for PCR, micro-filter cell separation, and HPLC protocols
• Adjustable time (30 seconds to 60 minutes) and speed (500 to 12,500 RPM)
• Variable speed can be set in RPM or RCF and has rapid acceleration and fast controlled breaking
• Two rotors included, 12 place for 1.5/2.0 mL tubes and 6 place for 5 mL tubes with adapters for additional tube sizes
• Manual lid override allows users to open lid in case of a power failure and prevents loss of samples
• Safety features help ensure it will not operate when the lid is open, a rotor is jammed, or the unit is out of balance

Centrifuge Specifications:

Speed Range	500 – 999rpm (increments of 1); 1,000 – 5,000rpm (increments of 5); 5,000 – 12,500 rpm (increments of 25)
RCF	16 – 9,783 x g (max RCF calculated)
Capacity	12 place 1.5/2.0 mL tube rotor: 24 mL total maximum liquid volume 6 place 5 mL tube rotor: 30 mL total maximum liquid volume
Run Time Range	30 seconds – 60 minutes (5 second increments)

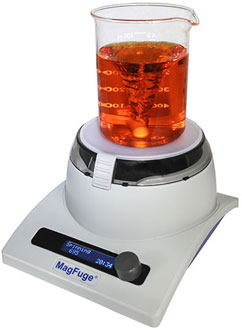

MagFuge^® used as a Magnetic Stirrer

1062 as as a Magnetic Stirrer

The high-performance Magnetic Stirrer (3L Plus) is designed to provide a powerful magnetic coupling that ensures consistent accurate alignment of the stir bar that significantly reduces the chance of spin-outs.

• Ideal for work with sensitive samples such as cell lines and protocols requiring more aggressive mixing to quickly achieve full dilution of samples in solution
• Multiple stirring modes, clockwise, counter clockwise and oscillate enable protocols to be controlled precisely for reproducible results
• After hours of continuous use, the unit remains cool ensuring sample integrity
• Sensor technology prevents the stirrer rotor from being used above 2,500 RPM
• Two silicone mats are included to help prevent spills and to help keep vessels stable
• High-quality rare-earth magnets are used in the stirrer rotor to ensure the strongest magnetic coupling

Magnetic Stir Bars

Stirrer Specifications:

Speed Range	50 – 999rpm (increments of 1); 1,000 – 2,500rpm (increments of 5)
Capacity	3L total maximum vessel liquid volume. Diameter of vessel not to exceed 130mm (6.70")
Stirrer Mode	30 seconds to 60 minutes or continuous (5 second increments)
Oscillating Stirrer Mode	1 second – 60 minutes or continuous
Oscillating Period	30 seconds – 15 minutes
Stir Bar Dimensions	40 x 12mm cylindrical shape, rare-earth with PTFE coating
Plate Dimensions	Approximately130mm diameter



MagFuge® Centrifuge & Magnetic Stirrer Package includes:

1. 3x Rotors: 5ml Tube Rotor, 1.5/2.0ml Tube Rotor, Stirrer Rotor;
2. 12x Tube Adapters 0.2ml;
3. 12x Tube Adapters 0.5ml;
4. 2x Silicone Mats for Stirrer Lid;
5. 2x Rare-earth PTFE Coated Stir Bars;
6. 1x Low Voltage, Double Insulated Power Adapters with 4 Cord Sets

---

---

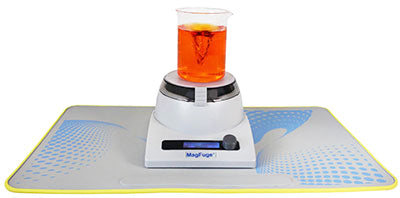

Accessories for MagFuge® Centrifuge & Stirrer

Silicone Rubber Lab Mats

Reusable, reliable, and reversible

1066-1, -2, -3

• Ideal for every type of laboratory and more specialized areas such as cold rooms, clean rooms, sterile suites and areas where high sterility is a requirement
• The lab mats can be used with items such as centrifuges, vortex mixers, hot plates, stirrers, pipettes, and so much more
• Reversible, with two color/design options available
• Design includes retaining strip with internal metal inserts for retention of magnetic objects, such as stir bars to help keep items organized
• Lip around the edge can hold approximately 300mL of liquid
• Keeps benchtops clean and safe from stains, spills and wear
• Reusable, helps reduce waste making it a more environmentally friendly option over disposable mats
• Anti-skid surface helps keep the mat and items in place
• Noise dampening, reducing sound from the vibration of common bench top equipment
• Made from a durable FDA food grade silicone rubber material that creates a stain resistant washable working surface
• Chemical resistance: chemically inert and does not react with most chemicals
• Can be easily cleaned using any standard disinfectant by simply wiping it and is dishwasher safe
• Multiple colors available in each style for color coding options
• Protect counter tops from hot items up to 200°C (392°F)
• Mats can be rolled up for compact storage
• Large working surface, 35 x 60 x 0.2cm (14 x 23.5 x 1"), accommodates benchtop equipment, weigh boats, stir bars, scales, etc.
• Autoclavable at 121°F for 15 minutes

---

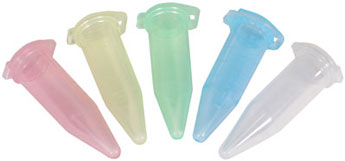

5ml Snap Cap Macrocentrifuge Tubes, Assorted Colors

12944-1, -2, -3, -4, -5, -6, -7, -8, -9

• Provides convenience of 1.5 ml microcentrifuge tubes in a tube that holds larger volumes
• Attached Snap Cap
• Pierceable cap for needle or syringe
• Dual graduation scales in increments of 0.5ml and 0.2ml
• Temperature range of -86°C to +80°C
• Seven colors available: natural, amber, blue, black, green, red, yellow, assorted
• Polypropylene (PP)

---

5ml Locking Macrocentrifuge Tubes, Natural

12944

• Locking Snap Cap preventing accidental opening
• Suitable for centrifugation, boiling, incubation, freezing and sample storage
• Optimally clear USP Class VI medical grade polypropylene (PP)
• Manufactured in Class 100,000 clean room
• Certified to be free from RNase, DNase,human DNA, pyrogens, PCT inhibitors and ATP
• Tubes feature graduations, writing area, peirceable cap, are autoclavable and packaged in zip re-closable bags

---

5ml Screw Cap Macrocentrifuge Tubes

12944-10, -11, -12, -14

• Single turn threaded caps seal easily and securely
• Graduated in 0.5ml increments
• Available sterile in bags or foam racks and non-sterile with tubes and caps packed separately
• Temperature range of -86°C to 80°C
• For low temperature sample storage, general laboratory uses, or boiling procedures
• Polypropylene (PP) with polyethylene (PE) screw caps
• Use with #1062 MagFuge® Centrifuge.

---

5ml Macrocentrifuge Tube Storage Boxes

12945-1, -2, -3, -4

• Cover made of polystyrene; base made of high impact polystyrene
• Temperature range -90°C to +80°C
• Transparent cover
• 4 colors available: blue, green, pink, yellow
• Cover has numbered squares
• Two angled corners for cover alignment
• Writing surface for base and/or cover
• Air vents for condensation
• Drain holes under base
• Stackable

---

5ml Macrocentrifuge Tube Storage Racks for Conical Tubes

12945-6, -7, -8

• Made of polystyrene
• Reusable
• Autoclavable and freezable to -90°C
• Numbered Wells
• Capacity for 25 tubes
• Case/5
