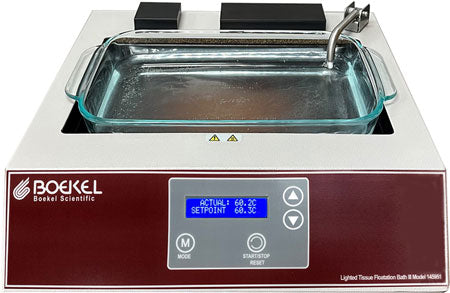

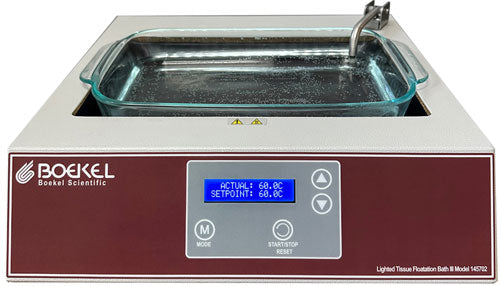

Standard Illuminated Tissue Section Bath

28042, 28043, 28046

The Standard Illuminated Tissue Section Bath is a Digital Microprocessor Control laboratory tissue bath with advanced safety over-temperature protection. Bright white LEDs illuminate the basin for optimal tissue placement. Two-year warranty and made in the USA.

• Precision temperature controlled water bath eliminates wrinkles and distortion during preparation of paraffin embedded tissue sections
• Digital Microprocessor Control with advanced safety over-temperature protection
• LED illuminated black background with transparent PYREX^® dish; allows specimen to be easily seen
• A nonvolatile memory retains the last temperature set point after power off/on
• Supplied with a removable PYREX^® dish
• Units are certified to UL61010-1, CSA C22.2 and CE approved

---

Deluxe Illuminated Tissue Section Bath

28044, 28045, 28046

The Deluxe Illuminated Tissue Section Bath is a Digital Microprocessor Control laboratory tissue bath with advanced safety over-temperature protection. Bright white LEDs illuminate the basin for optimal tissue placement. Two-year warranty and made in the USA.

• Precision temperature controlled water bath eliminates wrinkles and distortion during preparation of paraffin embedded tissue sections
• Digital Microprocessor Control with advanced safety over-temperature protection
• LED illuminated black background with transparent PYREX^® dish; allows specimen to be easily seen
• Built-in mini hotplates for drying slides, removing wrinkles, and orienting tissue sections
• Supplied with a removable PYREX^® dish
• Units are certified to UL61010-1, CSA C22.2 and CE approved

---

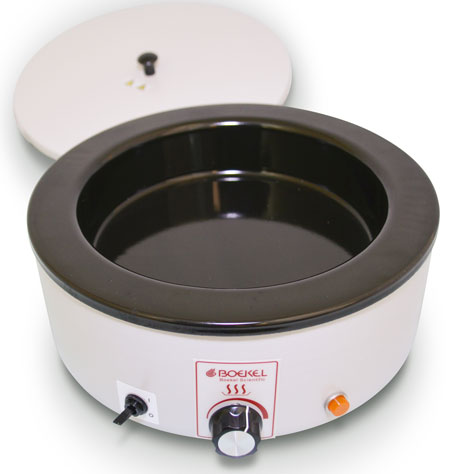

Round Tissue Section Bath

28040, 28041



The Round Tissue Section Bath has a black ceramic coated basin and a wide rim for drying microscope slides. The unit has analog control with a heating light indicator and an on/off switch. Supplied with dust cover, thermometer holder and non-skid rubber feet. Two-year warranty and made in the USA.

• Edges serve as a convenient drying surface for processed slides
• Bath surface is black ceramic coated steel for improved visibility of tissue sections
• Equipped with on/off switch, pilot light, and thermostat
• Rapid heat-up
• Durable
• Units are certified to UL61010-1, CSA C22.2 and CE approved

---

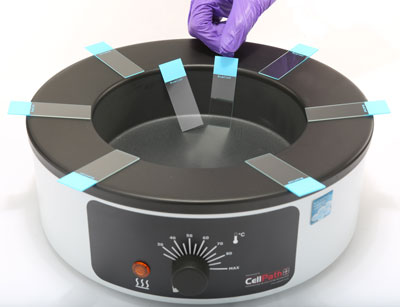

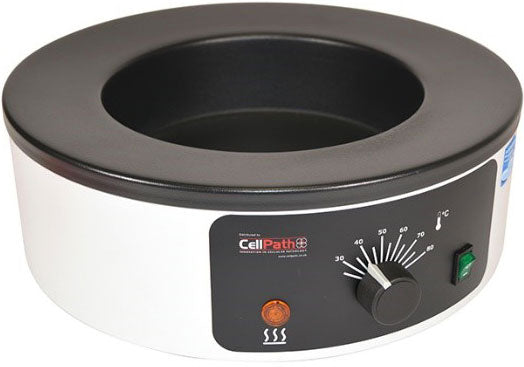

Round Analog Tissue Section Bath

28090

28090-1  Optional Lid

Generous inclined rim,
60mm deep bowl



The Round Analog Tissue Section Bath has a classic circular design with a generous inclined rim that allows users to rest their hands while floating sections. The bowl is coated with a matte black powder coating to provide a visual contrast for paraffin tissue sections.

An optional, easy-to-use Drop-on Lid (#28090-1) is available to cover the bowl when not in use. This improves temperature control of the bath, reduces evaporation, and prevents dust or pollen from settling on the surface of the water.

Key Benefits:

• Small footprint – dimensions: 335 x 120mm (D x H)
• Deep bowl (60mm) allows slides to be used at any angle to pick up section
• Ultra-fast heating system and variable analog temperature control
• Incorporated miniature circuit breakers for added safety
• Anti-microbial finish to inhibit bacterial and viral growth

---

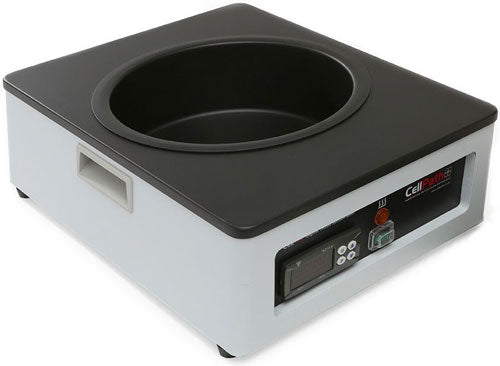

Round Digital Tissue Section Bath

28085

28085-1   Optional Lid

The Round Digital Tissue Section Bath incorporates an innovative digital control that accurately maintains water temperature and allows tissue sections to be efficiently flattened prior to being picked up with a microscope slide. A generous space surrounds the bowl to allow users to rest their hands when floating sections.

Enhanced safety features include recessed controls, an over-temperature thermal cut out and miniature circuit breakers eliminating the need for replacement fuses.

Key Benefits:

• Small footprint – dimensions: 370 x 295 x 135mm (D x W x H)
• Deep bowl (90mm) with large diameter allows slides to be used at any angle to pick up sections
• Convenient slide drying area at rear of the bath
• Ultra-fast heating system
• Anti-microbial finish to inhibit bacterial and viral growth
• Digital temperature control accurate to ±0.5°C at 45°C
• 110-230VAC, 50-60Hz

---

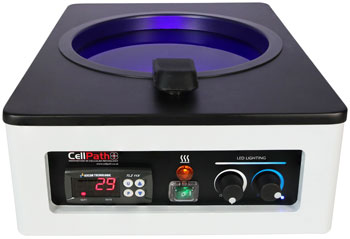

Round Digital LED Tissue Section Bath

28101

28101-3 Optional Lid

28101-4  LED Light Rig Replacement

Available individually or as a combo with the
Slide Dryer Workstation (#28101-1)

The Digital LED Tissue Section Bath is designed specifically to enhance visualization of tissue sections and to reduce the risk associated with floating tissue debris. An innovative LED light array sits inside the bath, working in collaboration with a high-contrast background to provide optimal specimen viewing conditions.

The LED light array utilizes separate white and blue LED lights to illuminate the water surface. Both LED lights are dimmer controlled, allowing the user to vary the intensity of the backlighting to their preference for section viewing. The LED backlighting also aids detection of any tissue floaters, which may be left on the water surface, after cleaning section debris using a tissue between specimen cases.

Digital temperature control accurately maintains water at a set temperature, allowing tissue sections to be efficiently flattened prior to being picked up with a microscope slide. The bath has generous space for a user to rest their hands when floating sections and an extra deep tapered bowl which allows slides to be dipped at any angle, without touching the bottom of the bowl.

Enhanced safety features include recessed controls, an over-temperature thermal cut out and miniature circuit breaker.

Key Features:

• Temperature range of between 30°C and 65°C
• Selectable blue and white LED backlighting with dimmer control
• Optional easily removable/replaceable LED light array
• Deep bowl with large diameter
• Convenient slide drying area at the rear of the bath
• Small footprint ensures minimal workbench space is taken up
• Ultra-fast heating system and reduced warmup time
• Anti-microbial finish to inhibit bacterial and viral growth
• Digital temperature control accurate to ±0.5°C at 45°C
• Miniature circuit breakers eliminating fuses

---

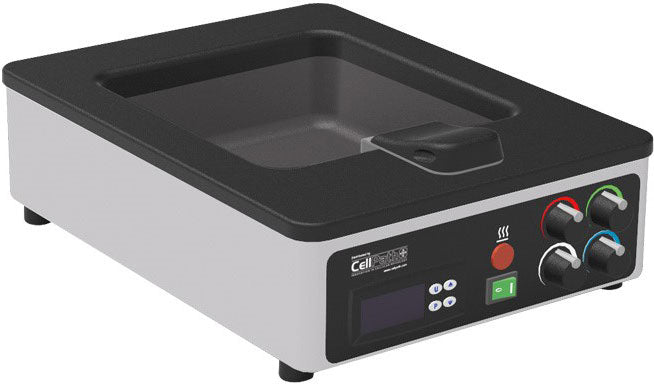

Square Digital LED Tissue Section Bath

28102

The Square Digital LED Tissue Section Bath incorporates a four-color LED that enhances visualization of tissue sections and reduces the risk associated with floating tissue debris. The innovative LED light array sits inside the bath, working in collaboration with a high-contrast background to provide optimal specimen viewing conditions. The light array utilizes separate white, red, green and blue LED lights to illuminate the water surface.

All four LED lights are dimmer controlled, allowing the user to vary the intensity of the back lighting to their preference for section viewing. The LED back lighting also aids detection of any tissue floaters, which may be left on the water surface, after cleaning section debris using a tissue between specimen cases.

Digital temperature control accurately maintains water at a set temperature, allowing tissue sections to be efficiently flattened prior to being picked up with a microscope slide. Stability is provided by four rubber feet. Enhanced safety features include recessed controls, an over-temperature thermal cut out and miniature circuit breaker. Designed with a small footprint to take up minimum space at the microtome, this tissue bath offers both reliability and ease-of-use.

Key Benefits:

• Selectable white, red, green and blue LED back lighting with dimmer control improves section visualization
• Easily removable/replaceable LED light array without the use of specialist tools
• Small footprint – dimensions: 336 x 255 x 99mm (D x W x H)
• Ultra-fast heating system
• Anti-microbial finish to inhibit bacterial and viral growth
• Digital temperature control accurate to ±0.5°C at 45°C
• Incorporated miniature circuit breakers
• Optional easy to use drop-on lid improves heating efficiency and control, while protecting water from contamination

---

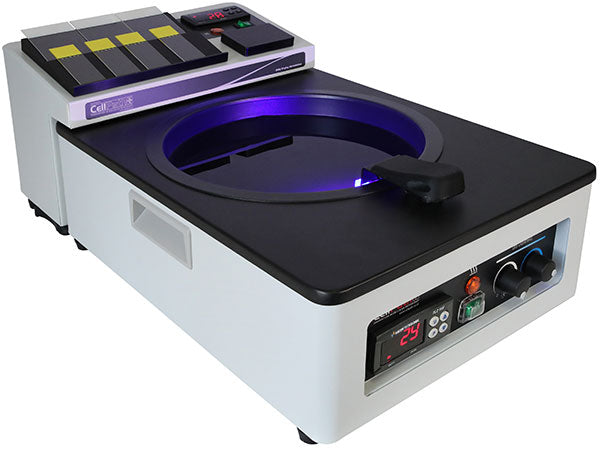

Slide Dryer Workstation & Slide Dryer/Tissue Section Bath Combos

28101-1

28101-2

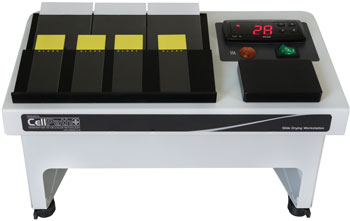

The Slide Drying Workstation (#28101-1) can be used as a stand-alone item or mates and fits snuggly to various tissue section baths.

The Slide Dryer Workstation is comprised of two areas: a sloped slide drying area which has capacity for 12 slides with temperature control accurate to ±1°C, and a mini hotplate (used to remove stubborn wrinkles from tissue sections) which is set to 65°C ±3°C.

Key Features:

• Ultra-fast heating system reduces warm-up time
• Novel, sloped tile design hotplate improves drying efficiency
• Small footprint takes minimal bench space
• Digital temperature control functionality with memory function for desired start up temperature
• Incorporated de-wrinkling mini hotplate set to 65°C ±3°C
• Anti-microbial powder coating

Available individually or as a combo paired with the Round Digital LED Tissue Section Bath (#28101).
