Hexagonal Grids 3.00-3.05mm Diameter

Hexagonal Grids 3.00-3.05mm Diameter

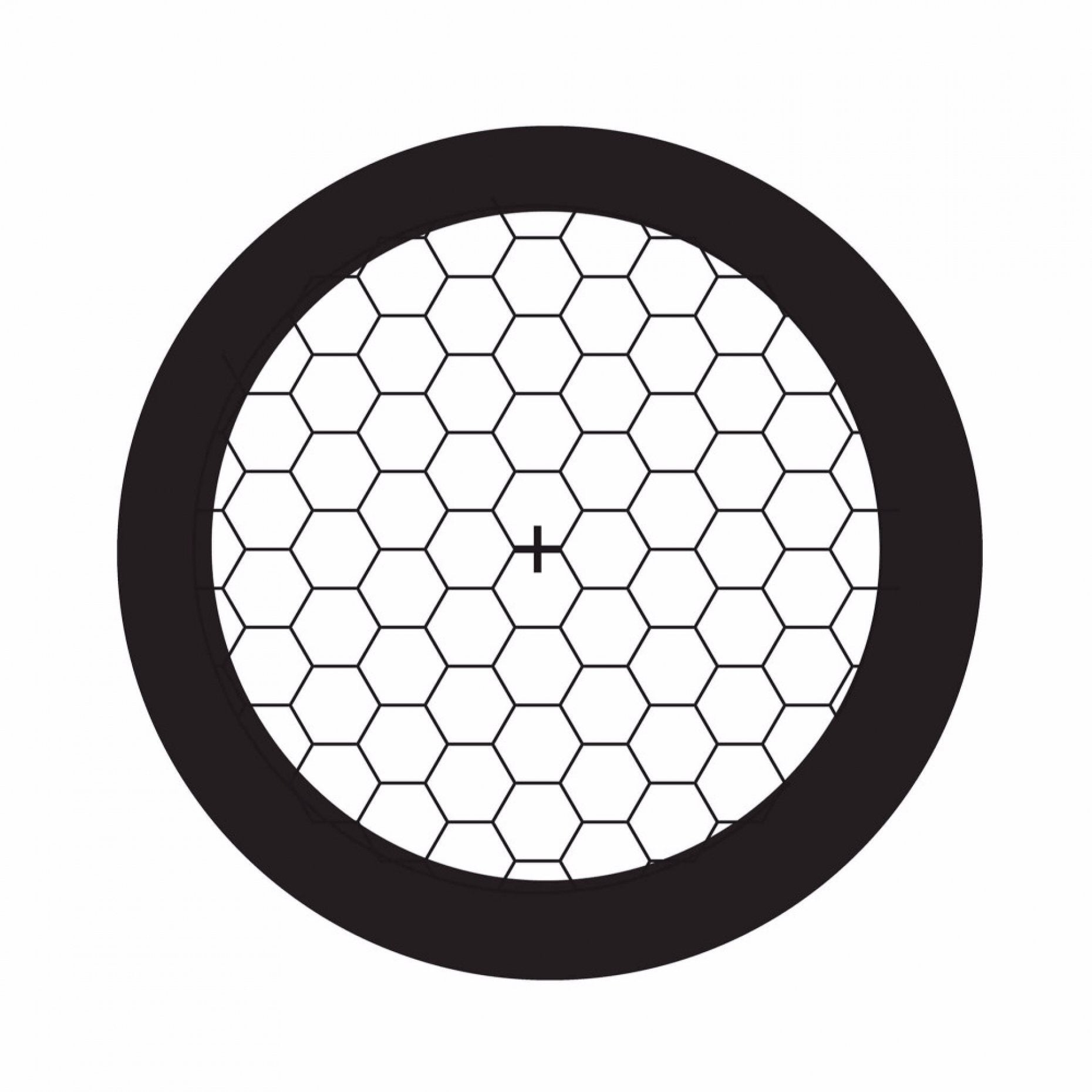

90 Mesh Hexagonal Grids 8G_90

Material  Part number
Copper 8GC90
Nickel 8GN90
Gold 8GG90
Pattern Pitch microns Mesh Hole microns Bar microns Transmission % Tolerance +/-microns
8G_90 272x317 85 224x269 48 70 5

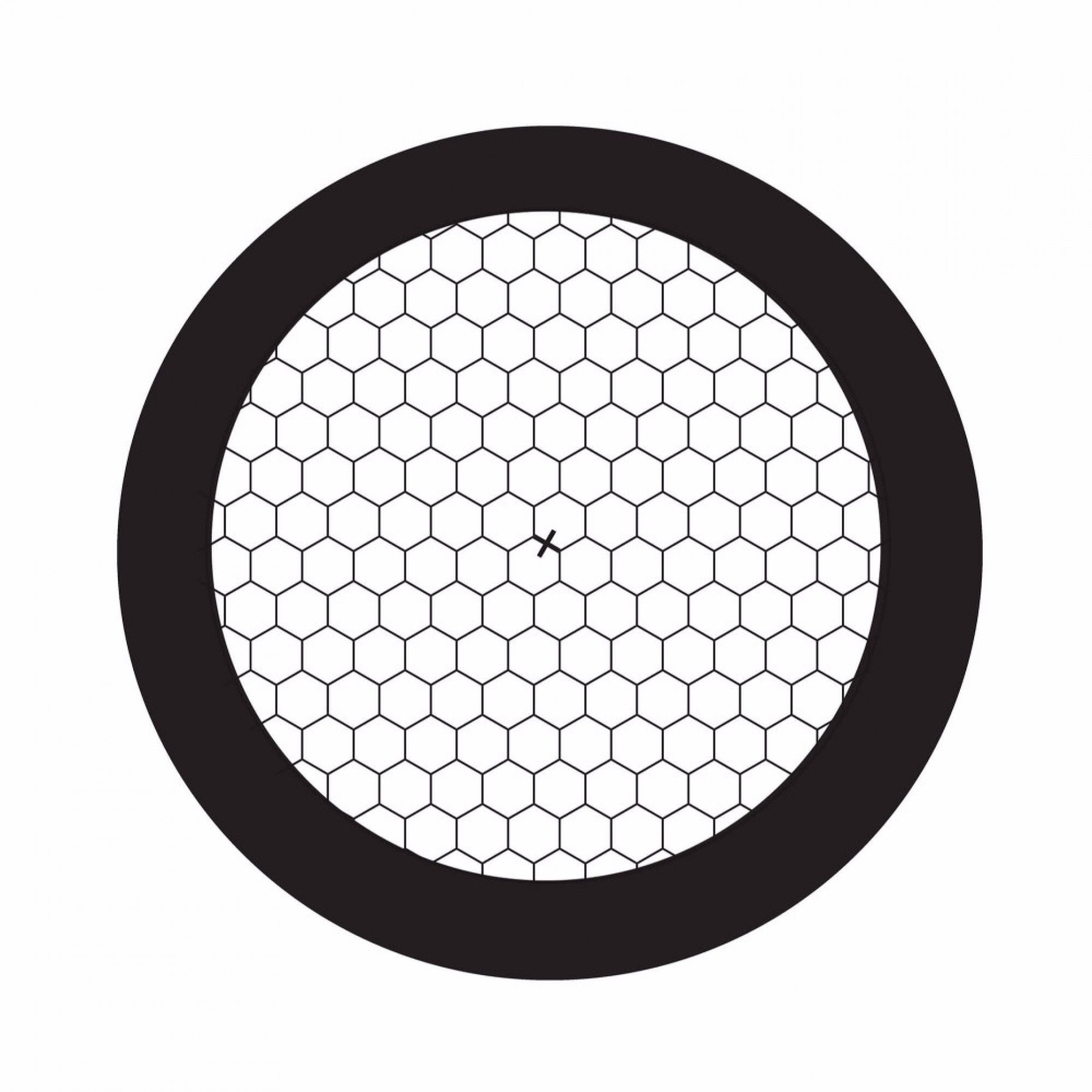

135 Mesh Hexagonal Grids 8G_135

Material  Part number
Copper 8GC135
Nickel 8GN135
Gold 8GG135
Pattern Pitch microns Mesh Hole microns Bar microns Transmission % Tolerance +/-microns
8G_135 186x208 130 148x172 36 65 5

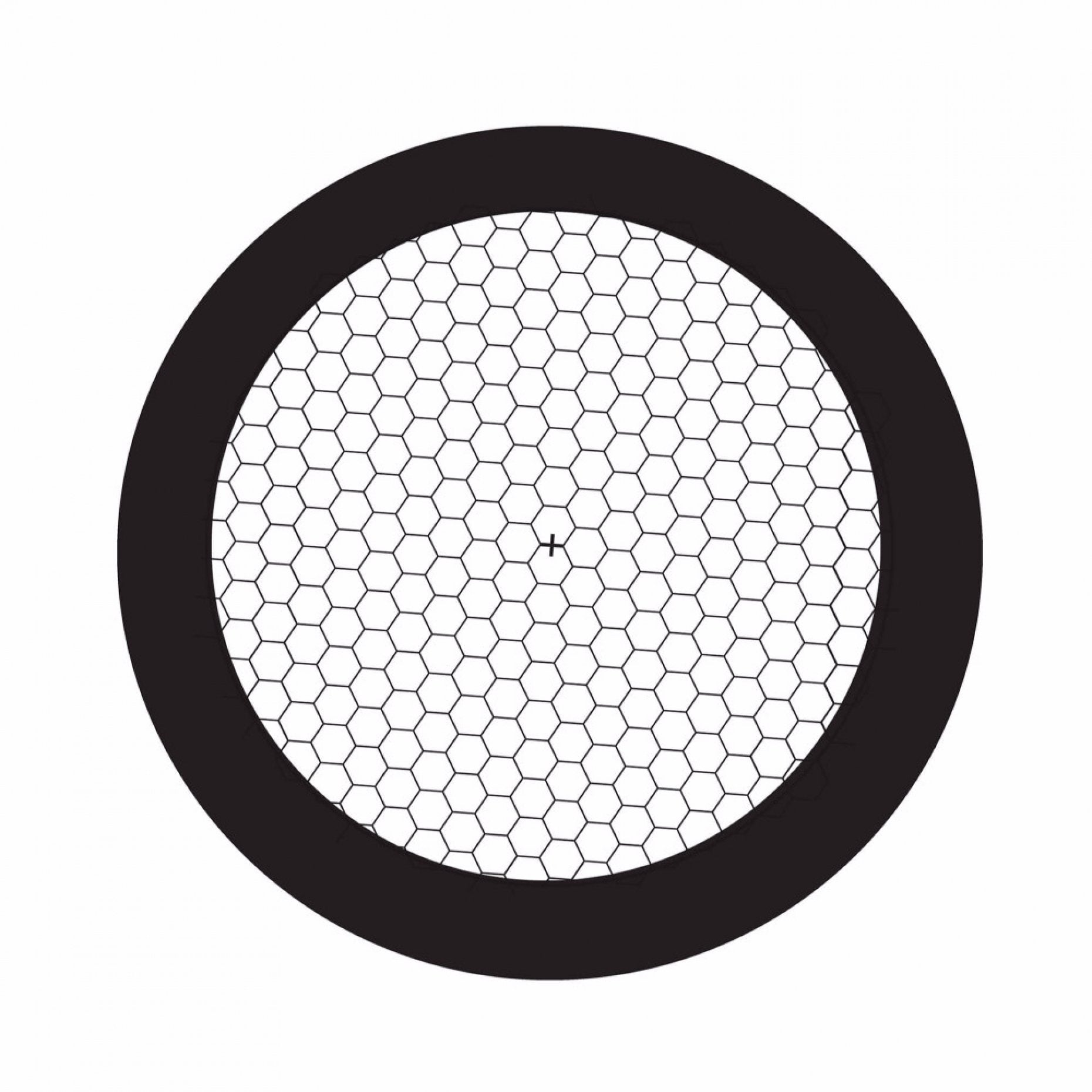

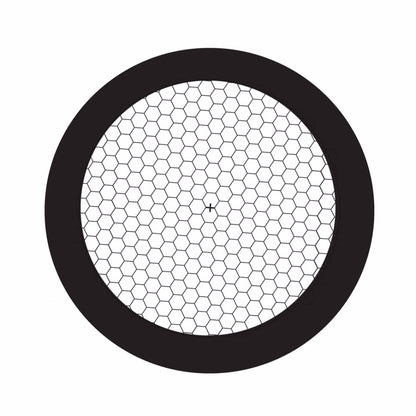

180 Mesh Hexagonal Grids 8G_180

Material  Part number
Copper 8GC180
Nickel 8GN180
Gold 8GG180
Pattern Pitch microns Mesh Hole microns Bar microns Transmission % Tolerance +/-microns
8G_180 139x157 170 111x129 28 65 5

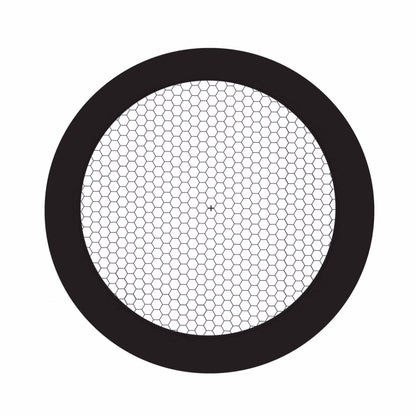

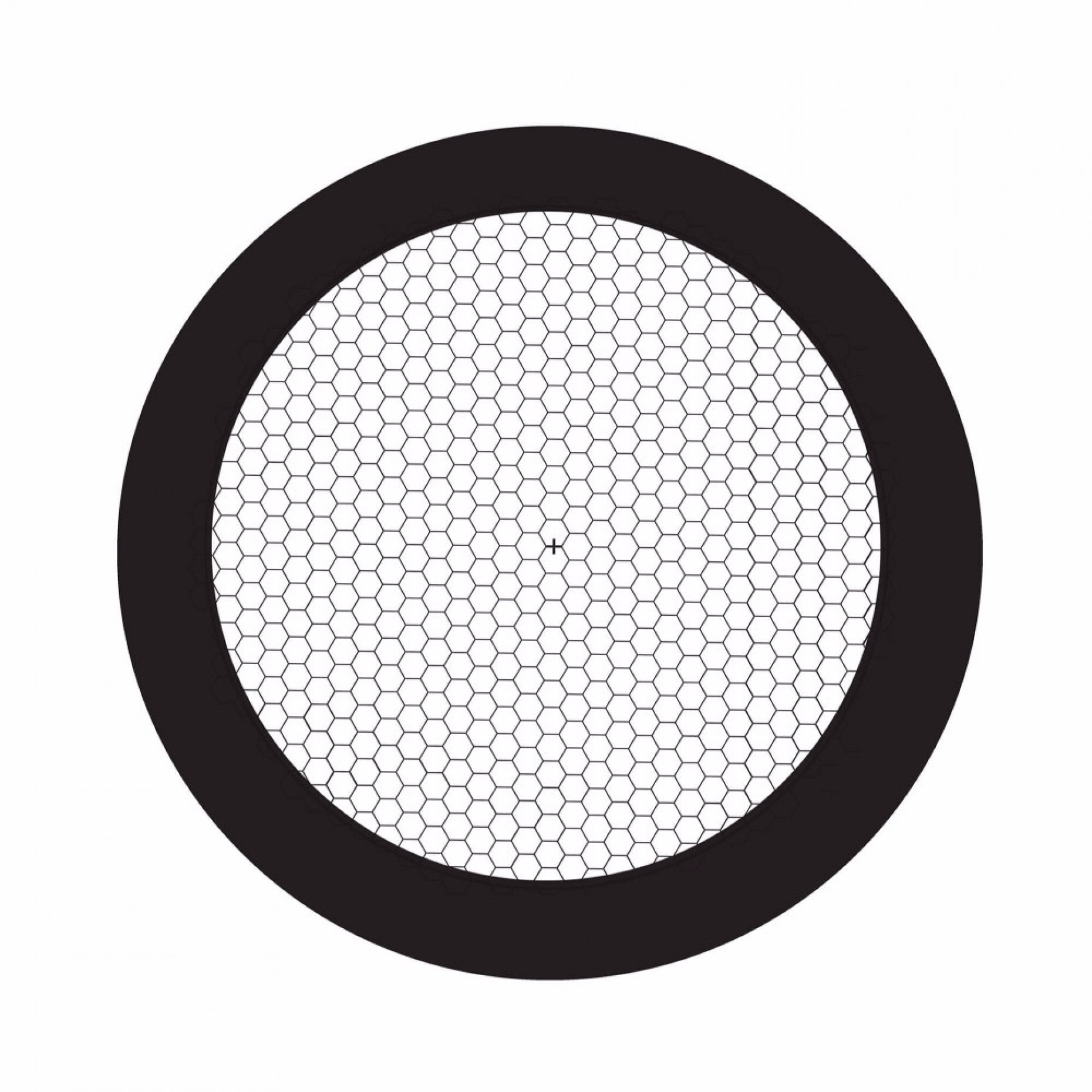

270 Mesh Hexagonal Grids 8G_270

Material  Part number
Copper 8GC270
Nickel 8GN270
Gold 8GG270
Pattern Pitch microns Mesh Hole microns Bar microns Transmission % Tolerance +/-microns
8G_270 86x99 275 62x75 24 55 5

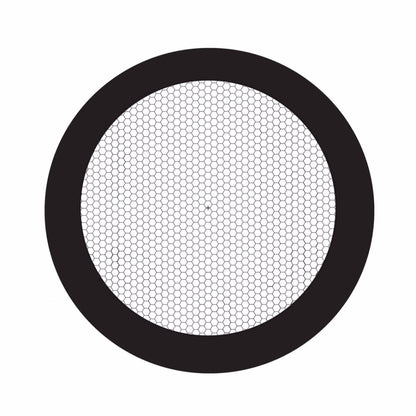

360 Mesh Hexagonal Grids 8G_360

Material  Part number
Copper 8GC90
Nickel 8GN90
Gold 8GG90
Pattern Pitch microns Mesh Hole microns Bar microns Transmission % Tolerance +/-microns
8G_360 67x79 350 41x51 26 40 5

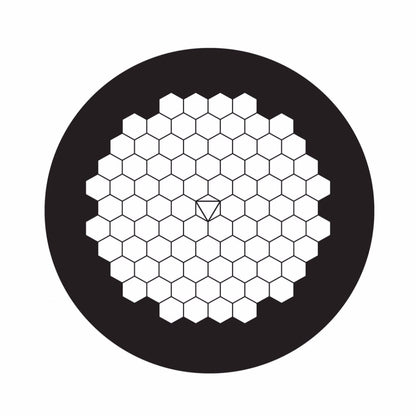

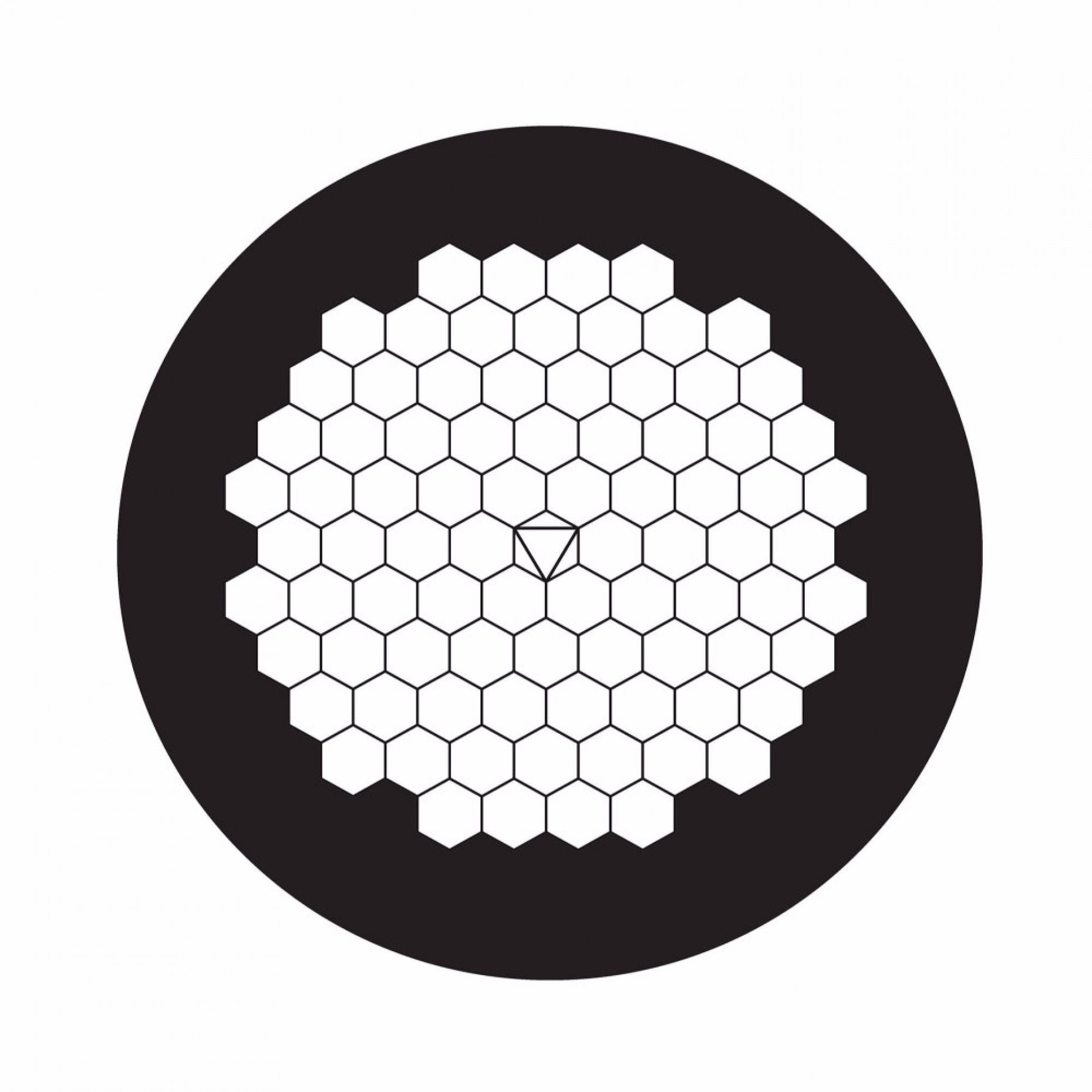

H5 Pattern 100 Mesh Hexagonal Grids H5_100

Material  Part number
Copper H5Cu100
Nickel H5Ni100
Gold H5Au100
Pattern Pitch microns Mesh Hole microns Bar microns Transmission % Tolerance +/-microns
H5_100 230x262 100 205x237 25 80 2





Documentation

SDS

Technical Notes

🚚 Estimated Delivery: 5 - 6 weeks from payment confirmation

View full details
Variant Variant total Quantity Price Variant total
90 Mesh Hexagonal Grids, Copper (Unit: 100/vial)8GC90
90 Mesh Hexagonal Grids, Copper (Unit: 100/vial)8GC90
112,03 lei/ea		 0,00 lei
112,03 lei/ea 0,00 lei
90 Mesh Hexagonal Grids, Nickel (Unit: 100/vial)8GN90
90 Mesh Hexagonal Grids, Nickel (Unit: 100/vial)8GN90
125,94 lei/ea		 0,00 lei
125,94 lei/ea 0,00 lei
135 Mesh Hexagonal Grids, Copper (Unit: 100/vial)8GC135
135 Mesh Hexagonal Grids, Copper (Unit: 100/vial)8GC135
112,03 lei/ea		 0,00 lei
112,03 lei/ea 0,00 lei
135 Mesh Hexagonal Grids, Nickel (Unit: 100/vial)8GN135
135 Mesh Hexagonal Grids, Nickel (Unit: 100/vial)8GN135
125,94 lei/ea		 0,00 lei
125,94 lei/ea 0,00 lei
135 Mesh Hexagonal Grids, Gold (Unit: 25/vial)8GG135
135 Mesh Hexagonal Grids, Gold (Unit: 25/vial)8GG135
193,67 lei/ea		 0,00 lei
193,67 lei/ea 0,00 lei
180 Mesh Hexagonal Grids, Copper (Unit: 100/vial)8GC180
180 Mesh Hexagonal Grids, Copper (Unit: 100/vial)8GC180
112,03 lei/ea		 0,00 lei
112,03 lei/ea 0,00 lei
180 Mesh Hexagonal Grids, Nickel (Unit: 100/vial)8GN180
180 Mesh Hexagonal Grids, Nickel (Unit: 100/vial)8GN180
125,94 lei/ea		 0,00 lei
125,94 lei/ea 0,00 lei
180 Mesh Hexagonal Grids, Gold (Unit: 25/vial)8GG180
180 Mesh Hexagonal Grids, Gold (Unit: 25/vial)8GG180
193,67 lei/ea		 0,00 lei
193,67 lei/ea 0,00 lei
270 Mesh Hexagonal Grids, Copper (Unit: 100/vial)8GC270
270 Mesh Hexagonal Grids, Copper (Unit: 100/vial)8GC270
112,03 lei/ea		 0,00 lei
112,03 lei/ea 0,00 lei
270 Mesh Hexagonal Grids, Nickel (Unit: 100/vial)8GN270
270 Mesh Hexagonal Grids, Nickel (Unit: 100/vial)8GN270
125,94 lei/ea		 0,00 lei
125,94 lei/ea 0,00 lei
270 Mesh Hexagonal Grids, Gold (Unit: 25/vial)8GG270
270 Mesh Hexagonal Grids, Gold (Unit: 25/vial)8GG270
193,67 lei/ea		 0,00 lei
193,67 lei/ea 0,00 lei
360 Mesh Hexagonal Grids, Copper (Unit: 100/vial)8GC360
360 Mesh Hexagonal Grids, Copper (Unit: 100/vial)8GC360
112,03 lei/ea		 0,00 lei
112,03 lei/ea 0,00 lei
360 Mesh Hexagonal Grids, Nickel (Unit: 100/vial)8GN360
360 Mesh Hexagonal Grids, Nickel (Unit: 100/vial)8GN360
125,94 lei/ea		 0,00 lei
125,94 lei/ea 0,00 lei
360 Mesh Hexagonal Grids, Gold (Unit: 25/vial)8GG360
360 Mesh Hexagonal Grids, Gold (Unit: 25/vial)8GG360
193,67 lei/ea		 0,00 lei
193,67 lei/ea 0,00 lei
100 Mesh H5 Pattern Hexagonal Grids, Copper (Unit: 100/vial)H5Cu100
100 Mesh H5 Pattern Hexagonal Grids, Copper (Unit: 100/vial)H5Cu100
121,23 lei/ea		 0,00 lei
121,23 lei/ea 0,00 lei
100 Mesh H5 Pattern Hexagonal Grids, Nickel (Unit: 100/vial)H5Ni100
100 Mesh H5 Pattern Hexagonal Grids, Nickel (Unit: 100/vial)H5Ni100
133,11 lei/ea		 0,00 lei
133,11 lei/ea 0,00 lei
100 Mesh H5 Pattern Hexagonal Grids, Gold (Unit: 25/vial)H5Au100
100 Mesh H5 Pattern Hexagonal Grids, Gold (Unit: 25/vial)H5Au100
1.009,65 lei/ea		 0,00 lei
1.009,65 lei/ea 0,00 lei
