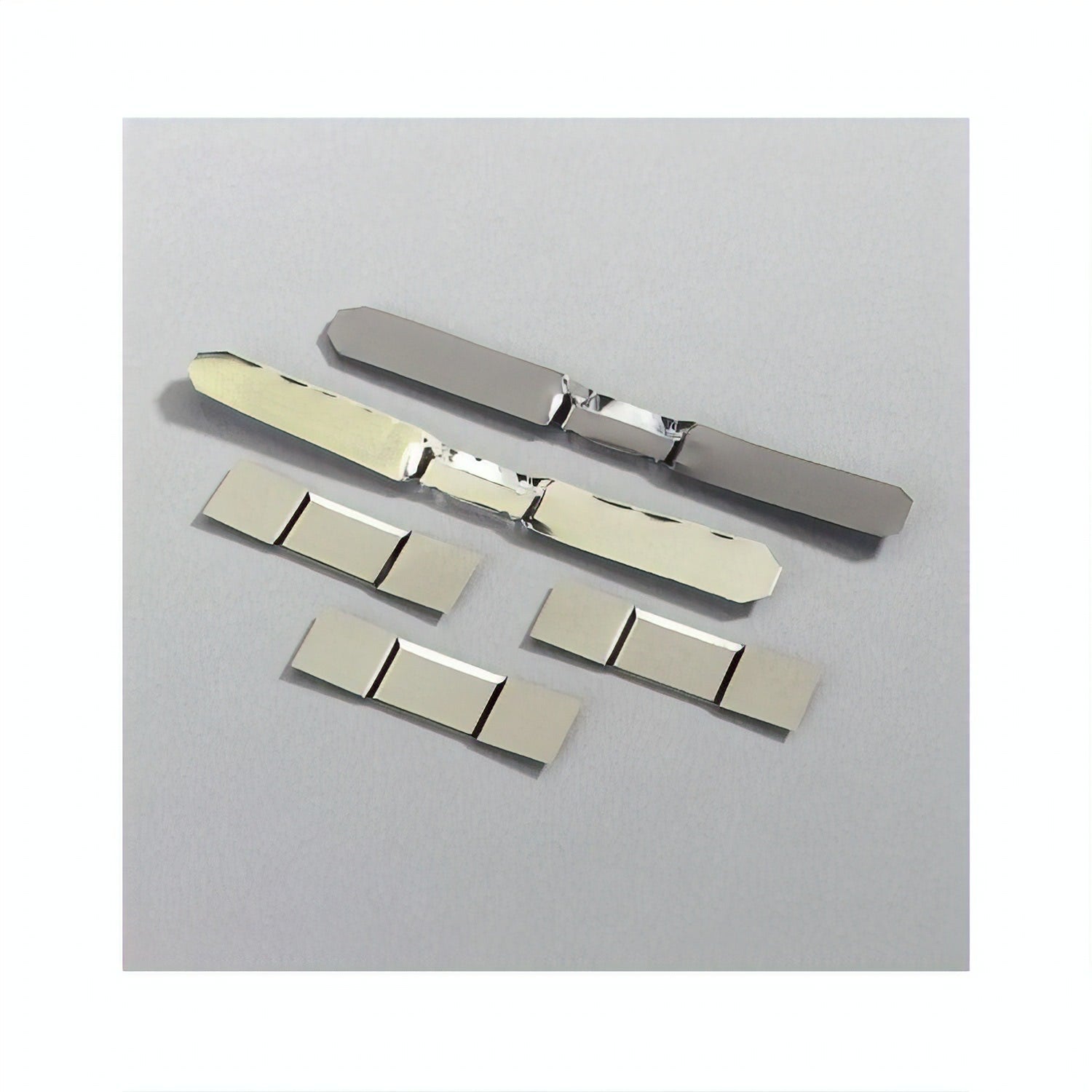

PL81 Molybdenum heating boat, 3/16 x 1/2" trough, for aperture cleaning & evaporation Total length 32 mm; thickness 0.05 mm Tub: 12mm (L) x 9.5mm (W) x 1mm (D) Packaging unit: 5 pieces
PL82 Platinum heating boat, 3/16 x 1/2" trough, for aperture cleaning & evaporation Total length 75 mm; thickness 0.05 mm Dimensions of the channel: 12 mm (L) x 5 mm (W) x 1 mm (D) Packaging unit: 1 piece
PL83 Tantalum heating boat, 3/16 x 1/2" trough, for aperture cleaning & evaporation Total length 75 mm; thickness 0.05 mm Dimensions of the channel: 12 mm (L) x 5 mm (W) x 1 mm (D) Packaging unit: 5 pieces
PL84 Tungsten heating boat, 3/16 x 1/2" trough, for aperture cleaning & evaporation Dimensions: 32 x 9.5 mm; Thickness: 0.05 mm Dimensions of the channel: 12.7 mm (L) x 9.5 mm (W) x 0.8 mm (D) Packaging unit: 5 pieces

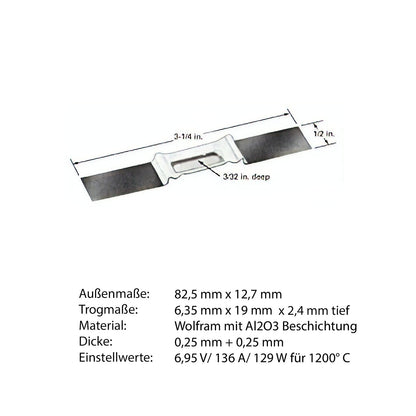

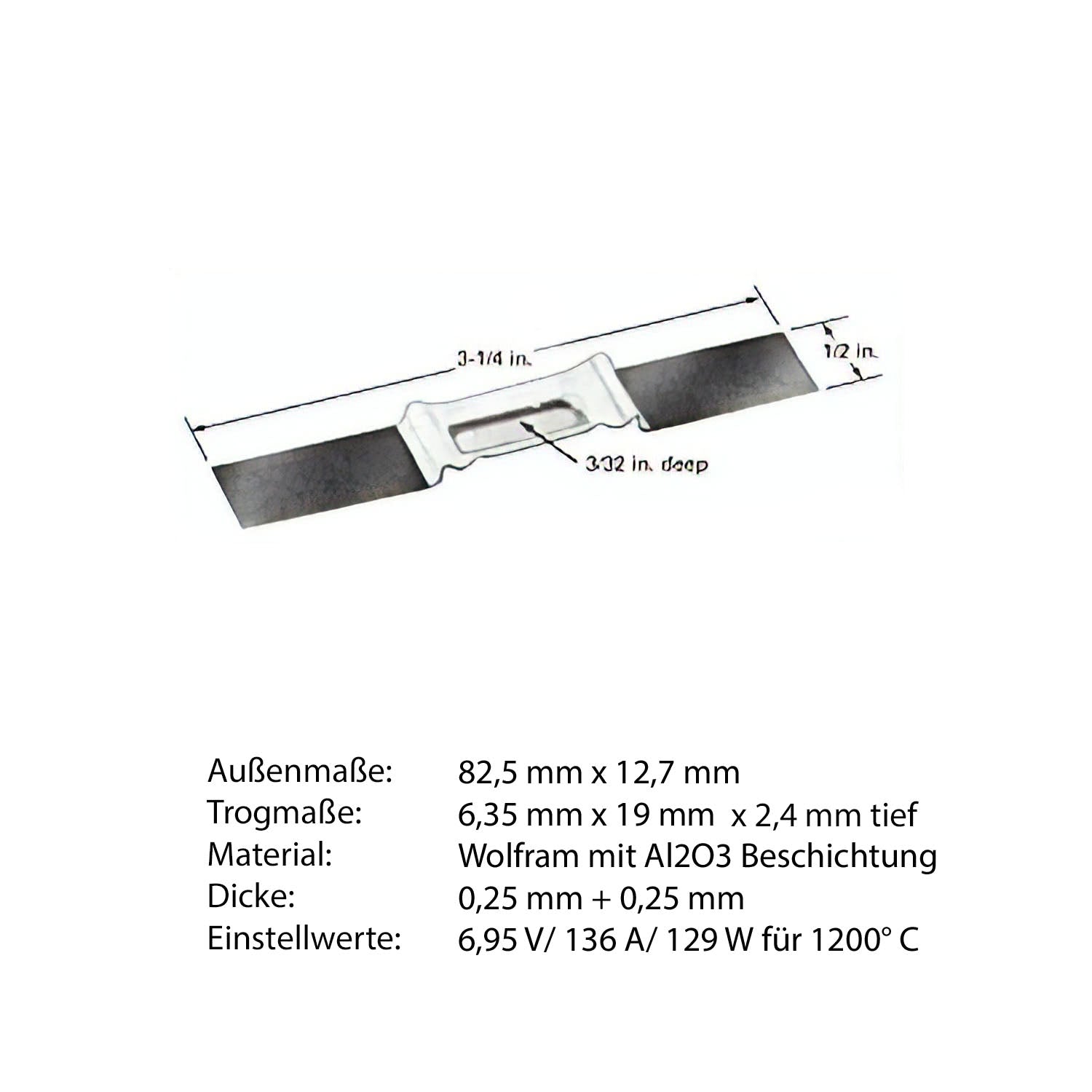

PL84-2 Heating boat made of tungsten with an aluminum oxide coated trough Size: 6.35 mm x 19.05 mm Boat made of tungsten (82.5 mm x 12.7 mm) with aluminum oxide protective layer Trough dimensions: 6.35 mm x 19 mm x 2.38 mm thickness / tungsten sheet: 0.25 mm / Al 2 O 3 layer: 0.25 mm Setting values: 0.95 V / 136 A / 129 W for 1200 °C Packaging unit: 5 pieces

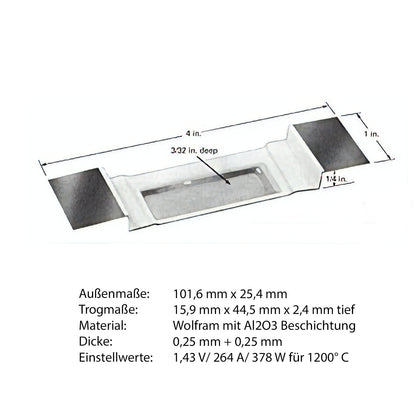

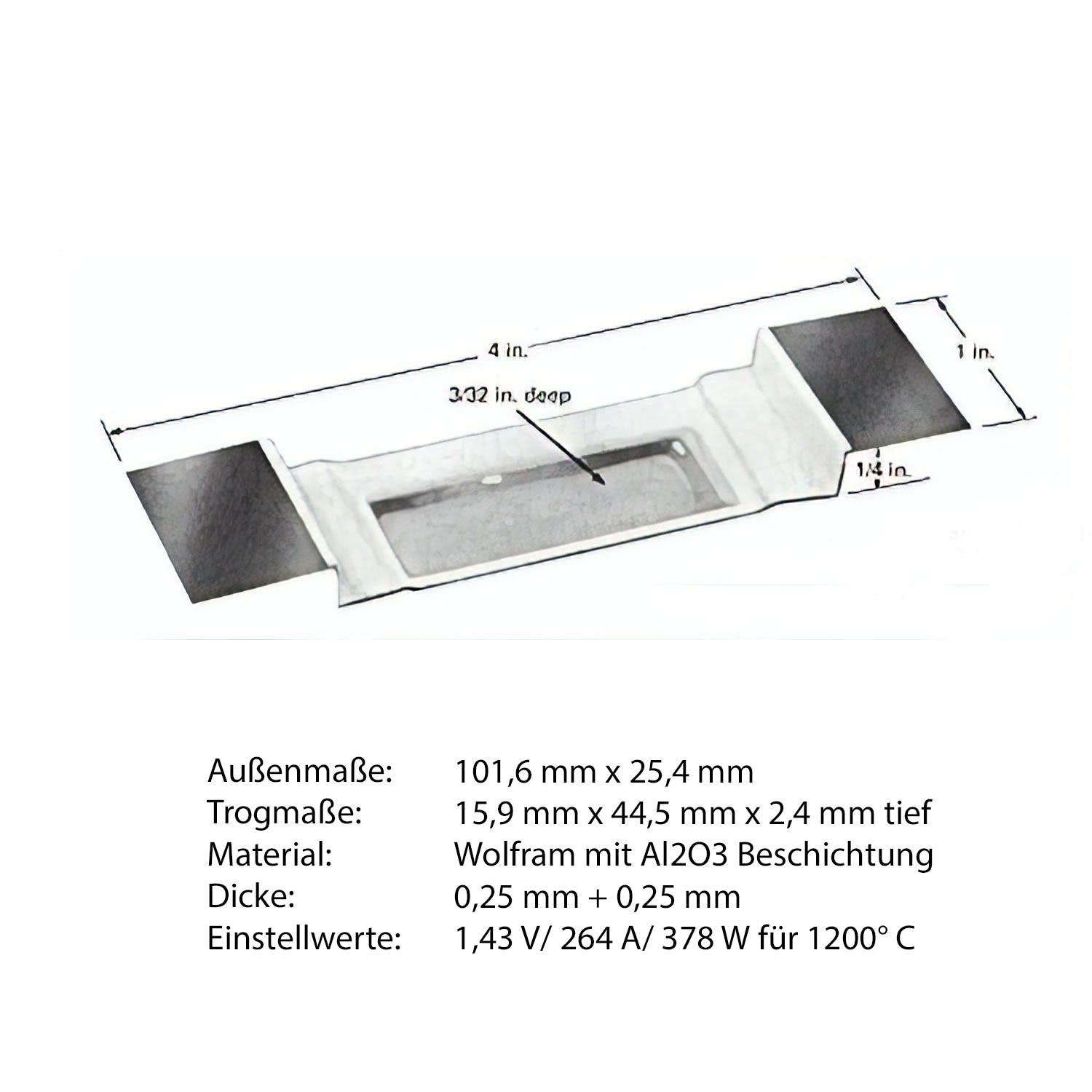

PL84-3 Heating boat made of tungsten with an aluminum oxide coated trough Size: 15.9 mm x 44.5 mm Boat made of tungsten (101.6 mm x 25.4 mm) with aluminum oxide protective layer Trough dimensions: 15.9 mm x 44.5 mm x 2.4 mm thickness / tungsten sheet: 0.25 mm / Al 2 O 3 layer: 0.25 mm Setting values: 1.43 V / 264 A / 378 W for 1200 °C Packaging unit: 5 pieces

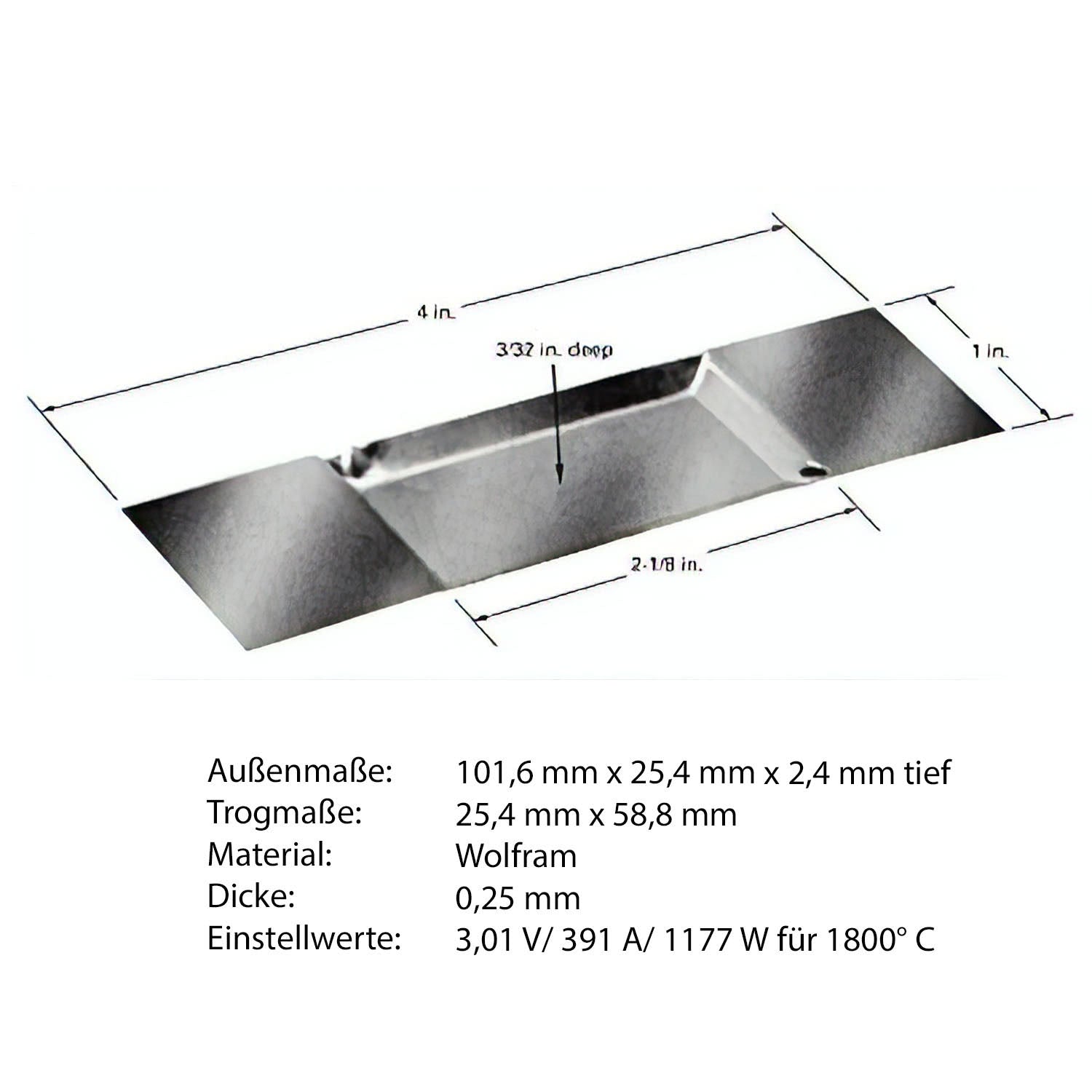

PL84-5 Heating boat with trough made of tungsten Tungsten evaporator boat (101.6 mm x 25.4 mm) Trough dimensions: 25.4 mm x 58.8 mm x 3.2 mm deep Setting values: 3.01 V / 391 A / 1177 W for 1800 °C Packaging unit: 5 pieces

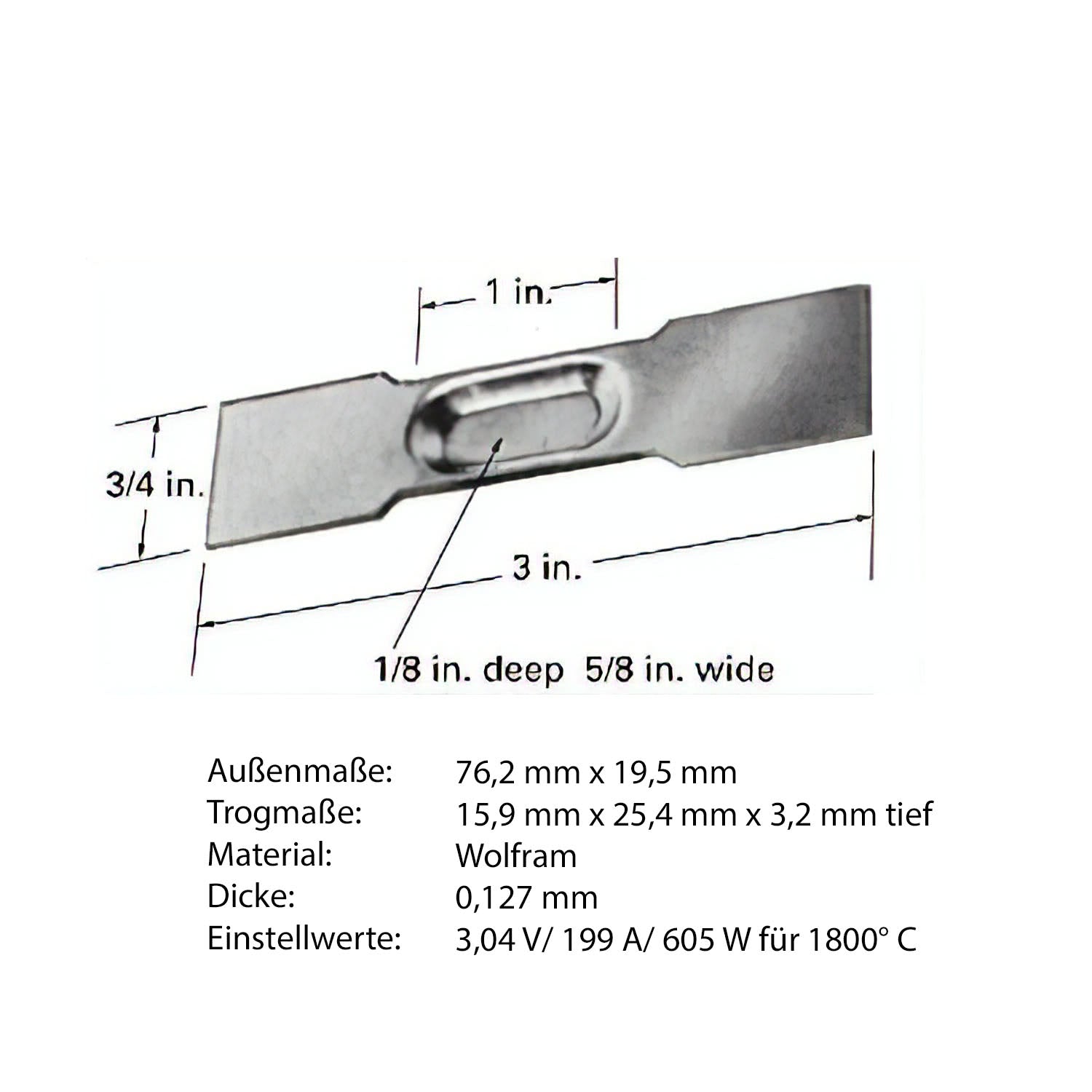

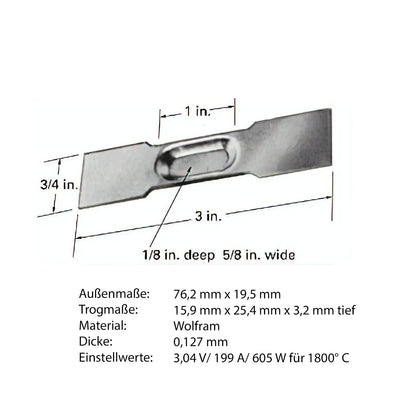

PL84-6 Heating boat with trough made of tungsten Tungsten evaporator boat (76.2 mm x 19.5 mm) Trough dimensions: 15.9 mm x 25.4 mm x 3.2 mm deep Setting values: 3.04 V / 199 A / 605 W for 1800 °C Packaging unit: 5 pieces

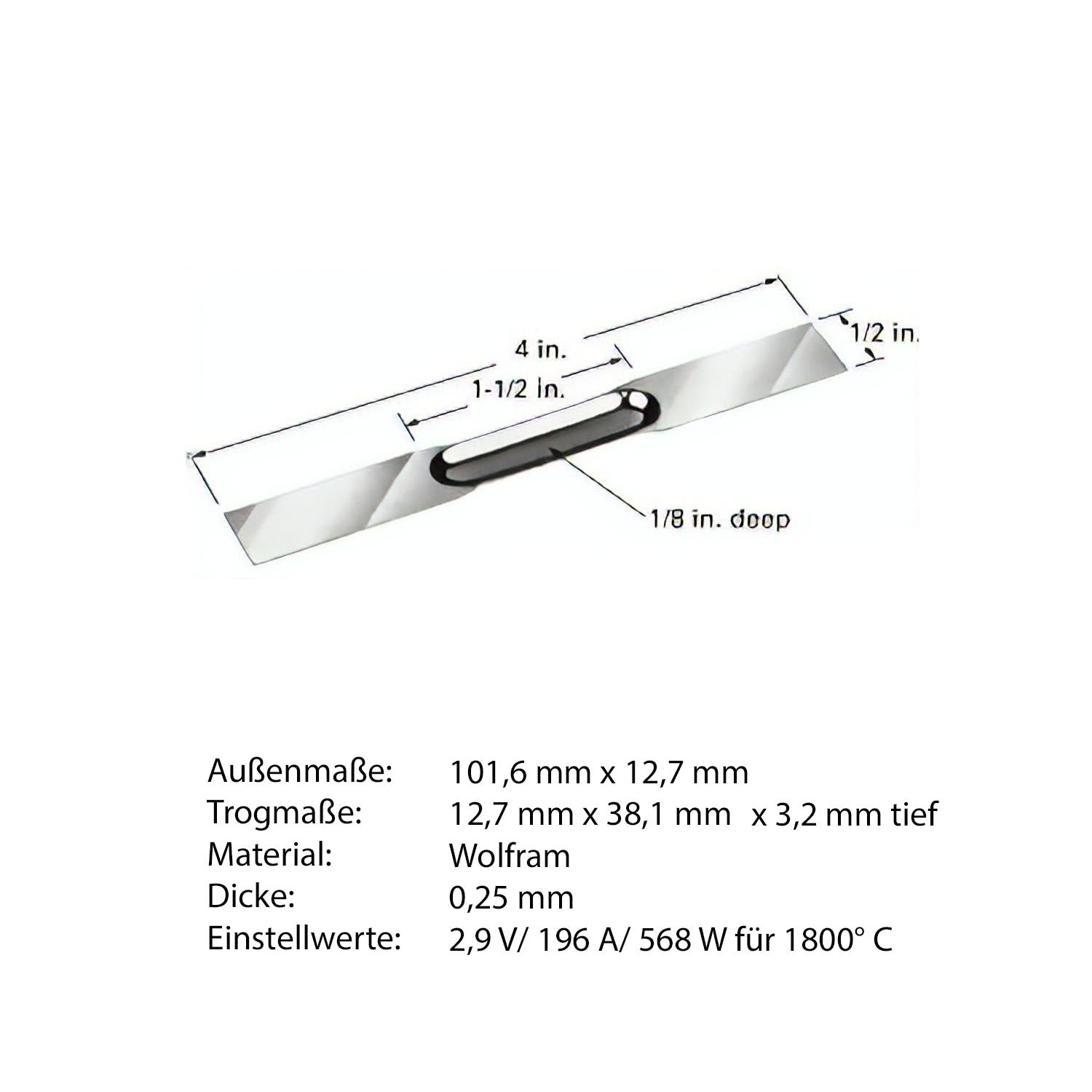

PL84-7 Heating boat with trough made of tungsten Tungsten evaporator boat (101.6 mm x 12.7 mm) Trough dimensions: 12.7 mm x 38.1 mm x 3.2 mm deep Setting values: 2.90 V / 196 A / 568 W for 1800 °C Packaging unit: 5 pieces

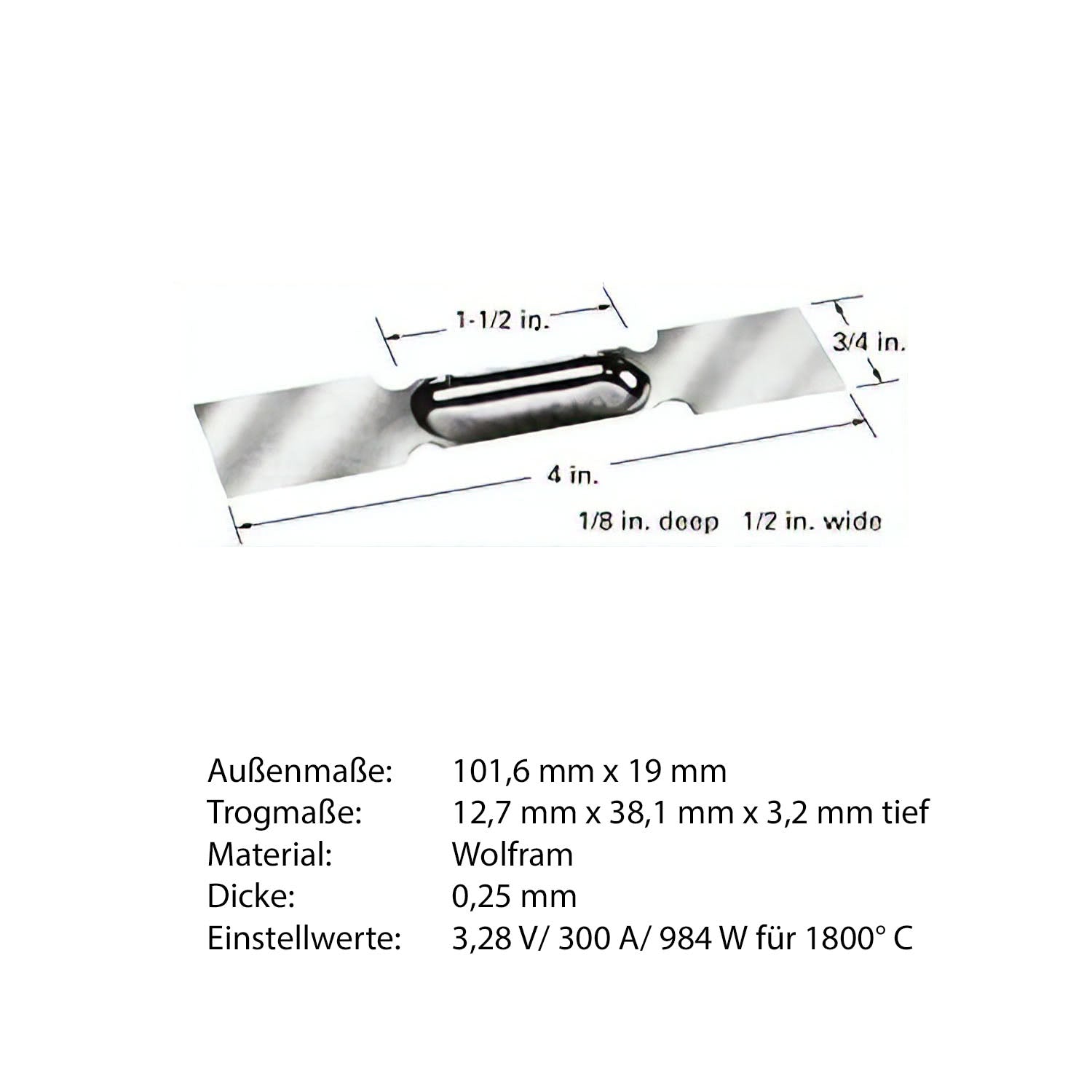

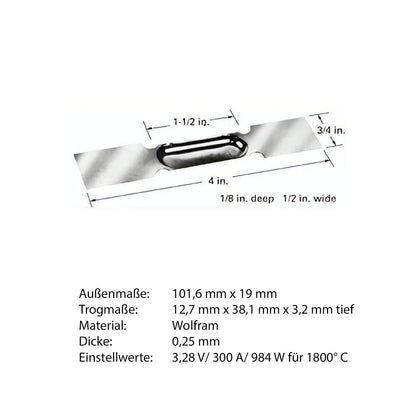

PL84-8 Heating boat with trough made of tungsten Tungsten evaporator boat (101.6 mm x 19 mm) Trough dimensions: 12.7 mm x 38.1 mm x 3.2 mm deep Setting values: 3.28 V / 300 A / 984 W for 1800 °C Packaging unit: 5 pieces
PL84-31 Heating boat with trough made of tungsten Tungsten evaporator boat (47.6 mm x 6.35 mm) Recess: Ø 4.76 mm x 1.6 mm deep Setting values: 1.69 V / 80 A / 135 W for 1800 °C Packaging unit: 5 pieces

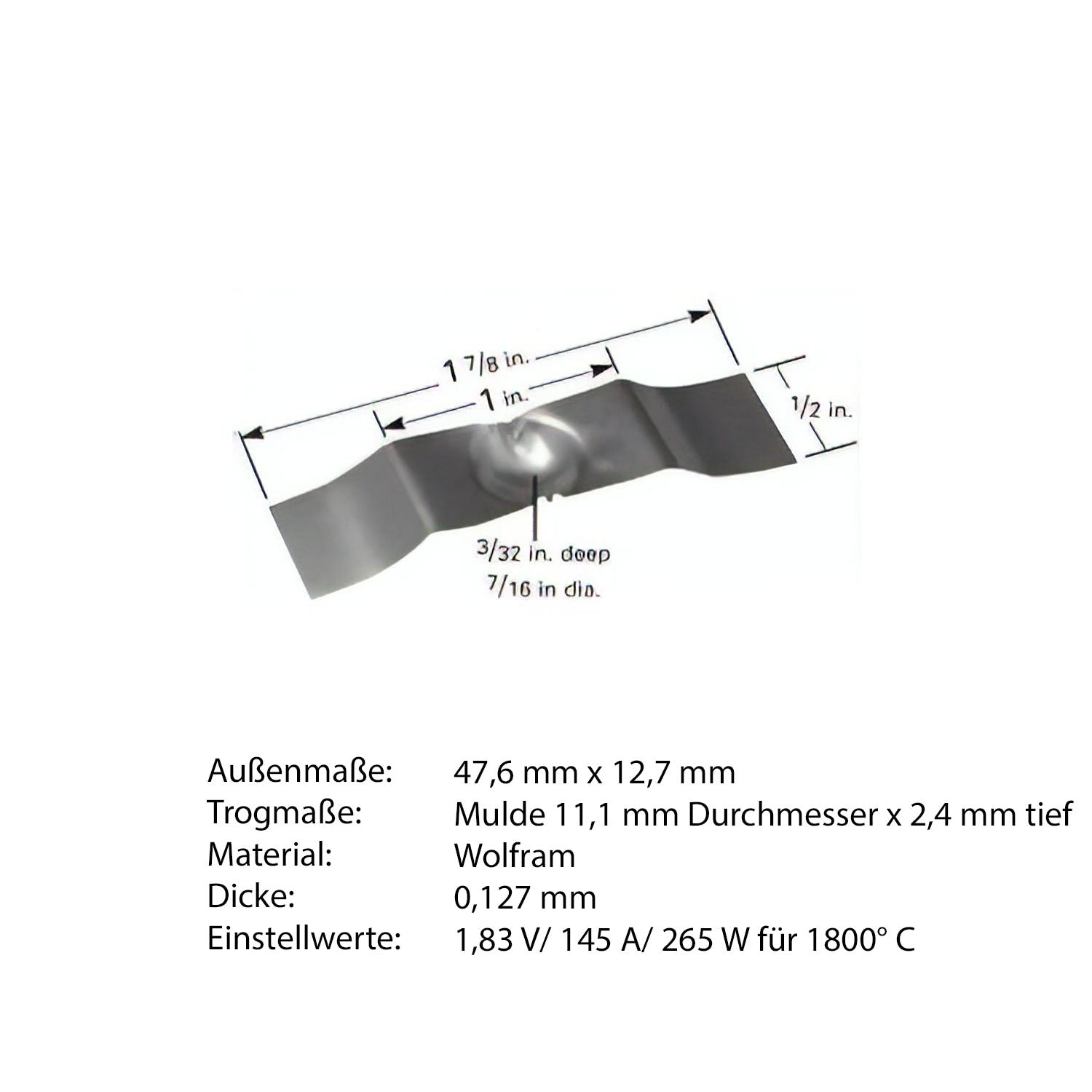

PL84-32 Heating boat with trough made of tungsten Tungsten evaporator boat (47.6 mm x 12.7 mm) Recess: Ø 11.1 mm x 2.38 mm deep Setting values: 1.83 V / 145 A / 265 W for 1800 °C Packaging unit: 5 pieces

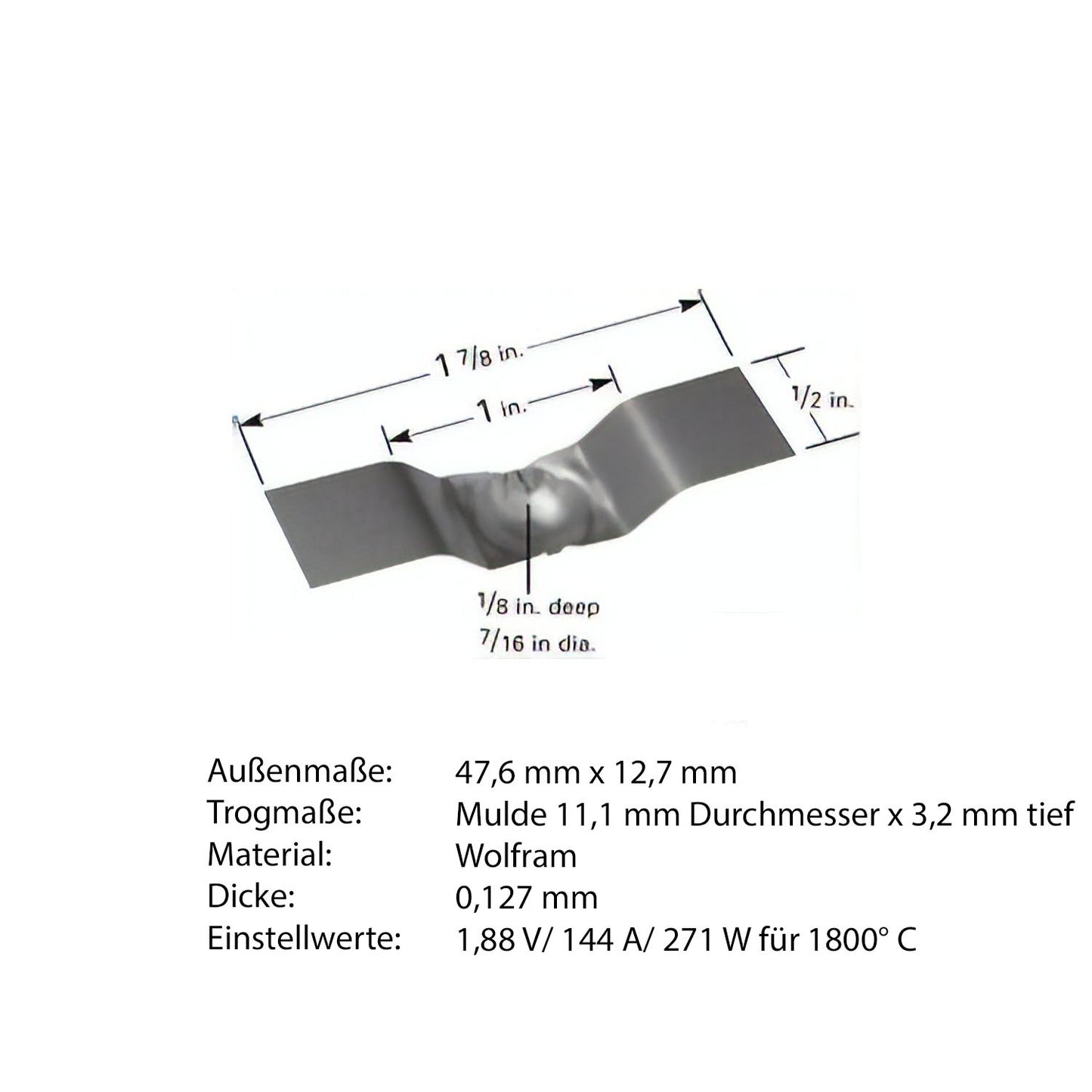

PL84-33 Heating boat with trough made of tungsten Tungsten evaporator boat (47.6 mm x 12.7 mm) Recess: Ø 11.1 mm x 3.2 mm deep Setting values: 1.88 V / 144 A / 271 W for 1800 °C Packaging unit: 5 pieces

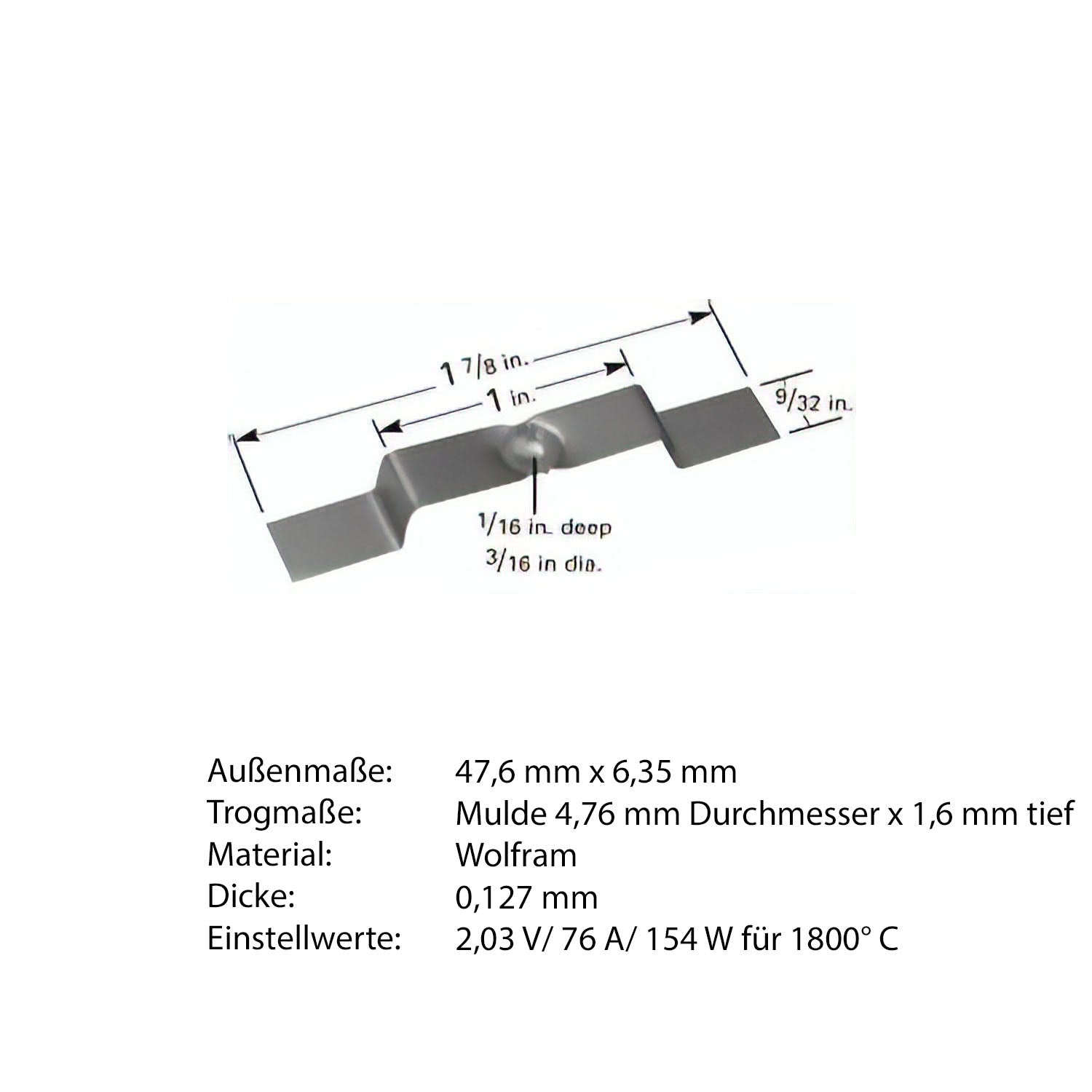

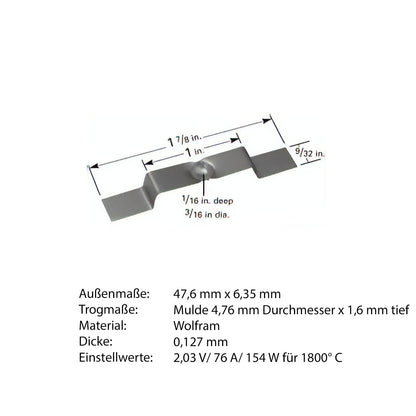

PL84-34 Heating boat with trough made of tungsten Tungsten evaporator boat (47.6 mm x 6.35 mm) Recess: Ø 4.76 mm x 1.6 mm deep Setting values: 2.03 V / 76 A / 154 W for 1800 °C Packaging unit: 5 pieces

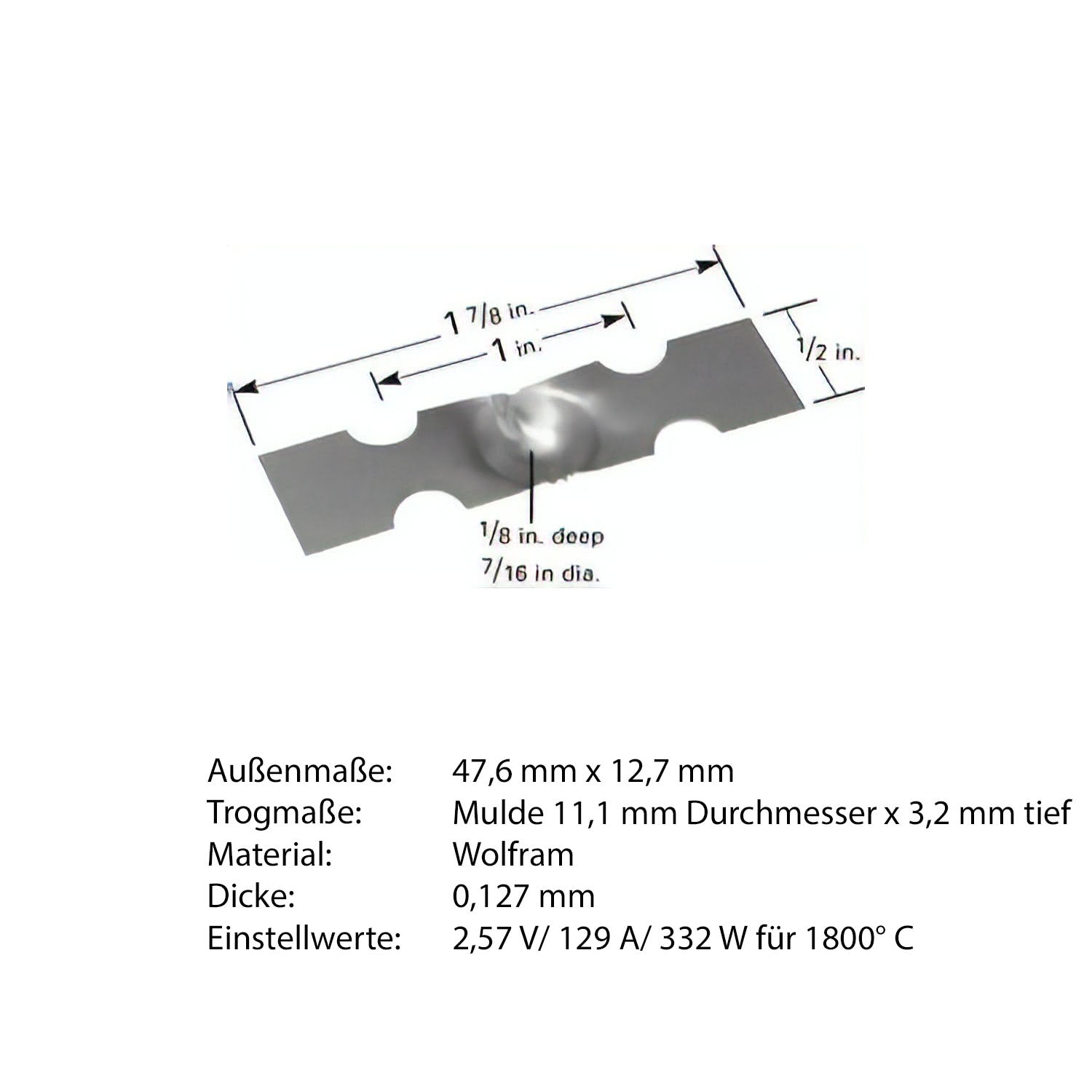

PL84-35 Heating boat with trough made of tungsten Tungsten evaporator boat (47.6 mm x 12.7 mm) Recess: Ø 11.1 mm x 3.2 mm deep Reduced cross-section Setting values: 2.57 V / 129 A / 332 W for 1800 °C Packaging unit: 5 pieces

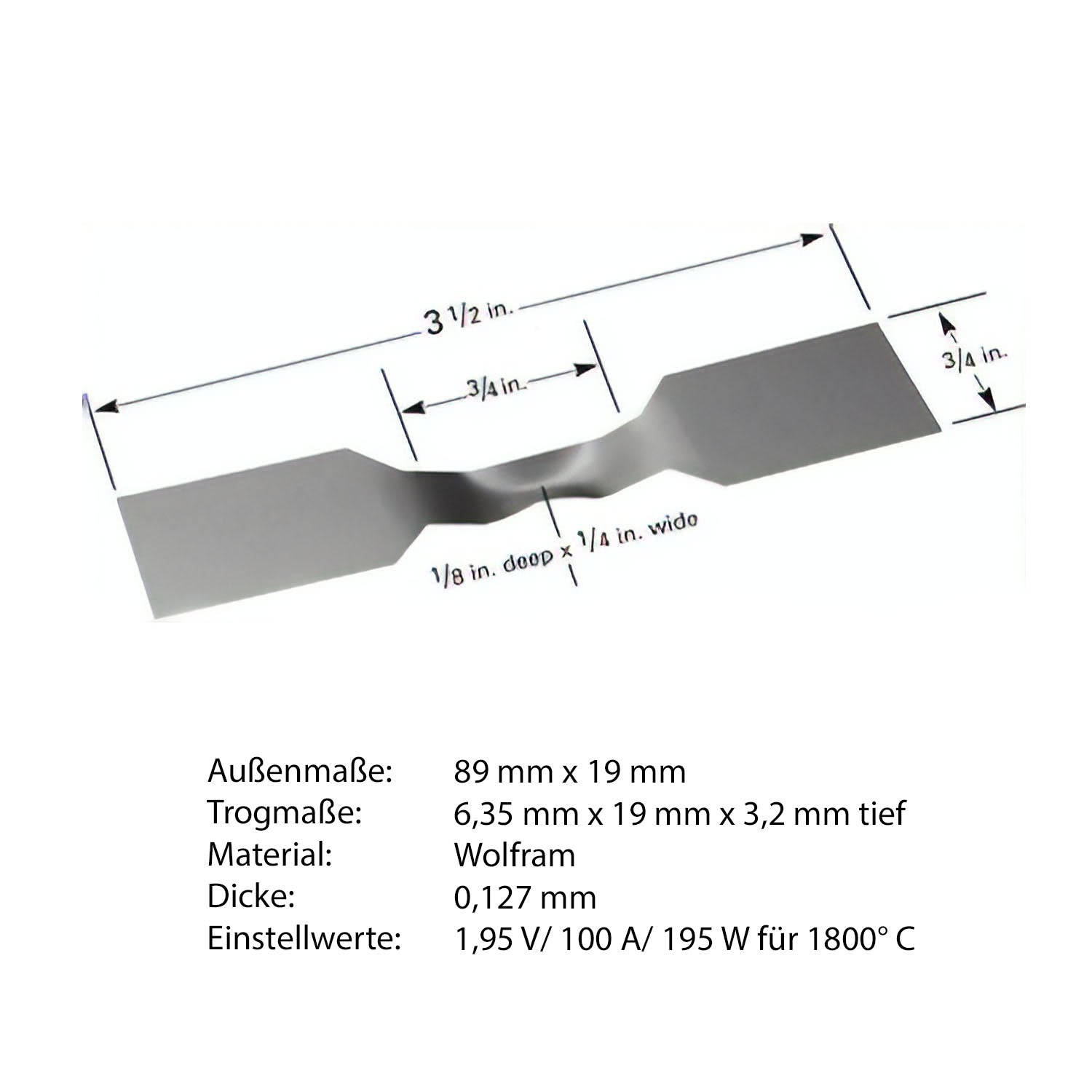

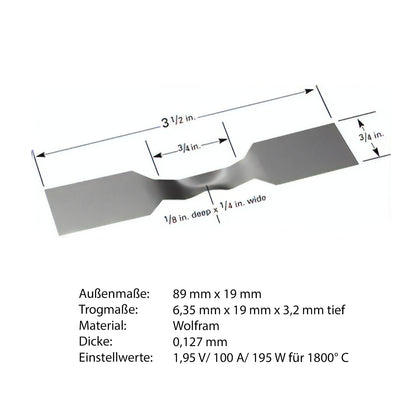

PL84-36 Heating boat with trough made of tungsten Tungsten evaporator boat (89 mm x 19 mm) Trough dimensions: 6.35 mm x 19 mm x 3.2 mm deep Setting values: 1.95 V / 100 A / 195 W for 1800 °C Packaging unit: 5 pieces

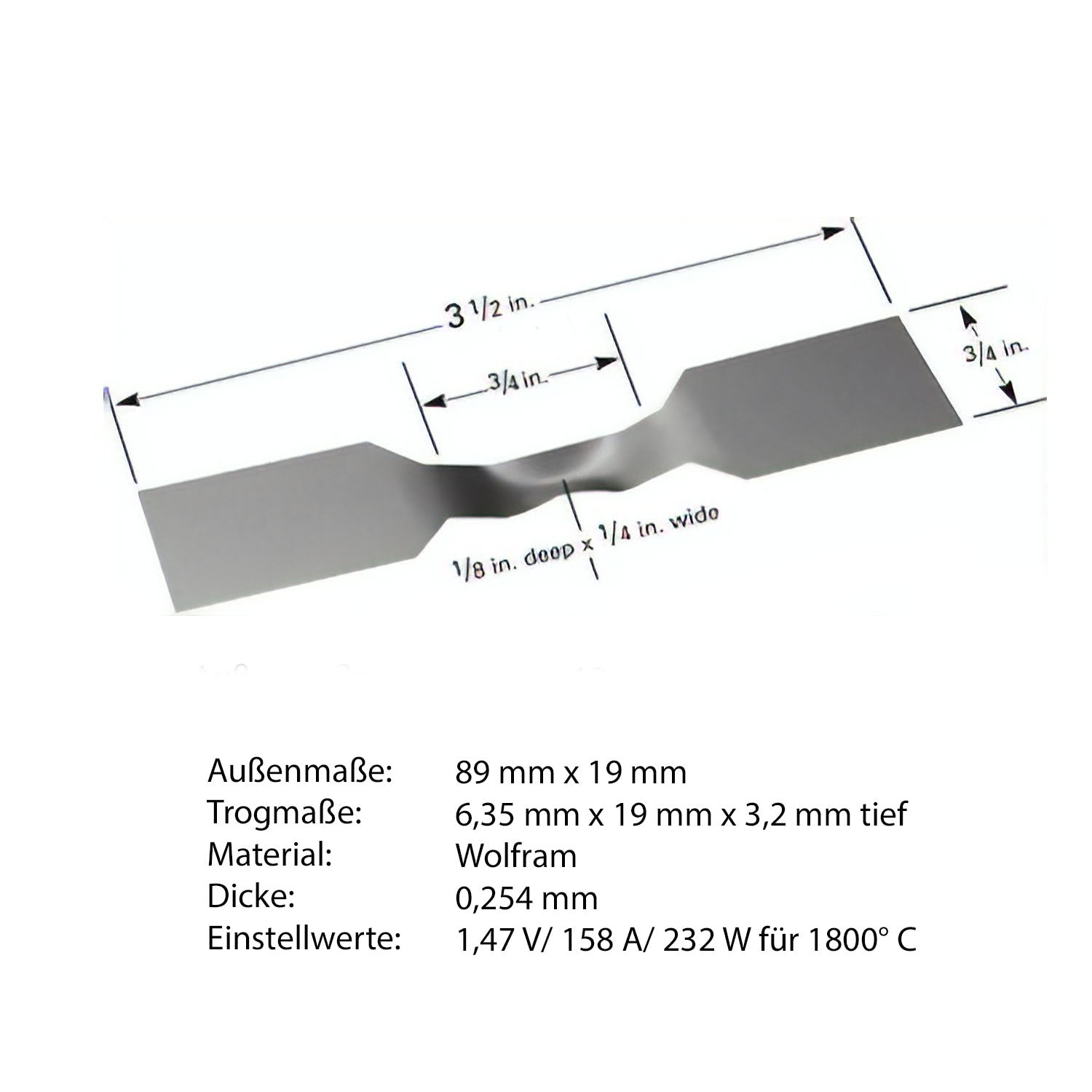

PL84-37 Heating boat with trough made of tungsten Tungsten evaporator boat (89 mm x 19 mm) with narrow trough profile Trough dimensions: 6.35 mm x 3.2 mm x 19 mm Setting values: 1.47 V / 158 A / 232 W for 1800 °C Packaging unit: 5 pieces

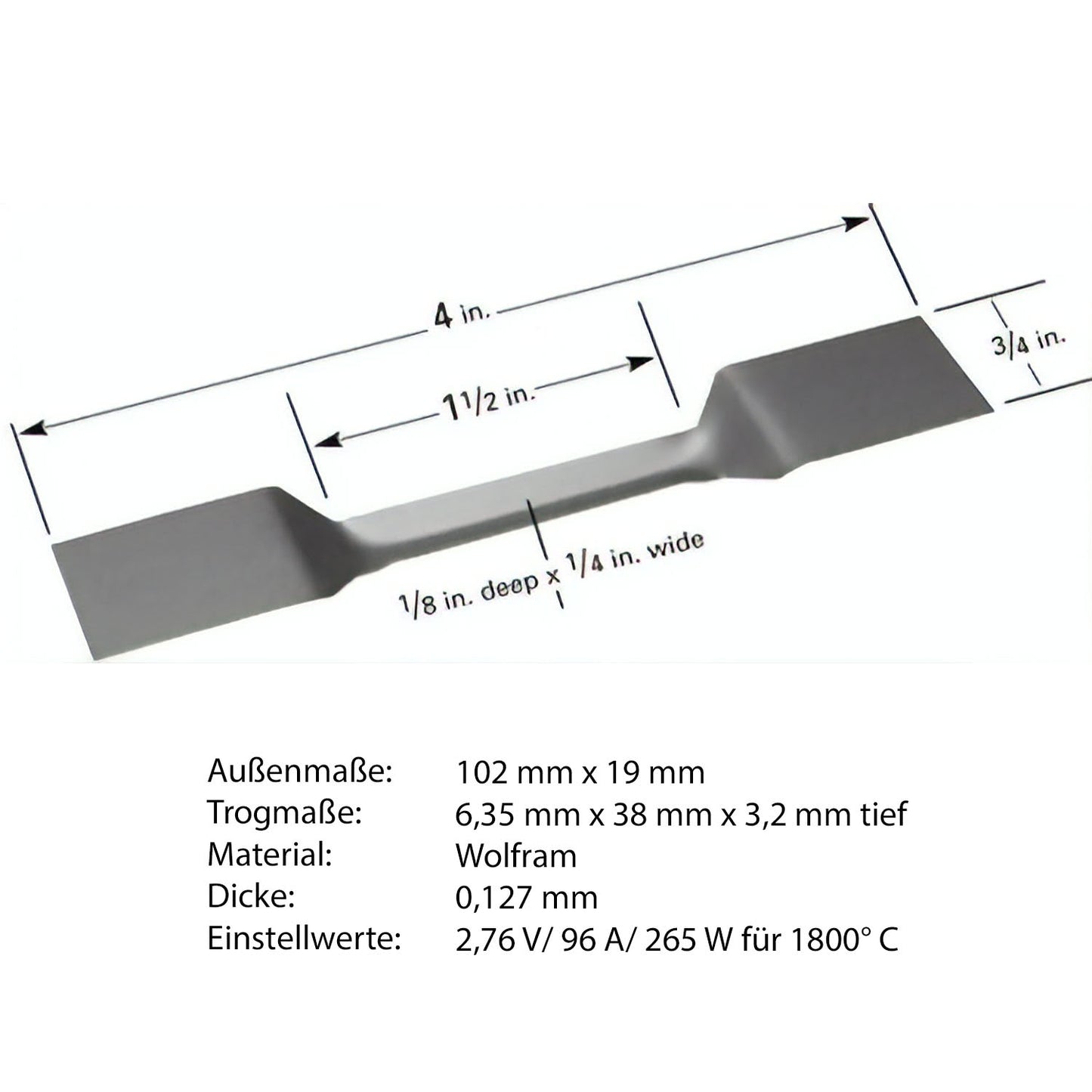

PL84-38 Heating boat with trough made of tungsten Tungsten evaporator boat (101.6 mm x 19 mm) Trough dimensions: 6.35 mm x 38.1 mm x 3.2 mm deep Setting values: 2.76 V / 96 A / 265 W for 1800 °C Packaging unit: 5 pieces

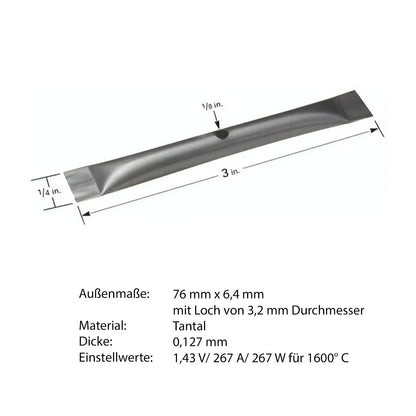

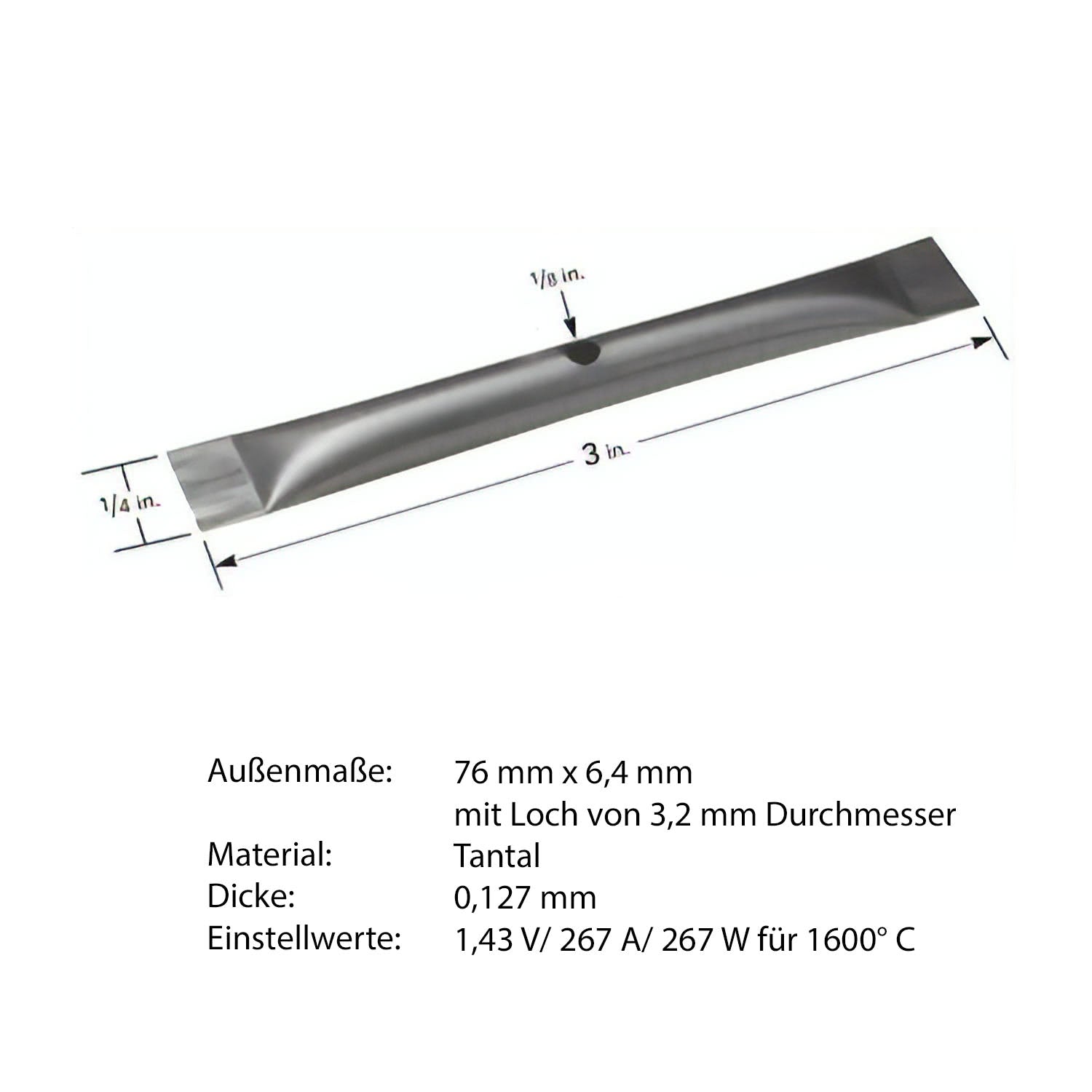

PL84-41 Heating boat with trough made of Tantalum Tantalum evaporator boat (76 mm x 6.4 mm) Hole: Ø 3.2 mm Setting values: 1.43 V / 267 A / 267 W for 1600 °C Packaging unit: 5 pieces

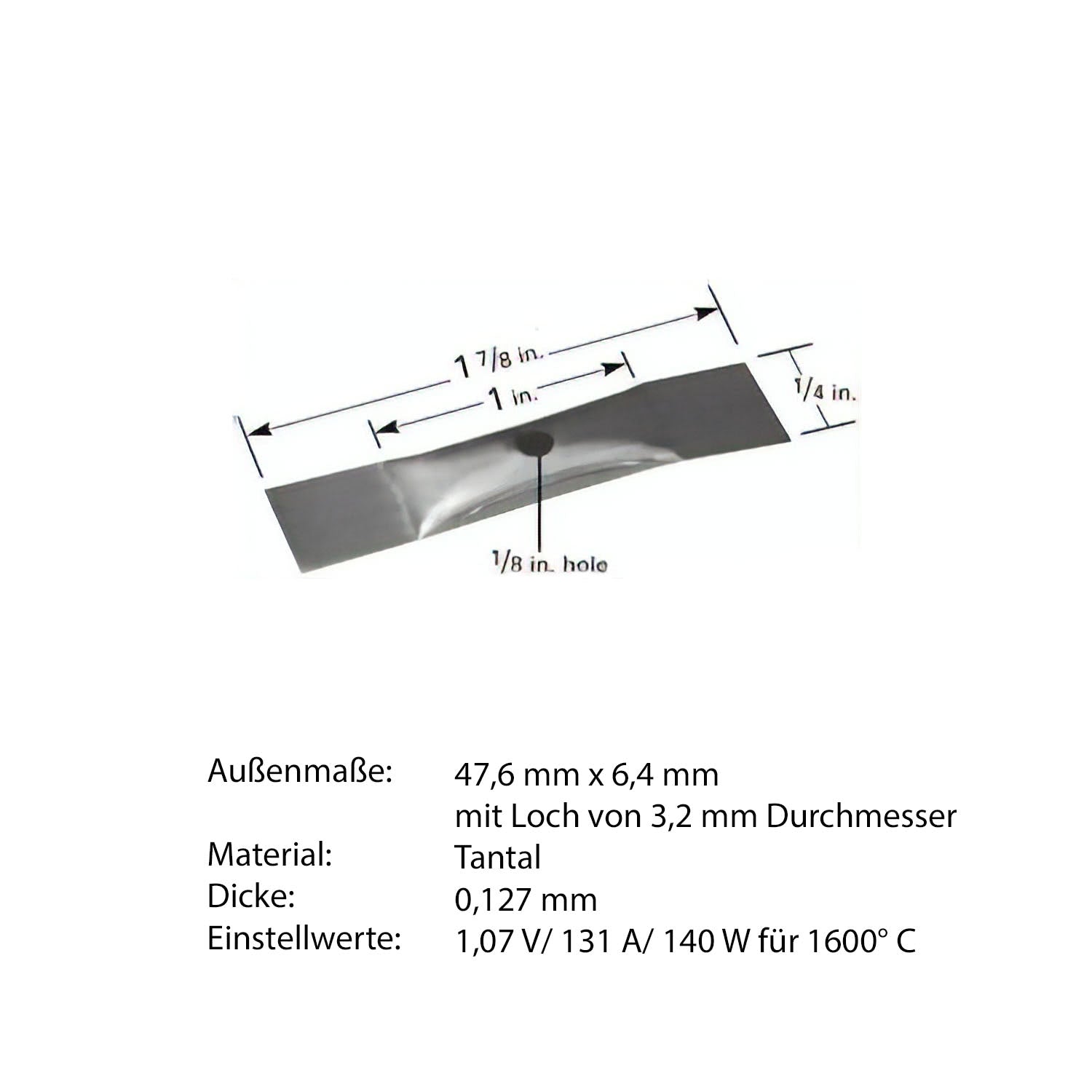

PL84-51 Heating boat with trough made of Tantalum Tantalum evaporator boat (47.6 mm x 6.4 mm) Hole: Ø 3.2 mm Setting values: 1.07 V / 131 A / 140 W for 1600 °C Packaging unit: 5 pieces

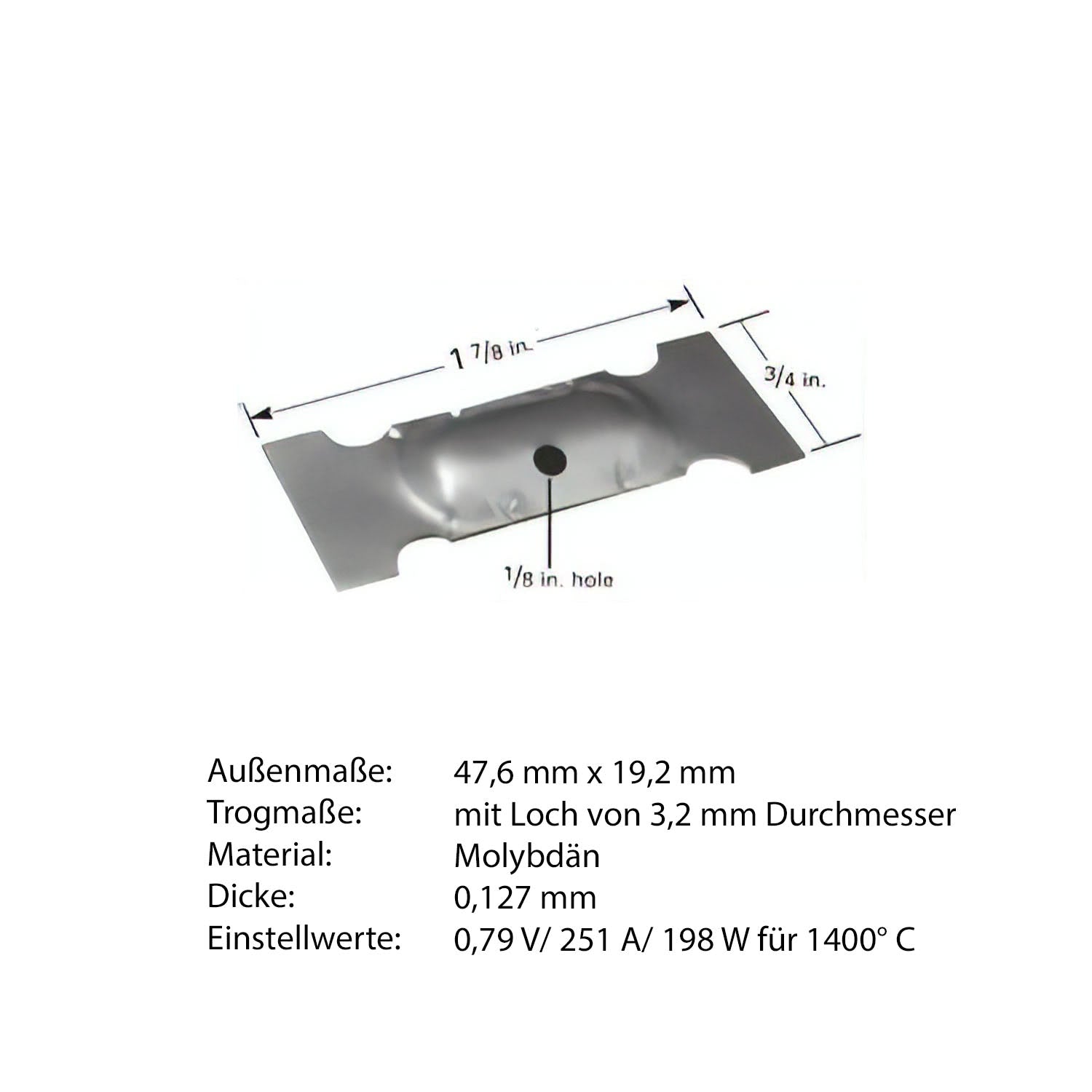

PL84-52 Heating boat with trough made of Molybdenum Molybdenum evaporator boat (47.6 mm x 19.2 mm) Hole: Ø 3.2 mm Setting values: 0.79 V / 251 A / 198 W for 1400 °C Packaging unit: 5 pieces

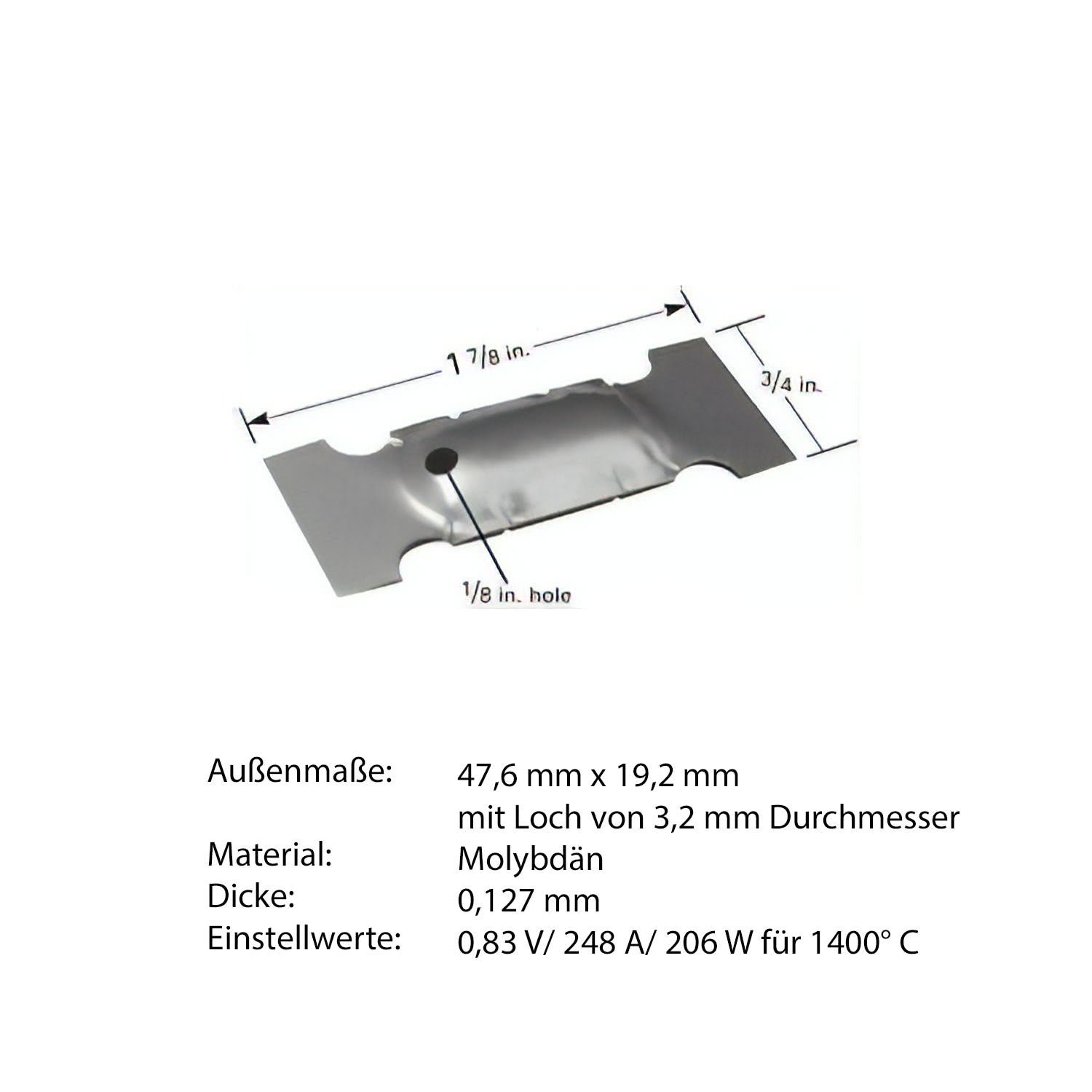

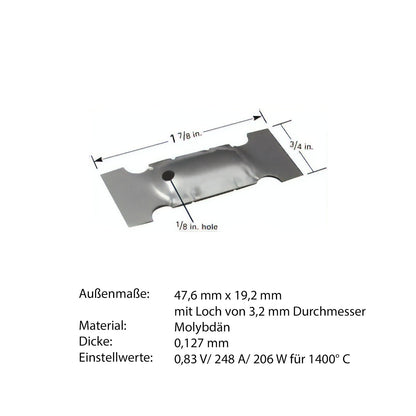

PL84-55 Heating boat with trough made of Molybdenum Molybdenum evaporator boat (47.6 mm x 19.2 mm) Axial hole: Ø 3.2 mm Setting values: 0.83 V / 248 A / 206 W for 1400 °C Packaging unit: 5 pieces
