Gilder Square TEM grids

Gilder Square TEM grids

Standard grids diameter is of 3mm. Most of types are available with 2.3mm diameter also.

G50

Mesh Specifications

click image for larger view
Mesh (lines/inch) 50
Pitch (um) 500
Bar Width (um) 80
Hole Width (um) 420
Rim Specifications
Rim width (mm) 0.225
Centre Mark None
Rim Mark No
Availability
Gold per Vial 50
Other per Vial 100
2.3mm Yes


G75

Mesh Specifications

click image for larger view
Mesh (lines/inch) 75
Pitch (um) 340
Bar Width (um) 55
Hole Width (um) 285
Rim Specifications
Rim width (mm) 0.225
Centre Mark Asymmetrical
Rim Mark No
Availability
Gold per Vial 50
Other per Vial 100
2.3mm Yes

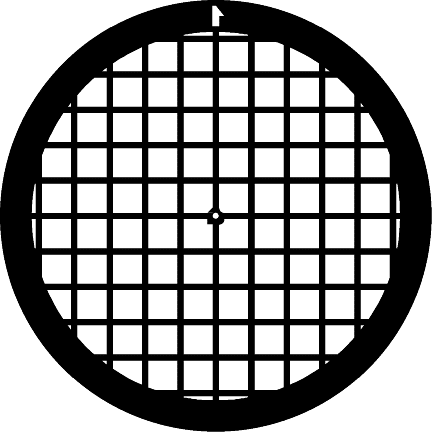

G100

Mesh Specifications

click image for larger view
Mesh (lines/inch) 100
Pitch (um) 250
Bar Width (um) 45
Hole Width (um) 205
Rim Specifications
Rim width (mm) 0.225
Centre Mark Asymmetrical
Rim Mark Yes
Availability
Gold per Vial 50
Other per Vial 100
2.3mm Yes



G150

Mesh Specifications

click image for larger view
Mesh (lines/inch) 150
Pitch (um) 165
Bar Width (um) 40
Hole Width (um) 125
Rim Specifications
Rim width (mm) 0.225
Centre Mark Asymmetrical
Rim Mark Yes
Availability
Gold per Vial
Other per Vial
2.3mm Yes



G175

Mesh Specifications

click image for larger view
Mesh (lines/inch) 175
Pitch (um) 145
Bar Width (um) 37
Hole Width (um) 108
Rim Specifications
Rim width (mm) 0.225
Centre Mark Asymmetrical
Rim Mark Yes
Availability
Gold per Vial 50
Other per Vial 100
2.3mm No



G200

Mesh Specifications

click image for larger view
Mesh (lines/inch) 200
Pitch (um) 125
Bar Width (um) 35
Hole Width (um) 90
Rim Specifications
Rim width (mm) 0.225
Centre Mark Asymmetrical
Rim Mark Yes
Availability
Gold per Vial 50
Other per Vial 100
2.3mm Yes



G200TH

Mesh Specifications

click image for larger view
Mesh (lines/inch) 200
Pitch (um) 125
Bar Width (um) 40
Hole Width (um) 85
Rim Specifications
Rim width (mm) 0.225
Centre Mark Asymmetrical
Rim Mark Yes
Availability
Gold per Vial 50
Other per Vial 100
2.3mm No



G200TT

Mesh Specifications

click image for larger view
Mesh (lines/inch) 200
Pitch (um) 125
Bar Width (um) 35-25
Hole Width (um) 95
Rim Specifications
Rim width (mm) 0.225
Centre Mark Asymmetrical
Rim Mark Yes
Availability
Gold per Vial 50
Other per Vial 100
2.3mm Yes



G200T

Mesh Specifications

click image for larger view
Mesh (lines/inch) 200
Pitch (um) 125
Bar Width (um) 40
Hole Width (um) 85
Rim Specifications
Rim width (mm) N/A
Centre Mark Asymmetrical
Rim Mark Yes
Availability
Gold per Vial 50
Other per Vial 100
2.3mm No



G250

Mesh Specifications

click image for larger view
Mesh (lines/inch) 250
Pitch (um) 100
Bar Width (um) 30
Hole Width (um) 70
Rim Specifications
Rim width (mm) 0.225
Centre Mark Asymmetrical
Rim Mark Yes
Availability
Gold per Vial 50
Other per Vial 100
2.3mm No



G300

Mesh Specifications

click image for larger view
Mesh (lines/inch) 300
Pitch (um) 83
Bar Width (um) 25
Hole Width (um) 58
Rim Specifications
Rim width (mm) 0.225
Centre Mark Asymmetrical
Rim Mark Yes
Availability
Gold per Vial 50
Other per Vial 100
2.3mm Yes



G400

Mesh Specifications

click image for larger view
Mesh (lines/inch) 400
Pitch (um) 62
Bar Width (um) 25
Hole Width (um) 37
Rim Specifications
Rim width (mm) 0.225
Centre Mark Asymmetrical
Rim Mark Yes
Availability
Gold per Vial 50
Other per Vial 100
2.3mm Yes



G600TT

Mesh Specifications

click image for larger view
Mesh (lines/inch) 600
Pitch (um) 42
Bar Width (um) 16-10
Hole Width (um) 30
Rim Specifications
Rim width (mm) 0.225
Centre Mark Asymmetrical
Rim Mark No
Availability
Gold per Vial 50
Other per Vial 100
2.3mm No

Documentation

SDS

Technical Notes

🚚 Estimated Delivery: 5 - 6 weeks from payment confirmation

View full details
Variant Variant total Quantity Price Variant total
50 Mesh Square TEM Grids, Copper, Vial of 100pcs. (Unit: each)G50Cu
50 Mesh Square TEM Grids, Copper, Vial of 100pcs. (Unit: each)G50Cu
148,30 lei/ea		 0,00 lei
148,30 lei/ea 0,00 lei
50 Mesh Square TEM Grids, Nickel, Vial of 100pcs. (Unit: each)G50Ni
50 Mesh Square TEM Grids, Nickel, Vial of 100pcs. (Unit: each)G50Ni
206,72 lei/ea		 0,00 lei
206,72 lei/ea 0,00 lei
50 Mesh Square TEM Grids, Gold, Vial of 50pcs. (Unit: each)G50Au
50 Mesh Square TEM Grids, Gold, Vial of 50pcs. (Unit: each)G50Au
380,71 lei/ea		 0,00 lei
380,71 lei/ea 0,00 lei
75 Mesh Square TEM Grids, Copper, Vial of 100pcs. (Unit: each)G75Cu
75 Mesh Square TEM Grids, Copper, Vial of 100pcs. (Unit: each)G75Cu
148,30 lei/ea		 0,00 lei
148,30 lei/ea 0,00 lei
75 Mesh Square TEM Grids, Nickel, Vial of 100pcs. (Unit: each)G75Ni
75 Mesh Square TEM Grids, Nickel, Vial of 100pcs. (Unit: each)G75Ni
206,72 lei/ea		 0,00 lei
206,72 lei/ea 0,00 lei
75 Mesh Square TEM Grids, Gold, Vial of 50pcs. (Unit: each)G75Au
75 Mesh Square TEM Grids, Gold, Vial of 50pcs. (Unit: each)G75Au
380,71 lei/ea		 0,00 lei
380,71 lei/ea 0,00 lei
100 Mesh Square TEM Grids, Copper, Vial of 100pcs. (Unit: each)G100Cu
100 Mesh Square TEM Grids, Copper, Vial of 100pcs. (Unit: each)G100Cu
148,30 lei/ea		 0,00 lei
148,30 lei/ea 0,00 lei
100 Mesh Square TEM Grids, Nickel, Vial of 100pcs. (Unit: each)G100Ni
100 Mesh Square TEM Grids, Nickel, Vial of 100pcs. (Unit: each)G100Ni
206,72 lei/ea		 0,00 lei
206,72 lei/ea 0,00 lei
100 Mesh Square TEM Grids, Gold, Vial of 50pcs. (Unit: each)G100Au
100 Mesh Square TEM Grids, Gold, Vial of 50pcs. (Unit: each)G100Au
380,71 lei/ea		 0,00 lei
380,71 lei/ea 0,00 lei
100 Mesh Square TEM Grids, Molybdenum, Vial of 100pcs. (Unit: each)G100Mo
100 Mesh Square TEM Grids, Molybdenum, Vial of 100pcs. (Unit: each)G100Mo
497,55 lei/ea		 0,00 lei
497,55 lei/ea 0,00 lei
150 Mesh Square TEM Grids, Copper, Vial of 100pcs. (Unit: each)G150Cu
150 Mesh Square TEM Grids, Copper, Vial of 100pcs. (Unit: each)G150Cu
160,93 lei/ea		 0,00 lei
160,93 lei/ea 0,00 lei
150 Mesh Square TEM Grids, Nickel, Vial of 100pcs. (Unit: each)G150Ni
150 Mesh Square TEM Grids, Nickel, Vial of 100pcs. (Unit: each)G150Ni
224,17 lei/ea		 0,00 lei
224,17 lei/ea 0,00 lei
150 Mesh Square TEM Grids, Gold, Vial of 50pcs. (Unit: each)G150Au
150 Mesh Square TEM Grids, Gold, Vial of 50pcs. (Unit: each)G150Au
400,72 lei/ea		 0,00 lei
400,72 lei/ea 0,00 lei
175 Mesh Square TEM Grids, Copper, Vial of 100pcs. (Unit: each)G175Cu
175 Mesh Square TEM Grids, Copper, Vial of 100pcs. (Unit: each)G175Cu
160,93 lei/ea		 0,00 lei
160,93 lei/ea 0,00 lei
175 Mesh Square TEM Grids, Nickel, Vial of 100pcs. (Unit: each)G175Ni
175 Mesh Square TEM Grids, Nickel, Vial of 100pcs. (Unit: each)G175Ni
224,17 lei/ea		 0,00 lei
224,17 lei/ea 0,00 lei
175 Mesh Square TEM Grids, Gold, Vial of 50pcs. (Unit: each)G175Au
175 Mesh Square TEM Grids, Gold, Vial of 50pcs. (Unit: each)G175Au
400,72 lei/ea		 0,00 lei
400,72 lei/ea 0,00 lei
200 Mesh Square TEM Grids, Copper, Vial of 100pcs. (Unit: each)G200Cu
200 Mesh Square TEM Grids, Copper, Vial of 100pcs. (Unit: each)G200Cu
160,93 lei/ea		 0,00 lei
160,93 lei/ea 0,00 lei
200 Mesh Square TEM Grids, Nickel, Vial of 100pcs. (Unit: each)G200Ni
200 Mesh Square TEM Grids, Nickel, Vial of 100pcs. (Unit: each)G200Ni
224,17 lei/ea		 0,00 lei
224,17 lei/ea 0,00 lei
200 Mesh Square TEM Grids, Gold, Vial of 50pcs. (Unit: each)G200Au
200 Mesh Square TEM Grids, Gold, Vial of 50pcs. (Unit: each)G200Au
400,72 lei/ea		 0,00 lei
400,72 lei/ea 0,00 lei
200 Mesh Square TEM Grids, Molybdenum, Vial of 100pcs. (Unit: each)G200Mo
200 Mesh Square TEM Grids, Molybdenum, Vial of 100pcs. (Unit: each)G200Mo
497,55 lei/ea		 0,00 lei
497,55 lei/ea 0,00 lei
200TH Mesh Square TEM Grids, Copper, Vial of 100pcs. (Unit: each)G200THCu
200TH Mesh Square TEM Grids, Copper, Vial of 100pcs. (Unit: each)G200THCu
167,03 lei/ea		 0,00 lei
167,03 lei/ea 0,00 lei
200TH Mesh Square TEM Grids, Nickel, Vial of 100pcs. (Unit: each)G200THNi
200TH Mesh Square TEM Grids, Nickel, Vial of 100pcs. (Unit: each)G200THNi
228,12 lei/ea		 0,00 lei
228,12 lei/ea 0,00 lei
200TH Mesh Square TEM Grids, Gold, Vial of 50pcs. (Unit: each)G200THAu
200TH Mesh Square TEM Grids, Gold, Vial of 50pcs. (Unit: each)G200THAu
423,40 lei/ea		 0,00 lei
423,40 lei/ea 0,00 lei
200TT Mesh Square TEM Grids, Copper, Vial of 100pcs. (Unit: each)G200TTCu
200TT Mesh Square TEM Grids, Copper, Vial of 100pcs. (Unit: each)G200TTCu
160,93 lei/ea		 0,00 lei
160,93 lei/ea 0,00 lei
200TT Mesh Square TEM Grids, Nickel, Vial of 100pcs. (Unit: each)G200TTNi
200TT Mesh Square TEM Grids, Nickel, Vial of 100pcs. (Unit: each)G200TTNi
224,17 lei/ea		 0,00 lei
224,17 lei/ea 0,00 lei
200TT Mesh Square TEM Grids, Gold, Vial of 50pcs. (Unit: each)G200TTAu
200TT Mesh Square TEM Grids, Gold, Vial of 50pcs. (Unit: each)G200TTAu
400,72 lei/ea		 0,00 lei
400,72 lei/ea 0,00 lei
200T Mesh Square TEM Grids, Copper, Vial of 100pcs. (Unit: each)G200TCu
200T Mesh Square TEM Grids, Copper, Vial of 100pcs. (Unit: each)G200TCu
230,26 lei/ea		 0,00 lei
230,26 lei/ea 0,00 lei
200T Mesh Square TEM Grids, Nickel, Vial of 100pcs. (Unit: each)G200TNi
200T Mesh Square TEM Grids, Nickel, Vial of 100pcs. (Unit: each)G200TNi
280,88 lei/ea		 0,00 lei
280,88 lei/ea 0,00 lei
200T Mesh Square TEM Grids, Gold, Vial of 50pcs. (Unit: each)G200TAu
200T Mesh Square TEM Grids, Gold, Vial of 50pcs. (Unit: each)G200TAu
532,86 lei/ea		 0,00 lei
532,86 lei/ea 0,00 lei
250 Mesh Square TEM Grids, Copper, Vial of 100pcs. (Unit: each)G250Cu
250 Mesh Square TEM Grids, Copper, Vial of 100pcs. (Unit: each)G250Cu
160,93 lei/ea		 0,00 lei
160,93 lei/ea 0,00 lei
250 Mesh Square TEM Grids, Nickel, Vial of 100pcs. (Unit: each)G250Ni
250 Mesh Square TEM Grids, Nickel, Vial of 100pcs. (Unit: each)G250Ni
224,17 lei/ea		 0,00 lei
224,17 lei/ea 0,00 lei
250 Mesh Square TEM Grids, Gold, Vial of 50pcs. (Unit: each)G250Au
250 Mesh Square TEM Grids, Gold, Vial of 50pcs. (Unit: each)G250Au
400,72 lei/ea		 0,00 lei
400,72 lei/ea 0,00 lei
300 Mesh Square TEM Grids, Copper, Vial of 100pcs. (Unit: each)G300Cu
300 Mesh Square TEM Grids, Copper, Vial of 100pcs. (Unit: each)G300Cu
160,93 lei/ea		 0,00 lei
160,93 lei/ea 0,00 lei
300 Mesh Square TEM Grids, Nickel, Vial of 100pcs. (Unit: each)G300Ni
300 Mesh Square TEM Grids, Nickel, Vial of 100pcs. (Unit: each)G300Ni
224,17 lei/ea		 0,00 lei
224,17 lei/ea 0,00 lei
300 Mesh Square TEM Grids, Gold, Vial of 50pcs. (Unit: each)G300Au
300 Mesh Square TEM Grids, Gold, Vial of 50pcs. (Unit: each)G300Au
400,72 lei/ea		 0,00 lei
400,72 lei/ea 0,00 lei
400 Mesh Square TEM Grids, Copper, Vial of 100pcs. (Unit: each)G400Cu
400 Mesh Square TEM Grids, Copper, Vial of 100pcs. (Unit: each)G400Cu
173,66 lei/ea		 0,00 lei
173,66 lei/ea 0,00 lei
400 Mesh Square TEM Grids, Nickel, Vial of 100pcs. (Unit: each)G400Ni
400 Mesh Square TEM Grids, Nickel, Vial of 100pcs. (Unit: each)G400Ni
225,88 lei/ea		 0,00 lei
225,88 lei/ea 0,00 lei
400 Mesh Square TEM Grids, Gold, Vial of 50pcs. (Unit: each)G400Au
400 Mesh Square TEM Grids, Gold, Vial of 50pcs. (Unit: each)G400Au
424,68 lei/ea		 0,00 lei
424,68 lei/ea 0,00 lei
600TT Mesh Square TEM Grids, Copper, Vial of 100pcs. (Unit: each)G600TTCu
600TT Mesh Square TEM Grids, Copper, Vial of 100pcs. (Unit: each)G600TTCu
275,63 lei/ea		 0,00 lei
275,63 lei/ea 0,00 lei
600TT Mesh Square TEM Grids, Nickel, Vial of 100pcs. (Unit: each)G600TTNi
600TT Mesh Square TEM Grids, Nickel, Vial of 100pcs. (Unit: each)G600TTNi
316,61 lei/ea		 0,00 lei
316,61 lei/ea 0,00 lei
600TT Mesh Square TEM Grids, Gold, Vial of 50pcs. (Unit: each)G600TTAu
600TT Mesh Square TEM Grids, Gold, Vial of 50pcs. (Unit: each)G600TTAu
439,56 lei/ea		 0,00 lei
439,56 lei/ea 0,00 lei
View cart
0

Total items

0,00 lei

Product subtotal

Taxes, discounts and shipping calculated at checkout.
View cart
