Gilder Parallel TEM grids

Gilder Parallel TEM grids

Standard grids diameter is of 3mm. Molybdenum and 2.3mm diameter are not available.

G50P

Mesh Specifications

click image for larger view
Mesh (lines/inch) 50
Pitch (um) 500
Bar Width (um) 84
Hole Width (um) 416
Rim Specifications
Rim width (mm) 0.225
Centre Mark None
Rim Mark Yes
Availability
Gold per Vial 50
Other per Vial 100
2.3mm No



G75P

Mesh Specifications

click image for larger view
Mesh (lines/inch) 75
Pitch (um) 340
Bar Width (um) 70
Hole Width (um) 270
Rim Specifications
Rim width (mm) 0.225
Centre Mark None
Rim Mark Yes
Availability
Gold per Vial 50
Other per Vial 100
2.3mm No


G100P

Mesh Specifications

click image for larger view
Mesh (lines/inch) 100
Pitch (um) 250
Bar Width (um) 65
Hole Width (um) 185
Rim Specifications
Rim width (mm) 0.225
Centre Mark None
Rim Mark No
Availability
Gold per Vial 50
Other per Vial 100
2.3mm No



G150P

Mesh Specifications

click image for larger view
Mesh (lines/inch) 150
Pitch (um) 165
Bar Width (um) 50
Hole Width (um) 115
Rim Specifications
Rim width (mm) 0.225
Centre Mark None
Rim Mark Yes
Availability
Gold per Vial 50
Other per Vial 100
2.3mm No



G200P

Mesh Specifications

click image for larger view
Mesh (lines/inch) 200
Pitch (um) 125
Bar Width (um) 45
Hole Width (um) 80
Rim Specifications
Rim width (mm) 0.225
Centre Mark None
Rim Mark No
Availability
Gold per Vial 50
Other per Vial 100
2.3mm No



G300P

Mesh Specifications

click image for larger view
Mesh (lines/inch) 300
Pitch (um) 83
Bar Width (um) 35
Hole Width (um) 48
Rim Specifications
Rim width (mm) 0.225
Centre Mark None
Rim Mark Yes
Availability
Gold per Vial 50
Other per Vial 100
2.3mm No



G400P

Mesh Specifications

click image for larger view
Mesh (lines/inch) 400
Pitch (um) 62
Bar Width (um) 40
Hole Width (um) 22
Rim Specifications
Rim width (mm) 0.225
Centre Mark None
Rim Mark Yes
Availability
Gold per Vial 50
Other per Vial 100
2.3mm No


G50PB

Mesh Specifications

click image for larger view
Mesh (lines/inch) 50
Pitch (um) 500
Bar Width (um) 84
Hole Width (um) 416
Rim Specifications
Rim width (mm) 0.225
Centre Mark None
Rim Mark Yes
Availability
Gold per Vial 50
Other per Vial 100
2.3mm No



G75PB

Mesh Specifications

click image for larger view
Mesh (lines/inch) 75
Pitch (um) 340
Bar Width (um) 70
Hole Width (um) 270
Rim Specifications
Rim width (mm) 0.225
Centre Mark None
Rim Mark Yes
Availability
Gold per Vial 50
Other per Vial 100
2.3mm No



G100PB

Mesh Specifications

click image for larger view
Mesh (lines/inch) 100
Pitch (um) 250
Bar Width (um) 65
Hole Width (um) 185
Rim Specifications
Rim width (mm) 0.225
Centre Mark Reverse Arrow
Rim Mark No
Availability
Gold per Vial 50
Other per Vial 100
2.3mm Yes

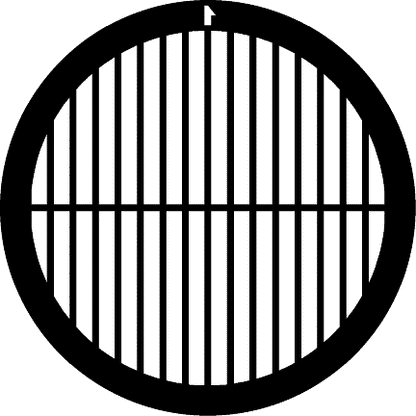

G150PB

Mesh Specifications

click image for larger view
Mesh (lines/inch) 150
Pitch (um) 165
Bar Width (um) 50
Hole Width (um) 115
Rim Specifications
Rim width (mm) 0.225
Centre Mark None
Rim Mark Yes
Availability
Gold per Vial 50
Other per Vial 100
2.3mm No

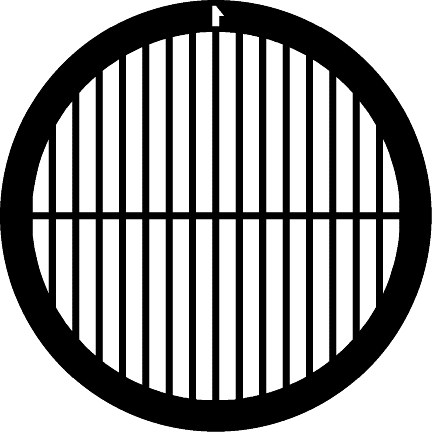

G150PB

Mesh Specifications

click image for larger view
Mesh (lines/inch) 150
Pitch (um) 165
Bar Width (um) 50
Hole Width (um) 115
Rim Specifications
Rim width (mm) 0.225
Centre Mark None
Rim Mark Yes
Availability
Gold per Vial 50
Other per Vial 100
2.3mm No



G200PB

Mesh Specifications

click image for larger view
Mesh (lines/inch) 200
Pitch (um) 125
Bar Width (um) 45
Hole Width (um) 80
Rim Specifications
Rim width (mm) 0.225
Centre Mark Reverse Arrow
Rim Mark No
Availability
Gold per Vial 50
Other per Vial 100
2.3mm No



G300PB

Mesh Specifications

click image for larger view
Mesh (lines/inch) 300
Pitch (um) 83
Bar Width (um) 35
Hole Width (um) 48
Rim Specifications
Rim width (mm) 0.225
Centre Mark None
Rim Mark Yes
Availability
Gold per Vial 50
Other per Vial 100
2.3mm No



G400PB

Mesh Specifications

click image for larger view
Mesh (lines/inch) 400
Pitch (um) 62
Bar Width (um) 40
Hole Width (um) 22
Rim Specifications
Rim width (mm) 0.225
Centre Mark None
Rim Mark Yes
Availability
Gold per Vial 50
Other per Vial 100
2.3mm No

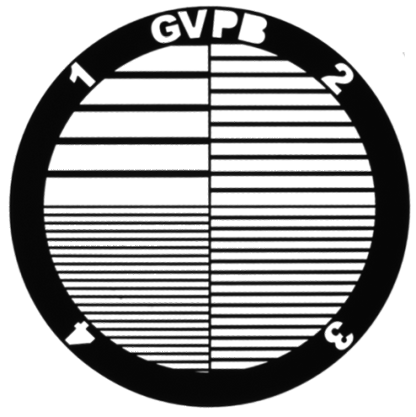

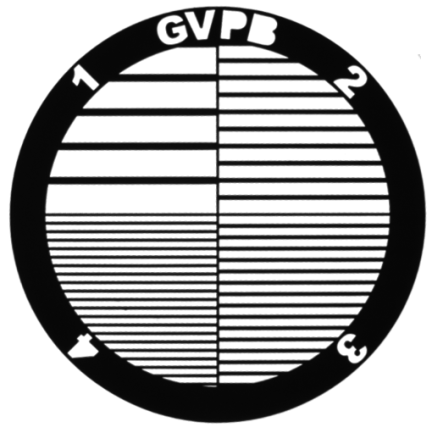

GVPB

Mesh Specifications

click image for larger view
Mesh (lines/inch) Q1-100 / Q2-200 / Q3-300 / Q4-400
Pitch (um) Q1-250 / Q2-120 / Q3-83 / Q4-62
Bar Width (um) Q1-65 / Q2-45 / Q3-40 / Q4-35
Hole Width (um) Q1-185 / Q2-80 / Q3-43 / Q4-27
Rim Specifications
Rim width (mm) 0.25
Centre Mark
Rim Mark N/A
Availability
Gold per Vial 50
Other per Vial 100
2.3mm N/A

Documentation

SDS

Technical Notes

🚚 Estimated Delivery: 5 - 6 weeks from payment confirmation

View full details
Variant Variant total Quantity Price Variant total
50 Mesh Parallel TEM Grids, Copper, Vial of 100pcs. (Unit: each)G50PCu
50 Mesh Parallel TEM Grids, Copper, Vial of 100pcs. (Unit: each)G50PCu
148,30 lei/ea		 0,00 lei
148,30 lei/ea 0,00 lei
50 Mesh Parallel TEM Grids, Nickel, Vial of 100pcs. (Unit: each)G50PNi
50 Mesh Parallel TEM Grids, Nickel, Vial of 100pcs. (Unit: each)G50PNi
206,72 lei/ea		 0,00 lei
206,72 lei/ea 0,00 lei
50 Mesh Parallel TEM Grids, Gold, Vial of 50pcs. (Unit: each)G50PAu
50 Mesh Parallel TEM Grids, Gold, Vial of 50pcs. (Unit: each)G50PAu
380,71 lei/ea		 0,00 lei
380,71 lei/ea 0,00 lei
75 Mesh Parallel TEM Grids, Copper, Vial of 100pcs. (Unit: each)G75PCu
75 Mesh Parallel TEM Grids, Copper, Vial of 100pcs. (Unit: each)G75PCu
148,30 lei/ea		 0,00 lei
148,30 lei/ea 0,00 lei
75 Mesh Parallel TEM Grids, Nickel, Vial of 100pcs. (Unit: each)G75PNi
75 Mesh Parallel TEM Grids, Nickel, Vial of 100pcs. (Unit: each)G75PNi
206,72 lei/ea		 0,00 lei
206,72 lei/ea 0,00 lei
75 Mesh Parallel TEM Grids, Gold, Vial of 50pcs. (Unit: each)G75PAu
75 Mesh Parallel TEM Grids, Gold, Vial of 50pcs. (Unit: each)G75PAu
380,71 lei/ea		 0,00 lei
380,71 lei/ea 0,00 lei
100 Mesh Parallel TEM Grids, Copper, Vial of 100pcs. (Unit: each)G100PCu
100 Mesh Parallel TEM Grids, Copper, Vial of 100pcs. (Unit: each)G100PCu
148,30 lei/ea		 0,00 lei
148,30 lei/ea 0,00 lei
100 Mesh Parallel TEM Grids, Nickel, Vial of 100pcs. (Unit: each)G100PNi
100 Mesh Parallel TEM Grids, Nickel, Vial of 100pcs. (Unit: each)G100PNi
206,72 lei/ea		 0,00 lei
206,72 lei/ea 0,00 lei
100 Mesh Parallel TEM Grids, Gold, Vial of 50pcs. (Unit: each)G100PAu
100 Mesh Parallel TEM Grids, Gold, Vial of 50pcs. (Unit: each)G100PAu
380,71 lei/ea		 0,00 lei
380,71 lei/ea 0,00 lei
150 Mesh Parallel TEM Grids, Copper, Vial of 100pcs. (Unit: each)G150PCu
150 Mesh Parallel TEM Grids, Copper, Vial of 100pcs. (Unit: each)G150PCu
160,93 lei/ea		 0,00 lei
160,93 lei/ea 0,00 lei
150 Mesh Parallel TEM Grids, Nickel, Vial of 100pcs. (Unit: each)G150PNi
150 Mesh Parallel TEM Grids, Nickel, Vial of 100pcs. (Unit: each)G150PNi
224,17 lei/ea		 0,00 lei
224,17 lei/ea 0,00 lei
150 Mesh Parallel TEM Grids, Gold, Vial of 50pcs. (Unit: each)G150PAu
150 Mesh Parallel TEM Grids, Gold, Vial of 50pcs. (Unit: each)G150PAu
400,72 lei/ea		 0,00 lei
400,72 lei/ea 0,00 lei
200 Mesh Parallel TEM Grids, Copper, Vial of 100pcs. (Unit: each)G200PCu
200 Mesh Parallel TEM Grids, Copper, Vial of 100pcs. (Unit: each)G200PCu
160,93 lei/ea		 0,00 lei
160,93 lei/ea 0,00 lei
200 Mesh Parallel TEM Grids, Nickel, Vial of 100pcs. (Unit: each)G200PNi
200 Mesh Parallel TEM Grids, Nickel, Vial of 100pcs. (Unit: each)G200PNi
224,17 lei/ea		 0,00 lei
224,17 lei/ea 0,00 lei
200 Mesh Parallel TEM Grids, Gold, Vial of 50pcs. (Unit: each)G200PAu
200 Mesh Parallel TEM Grids, Gold, Vial of 50pcs. (Unit: each)G200PAu
400,72 lei/ea		 0,00 lei
400,72 lei/ea 0,00 lei
300 Mesh Parallel TEM Grids, Copper, Vial of 100pcs. (Unit: each)G300PCu
300 Mesh Parallel TEM Grids, Copper, Vial of 100pcs. (Unit: each)G300PCu
160,93 lei/ea		 0,00 lei
160,93 lei/ea 0,00 lei
300 Mesh Parallel TEM Grids, Nickel, Vial of 100pcs. (Unit: each)G300PNi
300 Mesh Parallel TEM Grids, Nickel, Vial of 100pcs. (Unit: each)G300PNi
224,17 lei/ea		 0,00 lei
224,17 lei/ea 0,00 lei
300 Mesh Parallel TEM Grids, Gold, Vial of 50pcs. (Unit: each)G300PAu
300 Mesh Parallel TEM Grids, Gold, Vial of 50pcs. (Unit: each)G300PAu
400,72 lei/ea		 0,00 lei
400,72 lei/ea 0,00 lei
400 Mesh Parallel TEM Grids, Copper, Vial of 100pcs. (Unit: each)G400PCu
400 Mesh Parallel TEM Grids, Copper, Vial of 100pcs. (Unit: each)G400PCu
173,66 lei/ea		 0,00 lei
173,66 lei/ea 0,00 lei
400 Mesh Parallel TEM Grids, Nickel, Vial of 100pcs. (Unit: each)G400PNi
400 Mesh Parallel TEM Grids, Nickel, Vial of 100pcs. (Unit: each)G400PNi
225,88 lei/ea		 0,00 lei
225,88 lei/ea 0,00 lei
400 Mesh Parallel TEM Grids, Gold, Vial of 50pcs. (Unit: each)G400PAu
400 Mesh Parallel TEM Grids, Gold, Vial of 50pcs. (Unit: each)G400PAu
424,68 lei/ea		 0,00 lei
424,68 lei/ea 0,00 lei
50 Mesh Parallel B TEM Grids, Copper, Vial of 100pcs. (Unit: each)G50PBCu
50 Mesh Parallel B TEM Grids, Copper, Vial of 100pcs. (Unit: each)G50PBCu
148,30 lei/ea		 0,00 lei
148,30 lei/ea 0,00 lei
50 Mesh Parallel B TEM Grids, Nickel, Vial of 100pcs. (Unit: each)G50PBNi
50 Mesh Parallel B TEM Grids, Nickel, Vial of 100pcs. (Unit: each)G50PBNi
206,72 lei/ea		 0,00 lei
206,72 lei/ea 0,00 lei
50 Mesh Parallel B TEM Grids, Gold, Vial of 50pcs. (Unit: each)G50PBAu
50 Mesh Parallel B TEM Grids, Gold, Vial of 50pcs. (Unit: each)G50PBAu
380,71 lei/ea		 0,00 lei
380,71 lei/ea 0,00 lei
75 Mesh Parallel B TEM Grids, Copper, Vial of 100pcs. (Unit: each)G75PBCu
75 Mesh Parallel B TEM Grids, Copper, Vial of 100pcs. (Unit: each)G75PBCu
148,30 lei/ea		 0,00 lei
148,30 lei/ea 0,00 lei
75 Mesh Parallel B TEM Grids, Nickel, Vial of 100pcs. (Unit: each)G75PBNi
75 Mesh Parallel B TEM Grids, Nickel, Vial of 100pcs. (Unit: each)G75PBNi
206,72 lei/ea		 0,00 lei
206,72 lei/ea 0,00 lei
75 Mesh Parallel B TEM Grids, Gold, Vial of 50pcs. (Unit: each)G75PBAu
75 Mesh Parallel B TEM Grids, Gold, Vial of 50pcs. (Unit: each)G75PBAu
380,71 lei/ea		 0,00 lei
380,71 lei/ea 0,00 lei
100 Mesh Parallel B TEM Grids, Copper, Vial of 100pcs. (Unit: each)G100PBCu
100 Mesh Parallel B TEM Grids, Copper, Vial of 100pcs. (Unit: each)G100PBCu
148,30 lei/ea		 0,00 lei
148,30 lei/ea 0,00 lei
100 Mesh Parallel B TEM Grids, Nickel, Vial of 100pcs. (Unit: each)G100PBNi
100 Mesh Parallel B TEM Grids, Nickel, Vial of 100pcs. (Unit: each)G100PBNi
206,72 lei/ea		 0,00 lei
206,72 lei/ea 0,00 lei
100 Mesh Parallel B TEM Grids, Gold, Vial of 50pcs. (Unit: each)G100PBAu
100 Mesh Parallel B TEM Grids, Gold, Vial of 50pcs. (Unit: each)G100PBAu
380,71 lei/ea		 0,00 lei
380,71 lei/ea 0,00 lei
150 Mesh Parallel B TEM Grids, Copper, Vial of 100pcs. (Unit: each)G150PBCu
150 Mesh Parallel B TEM Grids, Copper, Vial of 100pcs. (Unit: each)G150PBCu
160,93 lei/ea		 0,00 lei
160,93 lei/ea 0,00 lei
150 Mesh Parallel B TEM Grids, Nickel, Vial of 100pcs. (Unit: each)G150PBNi
150 Mesh Parallel B TEM Grids, Nickel, Vial of 100pcs. (Unit: each)G150PBNi
224,17 lei/ea		 0,00 lei
224,17 lei/ea 0,00 lei
150 Mesh Parallel B TEM Grids, Gold, Vial of 50pcs. (Unit: each)G150PBAu
150 Mesh Parallel B TEM Grids, Gold, Vial of 50pcs. (Unit: each)G150PBAu
400,72 lei/ea		 0,00 lei
400,72 lei/ea 0,00 lei
200 Mesh Parallel B TEM Grids, Copper, Vial of 100pcs. (Unit: each)G200PBCu
200 Mesh Parallel B TEM Grids, Copper, Vial of 100pcs. (Unit: each)G200PBCu
160,93 lei/ea		 0,00 lei
160,93 lei/ea 0,00 lei
200 Mesh Parallel B TEM Grids, Nickel, Vial of 100pcs. (Unit: each)G200PBNi
200 Mesh Parallel B TEM Grids, Nickel, Vial of 100pcs. (Unit: each)G200PBNi
224,17 lei/ea		 0,00 lei
224,17 lei/ea 0,00 lei
200 Mesh Parallel B TEM Grids, Gold, Vial of 50pcs. (Unit: each)G200PBAu
200 Mesh Parallel B TEM Grids, Gold, Vial of 50pcs. (Unit: each)G200PBAu
400,72 lei/ea		 0,00 lei
400,72 lei/ea 0,00 lei
300 Mesh Parallel B TEM Grids, Copper, Vial of 100pcs. (Unit: each)G300PBCu
300 Mesh Parallel B TEM Grids, Copper, Vial of 100pcs. (Unit: each)G300PBCu
160,93 lei/ea		 0,00 lei
160,93 lei/ea 0,00 lei
300 Mesh Parallel B TEM Grids, Nickel, Vial of 100pcs. (Unit: each)G300PBNi
300 Mesh Parallel B TEM Grids, Nickel, Vial of 100pcs. (Unit: each)G300PBNi
224,17 lei/ea		 0,00 lei
224,17 lei/ea 0,00 lei
300 Mesh Parallel B TEM Grids, Gold, Vial of 50pcs. (Unit: each)G300PBAu
300 Mesh Parallel B TEM Grids, Gold, Vial of 50pcs. (Unit: each)G300PBAu
400,72 lei/ea		 0,00 lei
400,72 lei/ea 0,00 lei
400 Mesh Parallel B TEM Grids, Copper, Vial of 100pcs. (Unit: each)G400PBCu
400 Mesh Parallel B TEM Grids, Copper, Vial of 100pcs. (Unit: each)G400PBCu
173,66 lei/ea		 0,00 lei
173,66 lei/ea 0,00 lei
400 Mesh Parallel B TEM Grids, Nickel, Vial of 100pcs. (Unit: each)G400PBNi
400 Mesh Parallel B TEM Grids, Nickel, Vial of 100pcs. (Unit: each)G400PBNi
225,88 lei/ea		 0,00 lei
225,88 lei/ea 0,00 lei
VPB Mesh Parallel TEM Grids, Copper, Vial of 100pcs. (Unit: each)GVPBCu
VPB Mesh Parallel TEM Grids, Copper, Vial of 100pcs. (Unit: each)GVPBCu
173,66 lei/ea		 0,00 lei
173,66 lei/ea 0,00 lei
VPB Mesh Parallel TEM Grids, Nickel, Vial of 100pcs. (Unit: each)GVPBNi
VPB Mesh Parallel TEM Grids, Nickel, Vial of 100pcs. (Unit: each)GVPBNi
225,88 lei/ea		 0,00 lei
225,88 lei/ea 0,00 lei
VPB Mesh Parallel TEM Grids, Gold, Vial of 50pcs. (Unit: each)GVPBAu
VPB Mesh Parallel TEM Grids, Gold, Vial of 50pcs. (Unit: each)GVPBAu
424,68 lei/ea		 0,00 lei
424,68 lei/ea 0,00 lei
View cart
0

Total items

0,00 lei

Product subtotal

Taxes, discounts and shipping calculated at checkout.
View cart
