Gilder Fine Square TEM grids

Gilder Fine Square TEM grids

Standard grids diameter is of 3mm. Molybdenum and 2.3mm diameter are not available for this type.

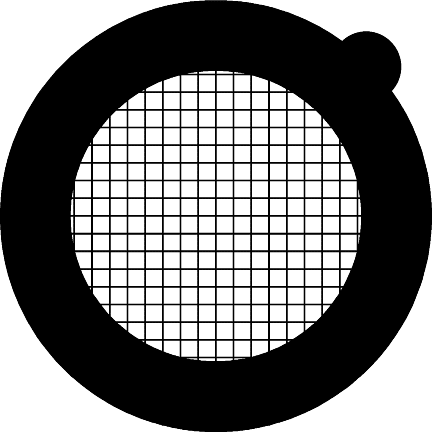

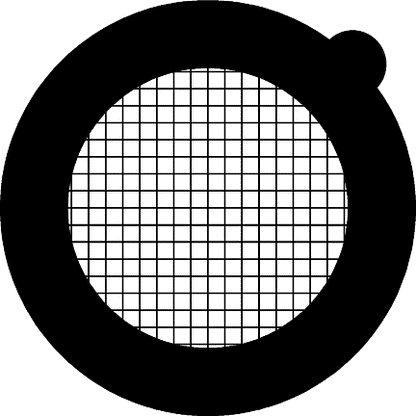

G200HS

Mesh Specifications

click image for larger view
Mesh (lines/inch) 200
Pitch (um) 125
Bar Width (um) 12
Hole Width (um) 113
Rim Specifications
Rim width (mm) 0.5P
Centre Mark None
Rim Mark No
Availability
Gold per Vial 50
Other per Vial 100
2.3mm No



G300HS

Mesh Specifications

click image for larger view
Mesh (lines/inch) 300
Pitch (um) 83
Bar Width (um) 10
Hole Width (um) 73
Rim Specifications
Rim width (mm) 0.5P
Centre Mark None
Rim Mark No
Availability
Gold per Vial 50
Other per Vial 100
2.3mm No



G400HS

Mesh Specifications

click image for larger view
Mesh (lines/inch) 400
Pitch (um) 62
Bar Width (um) 8
Hole Width (um) 54
Rim Specifications
Rim width (mm) 0.5P
Centre Mark None
Rim Mark No
Availability
Gold per Vial 50
Other per Vial 100
2.3mm No



G600HSS

Mesh Specifications

click image for larger view
Mesh (lines/inch) 600
Pitch (um) 42
Bar Width (um) 6
Hole Width (um) 36
Rim Specifications
Rim width (mm) 0.5P
Centre Mark None
Rim Mark Yes
Availability
Gold per Vial 50
Other per Vial 100
2.3mm No



G1000HS

Mesh Specifications

click image for larger view
Mesh (lines/inch) 1000
Pitch (um) 25
Bar Width (um) 6
Hole Width (um) 19
Rim Specifications
Rim width (mm) 0.5
Centre Mark None
Rim Mark No
Availability
Gold per Vial 25
Other per Vial 25
2.3mm No



G1500HS

Mesh Specifications

click image for larger view
Mesh (lines/inch) 1500
Pitch (um) 16.5
Bar Width (um) 6
Hole Width (um) 10.5
Rim Specifications
Rim width (mm) 0.5
Centre Mark None
Rim Mark Yes
Availability
Gold per Vial 15
Other per Vial 15
2.3mm No



G2000HS

Mesh Specifications

click image for larger view
Mesh (lines/inch) 2000
Pitch (um) 12.5
Bar Width (um) 6
Hole Width (um) 6.5
Rim Specifications
Rim width (mm) 0.5
Centre Mark None
Rim Mark Yes
Availability
Gold per Vial 10
Other per Vial 10
2.3mm No





Documentation

SDS

Technical Notes
