Gilder Fine Hex-AP TEM grids

Gilder Fine Hex-AP TEM grids

Standard grids diameter is of 3mm. Molybdenum and 2.3mm diameter are not available for this type.

G200HH

Mesh Specifications

click image for larger view
Mesh (lines/inch) 200
Pitch (um) 125
Bar Width (um) 12
Hole Width (um) 113
Rim Specifications
Rim width (mm) 0.5P
Centre Mark None
Rim Mark No
Availability
Gold per Vial 50
Other per Vial 100
2.3mm No



G300HH

Mesh Specifications

click image for larger view
Mesh (lines/inch) 300
Pitch (um) 83
Bar Width (um) 10
Hole Width (um) 73
Rim Specifications
Rim width (mm) 0.5P
Centre Mark None
Rim Mark No
Availability
Gold per Vial 50
Other per Vial 100
2.3mm No



G400HH

Mesh Specifications

click image for larger view
Mesh (lines/inch) 400
Pitch (um) 57
Bar Width (um) 8
Hole Width (um) 49
Rim Specifications
Rim width (mm) 0.5P
Centre Mark Special
Rim Mark No
Availability
Gold per Vial 50
Other per Vial 100
2.3mm No



G600HH

Mesh Specifications

click image for larger view
Mesh (lines/inch) 698
Pitch (um) 37
Bar Width (um) 8
Hole Width (um) 29
Rim Specifications
Rim width (mm) 0.5P
Centre Mark Special
Rim Mark No
Availability
Gold per Vial 50
Other per Vial 100
2.3mm No

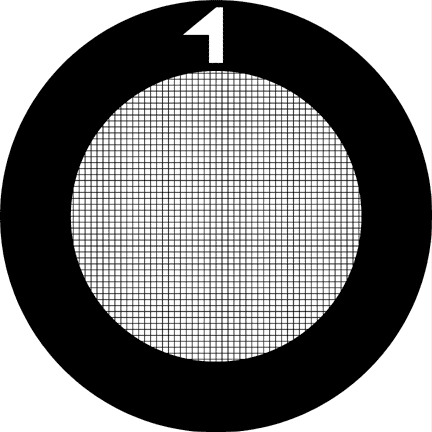

G600HHS

Mesh Specifications

click image for larger view
Mesh (lines/inch) 600
Pitch (um) 42
Bar Width (um) 6
Hole Width (um) 36
Rim Specifications
Rim width (mm) 0.5P
Centre Mark None
Rim Mark Yes
Availability
Gold per Vial 50
Other per Vial 100
2.3mm No



G1000HH

Mesh Specifications

click image for larger view
Mesh (lines/inch) 1000
Pitch (um) 25
Bar Width (um) 6
Hole Width (um) 19
Rim Specifications
Rim width (mm) 0.5P
Centre Mark None
Rim Mark Yes
Availability
Gold per Vial 25
Other per Vial 25
2.3mm No



G1500HH

Mesh Specifications

click image for larger view
Mesh (lines/inch) 1500
Pitch (um) 16.5
Bar Width (um) 6
Hole Width (um) 10.5
Rim Specifications
Rim width (mm) 0.5
Centre Mark None
Rim Mark Yes
Availability
Gold per Vial 15
Other per Vial 15
2.3mm No



G2000HA

Mesh Specifications

click image for larger view
Mesh (lines/inch) 2000
Pitch (um) 12.5
Bar Width (um) 6
Hole Width (um) 6.5
Rim Specifications
Rim width (mm) 0.5
Centre Mark None
Rim Mark Yes
Availability
Gold per Vial 10
Other per Vial 10
2.3mm No



GVHS

Mesh Specifications

click image for larger view
Mesh (lines/inch) 200-400
Pitch (um) 125-62
Bar Width (um) 10-10
Hole Width (um) 115-52
Rim Specifications
Rim width (mm) 0.5
Centre Mark None
Rim Mark No
Availability
Gold per Vial 50
Other per Vial 100
2.3mm No





Documentation

SDS

Technical Notes

🚚 Estimated Delivery: 5 - 6 weeks from payment confirmation

View full details
Variant Variant total Quantity Price Variant total
200 Mesh Fine Hex-AP TEM Grids, Copper, Vial of 100pcs. (Unit: each)G200HHCu
200 Mesh Fine Hex-AP TEM Grids, Copper, Vial of 100pcs. (Unit: each)G200HHCu
249,10 lei/ea		 0,00 lei
249,10 lei/ea 0,00 lei
200 Mesh Fine Hex-AP TEM Grids, Nickel, Vial of 100pcs. (Unit: each)G200HHNi
200 Mesh Fine Hex-AP TEM Grids, Nickel, Vial of 100pcs. (Unit: each)G200HHNi
285,26 lei/ea		 0,00 lei
285,26 lei/ea 0,00 lei
200 Mesh Fine Hex-AP TEM Grids, Gold, Vial of 50pcs. (Unit: each)G200HHAu
200 Mesh Fine Hex-AP TEM Grids, Gold, Vial of 50pcs. (Unit: each)G200HHAu
332,34 lei/ea		 0,00 lei
332,34 lei/ea 0,00 lei
300 Mesh Fine Hex-AP TEM Grids, Copper, Vial of 100pcs. (Unit: each)G300HHCu
300 Mesh Fine Hex-AP TEM Grids, Copper, Vial of 100pcs. (Unit: each)G300HHCu
287,40 lei/ea		 0,00 lei
287,40 lei/ea 0,00 lei
300 Mesh Fine Hex-AP TEM Grids, Nickel, Vial of 100pcs. (Unit: each)G300HHNi
300 Mesh Fine Hex-AP TEM Grids, Nickel, Vial of 100pcs. (Unit: each)G300HHNi
335,87 lei/ea		 0,00 lei
335,87 lei/ea 0,00 lei
300 Mesh Fine Hex-AP TEM Grids, Gold, Vial of 50pcs. (Unit: each)G300HHAu
300 Mesh Fine Hex-AP TEM Grids, Gold, Vial of 50pcs. (Unit: each)G300HHAu
343,15 lei/ea		 0,00 lei
343,15 lei/ea 0,00 lei
400 Mesh Fine Hex-AP TEM Grids, Copper, Vial of 100pcs. (Unit: each)G400HHCu
400 Mesh Fine Hex-AP TEM Grids, Copper, Vial of 100pcs. (Unit: each)G400HHCu
340,15 lei/ea		 0,00 lei
340,15 lei/ea 0,00 lei
400 Mesh Fine Hex-AP TEM Grids, Nickel, Vial of 100pcs. (Unit: each)G400HHNi
400 Mesh Fine Hex-AP TEM Grids, Nickel, Vial of 100pcs. (Unit: each)G400HHNi
430,35 lei/ea		 0,00 lei
430,35 lei/ea 0,00 lei
400 Mesh Fine Hex-AP TEM Grids, Gold, Vial of 50pcs. (Unit: each)G400HHAu
400 Mesh Fine Hex-AP TEM Grids, Gold, Vial of 50pcs. (Unit: each)G400HHAu
421,26 lei/ea		 0,00 lei
421,26 lei/ea 0,00 lei
600 Mesh Fine Hex-AP TEM Grids, Copper, Vial of 100pcs. (Unit: each)G600HHCu
600 Mesh Fine Hex-AP TEM Grids, Copper, Vial of 100pcs. (Unit: each)G600HHCu
374,61 lei/ea		 0,00 lei
374,61 lei/ea 0,00 lei
600 Mesh Fine Hex-AP TEM Grids, Nickel, Vial of 100pcs. (Unit: each)G600HHNi
600 Mesh Fine Hex-AP TEM Grids, Nickel, Vial of 100pcs. (Unit: each)G600HHNi
520,66 lei/ea		 0,00 lei
520,66 lei/ea 0,00 lei
600 Mesh Fine Hex-AP TEM Grids, Gold, Vial of 50pcs. (Unit: each)G600HHAu
600 Mesh Fine Hex-AP TEM Grids, Gold, Vial of 50pcs. (Unit: each)G600HHAu
509,32 lei/ea		 0,00 lei
509,32 lei/ea 0,00 lei
600 Mesh Fine Hex-AP larger pitch TEM Grids, Copper, Vial of 100pcs. (Unit: each)G600HHSCu
600 Mesh Fine Hex-AP larger pitch TEM Grids, Copper, Vial of 100pcs. (Unit: each)G600HHSCu
374,61 lei/ea		 0,00 lei
374,61 lei/ea 0,00 lei
600 Mesh Fine Hex-AP larger pitch TEM Grids, Nickel, Vial of 100pcs. (Unit: each)G600HHSNi
600 Mesh Fine Hex-AP larger pitch TEM Grids, Nickel, Vial of 100pcs. (Unit: each)G600HHSNi
520,66 lei/ea		 0,00 lei
520,66 lei/ea 0,00 lei
600 Mesh Fine Hex-AP larger pitch TEM Grids, Gold, Vial of 50pcs. (Unit: each)G600HHSAu
600 Mesh Fine Hex-AP larger pitch TEM Grids, Gold, Vial of 50pcs. (Unit: each)G600HHSAu
509,32 lei/ea		 0,00 lei
509,32 lei/ea 0,00 lei
1000 Mesh Fine Hex-AP TEM Grids, Copper, Vial of 25pcs. (Unit: each)G1000HHCu
1000 Mesh Fine Hex-AP TEM Grids, Copper, Vial of 25pcs. (Unit: each)G1000HHCu
256,05 lei/ea		 0,00 lei
256,05 lei/ea 0,00 lei
1000 Mesh Fine Hex-AP TEM Grids, Nickel, Vial of 25pcs. (Unit: each)G1000HHNi
1000 Mesh Fine Hex-AP TEM Grids, Nickel, Vial of 25pcs. (Unit: each)G1000HHNi
356,31 lei/ea		 0,00 lei
356,31 lei/ea 0,00 lei
1000 Mesh Fine Hex-AP TEM Grids, Gold, Vial of 25pcs. (Unit: each)G1000HHAu
1000 Mesh Fine Hex-AP TEM Grids, Gold, Vial of 25pcs. (Unit: each)G1000HHAu
717,33 lei/ea		 0,00 lei
717,33 lei/ea 0,00 lei
1500 Mesh Fine Hex-AP TEM Grids, Copper, Vial of 15pcs. (Unit: each)G1500HHCu
1500 Mesh Fine Hex-AP TEM Grids, Copper, Vial of 15pcs. (Unit: each)G1500HHCu
256,05 lei/ea		 0,00 lei
256,05 lei/ea 0,00 lei
1500 Mesh Fine Hex-AP TEM Grids, Nickel, Vial of 15pcs. (Unit: each)G1500HHNi
1500 Mesh Fine Hex-AP TEM Grids, Nickel, Vial of 15pcs. (Unit: each)G1500HHNi
356,31 lei/ea		 0,00 lei
356,31 lei/ea 0,00 lei
1500 Mesh Fine Hex-AP TEM Grids, Gold, Vial of 15pcs. (Unit: each)G1500HHAu
1500 Mesh Fine Hex-AP TEM Grids, Gold, Vial of 15pcs. (Unit: each)G1500HHAu
717,33 lei/ea		 0,00 lei
717,33 lei/ea 0,00 lei
2000 Mesh Fine Hex-AP TEM Grids, Copper, Vial of 10pcs. (Unit: each)G2000HACu
2000 Mesh Fine Hex-AP TEM Grids, Copper, Vial of 10pcs. (Unit: each)G2000HACu
256,05 lei/ea		 0,00 lei
256,05 lei/ea 0,00 lei
2000 Mesh Fine Hex-AP TEM Grids, Nickel, Vial of 10pcs. (Unit: each)G2000HANi
2000 Mesh Fine Hex-AP TEM Grids, Nickel, Vial of 10pcs. (Unit: each)G2000HANi
356,31 lei/ea		 0,00 lei
356,31 lei/ea 0,00 lei
2000 Mesh Fine Hex-AP TEM Grids, Gold, Vial of 10pcs. (Unit: each)G2000HAAu
2000 Mesh Fine Hex-AP TEM Grids, Gold, Vial of 10pcs. (Unit: each)G2000HAAu
717,33 lei/ea		 0,00 lei
717,33 lei/ea 0,00 lei
VHS Mesh Fine Hex-AP TEM Grids, Copper, Vial of 100pcs. (Unit: each)GVHSCu
VHS Mesh Fine Hex-AP TEM Grids, Copper, Vial of 100pcs. (Unit: each)GVHSCu
287,40 lei/ea		 0,00 lei
287,40 lei/ea 0,00 lei
VHS Mesh Fine Hex-AP TEM Grids, Nickel, Vial of 100pcs. (Unit: each)GVHSNi
VHS Mesh Fine Hex-AP TEM Grids, Nickel, Vial of 100pcs. (Unit: each)GVHSNi
335,87 lei/ea		 0,00 lei
335,87 lei/ea 0,00 lei
VHS Mesh Fine Hex-AP TEM Grids, Gold, Vial of 50pcs. (Unit: each)GVHSAu
VHS Mesh Fine Hex-AP TEM Grids, Gold, Vial of 50pcs. (Unit: each)GVHSAu
343,15 lei/ea		 0,00 lei
343,15 lei/ea 0,00 lei
