Gilder Double TEM grids

Gilder Double TEM grids

Standard grids diameter is of 3mm. Molybdenum and 2.3mm diameter (except GD50/100) are not available for this type.

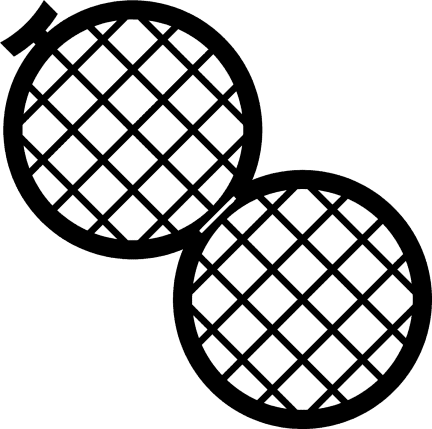

GD50/50

Mesh Specifications

click image for larger view
Mesh (lines/inch) 50-50
Pitch (um) 500-500
Bar Width (um) 70-70
Hole Width (um) 430-430
Rim Specifications
Rim width (mm) 0.225
Centre Mark None
Rim Mark No
Availability
Gold per Vial 50
Other per Vial 100
2.3mm No



GD100/200

Mesh Specifications

click image for larger view
Mesh (lines/inch) 100-200
Pitch (um) 250-125
Bar Width (um) 50-40
Hole Width (um) 200-85
Rim Specifications
Rim width (mm) 0.225
Centre Mark None
Rim Mark No
Availability
Gold per Vial 50
Other per Vial 100
2.3mm No

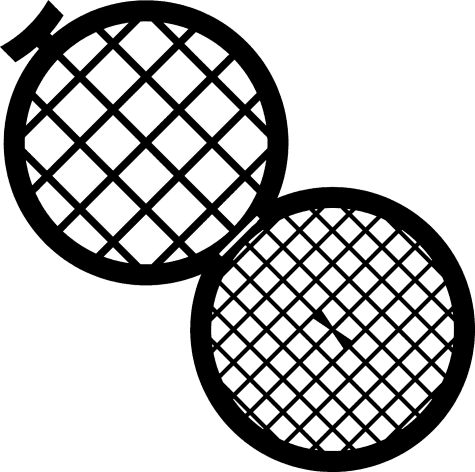

GD50/100

Mesh Specifications

click image for larger view
Mesh (lines/inch) 50-100
Pitch (um) 500-250
Bar Width (um) 70-55
Hole Width (um) 430-195
Rim Specifications
Rim width (mm) 0.225
Centre Mark Reverse Arrow
Rim Mark No
Availability
Gold per Vial 50
Other per Vial 100
2.3mm Yes

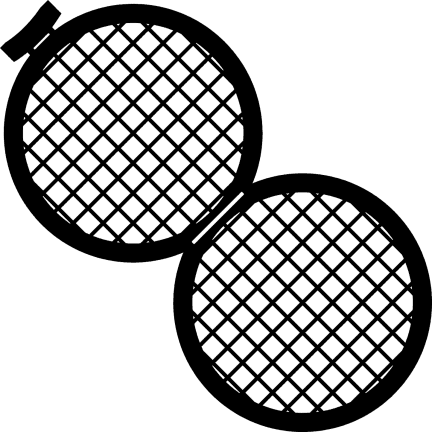

GD100/100

Mesh Specifications

click image for larger view
Mesh (lines/inch) 100-100
Pitch (um) 250-250
Bar Width (um) 50-50
Hole Width (um) 200-200
Rim Specifications
Rim width (mm) 0.225
Centre Mark Reverse Arrow
Rim Mark No
Availability
Gold per Vial 50
Other per Vial 100
2.3mm No





Documentation

SDS

Technical Notes
