Gel-Pak® Vacuum Release (VR) Series

Gel-Pak® Vacuum Release (VR) Series



Cleanroom compatible, innovative solutions for storing and transporting delicate devices

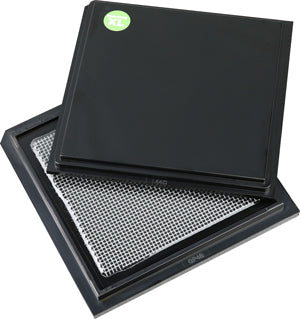

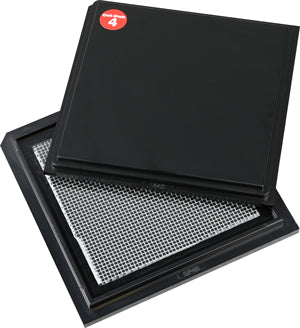

These vacuum-release storage and shipping boxes from Gel-Pak® are available in 2" and 4" sizes. The 2" boxes are available in hinged with snap closure style or a pocketless tray with a clip (GP-CLIP-22TR), while the 4" pocketless tray slides into a clip (GP-CLIP-44C) for secure closure and transport. Each tray contains box contains a Gel-Pak® Tray with gel to firmly hold substrates, electronic devices, and other materials. Applying vacuum to the tray puts it in release mode allowing samples to be removed easily without prying or application of force. Gel-Pak® VR Series Boxes may be used in automated pick-and-place applications.

VR Series Products are available in a range of mesh sizes which correlate to number of thread lines per linear inch. The smaller the mesh size, the wider the spacing between threads, the fewer points of contact between the device and the gel when the tray is in release mode. The goal in choosing a mesh should be to have the fewest number of contact points while still supporting the device in release mode. Some general guidelines are below.

Vacuum Release Box 2"

  • Dimensions: 2 W x 2 H x 0.25" D (50.80 x 50.80 x 6.35mm)
  • Usable Area: 1.35 W x 1.35" H (34.29 x 34.29mm)
  • Tack Level: XL, X4
  • Internal Clearance: 112 mils
  • Box Materials: Conductive Hinged Box, Conductive Lid
  • Mesh Size: 16, 33, 76, 103


Vacuum Release Tray 2"

  • Dimensions: 2 W x 2 H x 0.31" D (50.80 x 50.80 x 7.87mm)
  • Usable Area: 1.35 W x 1.35" H (34.29 x 34.29mm)
  • Tack Level: XL, X4
  • Internal Clearance: 92 mils
  • Box Materials: Conductive Tray, Conductive Lid
  • Mesh Size: 16, 33, 76


Vacuum Release Tray 4"

  • Dimensions: 4 W x 4 H x 0.46" D (101.60 x 101.60 x 11.68mm)
  • Usable Area: 3 W x 3" H (76.2 x 76.2mm)
  • Tack Level: XT, XL, X4
  • Internal Clearance: 169 mils
  • Box Materials: Conductive Tray with Conductive Lid, Conductive Tray with Antistatic Lid, Conductive Tray with Transparent Lid
  • Mesh Size: 16, 33
Gel Tack Levels Retention Recommended Use
XT Ultra-Low Polished and etched material <254µm / 10 mils
XL Low Polished material ≥ 254µm / 10 mils,
Etched material 254-381µm / 10-15 mils
X4 Medium Etched material ≥ 381µm / 15 mils
X8 High Porous material ≥ 1524µm / 60 mils



Mesh Size Device Size (microns) Device Size (mils)
16 ≥ 2794 ≥ 110
33 1524-2794 60-110
76 889-1524 35-60
103 508-889 25-35
