1 5

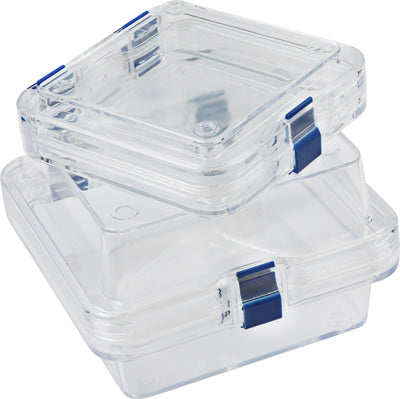

Gel-Pak® Membrane Boxes

Gel-Pak® Membrane Boxes



Cleanroom compatible, innovative solutions for storing and transporting delicate devices

Gel-Pak® Membrane Boxes are manufactured in a Class 10,000 Cleanroom and are shipped in cleanroom packaging.

Gel-Pak® Membrane Boxes are recommended for devices or large objects that have an irregular shape or non-flat contact surface which will not adhere to our Gel material.

Membrane Boxes are constructed using a thin, highly elastic transparent polyether polyurethane membrane mounted to the top and bottom halves of a symmetrical clear polystyrene box. When the box is closed, the device is suspended between the two transparent membranes which conform to the device shape and securely hold it in place.

The high optical transparency of the membrane box packaging allows for inspection and visual checks without having to open up the box. The membrane boxes are reusable and come in a wide range of shapes and sizes.

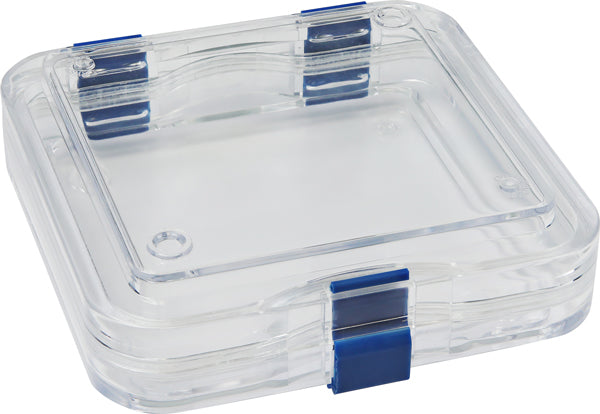

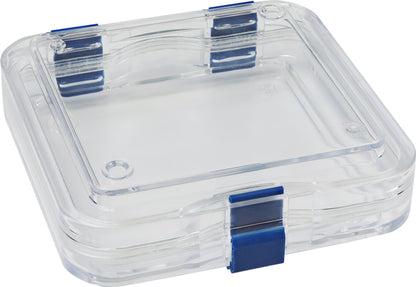

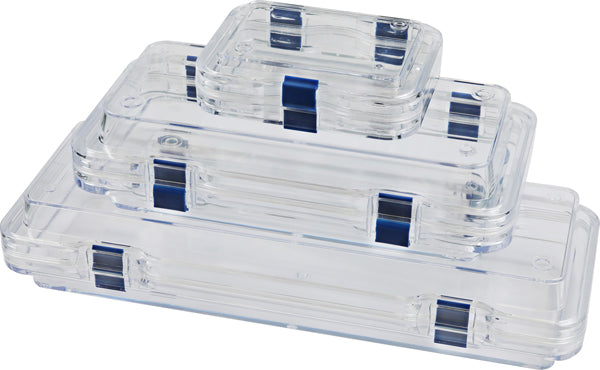

Clear plastic membrane
boxes with hinges

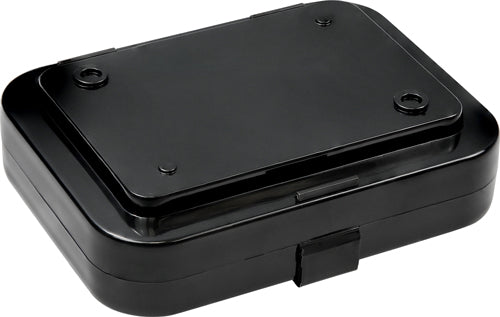

Black conductive plastic
membrane boxes

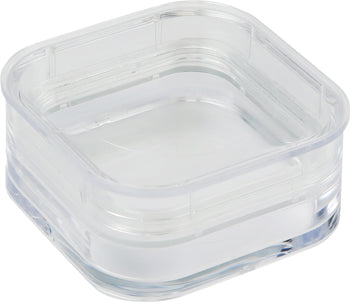

Clear plastic membrane
boxes, without hinges

Product Number Color Box Size (External) Usable Area (Internal Approximate)
MB-38T-16 Transparent 38 x 38 x 16mm 31 x 31 x 14mm
MB-55T-25  Transparent 55 x 55 x 25mm 42 x 42 x 20mm
MB-100T-30  Transparent 100 x 100 x 30mm 90 x 82 x 25mm
MB-100T-50  Transparent 100 x 100 x 50mm 90 x 82 x 45mm
MB-100x75SD-30 Black 100 x 75 x 30mm 90 x 61 x 25mm
MB-100x75T-30 Transparent 100 x 75 x 30mm 90 x 61 x 25mm
MB-125T-50  Transparent 125 x 125 x 50mm 100 x 100 x 46mm
MB-125T-75 Transparent 125 x 125 x 75mm 97.5 x 97.5 x 70mm
MB-125x100T-30 Transparent 125 x 100 x 30mm 116 x 82 x 25mm
MB-150T-100 Transparent 150 x 150 x100mm 125 x 125 x 95mm
MB-200x100T-50  Transparent 200 x 100 x50mm 188 x 83 x 45mm
MB-250x200T-50 Transparent 250 x 200 x 50mm 223 x 173 x 45mm
MB-275x100T-50  Transparent 275 x 100 x 50mm 245 x 75 x 45mm



Membrane Physical Properties   Membrane Chemical Properties
Property Test Method Nominal Value Waterproof and Breathable
Hardness ASTM D2240 85 Shore A Low Temperature Capability to -30ºC
Specific Gravity ASTM D729 1.12 No Plasticizer, No Migration
Tensile Strength ASTM D412 445 kg/cm2 Simple Molecular Structure: C, H, O, N
Elongation ASTM D412 515% Excellent Hydrolysis Resistance: > 2 years
300% Modulus ASTM D412 80 kg/cm2 Excellent Fungus Resistance
Tear Strength ASTM D1004 100 kg/cm2
Melting Point   150º C
UV Stability ASTM D1148 4-5 Grade

Documentation

SDS

Technical Notes

🚚 Estimated Delivery: 5 - 6 weeks from payment confirmation

View full details
Variant Variant total Quantity Price Variant total
Gel-Pak® Clear Plastic Membrane Boxes, 38 x 38 x 16mm (1.25 x 1.25 x 0.63"), pkg/200 (Unit: each)MB-38T-16
Gel-Pak® Clear Plastic Membrane Boxes, 38 x 38 x 16mm (1.25 x 1.25 x 0.63"), pkg/200 (Unit: each)MB-38T-16
6.093,01 lei/ea		 0,00 lei
6.093,01 lei/ea 0,00 lei
Gel-Pak® Clear Plastic Membrane Boxes, 55 x 55 x 25mm (2.17 x 2.17 x 0.98"), pkg/100 (Unit: each)MB-55T-25
Gel-Pak® Clear Plastic Membrane Boxes, 55 x 55 x 25mm (2.17 x 2.17 x 0.98"), pkg/100 (Unit: each)MB-55T-25
5.250,81 lei/ea		 0,00 lei
5.250,81 lei/ea 0,00 lei
Gel-Pak® Clear Plastic Membrane Boxes, 100 x 100 x 30mm (3.94 x 3.94 x 1.18"), pkg/33 (Unit: each)MB-100T-30
Gel-Pak® Clear Plastic Membrane Boxes, 100 x 100 x 30mm (3.94 x 3.94 x 1.18"), pkg/33 (Unit: each)MB-100T-30
5.008,24 lei/ea		 0,00 lei
5.008,24 lei/ea 0,00 lei
Gel-Pak® Clear Plastic Membrane Boxes, 100 x 100 x 50mm (3.94 x 3.94 x 1.97"), pkg/14 (Unit: each)MB-100T-50
Gel-Pak® Clear Plastic Membrane Boxes, 100 x 100 x 50mm (3.94 x 3.94 x 1.97"), pkg/14 (Unit: each)MB-100T-50
2.693,94 lei/ea		 0,00 lei
2.693,94 lei/ea 0,00 lei
Gel-Pak® Clear Plastic Membrane Boxes, 100 x 75 x 30mm (3.94 x 2.95 x 1.18"), pkg/33 (Unit: each)MB-100X75T-30
Gel-Pak® Clear Plastic Membrane Boxes, 100 x 75 x 30mm (3.94 x 2.95 x 1.18"), pkg/33 (Unit: each)MB-100X75T-30
4.164,12 lei/ea		 0,00 lei
4.164,12 lei/ea 0,00 lei
Gel-Pak® Clear Plastic Membrane Boxes, 125 x 125 x 50mm (4.92 x 4.92 x 1.97") (Unit: each)MB-125T-50
Gel-Pak® Clear Plastic Membrane Boxes, 125 x 125 x 50mm (4.92 x 4.92 x 1.97") (Unit: each)MB-125T-50
269,64 lei/ea		 0,00 lei
269,64 lei/ea 0,00 lei
Gel-Pak® Clear Plastic Membrane Boxes, 125 x 125 x 75mm (4.92 x 4.92 x 2.95") (Unit: each)MB-125T-75
Gel-Pak® Clear Plastic Membrane Boxes, 125 x 125 x 75mm (4.92 x 4.92 x 2.95") (Unit: each)MB-125T-75
287,51 lei/ea		 0,00 lei
287,51 lei/ea 0,00 lei
Gel-Pak® Clear Plastic Membrane Boxes, 125 x 100 x 30mm (4.92 x 3.94 x 1.18"), pkg/20 (Unit: each)MB-125X100T-30
Gel-Pak® Clear Plastic Membrane Boxes, 125 x 100 x 30mm (4.92 x 3.94 x 1.18"), pkg/20 (Unit: each)MB-125X100T-30
3.983,40 lei/ea		 0,00 lei
3.983,40 lei/ea 0,00 lei
Gel-Pak® Clear Plastic Membrane Boxes, 150 x 150 x 100mm (5.91 x 5.91 x 3.94") (Unit: each)MB-150T-100
Gel-Pak® Clear Plastic Membrane Boxes, 150 x 150 x 100mm (5.91 x 5.91 x 3.94") (Unit: each)MB-150T-100
350,32 lei/ea		 0,00 lei
350,32 lei/ea 0,00 lei
Gel-Pak® Clear Plastic Membrane Boxes, 200 x 100 x 50mm (7.87 x 3.94 x 1.97"), pkg/20 (Unit: each)MB-200X100T-50
Gel-Pak® Clear Plastic Membrane Boxes, 200 x 100 x 50mm (7.87 x 3.94 x 1.97"), pkg/20 (Unit: each)MB-200X100T-50
7.426,34 lei/ea		 0,00 lei
7.426,34 lei/ea 0,00 lei
Gel-Pak® Clear Plastic Membrane Boxes, 250 x 200 x 50mm (9.84 x 7.87 x 1.97") (Unit: each)MB-250X200T-50
Gel-Pak® Clear Plastic Membrane Boxes, 250 x 200 x 50mm (9.84 x 7.87 x 1.97") (Unit: each)MB-250X200T-50
479,25 lei/ea		 0,00 lei
479,25 lei/ea 0,00 lei
Gel-Pak® Clear Plastic Membrane Boxes, 275 x 100 x 50mm (10.82 x 3.94 x 1.97") (Unit: each)MB-275X100T-50
Gel-Pak® Clear Plastic Membrane Boxes, 275 x 100 x 50mm (10.82 x 3.94 x 1.97") (Unit: each)MB-275X100T-50
398,15 lei/ea		 0,00 lei
398,15 lei/ea 0,00 lei
Gel-Pak® Black Conductive Plastic Membrane Boxes, 100 x 75 x 30mm (3.94 x 2.95 x 1.18"), pkg/33 (Unit: each)MB-100X75SD-30
Gel-Pak® Black Conductive Plastic Membrane Boxes, 100 x 75 x 30mm (3.94 x 2.95 x 1.18"), pkg/33 (Unit: each)MB-100X75SD-30
6.338,89 lei/ea		 0,00 lei
6.338,89 lei/ea 0,00 lei
