G48 Kotter

G48 Kotter

Pattern

G48

Description

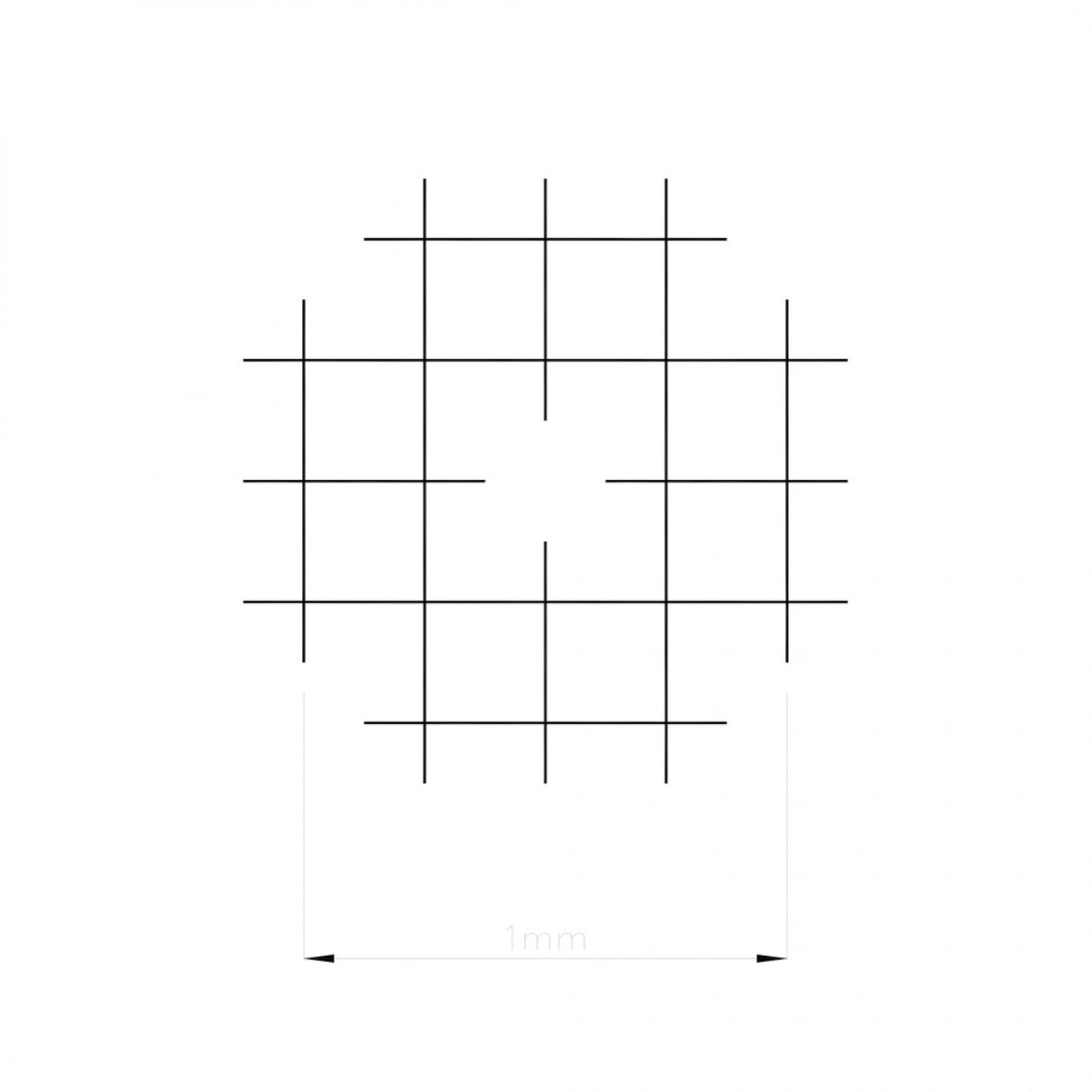

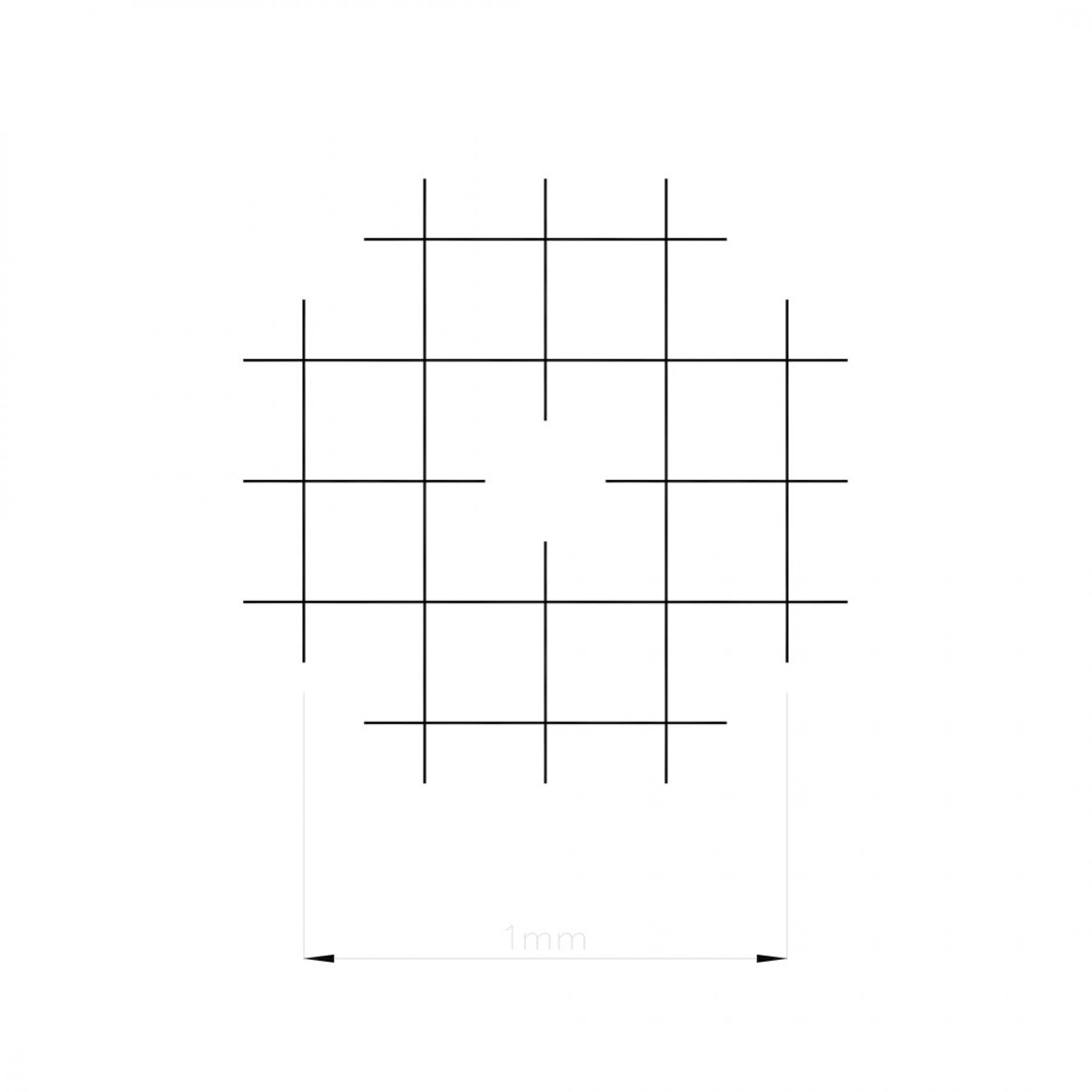

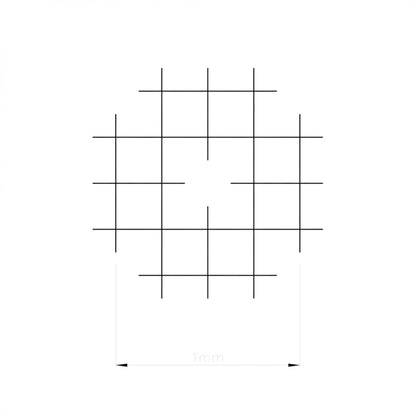

Kotter Pattern

Key features

Eyepiece Reticle with Kotter pattern for analysis of bitumous coal and anthracite.

This reticle is normally used with a 20x objective and is sized accordingly. If other objective magnifications are used then we have to apply a calibration factor to ensure the pattern is the correct size. Please ask for a quotation for a custom made reticle. Reference: I.S.O. 7404-4: 1988 (E). Methods for Analysis of Bitumous Coal and Anthracite. Part 4 and Methods of Determining Microlithotype Composition.

Line Thickness

0.010mm +/-0.002

Glass Type and Thickness

Soda Lime 1.5mm thick

Overall Tolerance

+/-0.0025mm

Diameter Tolerance

+0/-0.1mm

Square Sizes

0.25mm

Orientation

Correct reading through glass

Documentation

SDS

Technical Notes

View full details
Variant Variant total Quantity Price Variant total
G48 Kotter, 16mm diameter (Unit: each)01A16072
G48 Kotter, 16mm diameter (Unit: each)01A16072
1.163,80 lei/ea		 0,00 lei
1.163,80 lei/ea 0,00 lei
G48 Kotter, 19mm diameter (Unit: each)01A19072
G48 Kotter, 19mm diameter (Unit: each)01A19072
1.163,80 lei/ea		 0,00 lei
1.163,80 lei/ea 0,00 lei
G48 Kotter, 20.4mm diameter (Unit: each)01A20.4072
G48 Kotter, 20.4mm diameter (Unit: each)01A20.4072
1.163,80 lei/ea		 0,00 lei
1.163,80 lei/ea 0,00 lei
G48 Kotter, 21mm diameter (Unit: each)01A21072
G48 Kotter, 21mm diameter (Unit: each)01A21072
1.163,80 lei/ea		 0,00 lei
1.163,80 lei/ea 0,00 lei
G48 Kotter, 23mm diameter (Unit: each)01A23072
G48 Kotter, 23mm diameter (Unit: each)01A23072
1.163,80 lei/ea		 0,00 lei
1.163,80 lei/ea 0,00 lei
G48 Kotter, 24mm diameter (Unit: each)01A24072
G48 Kotter, 24mm diameter (Unit: each)01A24072
1.372,20 lei/ea		 0,00 lei
1.372,20 lei/ea 0,00 lei
G48 Kotter, 24.5mm diameter (Unit: each)01A24.5072
G48 Kotter, 24.5mm diameter (Unit: each)01A24.5072
1.372,20 lei/ea		 0,00 lei
1.372,20 lei/ea 0,00 lei
G48 Kotter, 25mm diameter (Unit: each)01A25072
G48 Kotter, 25mm diameter (Unit: each)01A25072
1.372,20 lei/ea		 0,00 lei
1.372,20 lei/ea 0,00 lei
G48 Kotter, 26mm diameter (Unit: each)01A26072
G48 Kotter, 26mm diameter (Unit: each)01A26072
1.372,20 lei/ea		 0,00 lei
1.372,20 lei/ea 0,00 lei
G48 Kotter, 27mm diameter (Unit: each)01A27072
G48 Kotter, 27mm diameter (Unit: each)01A27072
1.372,20 lei/ea		 0,00 lei
1.372,20 lei/ea 0,00 lei
G48 Kotter, other diameter. This Pattern requires a calibration factor. (Unit: each)G48OTHER
G48 Kotter, other diameter. This Pattern requires a calibration factor. (Unit: each)G48OTHER
1.564,20 lei/ea		 0,00 lei
1.564,20 lei/ea 0,00 lei
