G44 ASTM E45

G44 ASTM E45

Pattern

G44

Description

ASTM E45 Grain Sizing

Key features

Eyepiece Reticle to ASTM E45

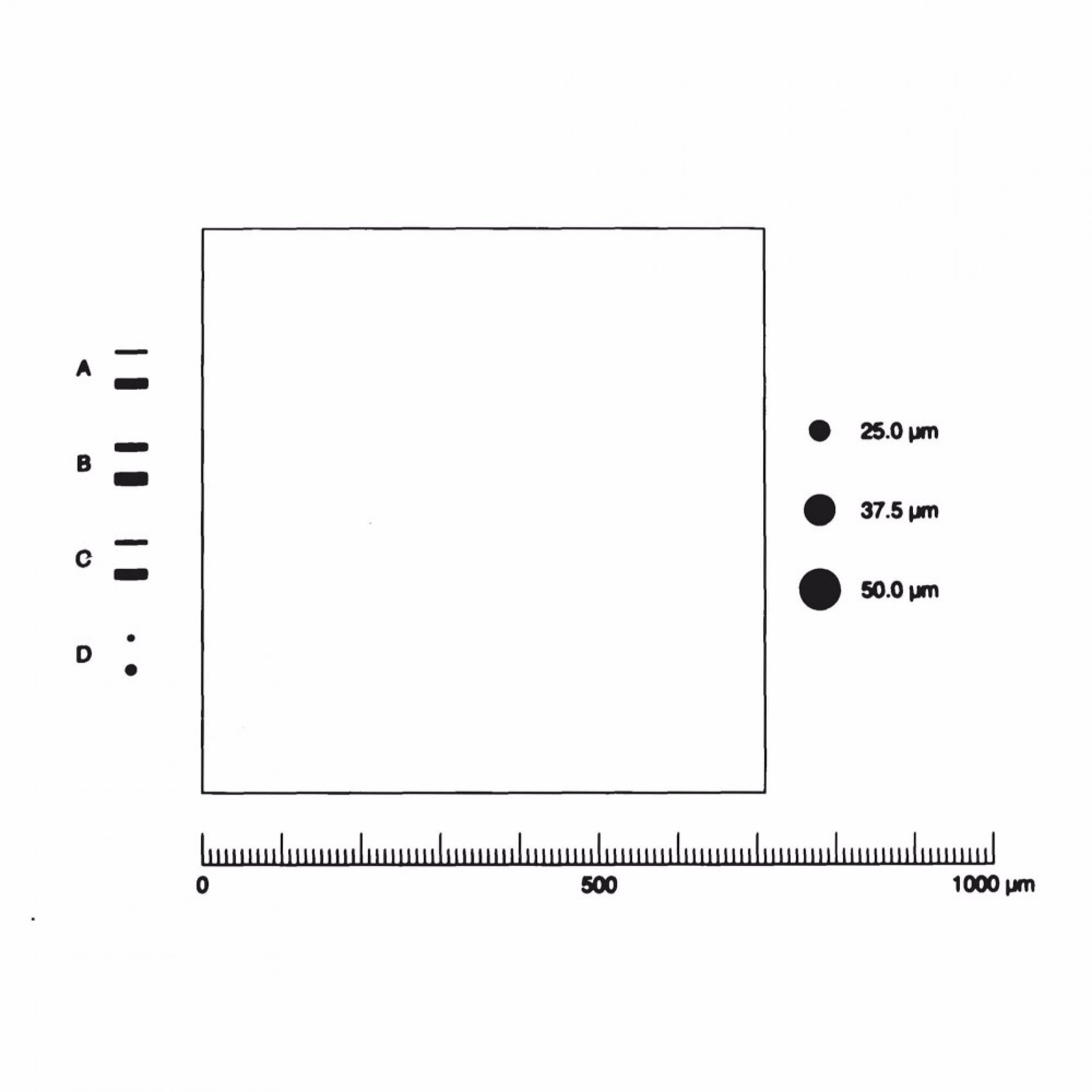

Pattern comprises 7.1mm square with features on left and right side to compare size, and a 10mm length horizontal scale. Root 2 sides. Also likely to be suitable for DIN 50602. For some applications a 10mm square is required, these can be made to special order.

Line Thickness

0.015mm +/-0.003mm

Glass Type and Thickness

Soda Lime 1.5mm thick

Scale Length Tolerance

+/-0.005mm

Diameter Tolerance

+0/-0.1mm

Divisional Marker Lengths

0.4mm, 0.2mm

Orientation

Correct reading through glass

Documentation

SDS

Technical Notes

🚚 Estimated Delivery: 5 - 6 weeks from payment confirmation

View full details
Variant Variant total Quantity Price Variant total
G44 ASTM E45, 19mm diameter (Unit: each)01A19086
G44 ASTM E45, 19mm diameter (Unit: each)01A19086
1.015,64 lei/ea		 0,00 lei
1.015,64 lei/ea 0,00 lei
G44 ASTM E45, 20.4mm diameter (Unit: each)01A20.4086
G44 ASTM E45, 20.4mm diameter (Unit: each)01A20.4086
1.015,64 lei/ea		 0,00 lei
1.015,64 lei/ea 0,00 lei
G44 ASTM E45, 21mm diameter (Unit: each)01A21086
G44 ASTM E45, 21mm diameter (Unit: each)01A21086
1.015,64 lei/ea		 0,00 lei
1.015,64 lei/ea 0,00 lei
G44 ASTM E45, 23mm diameter (Unit: each)01A23086
G44 ASTM E45, 23mm diameter (Unit: each)01A23086
1.015,64 lei/ea		 0,00 lei
1.015,64 lei/ea 0,00 lei
G44 ASTM E45, 24mm diameter (Unit: each)01A24086
G44 ASTM E45, 24mm diameter (Unit: each)01A24086
1.208,99 lei/ea		 0,00 lei
1.208,99 lei/ea 0,00 lei
G44 ASTM E45, 24.5mm diameter (Unit: each)01A24.5086
G44 ASTM E45, 24.5mm diameter (Unit: each)01A24.5086
1.208,99 lei/ea		 0,00 lei
1.208,99 lei/ea 0,00 lei
G44 ASTM E45, 25mm diameter (Unit: each)01A25086
G44 ASTM E45, 25mm diameter (Unit: each)01A25086
1.208,99 lei/ea		 0,00 lei
1.208,99 lei/ea 0,00 lei
G44 ASTM E45, 26mm diameter (Unit: each)01A26086
G44 ASTM E45, 26mm diameter (Unit: each)01A26086
1.208,99 lei/ea		 0,00 lei
1.208,99 lei/ea 0,00 lei
G44 ASTM E45, 27mm diameter (Unit: each)01A27086
G44 ASTM E45, 27mm diameter (Unit: each)01A27086
1.208,99 lei/ea		 0,00 lei
1.208,99 lei/ea 0,00 lei
G44 ASTM E45, other diameter. A calibration factor is required for this item. (Unit: each)G44OTHER
G44 ASTM E45, other diameter. A calibration factor is required for this item. (Unit: each)G44OTHER
1.519,83 lei/ea		 0,00 lei
1.519,83 lei/ea 0,00 lei
