FIB Lift-Out Grids – Lamella Carriers

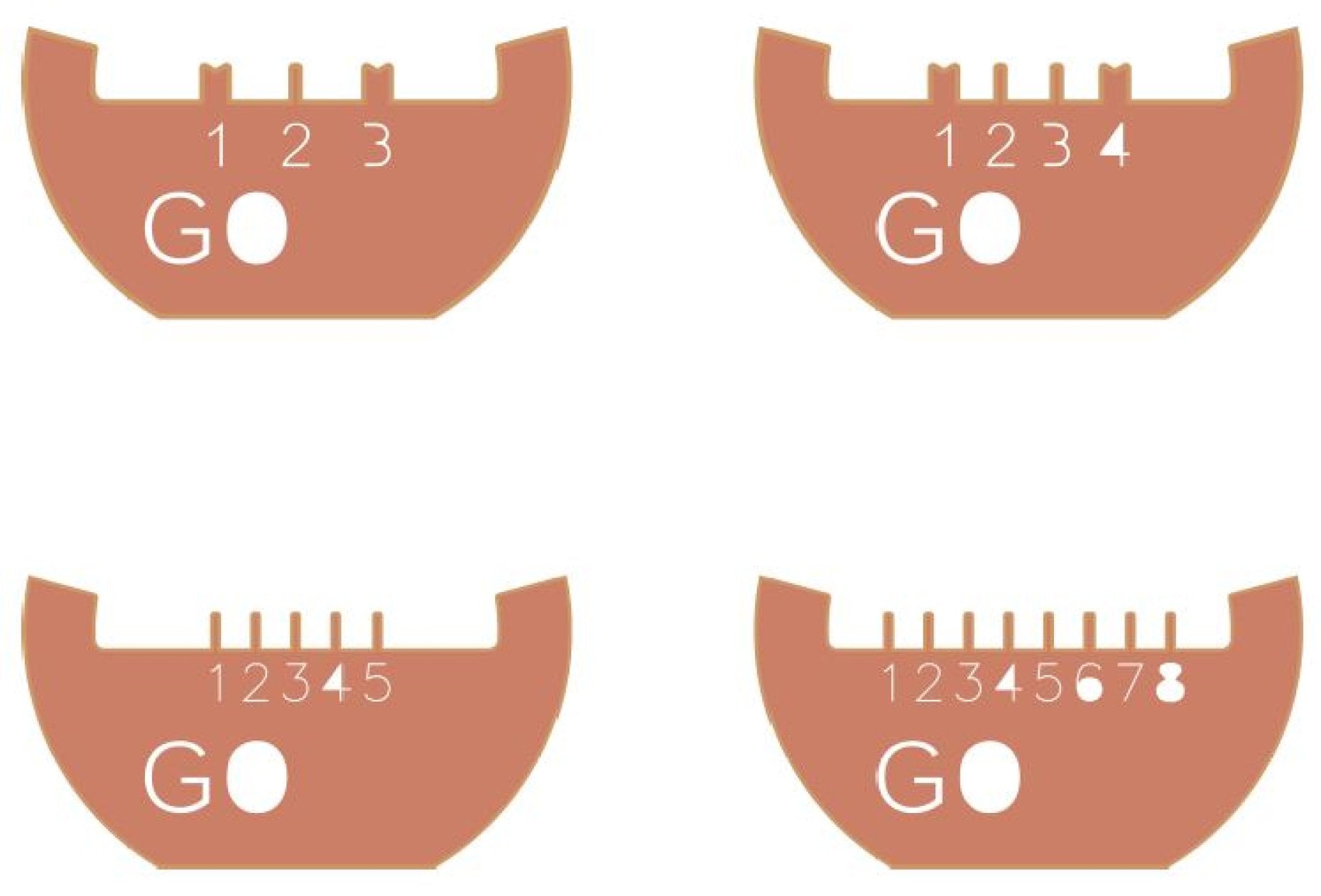

FIB Lift-Out 3, 4, 5 and 8 Post Cu

• Pins numerically annotated
• Well defined shape and form
• Shallow downset for improved performance

3-Post Copper

End pins 180um wide, 200um length with 'V' shaped tip. Centre pin 80um wide, 200um length. 20um width shelf

4-Post Copper

End pins 180um wide, 200um length with 'V' shaped tip. Centre pins 80um wide, 200um length. 20um width shelf

5-Post Copper

All pins 60um wide, 200um length. 20um width shelf

8-Post Copper

All pins 60um wide, 200um length. 20um width shelf

Grid Thickness (All Versions)

3 & 4 Post nominally 35um, 5 & 8 Post nominally 25um

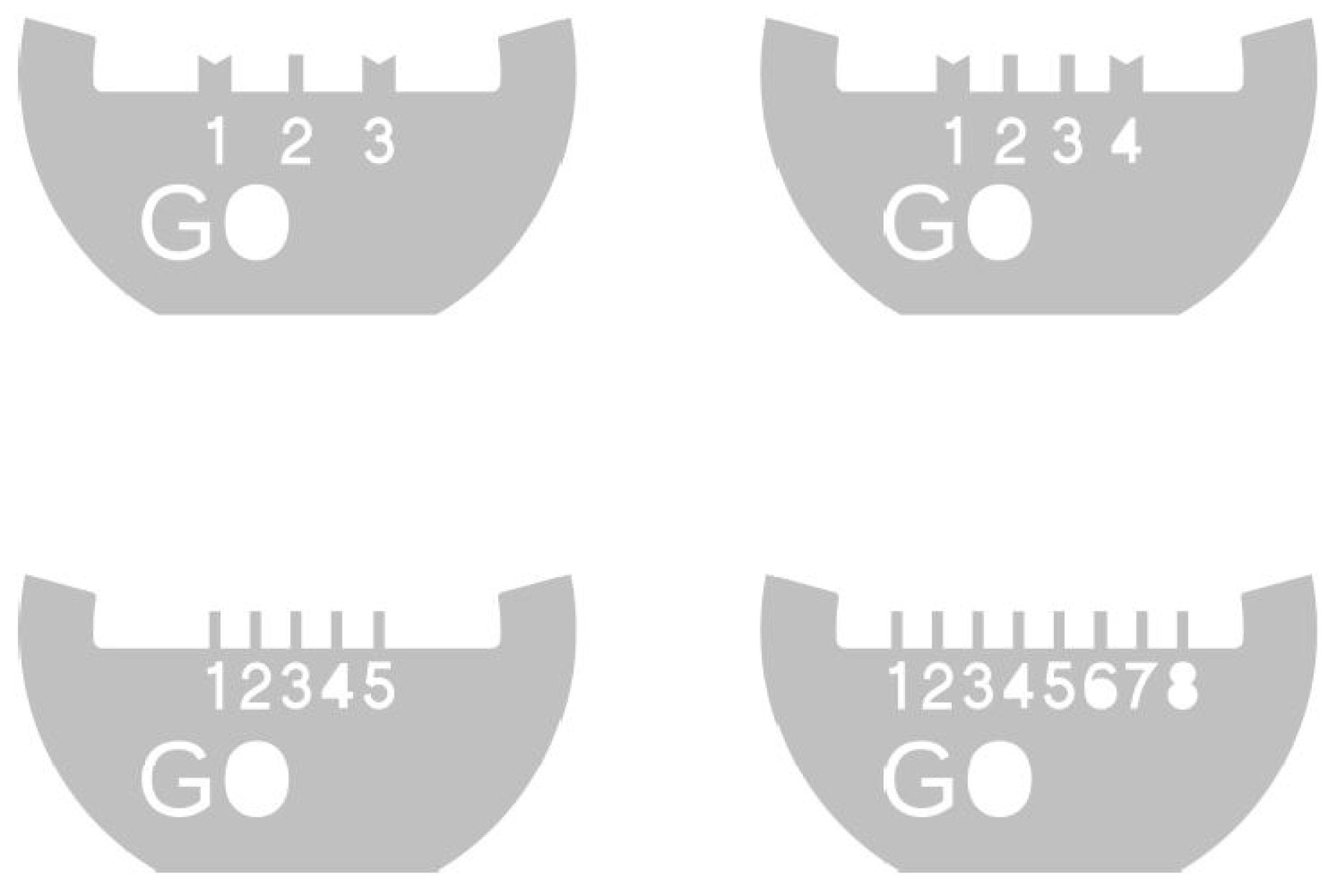

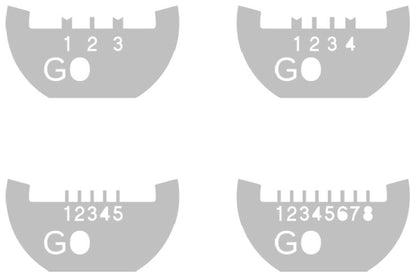

FIB Lift-Out 3, 4, 5 and 8 Post Mo

• Pins individually annotated
• Well defined shape and form

3-Post FIB Lift-Out

End posts 180um wide, 200um length with 'V' shaped end. Centre post 80um wide, 200um length.

4-Post FIB Lift-Out

End posts 180um wide, 200um length with 'V' shaped end. Centre posts 80um wide, 200um length.

5-Post FIB Lift-Out

All posts 60um wide, 200um length.

8-Post FIB Lift-Out

All posts 60um wide, 200um length. 20um.

Grid Thickness (All variants)

25um
