Diamond and DLC Coated AFM Probes

Diamond and DLC Coated AFM Probes

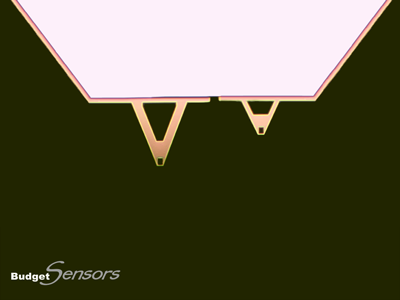

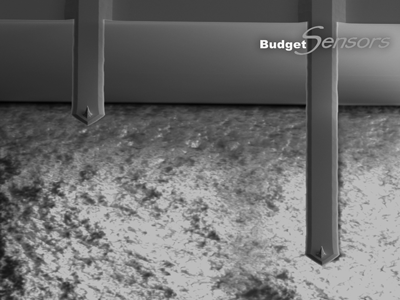

Tap300DLC

Tapping Mode AFM Probe with a Diamond-Like Carbon Tip Coating

AFM Probe Specifications:

AFM Tip

Shape: Rotated
Height: 17 µm (15 - 19 µm)*
Setback: 15 µm (10 - 20 µm)*
Radius: < 15 nm
Half Cone Angle: 20°-25° along cantilever axis, 25°-30° from side, 10° at the apex

AFM Cantilever

Cantilever A
 Beam
 40 N/m (20 - 75 N/m)*
 300 kHz (200 - 400 kHz)*
 125 µm (115 - 135 µm)*
 30 µm (25 - 35 µm)*
 4 µm (3 - 5 µm)*
* typical range

Coating

Diamond-Like-Carbon coating on tip side of the cantilever, 15nm thick Aluminum coating on detector side of the cantilever, 30 nm thick

Alignment Grooves

This product features alignment grooves on the back side of the holder chip.

Additional Info

Monolithic silicon AFM probe for high frequency non-contact and tapping mode operation.

High durability and hydrophobicity due to Diamond-Like-Carbon coating on tip side of the AFM cantilever.

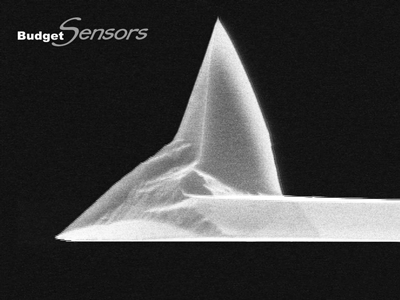

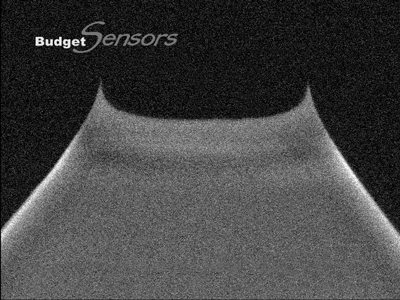

The rotated AFM tip allows for more symmetric representation of high sample features. The consistent AFM tip radius ensures good resolution and reproducibility.

The AFM holder chip fits most commercial AFM systems as it is industry standard size.

For measurements in liquids please use the back side gold coated Tap300GD-G or the overall gold coated Tap300GB-G!

Consistent high quality at a lower price!

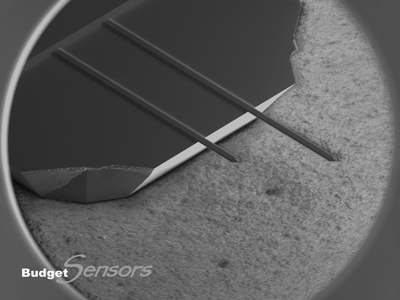

Tap190DLC

Tapping Mode AFM Probe with Long Cantilever and Diamond-Like-Carbon Tip Coating

AFM Probe Specifications:

AFM Tip

Shape: Rotated
Height: 17 µm (15 - 19 µm)*
Setback: 15 µm (10 - 20 µm)*
Radius: < 15 nm
Half Cone Angle: 20°-25° along cantilever axis, 25°-30° from side, 10° at the apex

AFM Cantilever

Cantilever A
 Beam
48 N/m (28 - 75 N/m)*
190 kHz (160 - 220 kHz)*
225 µm (215 - 235 µm)*
38 µm (33 - 43 µm)*
7 µm (6 - 8 µm)*
* typical range

Coating

Diamond-Like-Carbon coating on tip side of the cantilever, 15nm thick Aluminum coating on detector side of the cantilever, 30 nm thick

Alignment Grooves

This product features alignment grooves on the back side of the holder chip.

Additional Info

Monolithic silicon AFM probe for high frequency non-contact and tapping mode operation.

High durability and hydrophobicity due to Diamond-Like-Carbon coating on tip side of the AFM cantilever.

The rotated AFM tip allows for more symmetric representation of high sample features. The consistent AFM tip radius ensures good resolution and reproducibility.

The AFM holder chip fits most commercial AFM systems as it is industry standard size.

BudgetSensors' Tap190 series features a longer AFM cantilever and it is meant as an alternative to BudgetSensors' Tap300 AFM probes series, when the feedback loop of the AFM system does not accept high frequencies (400 kHz) or when the detection system needs a minimum AFM cantilever length > 125 µm. The scanning speed of Tap190 series AFM probes is slightly slower than the scanning speed of the Tap300 series.

For measurements in liquids please use the back side gold coated Tap190GD-G or the overall gold coated Tap190GB-G!

Consistent high quality at a lower price!

Tap150DLC

Soft Tapping Mode AFM Probe with Diamond-Like-Carbon Tip Coating

AFM Probe Specifications:

AFM Tip

Shape: Rotated
Height: 17 µm (15 - 19 µm)*
Setback: 15 µm (10 - 20 µm)*
Radius: < 15 nm
Half Cone Angle: 20°-25° along cantilever axis, 25°-30° from side, 10° at the apex

AFM Cantilever

Cantilever A
 Beam
5 N/m (1.5 - 15 N/m)*
150 kHz (75 - 225 kHz)*
125 µm (115 - 135 µm)*
25 µm (20 - 39 µm)*
 2.1 µm (1.1 - 3.1 µm)*
* typical range

Coating

Diamond-Like-Carbon coating on tip side of the cantilever, 15nm thick Aluminum coating on detector side of the cantilever, 30 nm thick

Alignment Grooves

This product features alignment grooves on the back side of the holder chip.

Additional Info

Monolithic silicon AFM probe for soft tapping mode operation.

High durability and hydrophobicity due to Diamond-Like-Carbon coating on tip side of the AFM cantilever

The rotated AFM tip allows for more symmetric representation of high sample features. The consistent AFM tip radius ensures good resolution and reproducibility.

The AFM holder chip fits most commercial AFM systems as it is industry standard size.

For measurements in liquids please use the back side gold coated Tap150GD-G or the overall gold coated Tap150GB-G!

Consistent high quality at a lower price!

Multi75DLC

Force Modulation AFM Probe with Diamond-Like-Carbon Tip Coating

AFM Probe Specifications:

AFM Tip

Shape: Rotated
Height: 17 µm (15 - 19 µm)*
Setback: 15 µm (10 - 20 µm)*
Radius: < 15 nm
Half Cone Angle: 20°-25° along cantilever axis, 25°-30° from side, 10° at the apex

AFM Cantilever

Cantilever A
 Beam
3 N/m (1 - 7 N/m)*
75 kHz (60 - 90 kHz)*
225 µm (215 - 235 µm)*
28 µm (23 - 33 µm)*
3 µm (2 - 4 µm)*
* typical range

Coating

Diamond-Like-Carbon coating on tip side of the cantilever, 15nm thick Aluminum coating on detector side of the cantilever, 30 nm thick

Alignment Grooves

This product features alignment grooves on the back side of the holder chip.

Additional Info

Monolithic silicon AFM probe for force modulation and pulsed force mode (PFM).

High durability and hydrophobicity due to Diamond-Like-Carbon coating on tip side of the AFM cantilever.

The rotated AFM tip allows for more symmetric representation of high sample features. The consistent AFM tip radius ensures good resolution and reproducibility.

The AFM holder chip fits most commercial AFM systems as it is industry standard size.

For measurements in liquids please use the back side gold coated Multi75GD-G or the overall gold coated Multi75GB-G!

Consistent high quality at a lower price!

ContDLC

Contact Mode AFM Probe with Diamond-Like-Carbon Tip Coating

AFM Probe Specifications:

AFM Tip

Shape: Rotated
Height: 17 µm (15 - 19 µm)*
Setback: 15 µm (10 - 20 µm)*
Radius: < 15 nm
Half Cone Angle: 20°-25° along cantilever axis, 25°-30° from side, 10° at the apex

AFM Cantilever

Cantilever A
 Beam
0.2 N/m (0.07 - 0.4 N/m)*
13 kHz (9 - 17 kHz)*
450 µm (440 - 460 µm)*
50 µm (45 - 55 µm)*
2 µm (1 - 3 µm)*
* typical range

Coating

Diamond-Like-Carbon coating on tip side of the cantilever, 15nm thick Aluminum coating on detector side of the cantilever, 30 nm thick

Alignment Grooves

This product features alignment grooves on the back side of the holder chip.

Additional Info

Monolithic silicon AFM probe for contact mode and lateral force mode operation.

High durability and hydrophobicity due to Diamond-Like-Carbon coating on tip side of the AFM cantilever.

The rotated AFM tip allows for more symmetric representation of high sample features. The consistent AFM tip radius ensures good resolution and reproducibility.

The AFM holder chip fits most commercial AFM systems as it is industry standard size.

For measurements in liquids please use the back side gold coated ContGD-G or the overall gold coated ContGB-G!

Consistent high quality at a lower price!

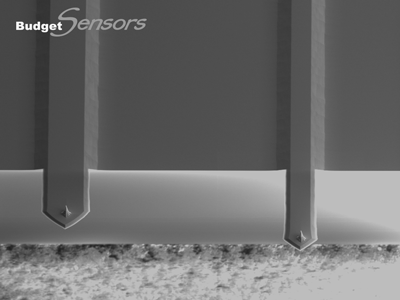

AIODLC

(Also known as All-In-One-DLC)

Multipurpose AFM Probe with 4 Different Cantilevers and Diamond-Like-Carbon Tip Coating

AFM Probe Specifications:

AFM Tip

Shape: Rotated
Height: 17 µm (15 - 19 µm)*
Setback: 15 µm (10 - 20 µm)*
Radius: < 15 nm
Half Cone Angle: 20°-25° along cantilever axis, 25°-30° from side, 10° at the apex

4 AFM Cantilevers

Cantilever A - Contact Mode
 Beam
0.2 N/m (0.04 - 0.7 N/m)*
15 kHz (10 - 20 kHz)*
 500 µm (490 - 510 µm)*
30 µm (25 - 35 µm)*
 2.7 µm (1.7 - 3.7 µm)*

Cantilever B - Force Modulation
 Beam
2.7 N/m (0.4 - 10 N/m)*
80 kHz (50 - 110 kHz)*
 200 µm (200 - 220 µm)*
30 µm (25 - 35 µm)*
 2.7 µm (1.7 - 3.7 µm)*

Cantilever C - Soft Tapping
 Beam
7.4 N/m (1 - 29 N/m)*
150 kHz (70 - 230 kHz)*
 150 µm (140 - 160 µm)*
30 µm (25 - 35 µm)*
 2.7 µm (1.7 - 3.7 µm)*

Cantilever D - Tapping Mode
 Beam
40 N/m (7 - 160 N/m)*
350 kHz (200 - 500 kHz)*
 100 µm (90 - 110 µm)*
50 µm (45 - 55 µm)*
 2.7 µm (1.7 - 3.7 µm)*
* typical range

Coating

Diamond-Like-Carbon coating on tip side of the cantilever, 15nm thick Aluminum coating on detector side of the cantilever, 30 nm thick

Alignment Grooves

none

Additional Info

Versatile silicon AFM probe with 4 different AFM cantilevers on a single AFM holder chip. Rotated, monolithic silicon AFM probe with symmetric tip shape for various applications (contact mode, force modulation mode, tapping mode and soft tapping mode).

High durability and hydrophobicity due to Diamond-Like-Carbon coating on tip side of the AFM cantilever.

The rotated AFM tips allow for more symmetric representation of high sample features. The consistent AFM tip radii ensure good resolution and reproducibility.

The AFM holder chip fits most commercial AFM systems as it is industry standard size.

The main advantage of this product compared to regular, single-cantilever AFM probes is the freedom to choose in the very last moment the right AFM cantilever for each application. You don't need to stock various AFM probe types any more. Nevertheless, this product is not meant as a substitution to comparable single-cantilever AFM probes, because the geometry of each one of the All-In-One cantilevers differs from the geometry of comparable specialized single-cantilever AFM probes.

Please note that the aluminum back side coating is not suitable for measurements in liquids!

Consistent high quality at a lower price!

AIO-DD

(Also known as All-In-One-DD)

Multipurpose AFM Probe with 4 Different Cantilevers and Conductive Diamond Tip Coating

AFM Probe Specifications:

AFM Tip

Shape: Rotated
Height: 17 µm (15 - 19 µm)*
Setback: 15 µm (10 - 20 µm)*
Radius: < 250 nm
Half Cone Angle: 20°-25° along cantilever axis, 25°-30° from side, 10° at the apex

4 AFM Cantilevers

Cantilever A - Contact Mode
 Beam
0.5 N/m (0.2 - 0.9 N/m)*
19 kHz (16 - 24 kHz)*
 500 µm (490 - 510 µm)*
30 µm (25 - 35 µm)*
 2.7 µm (1.7 - 3.7 µm)*

Cantilever B - Force Modulation
 Beam
6.5 N/m (3 - 12 N/m)*
110 kHz (80 - 140 kHz)*
 210 µm (200 - 220 µm)*
30 µm (25 - 35 µm)*
 2.7 µm (1.7 - 3.7 µm)*

Cantilever C - Soft Tapping
 Beam
18 N/m (8 - 35 N/m)*
200 kHz (140 - 260 kHz)*
 150 µm (140 - 160 µm)*
30 µm (25 - 35 µm)*
 2.7 µm (1.7 - 3.7 µm)*

Cantilever D - Tapping Mode
 Beam
 100 N/m (48 - 190 N/m)*
450 kHz (230 - 600 kHz)*
 100 µm (90 - 110 µm)*
50 µm (45 - 55 µm)*
 2.7 µm (1.7 - 3.7 µm)*
* typical range

Coating

Boron doped polycrystalline diamond tip coating, 100 nm thick Aluminum coating on detector side of the cantilever, 30 nm thick.

Alignment Grooves

none

Additional Info

Versatile monolithic silicon AFM probe with 4 different AFM cantilevers on a single AFM holder chip for various applications: contact mode, force modulation mode, soft tapping mode and high frequency tapping / non-contact mode and electric modes such as: scanning capacitance microscopy (SCM), electrostatic force microscopy (EFM), Kelvin probe force microscopy (KFM), scanning probe lithography and conductive atomic force microscopy (C-AFM).

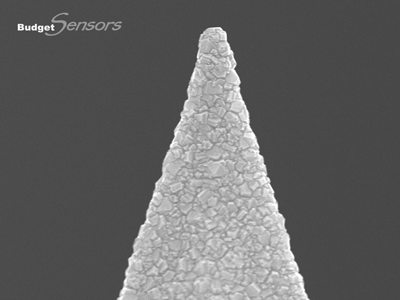

The doped polycristalling diamond AFM tip coating provides unprecedented hardness and durability, as well as electridcal conductivity for demanding electrical applications. The resulting AFM tip radius is in the range 100-250nm.

The rotated AFM tips allow for more symmetric representation of high sample features.

The AFM holder chip fits most commercial AFM systems as it is industry standard size.

The main advantage of this product compared to regular, single-cantilever AFM probes is the freedom to choose the right AFM cantilever for each application in the very last moment. You do not need to stock various AFM probe types any more. Nevertheless, this product is not meant as a substitution to comparable single-cantilever AFM probes, because the geometry of each one of the All-In-One AFM cantilevers differs from the geometry of the comparable specialized single-cantilever AFM probes.

Please note that the aluminum back side coating is not suitable for measurements in liquids!

Consistent high quality at a lower price!

Documentation

SDS

Technical Notes

View full details
Variant Variant total Quantity Price Variant total
Tap300DLC Tapping Mode AFM Probe with a Diamond-Like Carbon Tip Coating, Al coating on detector side, alignment grooves (Unit: pkg/10)Tap300DLC-10
Tap300DLC Tapping Mode AFM Probe with a Diamond-Like Carbon Tip Coating, Al coating on detector side, alignment grooves (Unit: pkg/10)Tap300DLC-10
2.033,42 lei/ea		 0,00 lei
2.033,42 lei/ea 0,00 lei
Tap300DLC Tapping Mode AFM Probe with a Diamond-Like Carbon Tip Coating, Al coating on detector side, alignment grooves (Unit: pkg/50)Tap300DLC-50
Tap300DLC Tapping Mode AFM Probe with a Diamond-Like Carbon Tip Coating, Al coating on detector side, alignment grooves (Unit: pkg/50)Tap300DLC-50
8.642,05 lei/ea		 0,00 lei
8.642,05 lei/ea 0,00 lei
Tap190DLC Tapping Mode AFM Probe with Long Cantilever and Diamond-Like-Carbon Tip Coating, Al coating on detector side, alignment grooves (Unit: pkg/10)Tap190DLC-10
Tap190DLC Tapping Mode AFM Probe with Long Cantilever and Diamond-Like-Carbon Tip Coating, Al coating on detector side, alignment grooves (Unit: pkg/10)Tap190DLC-10
2.033,42 lei/ea		 0,00 lei
2.033,42 lei/ea 0,00 lei
Tap190DLC Tapping Mode AFM Probe with Long Cantilever and Diamond-Like-Carbon Tip Coating, Al coating on detector side, alignment grooves (Unit: pkg/50)Tap190DLC-50
Tap190DLC Tapping Mode AFM Probe with Long Cantilever and Diamond-Like-Carbon Tip Coating, Al coating on detector side, alignment grooves (Unit: pkg/50)Tap190DLC-50
8.642,05 lei/ea		 0,00 lei
8.642,05 lei/ea 0,00 lei
Tap150DLC Soft Tapping Mode AFM Probe with Diamond-Like-Carbon Tip Coating, Al coating on detector side, alignment grooves (Unit: pkg/10)Tap150DLC-10
Tap150DLC Soft Tapping Mode AFM Probe with Diamond-Like-Carbon Tip Coating, Al coating on detector side, alignment grooves (Unit: pkg/10)Tap150DLC-10
2.033,42 lei/ea		 0,00 lei
2.033,42 lei/ea 0,00 lei
Tap150DLC Soft Tapping Mode AFM Probe with Diamond-Like-Carbon Tip Coating, Al coating on detector side, alignment grooves (Unit: pkg/50)Tap150DLC-50
Tap150DLC Soft Tapping Mode AFM Probe with Diamond-Like-Carbon Tip Coating, Al coating on detector side, alignment grooves (Unit: pkg/50)Tap150DLC-50
8.642,05 lei/ea		 0,00 lei
8.642,05 lei/ea 0,00 lei
Multi75DLC Force Modulation AFM Probe with Diamond-Like-Carbon Tip Coating, Al coating on detector side, alignment grooves (Unit: pkg/10)Multi75DLC-10
Multi75DLC Force Modulation AFM Probe with Diamond-Like-Carbon Tip Coating, Al coating on detector side, alignment grooves (Unit: pkg/10)Multi75DLC-10
2.033,42 lei/ea		 0,00 lei
2.033,42 lei/ea 0,00 lei
Multi75DLC Force Modulation AFM Probe with Diamond-Like-Carbon Tip Coating, Al coating on detector side, alignment grooves (Unit: pkg/50)Multi75DLC-50
Multi75DLC Force Modulation AFM Probe with Diamond-Like-Carbon Tip Coating, Al coating on detector side, alignment grooves (Unit: pkg/50)Multi75DLC-50
8.642,05 lei/ea		 0,00 lei
8.642,05 lei/ea 0,00 lei
ContDLC Contact Mode AFM Probe with Diamond-Like-Carbon Tip Coating, Al coating on detector side, alignment grooves (Unit: pkg/10)ContDLC-10
ContDLC Contact Mode AFM Probe with Diamond-Like-Carbon Tip Coating, Al coating on detector side, alignment grooves (Unit: pkg/10)ContDLC-10
2.033,42 lei/ea		 0,00 lei
2.033,42 lei/ea 0,00 lei
ContDLC Contact Mode AFM Probe with Diamond-Like-Carbon Tip Coating, Al coating on detector side, alignment grooves (Unit: pkg/50)ContDLC-50
ContDLC Contact Mode AFM Probe with Diamond-Like-Carbon Tip Coating, Al coating on detector side, alignment grooves (Unit: pkg/50)ContDLC-50
8.642,05 lei/ea		 0,00 lei
8.642,05 lei/ea 0,00 lei
AIODLC Multipurpose AFM Probe with 4 Different Cantilevers and Diamond-Like-Carbon Tip Coating, Al coating on detector side, no alignment grooves (Unit: pkg/10)AIODLC-10
AIODLC Multipurpose AFM Probe with 4 Different Cantilevers and Diamond-Like-Carbon Tip Coating, Al coating on detector side, no alignment grooves (Unit: pkg/10)AIODLC-10
2.146,39 lei/ea		 0,00 lei
2.146,39 lei/ea 0,00 lei
AIODLC Multipurpose AFM Probe with 4 Different Cantilevers and Diamond-Like-Carbon Tip Coating, Al coating on detector side, no alignment grooves (Unit: pkg/50)AIODLC-50
AIODLC Multipurpose AFM Probe with 4 Different Cantilevers and Diamond-Like-Carbon Tip Coating, Al coating on detector side, no alignment grooves (Unit: pkg/50)AIODLC-50
9.037,44 lei/ea		 0,00 lei
9.037,44 lei/ea 0,00 lei
AIO-DD Multipurpose AFM Probe with 4 Different Cantilevers and Conductive Diamond Tip Coating, Boron doped polycrystalline diamond tip coating, Al coating on detector side of the cantilever, no alignment grooves (Unit: pkg/5)AIO-DD-5
AIO-DD Multipurpose AFM Probe with 4 Different Cantilevers and Conductive Diamond Tip Coating, Boron doped polycrystalline diamond tip coating, Al coating on detector side of the cantilever, no alignment grooves (Unit: pkg/5)AIO-DD-5
3.784,43 lei/ea		 0,00 lei
3.784,43 lei/ea 0,00 lei
AIO-DD Multipurpose AFM Probe with 4 Different Cantilevers and Conductive Diamond Tip Coating, Boron doped polycrystalline diamond tip coating, Al coating on detector side of the cantilever, no alignment grooves (Unit: pkg/10)AIO-DD-10
AIO-DD Multipurpose AFM Probe with 4 Different Cantilevers and Conductive Diamond Tip Coating, Boron doped polycrystalline diamond tip coating, Al coating on detector side of the cantilever, no alignment grooves (Unit: pkg/10)AIO-DD-10
7.060,50 lei/ea		 0,00 lei
7.060,50 lei/ea 0,00 lei
AIO-DD Multipurpose AFM Probe with 4 Different Cantilevers and Conductive Diamond Tip Coating, Boron doped polycrystalline diamond tip coating, Al coating on detector side of the cantilever, no alignment grooves (Unit: pkg/20)AIO-DD-20
AIO-DD Multipurpose AFM Probe with 4 Different Cantilevers and Conductive Diamond Tip Coating, Boron doped polycrystalline diamond tip coating, Al coating on detector side of the cantilever, no alignment grooves (Unit: pkg/20)AIO-DD-20
12.991,32 lei/ea		 0,00 lei
12.991,32 lei/ea 0,00 lei
AIO-DD Multipurpose AFM Probe with 4 Different Cantilevers and Conductive Diamond Tip Coating, Boron doped polycrystalline diamond tip coating, Al coating on detector side of the cantilever, no alignment grooves (Unit: pkg/50)AIO-DD-50
AIO-DD Multipurpose AFM Probe with 4 Different Cantilevers and Conductive Diamond Tip Coating, Boron doped polycrystalline diamond tip coating, Al coating on detector side of the cantilever, no alignment grooves (Unit: pkg/50)AIO-DD-50
24.852,96 lei/ea		 0,00 lei
24.852,96 lei/ea 0,00 lei
View cart
0

Total items

0,00 lei

Product subtotal

Taxes, discounts and shipping calculated at checkout.
View cart
