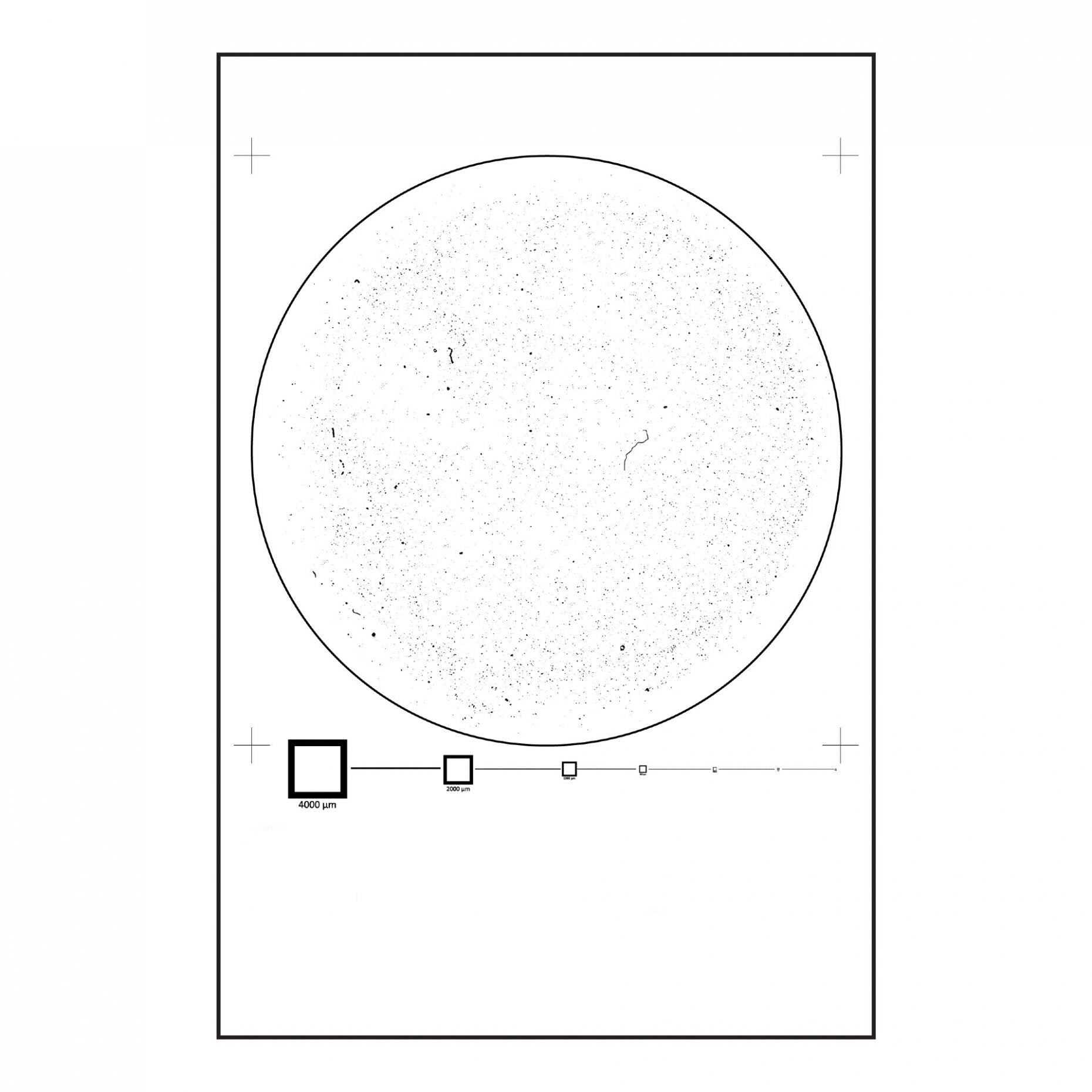

Calibration and Reference slide aimed at the validation of measurements performed by image analysis instruments for ISO16232, VDA 19 and other cleanliness assessment methods on 47mm membrane or paper filters. This slide may also be used to validate particle size and shape analysis for objects between 10µm to 1000µm.

Main Features:

• More than 8,000 particles randomly generated of various shapes and sizes dispersed in a 45mm diameter circle
• White media slide with similar reflectance to 47mm Paper Filters
• 7 Calibration Rectangles located at the bottom end of the slide, nominal values: 4000µm, 2000µm, 1000µm, 500µm, 250µm, 125µm, and 50µm.

Material and Thickness

1mm thick white media

Dimensions

75mm x 50mm
