Convection Ovens
Convection Ovens
Gravity Convection Oven
137
Energy efficient, low wattage double-wall insulated construction; impregnated fiberglass insulation, automatic bimetallic and hydraulic thermostat controls, sturdy, lightweight. Supplied with thermometer and holder. Two removable nickel plated metal shelves are included. Steel exterior, finished in a beige colored baked enamel with the inside chamber of aluminized iron. Inner chamber is insulated from the outer chamber with 2.5cm (1") of impregnated fiberglass.
Designed for continuous temperature uniformity, the even air circulation will provide maximum temperature within one-half hour of start-up time. Intake/exhaust vents, door latch and cool handle. Bimetallic thermostat, neon pilot light and on/off switch.
| Temperature Range: | 100°C to 235°C ±10°C (212°F to 455°F ±18F) |
| Chamber Dimensions: | 28.6 W x 24.8 D x 23.5 H cm (11-1/4 x 9-3/4 x 9-1/4") |
| Chamber Capacity: | 0.6 cu. ft. (17 L) |
| Overall Dimensions: | 34.3 W x 29.2 D x 27 H cm (13-1/2 x 11-1/2 x 10-5/8") |
| Volts, AC: | 115VAC |
| Watts: | 660 |
| Weight: | 11.4kg Net (unpacked), 13.6kg Gross (packed) (25 lbs. Net, 30 lbs. Gross) |
Vacuum Ovens
1384-1, -2, -3
Vacuum Ovens can be used for process drying under vacuum or standard atmospheric conditions. They are designed to operate with reduced pressures and/or inert atmospheres. These versatile ovens are equipped with a high reliability hydraulic thermostat to control temperature to ±1.5°C with a uniformity of ±5°C (at 100°C; 25" Hg) and built-in over temperature protection system. These vacuum ovens feature independent vacuum and purge needle valves. These ovens feature 3" of glass wool insulation, a silicone door gasket and a polycarbonate safety shield. The vacuum level gauge displays 0 to 30" Hg. The vacuum and air lines are constructed with corrosion-resistant stainless steel tubing for optimum chamber cleanliness and long term performance.
Recommended Vacuum Pumping Systems
NOT FOR USE WITH FLAMMABLE SOLVENTS, VAPORS OR GASES
Standard Features
- Temperatures to 220°C (428°F)
- Radiant wall heating provides uniform temperature and total use of work space
- Vacuum gauge, control and release valves
- Full-view tempered safety glass window
- 304 stainless steel interior
- Powder coated Heavy gauge steel exterior
- Two (2) removable, solid aluminum shelves
- Secure latch and silicone rubber door gasket provide tight seal
- 0.25" (6mm) diameter vacuum fitting
- 3" of glass wool insulation insures minimum heat loss
- 3-wire line cord
- 2 year limited warranty
| Model Number |
Chamber Dimensions (W x H x D) Inches |
Overall Dimensions (W x H x D) Inches |
Controller Type |
Chamber Volume | Volts | Amps |
Max Temp |
|
| 1384-1 | 8 x 8 x 12 | 17 x 17.4 x 16 | Hydraulic | 0.44 cu. ft. / 12.5 L | 120 | 5.00 | 220°C | 428°F |
| 1384-1-220 | 8 x 8 x 12 | 17 x 17.4 x 16 | Hydraulic | 0.44 cu. ft. / 12.5 L | 220 | 2.50 | 220°C | 428°F |
| 1384-2 | 10 x 10 x 12 | 19.8 x 16.25 x 16 | Hydraulic | 0.7 cu. ft. / 19.8 L | 120 | 5.00 | 220°C | 428°F |
| 1384-2-220 | 10 x 10 x 12 | 19.8 x 16.25 x 16 | Hydraulic | 0.7 cu. ft. / 19.8 L | 220 | 2.50 | 220°C | 428°F |
| 1384-3 | 14 x 14 x 20 | 25 x 22 x 25 | Hydraulic | 2.3 cu. ft. / 65.1 L | 120 | 13.3 | 220°C | 428°F |
| 1384-3-220 | 14 x 14 x 20 | 25 x 22 x 25 | Hydraulic | 2.3 cu. ft. / 65.1 L | 220 | 6.7 | 220°C | 428°F |

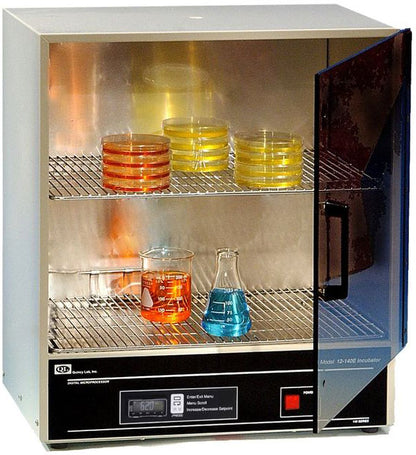

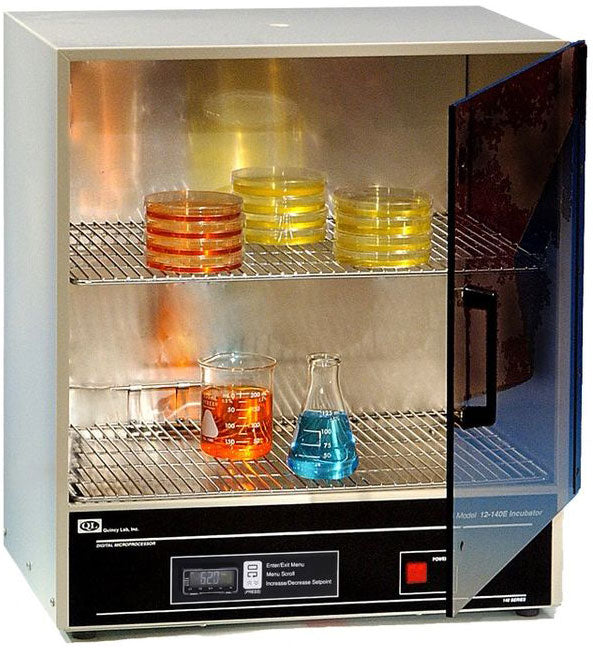

Low Temperature, Digital Oven / Incubator
1390
Our digital control low temperature oven / incubator offers the ease of digital temperature setting and the stability of a full PID microprocessor that accurately maintains a temperature setting even in varying ambient or power supply conditions. Perfect for polymerizing embedding epoxies.
Features
- Digital PID (proportional integral derivative) microprocessor
- High grade aluminum interior.
- Powder coated Cr steel exterior.
- Resistive-tubular incoloy heating elements.
- See-through, tinted, acrylic door
- One fixed and one adjustable shelf*
| Temperature Range: | Ambient +2°C to 62°C (143°F) |
| Chamber Dimensions: | 45.7 x 40.6 x 30.5cm (18 x 16 x 12") |
| Chamber Capacity: | 57L (2 CF) |
| Overall Dimensions: | 48.3 x53.3 x 33.0cm (19 x 21 x 13") |
| Volts, AC: | 115 VAC |
| Watts: | 270 |
| Temperature Accuracy: | +/- 0.5°C |
Pumping Systems for Vacuum Ovens
VRI-2 Rotary Pump Kit 55
92092-55, 92092-55-230
This pumping kit consist of the VRI-2 pump with a KF16 hose adapter, ¼” thick wall silicone hose and rotary pump exhaust filter. The achievable vacuum is in the 10-2 mbar range. Very cost effective solution offering fast pumping speed and good end vacuum. Available both in 115V and 230V.
Diaphragm Pump Kit
3436-51, 3436-51-230
This dry pumping kit consists of the #3436 diaphragm pump with 3 feet of ¼” thick wall silicon hose. This is a cost effective solution suitable for moderate vacuum requirements. Achievable vacuum is in the 200 mbar range. For higher vacuum levels, a two stage rotary pump would be more suitable. Available both in 115V and 230V.
