Carbon Fiber Tweezers

Carbon Fiber Tweezers



PELCO® ESD Safe SV, PVDF
PELCO® ESD Safe CF, Polyamide 66 Tweezers
Sharp Points and Flat Tips

These high performance precision, conductive, PELCO® SV ESD Safe, PVDF And Pelco® CF Polyamide tweezers are ideal for forensic, electronic and sample preparation applications where handling of scratch-sensitive material or samples is required. The soft touch surface avoids cutting or damaging hairs, fibers, paper, bullets and rounds. Compatible for clean room applications and suitable for chemical processing. Light weight, strong and sturdy material, also ideal for magnetic applications, since the material will not be magnetized.

The tweezers are made of carbon fiber reinforced PVDF (polyvinylidene flouride) or CF (carbon fiber reinforced polyamide 66) and have the following features:

Smooth surface paired to high mechanical strength and toughnessAnti-static, ESD safe materialHeat stabilized, continuous use with temperatures ranging from -40° to 150°C (-40 to 302°F)High purity - clean room compatibleHigh abrasion resistanceExcellent chemical resistance to most acids and solventsResists HF (40% - 90°C / 194°F); HNO3 (50% - 90°C / 194°F); HCL (36% - 90°C / 194°F)Resistant to UV and X-ray radiation

Typical applications:

  • Handling of scratch sensitive samples
  • Cleaning and etching processes
  • Handling of static and/or static-sensitive components
  • Handling of soft specimens
  • Handling of magnetic specimens

Sharp Points

Prod # Description Style Length Material Points
Width x Thickness

5412

PELCO® SV ESD Safe, Tweezers

 sharp, 707 115mm carbon fiber reinforced PVDF 0.25 x 0.12mm

5104

PELCO® CF ESD Safe, Tweezers

 sharp, 707 115.mm carbon fiber reinforced Polyamide 66 0.25 x 0.12mm


Prod # Description Style Length Material Points
Width x Thickness

5415

PELCO® SV ESD Safe, Tweezers

 sharp, 708 115mm carbon fiber reinforced PVDF 0.25 x 0.12mm

5107

PELCO® CF ESD Safe, Tweezers

 sharp, 708 115.mm carbon fiber reinforced Polyamide 66 0.25 x 0.12mm



Prod # Description Style Length Material Points
Width x Thickness

5411

PELCO® SV ESD Safe, Tweezers

 sharp, 705 115mm carbon fiber reinforced PVDF 0.25 x 0.12mm

5103

PELCO® CF ESD Safe, Tweezers

 sharp, 705 115.mm carbon fiber reinforced Polyamide 66 0.25 x 0.12mm



Prod # Description Style Length Material Points
Width x Thickness

5417

PELCO® SV ESD Safe, Tweezers

 sharp, curved, 707A 115mm carbon fiber reinforced PVDF 0.17 x 0.2mm

5108

PELCO® CF ESD Safe, Tweezers

 sharp, curved, 707A 115.mm carbon fiber reinforced Polyamide 66 0.17 x 0.2mm



Flat Tips



Prod # Description Style Length Material Points
Width x Thickness

5413

PELCO® SV ESD Safe, Tweezers

 flat, 709 115mm carbon fiber reinforced PVDF 3.50 x 0.12mm

5108

PELCO® CF ESD Safe, Tweezers

 flat, 709 115.mm carbon fiber reinforced Polyamide 66 3.50 x 0.12mm





Prod # Description Style Length Material Points
Width x Thickness

5414

PELCO® SV ESD Safe, Tweezers

 flat, 710 115mm carbon fiber reinforced PVDF 8.0 x 0.12mm

5106

PELCO® CF ESD Safe, Tweezers

 flat, 710 115.mm carbon fiber reinforced Polyamide 66 8.0 x 0.12mm



Prod # Description Style Length Material Points
Width x Thickness

5410

PELCO® SV ESD Safe, Tweezers

 flat, 702A 115mm carbon fiber reinforced PVDF 2.0 x 0.12mm

5102

PELCO® CF ESD Safe, Tweezers

 flat, 702A 115.mm carbon fiber reinforced Polyamide 66 2.0 x 0.12mm



Sets

Prod # Description

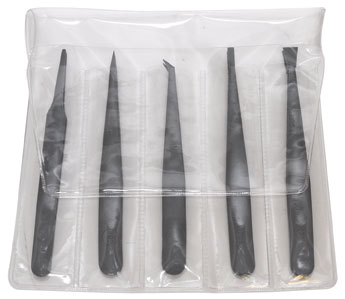

5418-5

Set of 5 PELCO® SV ESD Safe, PVDF Tweezers in clear plastic pouch. Contains #5410, #5412, #5415, #5413 and #5414

5109

Set of 5 PELCO® CF ESD Safe, Polyamide 66 Tweezers in clear plastic pouch. Contains #5102, #5104, #5107, #5105 and #5106



Prod # Description

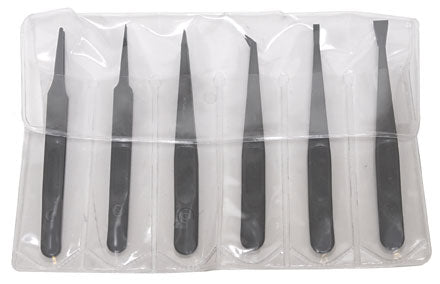

5419-6

Set of 6 PELCO® SV ESD Safe, PVDF Tweezers in clear plastic pouch. Contains #5410, #5411, #5412, #5415, #5413 and #5414

5110

Set of 6 PELCO® CF ESD Safe, Polyamide 66 Tweezers in clear plastic pouch. Contains #5102, #5103, #5104, #5107, #5105 and #5106

Documentation

SDS

Technical Notes
