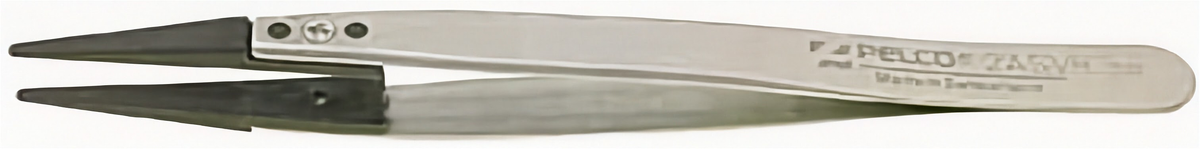

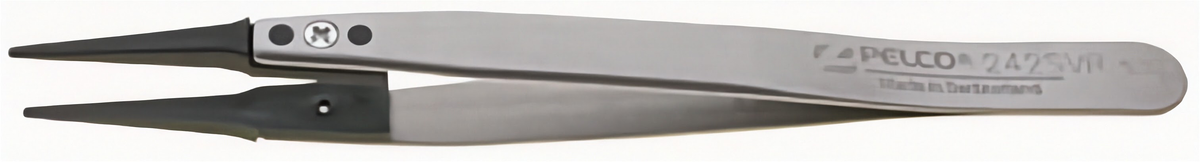

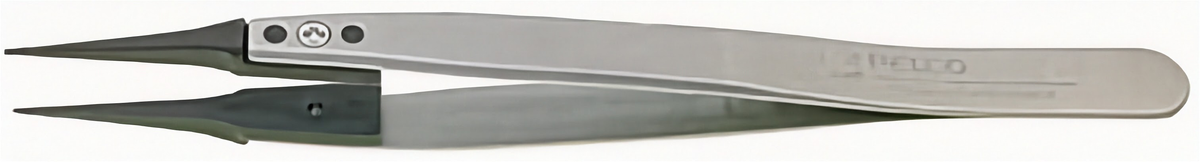

Carbon Fiber Tipped Tweezers

PVDF (SV), Conductive Larton (LC), Polyamide 66 (CF), PEEK (CP)

Conductive, synthetic carbon fiber reinforced tips with non-magnetic stainless steel grips. Sturdy and non-scratching. Clean room compatible. Light weight and strong.

SV - PVDF (polyvinylidene fluoride) reinforced with carbon fiber

• Excellent mechanical strength and toughness
• Smooth surface
• Heat stabilized, high heat capability, continuous use temperature up to 150°C (302°F)
• High purity (clean room and medical devices approved, low extraction value)
• Excellent chemical resistance to most aggressive substances and solvents. Resistant to halogens. Not compatible with NMP.
• Outstanding resistance to hydrofluoric acid (40% conc., 90°C, 194°F), nitric acid (50% conc., 90°C, 194°F), hydrochloric acid (36% conc., 90°C, 194°F)
• High abrasion resistance
• Resistant to UV and nuclear radiation (sterilization)
• ESD safe material
• Typical applications include handling of very scratch and contamination-sensitive components, cleaning and etching processes

LC - Conductive Larton

• PPS/GF30 polyphenylene sulphide reinforced with 30 wt% glass fiber and carbon fiber
• Very hard, rigid, high tensile and flexural strength, creep resistance
• High heat capability (230-260°C), good dimension stability, low thermal linear expansion coefficient
• UL94V-0 self-extinguishing, without halogens or phosphorus; low fume optical density and toxicity
• Excellent chemical resistance (organic solvent, oils, grease, fuels, acids and alkalis); not resistant only to hydrochloric acid and oxidizing agents, excellent resistance to thermal ageing, very low moisture absorption
• ESD-safe material, low surface resistivity (104_105 Ohm)
• Microwave transparent
• Typical applications include handling of components in soldering and cleaning/chemical processes also at high temperature. Commonly used in clean room environment.


CF - Carbofib (Polyamide 66) reinforced with carbon fiber

• Heat stabilized
• Very high rigidity, excellent tensile and flexural strength, fatigue and creep resistance
• Low friction, self-lubricating properties, excellent wear and abrasion resistance
• Good heat capability
• Good chemical resistance (oils, grease, fuels, non-polar solvents); not resistant to strong acids, alkalis and hot water or steam
• ESD safe material
• Very low coefficient of linear thermal expansion
• Typical applications include handling of sensitive components and devices (electronic components, micro-mechanical parts, glass and ceramic substrates, capillary, etc.)

CP - PEEK (polyether ether ketone) reinforced with carbon fiber

• Very hard, rigid, high tensile and flexural strength, very high wear resistance
• High heat capability (260-300°C, 500-572°F), good dimension stability, low thermal linear expansion coefficient
• Excellent resistance to chemicals and aggressive agents, excellent resistance to thermal ageing. Compatible with NMP.
• ESD-safe material
• Typical applications include handling of components in cleaning/chemical/assembly processes also at high temperature (soldering)

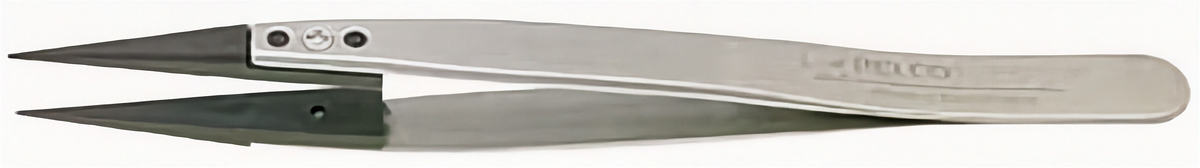

PELCO^® ESD Safe, Replaceable Tip Tweezers

Soft tips specially designed for the electronics industry to help with easy to mar samples and brittle materials such as Si pieces. These ESD-safe tweezers are made of non-magnetic, acid resistant stainless steel with replaceable carbon fiber reinforced tips. Made in Switzerland. Replacement tip kit includes 1 pair of tips and screws.
