Carb-N-Grids™

Pure Carbon Grids with 2 V-style posts. These grids are made of pure carbon and show very low background for EDS and spectroscopy, and very high adhesion of beam-deposited platinum, making for highly stable attachment of sample lamella. These grids come as a strip of 10, where the individual grids are easily removed from the backing with tweezers. Ideal for samples for spectroscopic examination and where metals such as copper must be avoided. The unique carbon material is mechanically robust and gives smooth edges at the attachment points. The grids are 3mm in diameter and approximately 70µm thick. Two post grids have 315 x 70 x 300µm (W x D x H) posts, while four post grids have two narrow posts of 60 x 120µm, and two wide posts 120 x 190µm with a 120 degree notch at the end.

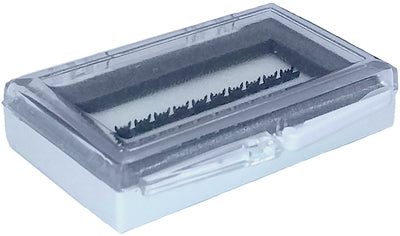

Carb-N-Grid™ Box of 10

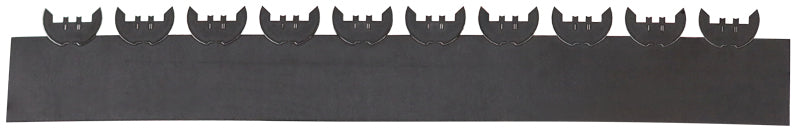

10 Grid Strip

SEM Image of FIB Grid Post

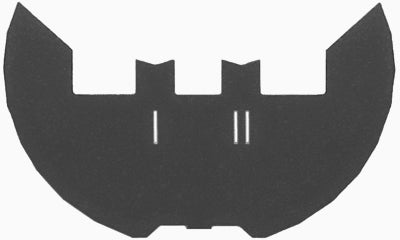

16550 - Carb-N-Grids™, 2 wide posts

16552 - Carb-N-Grids™, 2 narrow and 2 wide posts
