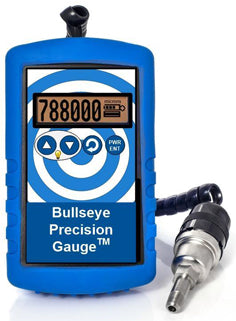

Bullseye Precision Digital Vacuum Gauge
Bullseye Precision Digital Vacuum Gauge
Bullseye with Sensor
Bullseye Display
The Bullseye Precision Vacuum Gauge is a rugged and portable digital vacuum gauge. Its digital display features visual graphing, vacuum analytics, 11 different numerical units or graphics display for quick determination of vacuum level. You can put it virtual anywhere with its integrated kickstand or strong magnet. Ideal for service engineers in the field or on the road, testing vacuum performance of pumping systems, checking vacuum levels or pinpointing problems in vacuum lines. Display has backlit on/off selection to enhance visibility if needed. Easy to set up with only three buttons; see program select menu.
With a choice of 11 different vacuum units it is one of the most versatile vacuum gauges available.
Specifications:
| Range | 1-800,000 microns (1.3 x 10-3 - 1066 mbar) |
| Units | Torr, millitor, microns, inches of Hg, mm Hg, PSI Inches of water, mbar, bar, Pa, kPa |
| Sensor | Thermocouple |
| Vacuum connection | 1/8" NPT male |
| Accuracy 1-2000 microns | ± 17% |
| Accuracy 2001-800,000 microns | ± 30% |
| Display | Digital, LCD |
| Cable length to vacuum sensor | 7 feet (2.1m) |
| Power | 4 x AA Alkaline |
| Battery life | Up to 70 hrs |
| Dimensions | 6.2" x 3.7" x 1.3" (158 x 95 x 33mm) |
| Weight | 2 lbs (0.9kg) |
