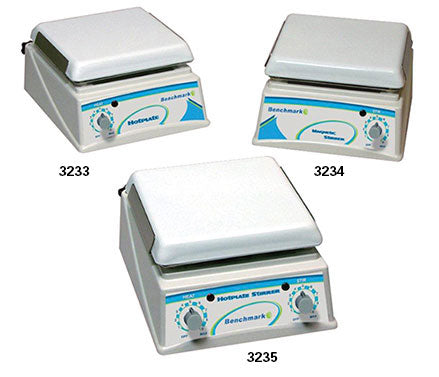

Benchmark Hotplate, Stirrer or Combination Hotplate & Stirrer
Benchmark Hotplate, Stirrer or Combination Hotplate & Stirrer
Hotplate, Stirrer or Combo Hotplate/Stirrers
Benchmark Hotplates, Magnetic Stirrers and Hotplate-Stirrers feature an exceptionally durable, chemical resistant white ceramic work surface. Their space-efficient design (20.3 x 22.9cm [8 x 9"] footprint), makes them ideal for use on crowded benchtops and inside of bio-hoods.
Advanced microprocessor controls with convenient turn knobs allow quick, precise adjustment and maintenance of speed and temperature. Safety indicator LED's on the front panel indicate when the heating and/or stirring functions have been activated. The bases are sturdy, powder coated, cast-aluminum construction.
With a square 19cm (7.5") work surface, all three models are compatible with a wide variety of popular sizes of borosilicate glass beakers, flasks, bottles and other vessels. The Hotplate Magnetic Stirrer, Prod. No. 3235, comes complete with a support rod for mounting thermometers and temperature probes.
Stir Bars must be ordered separately, see Magnetic Stir Bars
|
Specifications
|
|||
| Model | P40-S Stirrer | P40-H Hotplate | P40-HS Hotplate/Stirrer |
| Product Number | 3233 / 3233-230 | 3234 / 3234-230 | 3235 / 3235-230 |
| Stirrer Speed | 60-1500 RPM | - | 60-1500 RPM |
| Stirring Capacity | 2 L | 2 L | 2 L |
| Temperature Range | - | 80-380°C / 176-716°F | 80-380°C / 176-716°F |
| Electrical Data | 115V, 5A, 50/60Hz 230V, 3A, 50/60Hz |
115V, 5A, 50/60Hz 230V, 3A, 50/60Hz |
115V, 5A, 50/60Hz 230V, 3A, 50/60Hz |
| Power Consumption | 500W | 500W | 550W |
| Dimensions (W x D x H) | 20.3 x 22.9 x 11.4cm (8 x 9 x 4.5") |
20.3 x 22.9 x 11.4cm (8 x 9 x 4.5") |
20.3 x 22.9 x 11.4cm (8 x 9 x 4.5") |
| Platform | 19 x 19cm (7.5 x 7.5") |
19 x 19cm (7.5 x 7.5") |
19 x 19cm (7.5 x 7.5") |
| Weight | 4.08kg (9 lbs) | 4.54kg (10 lbs) | 5kg (11 lbs) |
See Silicone Rubber Lab Mats to be used as accessory.

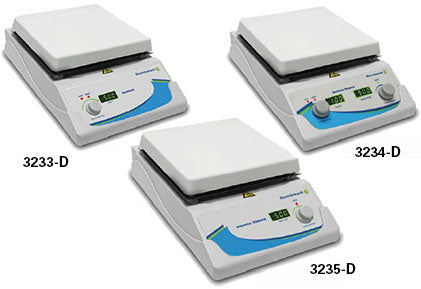

Benchmark Digital Hotplate, Stirrer or Combination Hotplate & Stirrer
Benchmark Digital Hotplates, Magnetic Stirrers and Hotplate-Stirrers provide robust quality features for the busy laboratory providing precise LED digital readouts of temperature and RPM.
- Square 19cm (7.5") white ceramic top plate
- Safety LED indicates hot surface
- 5L stir capacity
- Precise temperature control ±1°C
Stir Bars must be ordered separately, see Magnetic Stir Bars
|
Specifications
|
|||
| Model | H3770-S Digital Stirrer | H3770-H Digital Hotplate | H3770-HS Digital Hotplate/Stirrer |
| Product Number | 3233-D / 3233-230-D | 3234-D / 3234-230-D | 3235-D / 3235-230-D |
| Stirrer Speed | 150-1500RPM | - | 150-1500RPM |
| Stirring Capacity | 5L | 5L | 5L |
| Temperature Range | - | 5-380°C / 41-716°F | 5-380°C / 41-716°F |
| Electrical Data | 115V or 230VAC, 50/60 Hz | 115V or 230VAC, 50/60 Hz | 115V or 230VAC, 50/60 Hz |
| Power Consumption | 500W | 500W | 550W |
| Dimensions (W x D x H) | 19 x 27.9 x 10.1cm (7.5 x 11.5 x 4.5") |
18 x 27.9 x 10.1cm (7.5 x 11.5 x 4.5") |
18 x 27.9 x 10.1cm (7.5 x 11.5 x 4.5") |
| Platform | 18 x 18cm (7 x 7") |
18 x 18cm (7 x 7") |
18 x 18cm (7 x 7") |
| Weight | 4.08kg (9 lbs) | 4.54kg (10 lbs) | 5kg (11 lbs) |
See Silicone Rubber Lab Mats to be used as accessory.
