Bar Slotted Mesh Grids 3.00-3.05mm Diameter

Bar Slotted Mesh Grids 3.00-3.05mm Diameter

50/200 Slotted Mesh Grids 1G_50/200

Material  Part number
Copper 1GC50/200
Nickel 1GN50/200
Pattern Pitch microns Mesh Hole microns Bar microns Transmission % Tolerance +/-microns
1G_50/200 508x127 50x200 425x87 40 62 5

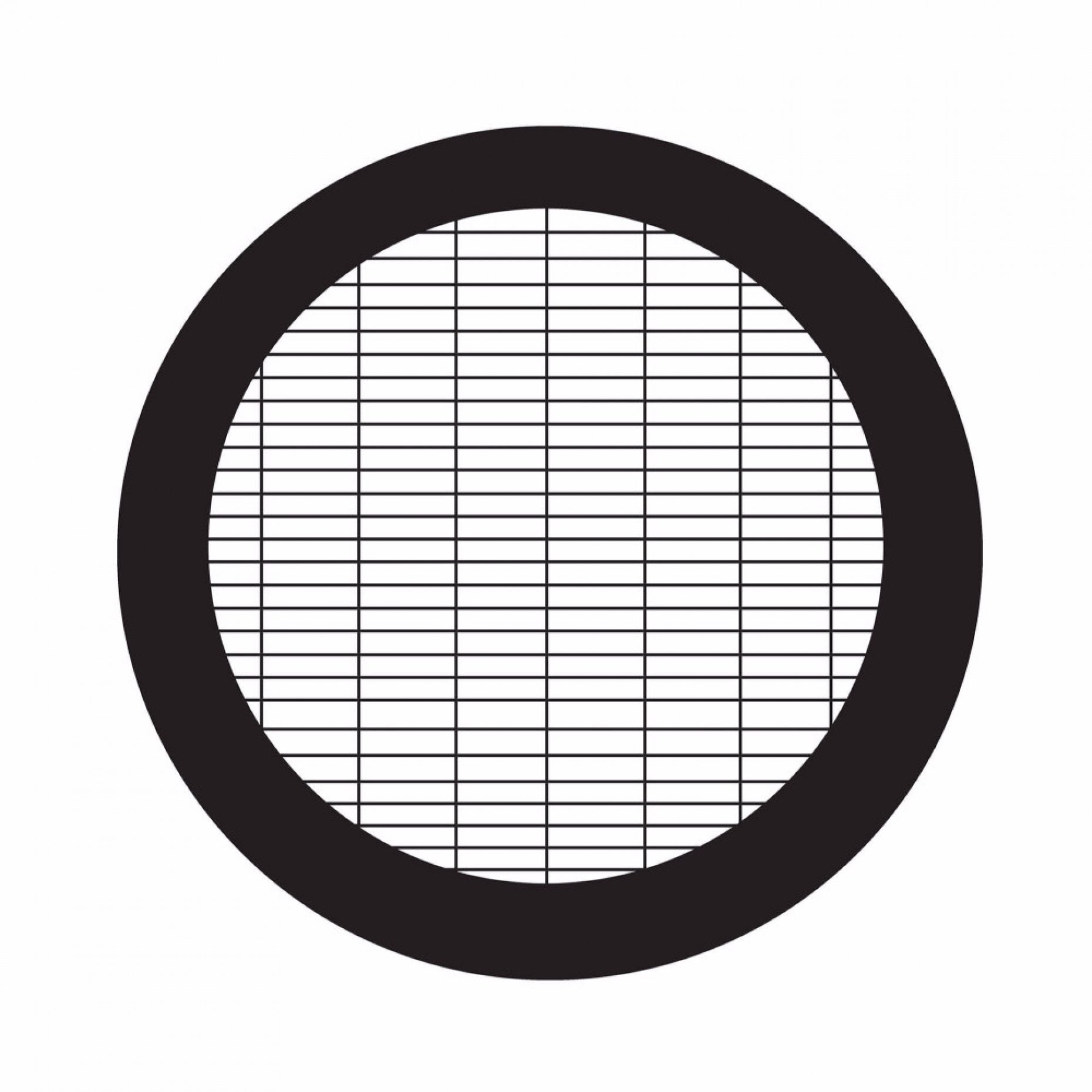

75/300 Slotted Mesh Grids HR27_, HF41_ and 1G_75/300

Material  Part number
Copper 1GC75/300
Copper HF41Cu
Copper with Rhodium HR27Cu
Nickel 1GN75/300
Nickel HF41Ni
Nickel (High Grade) HR27Ni
Gold 1GG75/300
Gold (High Grade) HR27Au
Pattern Pitch microns Mesh Hole microns Bar microns Transmission % Tolerance +/-microns
HR27_ 338x84 75x300 288x61 23 62 2
HF41_ 338x84 75x300 278x59 23 62 2
1G_75/300 340x85 75x300 285x55 30 62 5

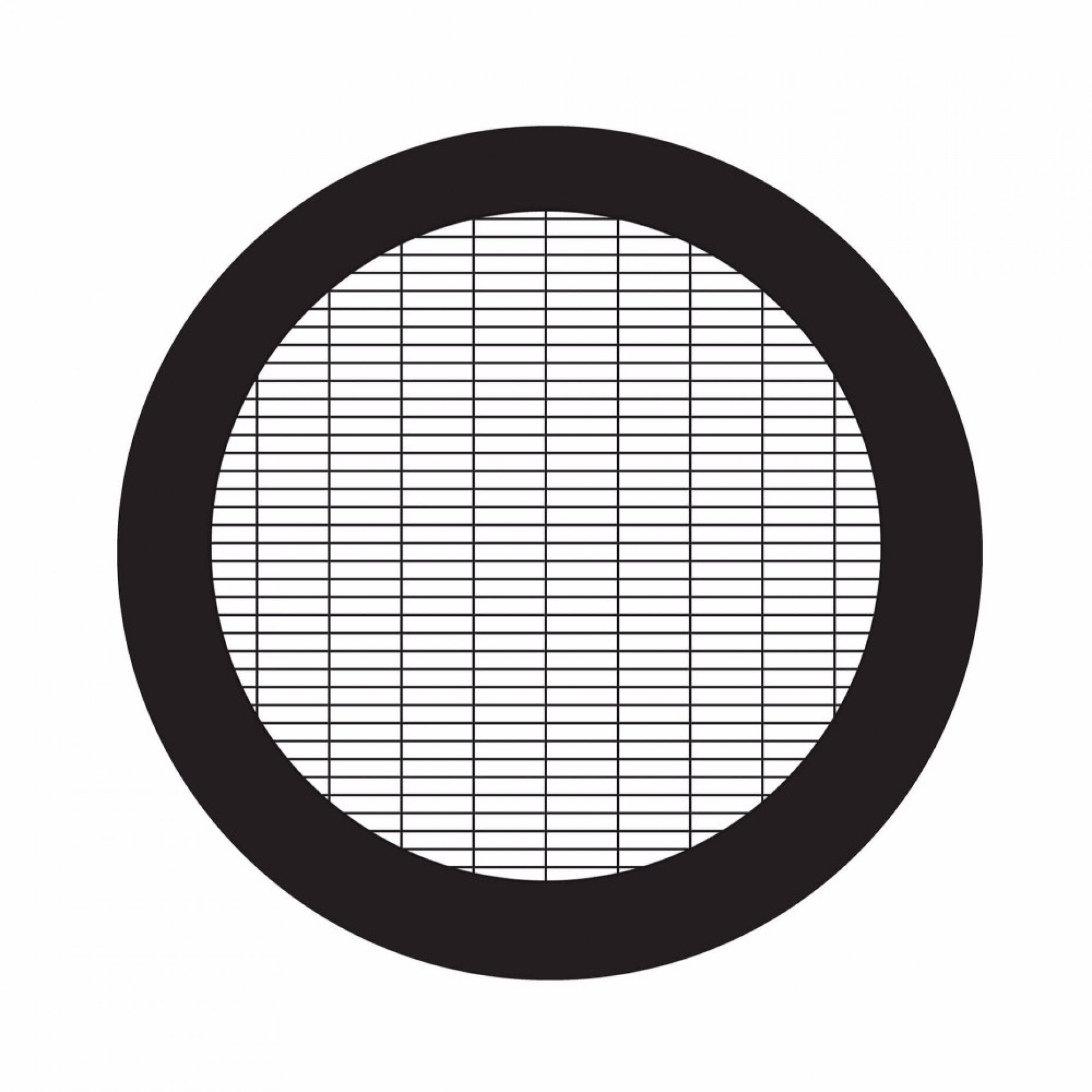

100/400 Slotted Mesh Grids HF_42 and 1G_100/400

Material  Part number
Copper 1GC100/400
Copper HF42Cu
Nickel 1GN100/400
Nickel HF42Ni
Gold HF42Au
Pattern Pitch microns Mesh Hole microns Bar microns Transmission % Tolerance +/-microns
HF42_ 254x63 100x400 231x40 23 57 2
1G_100/400 254x64 100x400 231x40 23 57 5







Documentation

SDS

Technical Notes

🚚 Estimated Delivery: 5 - 6 weeks from payment confirmation

View full details
Variant Variant total Quantity Price Variant total
50/200 Mesh Bar Slotted Mesh Grids, Copper (Unit: 100/vial)1GC50/200
50/200 Mesh Bar Slotted Mesh Grids, Copper (Unit: 100/vial)1GC50/200
150,87 lei/ea		 0,00 lei
150,87 lei/ea 0,00 lei
50/200 Mesh Bar Slotted Mesh Grids, Nickel (Unit: 100/vial)1GN50/200
50/200 Mesh Bar Slotted Mesh Grids, Nickel (Unit: 100/vial)1GN50/200
167,78 lei/ea		 0,00 lei
167,78 lei/ea 0,00 lei
50/200 Mesh Bar Slotted Mesh Grids, Copper/Rhodium (Unit: 100/vial)1GCu/Rh50/200
50/200 Mesh Bar Slotted Mesh Grids, Copper/Rhodium (Unit: 100/vial)1GCu/Rh50/200
185,32 lei/ea		 0,00 lei
185,32 lei/ea 0,00 lei
75/300 Mesh Bar Slotted Mesh Grids, Copper (Unit: 100/vial)1GC75/300
75/300 Mesh Bar Slotted Mesh Grids, Copper (Unit: 100/vial)1GC75/300
150,87 lei/ea		 0,00 lei
150,87 lei/ea 0,00 lei
75/300 Mesh Bar Slotted Mesh Grids, Copper HF (Unit: 100/vial)HF41Cu
75/300 Mesh Bar Slotted Mesh Grids, Copper HF (Unit: 100/vial)HF41Cu
150,87 lei/ea		 0,00 lei
150,87 lei/ea 0,00 lei
75/300 Mesh Bar Slotted Mesh Grids, Copper/Rhodium (Unit: 100/vial)HR27Cu/Rh
75/300 Mesh Bar Slotted Mesh Grids, Copper/Rhodium (Unit: 100/vial)HR27Cu/Rh
185,43 lei/ea		 0,00 lei
185,43 lei/ea 0,00 lei
75/300 Mesh Bar Slotted Mesh Grids, Nickel (Unit: 100/vial)1GN75/300
75/300 Mesh Bar Slotted Mesh Grids, Nickel (Unit: 100/vial)1GN75/300
179,23 lei/ea		 0,00 lei
179,23 lei/ea 0,00 lei
75/300 Mesh Bar Slotted Mesh Grids, Nickel HF (Unit: 100/vial)HF41Ni
75/300 Mesh Bar Slotted Mesh Grids, Nickel HF (Unit: 100/vial)HF41Ni
179,23 lei/ea		 0,00 lei
179,23 lei/ea 0,00 lei
75/300 Mesh Bar Slotted Mesh Grids, Nickel (High Grade) (Unit: 100/vial)HR27Ni
75/300 Mesh Bar Slotted Mesh Grids, Nickel (High Grade) (Unit: 100/vial)HR27Ni
191,64 lei/ea		 0,00 lei
191,64 lei/ea 0,00 lei
75/300 Mesh Bar Slotted Mesh Grids, Gold (Unit: 25/vial)1GG75/300
75/300 Mesh Bar Slotted Mesh Grids, Gold (Unit: 25/vial)1GG75/300
266,11 lei/ea		 0,00 lei
266,11 lei/ea 0,00 lei
75/300 Mesh Bar Slotted Mesh Grids, Gold (High Grade) (Unit: 25/vial)HR27Au
75/300 Mesh Bar Slotted Mesh Grids, Gold (High Grade) (Unit: 25/vial)HR27Au
980,12 lei/ea		 0,00 lei
980,12 lei/ea 0,00 lei
100/400 Mesh Bar Slotted Mesh Grids, Copper (Unit: 100/vial)1GC100/400
100/400 Mesh Bar Slotted Mesh Grids, Copper (Unit: 100/vial)1GC100/400
116,20 lei/ea		 0,00 lei
116,20 lei/ea 0,00 lei
100/400 Mesh Bar Slotted Mesh Grids, Copper HF (Unit: 100/vial)HF42Cu
100/400 Mesh Bar Slotted Mesh Grids, Copper HF (Unit: 100/vial)HF42Cu
116,20 lei/ea		 0,00 lei
116,20 lei/ea 0,00 lei
100/400 Mesh Bar Slotted Mesh Grids, Nickel (Unit: 100/vial)1GN100/400
100/400 Mesh Bar Slotted Mesh Grids, Nickel (Unit: 100/vial)1GN100/400
139,64 lei/ea		 0,00 lei
139,64 lei/ea 0,00 lei
100/400 Mesh Bar Slotted Mesh Grids, Nickel HF (Unit: 100/vial)HF42Ni
100/400 Mesh Bar Slotted Mesh Grids, Nickel HF (Unit: 100/vial)HF42Ni
139,64 lei/ea		 0,00 lei
139,64 lei/ea 0,00 lei
100/400 Mesh Bar Slotted Mesh Grids, Gold (Unit: 100/vial)HF42Au
100/400 Mesh Bar Slotted Mesh Grids, Gold (Unit: 100/vial)HF42Au
901,37 lei/ea		 0,00 lei
901,37 lei/ea 0,00 lei
