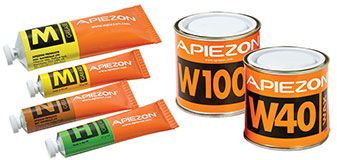

Apiezon® Greases, Sealing Compound and Wax

Apiezon® Greases, Sealing Compound and Wax



No silicones. Excellent general purpose vacuum grease. Fully soluble in hydrocarbon and chlorinated solvents. Please see technical notes for properties, vapor pressure, temperature and application suggestions. Shelf life, in original unopened container at ambient temperatures, is 10 years from date of manufacturing.

Apiezon® L Ultra high vacuum grease, silicone and halogen free SDS (572KB PDF) Technical Notes L (215KB PDF)
Apiezon® M High vacuum grease, silicone and halogen free SDS (572KB PDF) Technical Notes M (215KB PDF)
Apiezon® N Cryogenic high vacuum grease, silicone and halogen free SDS (268KB PDF) Technical Notes N (215KB PDF)
Apiezon® T Medium temperature vacuum grease, silicone free SDS (576KB PDF) Technical Notes T (205KB PDF)
Apiezon® H High temperature vacuum grease, silicone free SDS (268 KB PDF) Technical Notes H (194KB PDF)
Apiezon® AP100 Ultra high vacuum lubricating grease, silicone free SDS (268KB PDF) Technical Notes AP100 (183KB PDF)
Apiezon® AP101 Anti-seize vacuum grease, silicone free SDS (268KB PDF) Technical Notes AP101 (185KB PDF)
Apiezon® Q Sealing Compound for leaks in lower vacuum range SDS (268KB PDF) Technical Notes Q (150KB PDF)
Apiezon® W Black wax for permanent sealed joints at room temperatures
for low to medium vacuum range. Also used as a low melting
point (100° C) wax for sample mounting applications.		 SDS (268KB PDF) Technical Notes W Wax (212KB PDF)
Apiezon® W40 Medium hardness wax for permanent sealed joints at room
temperatures for low to medium vacuum range		 SDS (272KB PDF) Technical Notes W Wax (212KB PDF)
Apiezon® W100 Soft wax for permanent sealed joints at room temperatures
for low to medium vacuum range		 SDS (272KB PDF) Technical Notes W Wax (212KB PDF)



Main Properties of Apiezon® Greases

Typical Properties AP101 AP100 H Grease L Grease M Grease N Grease T Grease Q Sealant W Wax W40 Wax W100 Wax
Product
Number		 891-160
891-162		 891-152 891-3 891-2
891-104
891-144		 891-1
891-12
891-101		 891-4 891-120 891-75 891-81
891-85		 891-86 891-87
Main Areas of Application General Purpose Lubricating High
Temperature		 High
Vacuum		 General
Vacuum		 Cryogenic Medium
Temperature		 Sealing Sealing Sealing Sealing
Typical Working
Temperature Range, °C		 -40 to 180 10 to 30 -10 to 240 10 to 30 10 to 30 -269 to 30 10 to 120 -10 to 30 -1 to 75 -10 to 35 -10 to 45
Melting Point-
ASTM.D 566, °C		 >200 47 >250 47 44 43 125 40 to 50 80 to 90 40 to 50 50 to 60
Vapor Pressure,
Torr @20°C		 <1.0 x 10-5 <7.0 x 10-11 <1.7 x 10-9 <7.0 x 10-11 <1.7 x 10-9 <6.0 x 10-10 <4.6 x 10-9 1 x 10-10 <4.5 x 10-9 6 x 10-8 4.5 x 10-9
Relative Density @20°C 0.981 1.042 0.918 0.896 0.894 0.911 0.912 - - - -
Resistant to Radiation N/R N/R N/R Yes Yes N/R N/R N/R N/R N/R N/R
Lubricity 4 Ball Test ASTM.D 2763 (IP239), kg 450 450 250 150 140 150 250 N/A N/A N/A N/A
Outgassing Characteristics- ASTM.E 595-90 TML/
CVCM		 N/A
N/A

<1%
<0.1%

<1%
<0.1%

<1%
<0.1%

N/A
N/A

<1%
<0.1%

N/A
N/A

 N/A N/A
 N/A N/A
N/A
Coefficient of expansion per °C over 20-30°C 0.00066 N/A 0.00077 0.00076 0.00075 0.00072 0.00073 N/A N/A N/A N/A
Thermal conductivity @20 °C, w/m °C N/A N/A 0.216 0.202 0.192 0.230 0.176 N/A 0.189 0.177 0.170
Electrical strength, V/mil (0."001) N/A N/A 800 730 850 820 730 N/A N/A N/A N/A

Documentation

SDS

Technical Notes

View full details
Variant Variant total Quantity Price Variant total
Apiezon® Type L, 25g tube (Unit: each)891-2
Apiezon® Type L, 25g tube (Unit: each)891-2
1.578,80 lei/ea		 0,00 lei
1.578,80 lei/ea 0,00 lei
Apiezon® Type L, 50g tube (Unit: each)891-104
Apiezon® Type L, 50g tube (Unit: each)891-104
1.874,40 lei/ea		 0,00 lei
1.874,40 lei/ea 0,00 lei
Apiezon® Type M, 25g tube (Unit: each)891-1
Apiezon® Type M, 25g tube (Unit: each)891-1
776,20 lei/ea		 0,00 lei
776,20 lei/ea 0,00 lei
Apiezon® Type M, 100g tube (Unit: each)891-12
Apiezon® Type M, 100g tube (Unit: each)891-12
1.293,60 lei/ea		 0,00 lei
1.293,60 lei/ea 0,00 lei
Apiezon® Type N, 25g tube (Unit: each)891-4
Apiezon® Type N, 25g tube (Unit: each)891-4
1.869,20 lei/ea		 0,00 lei
1.869,20 lei/ea 0,00 lei
Apiezon® Type T, 25g tube (Unit: each)891-120
Apiezon® Type T, 25g tube (Unit: each)891-120
1.494,30 lei/ea		 0,00 lei
1.494,30 lei/ea 0,00 lei
Apiezon® Type H, 25g tube (Unit: each)891-3
Apiezon® Type H, 25g tube (Unit: each)891-3
1.510,10 lei/ea		 0,00 lei
1.510,10 lei/ea 0,00 lei
Apiezon® AP100, 50g tube (Unit: each)891-152
Apiezon® AP100, 50g tube (Unit: each)891-152
1.541,80 lei/ea		 0,00 lei
1.541,80 lei/ea 0,00 lei
Apiezon® AP101, 50g tube (Unit: each)891-160
Apiezon® AP101, 50g tube (Unit: each)891-160
897,60 lei/ea		 0,00 lei
897,60 lei/ea 0,00 lei
Apiezon® Q Sealing Compound, 1kg (Unit: each)891-75
Apiezon® Q Sealing Compound, 1kg (Unit: each)891-75
876,50 lei/ea		 0,00 lei
876,50 lei/ea 0,00 lei
Apiezon® W Black Wax, 100g (in 5 pieces) (Unit: each)891-81
Apiezon® W Black Wax, 100g (in 5 pieces) (Unit: each)891-81
481,10 lei/ea		 0,00 lei
481,10 lei/ea 0,00 lei
Apiezon® W Black Wax, 500g (in 26 pieces) (Unit: each)891-85
Apiezon® W Black Wax, 500g (in 26 pieces) (Unit: each)891-85
1.716,00 lei/ea		 0,00 lei
1.716,00 lei/ea 0,00 lei
Apiezon® W40 Wax, 250g can (Unit: each)891-86
Apiezon® W40 Wax, 250g can (Unit: each)891-86
1.584,00 lei/ea		 0,00 lei
1.584,00 lei/ea 0,00 lei
Apiezon® W100 Wax, 250g can (Unit: each)891-87
Apiezon® W100 Wax, 250g can (Unit: each)891-87
2.333,80 lei/ea		 0,00 lei
2.333,80 lei/ea 0,00 lei
