Anodized Aluminum Body ESD Safe Pen-Vac™ Vacuum Pick-Up Tool with 6 ESD Safe Probes and Cups
Anodized Aluminum Body ESD Safe Pen-Vac™ Vacuum Pick-Up Tool with 6 ESD Safe Probes and Cups
Selecting a Vacuum Pick-Up System
146mm (5-3/4") long x 12.7mm (1/2") diameter

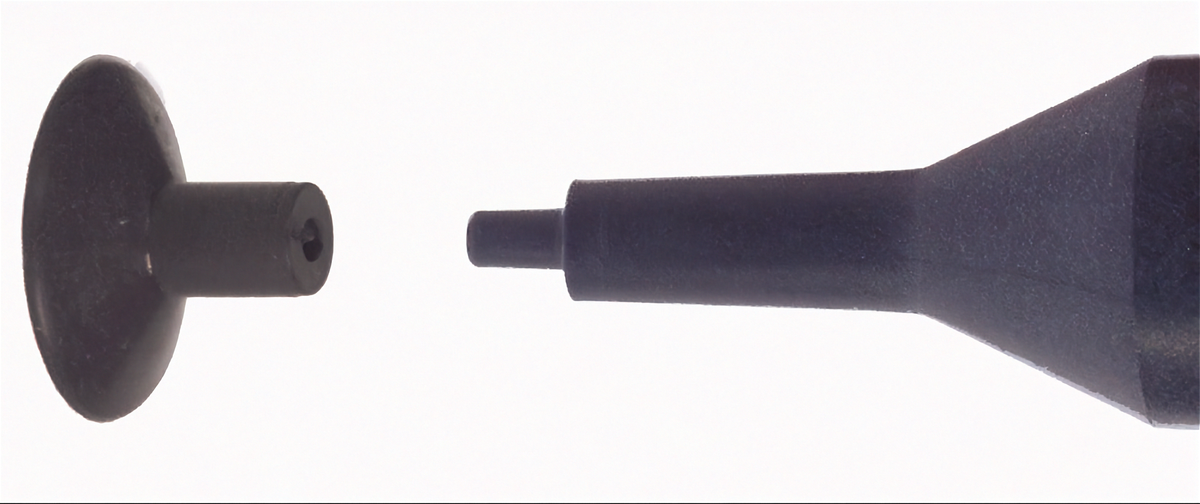

Cups can be mounted directly to the tool

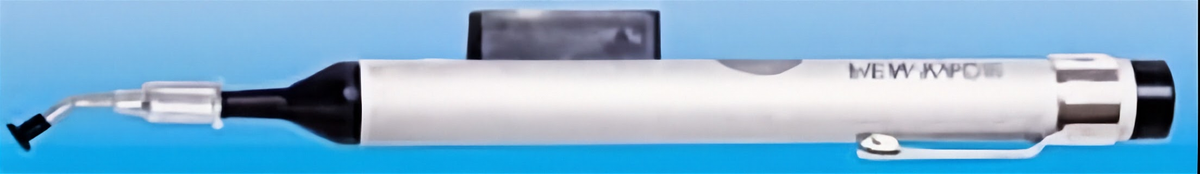

Brushed aluminum and clear anodized body; vacuum is generated by pressing and releasing the vacuum push bar. The sets include 6 probes and cups, two of each size cup (for cup diameters see ordering information), on one bent and one straight probe. The Buna-N cups are static dissipative and non-marking with a temperature range of -20°C to +120°C (-4° to +248°F). The cups also can be mounted directly to the tool. Recommended temperature operating range: +20 to +40° C (+68 to +104° F).
ESD Safe Pen-Vac™ and cups avoid problems with static electricity and make picking up small parts easier.

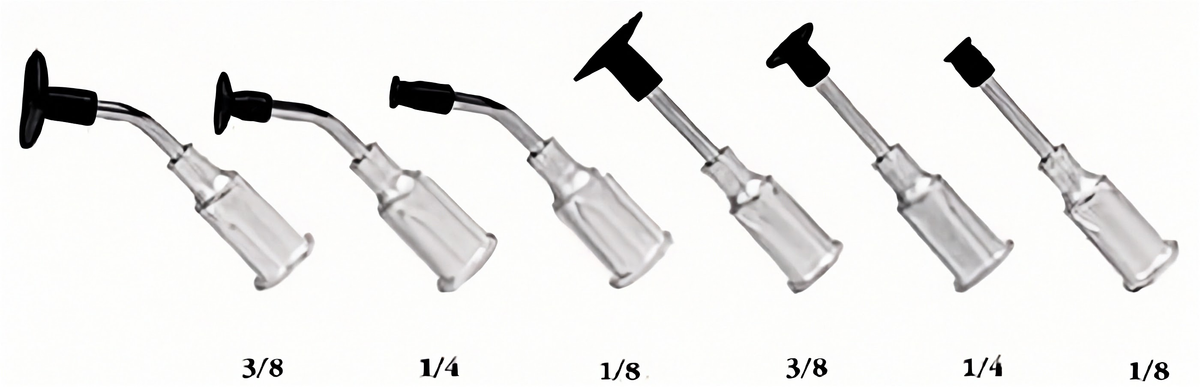

Comes with 6 vacuum probes that are 1/2" long (not counting base connector); three angled and three straight. Buna-N cups are two each of 3.2, 6.4 and 9.5mm (1/8", 1/4", 3/8").

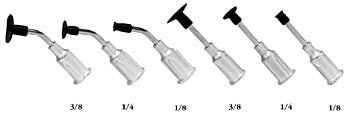

Typical set of probes and cups
| ESD Specifications | |
| Product | Resistivity |
| Pen-Vac™ Body | 102-106 ohms |
| ABS Plastic Button | 103-106 ohms |
| ABS Plastic Nozzle | 103-106 ohms |
| Metal Probe | Zero |
| Buna-N Cups | 108-1011 ohms |
PELCO® Technical Notes, ESD Safe Pen-Vac™ Vacuum Pick-Up Tool (753KB PDF)
