AFM/STM Disc Storage Boxes

PELCO^® AFM Disc Carriers & AFM Disc Magnetic Pickup Tool

16209, 16210, 16214, 16206, 16220

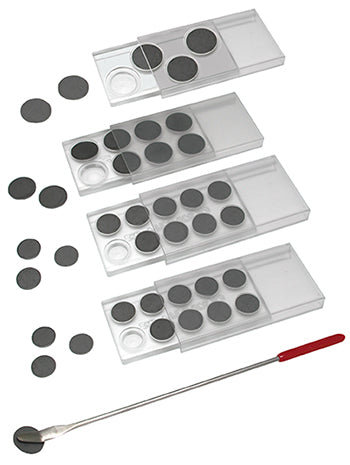

An inexpensive way to store 10, 12, 15 and 20mm AFM/STM discs in a dust-free environment. Discs are placed face down into a stepped cavity where the specimen is protected. The cavity allows for a maximum specimen height of 3.2mm (1/8").

The AFM/STM discs are retrieved by using the convenient PELCO^® AFM Disc Pickup Tool, comprised of a plastic handle, stainless steel shaft and a magnetic pad on the tip. Fingers need not touch the disc.

Sliding cover. Box size: 76.2 L x 40 W x 7.5 H (mm) (3" L x 1.58" W x .295" H)

PELCO^® AFM/STM Disc Storage Boxes

The PELCO^® AFM/STM Disk Storage Boxes have a single pole magneticlayer in the base to store stainless AFM discs with 6, 10, 12, 15 or 20mm diameter. Designed to sort and organize AFM/STM samples and protect them from dust. These storage boxes are ideal for storing and transferring AFM/STM samples in the lab. A marker pen can be used to write on the magnetic material to mark the sample positions. Samples can be lifted from the storage boxes using PELCO^® AFM Disc Grippers (shown below). Not ideal for shipping AFM samples. The PELCO^® Disc Carriers are better suited for shipping AFM discs.

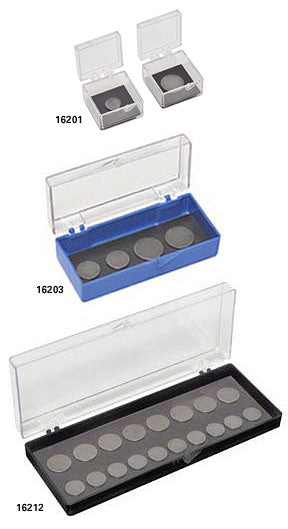

Single storage box holds one AFM disc of either 6, 10, 12, 15 or 20mm diameter. Inside measurements of the clear styrene box are 25.4 x 25.4 x 15.9mm (1" x 1" x 5/8"). Sold in packages of 5.

Small storage box holds up to 4 discs depending on size of the AFM discs. Inside measurements of the styrene box are 70 x 28 x 18mm (2-3/4" x 1-1/8" x 11/16"). Box has a clear lid and a blue base.

Large storage box holds up to 20 AFM discs depending on size of the AFM discs. Inside measurements of the styrene box are 152 x 51 x 18mm (6" x 2" x 11/16"). Box has a clear lid and a black base.

PELCO^® X-TREME AFM/STM Disc Storage Box

16224

Very strong and rugged clear polycarbonate box to store stainless steel AFM discs with 6, 10, 12, 15 or 20mm diameter. The PELCO^® X-TREME storage box is watertight, crushproof and dustproof. The strong hinges, locking clasps and O-ring seal makes this box suitable for transport, shipping and storage of the stainless steel AFM discs. Ideal for storing calibration and test samples. The box has a single pole magnetic layer in the base with a size of 47 x 86mm (1.85" x 3.4"). A marker pen can be used to write on the magnetic material. Outside dimensions 112 x 77 x 36mm (4.4" x 3" x 1.4"), maximum specimen height is 21mm (0.81").

Storage capacity:
5 ea of the Ø20mm AFM discs
8 ea of the Ø15mm AFM discs
10 ea of the Ø12mm AFM discs
21 ea of the Ø6mm AFM discs
