832 Thermally Conductive Epoxy Kit
832 Thermally Conductive Epoxy Kit

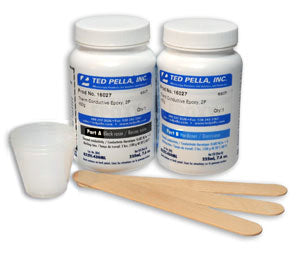

Two part thermally conductive epoxy with superior physical properties. Filled with high purity aluminum oxide to provide excellent thermal conductivity at reasonable cost. Pigmented black for excellent thermal absorption and emission. Not electrically conductive. Can be used to mount samples or parts where heat dissipation is needed. Can also be used to encapsulate components or assemblies for heat dissipation, protection and shielding. Excellent adhesions to metals, ceramics, glass and most plastics. Easy to mix with a mixing ration of 1 to 1. Up to two hour pot life; curing dependent on temperature. Supplied in two containers of 225g/8 oz each (resin and hardener); total 450g/16 oz. Complete with mixing cups and mixing sticks.
Good chemical resistance against Isopropanol, Mineral Spirits and Isohexanes. Moderate chemical resistance to HCl, Acetone, Xylene, and Ethyl lactate.
Cure schedule for 150g:
| 20°C | 96 hrs |
| 45°C | 8 hrs |
| 55°C | 4 hrs |
| 65° | 2 hrs |
Technical Specifications
| Mixed Viscosity (25°C/77°F) | 38,000-40,000cps |
| Mixed Specific Gravity | 1.6156g/cm3 |
| Color | Black |
| Hardness | 82 Shore D |
| Service Temperature | -30 to 140°C / -22 to 284°F |
| Maximum Temperature | 225°C / 437°F |
| Volume Resistivity | 2.58 x 10E15 Ohm.cm |
| Thermal Conductivity | 0.682 W/m.K |
| Thermal Expansion | 148.3 x10-6mm/mm °C |
Technical Notes, 832 Thermally Conductive Epoxy Kit (251KB PDF)
I - 16027 SDS Part A (242KB PDF)
I - 16027 SDS Part B (404KB PDF)
Note: This product is hazardous. An extra shipping charge is required by the Carriers when hazardous goods are transported.
