2000 lines/mm Cross Line Grating Replica & 2,160 Waffle Grating Replica for STM

2000 lines/mm Cross Line Grating Replica

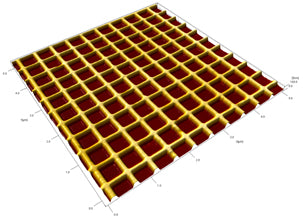

AFM Image of Cross Line Grating Replica

2,000 lines/mm cross line grating replica is suitable for X-Y calibration. The replicas have well-defined trench type grooves, which makes it easy to determine the 500nm pitch.

The 677-AFM Grating Replica is made of cellulose acetate. It replaces the previous #607-AFM Grating Replica with 463nm pitch.

The 677-STM Grating Replica is a carbon replica with Au/Pd shadowing supported on a 400 square mesh, 3mm copper TEM grid which is mounted on a 12mm disc. It replaces the previous #607-STM Grating Replica with 463nm pitch.

Magnification Calibration Calculator

PELCO® Technical Notes, 2000 lines/mm Cross Line Grating Replica, #677-AFM (430KB PDF)

PELCO® Technical Notes, 2000 lines/mm Cross Line Grating Replica, #677-STM (499KB PDF)

2,160 Waffle Grating Replica for STM

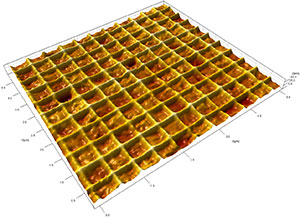

AFM Image of Cross Line Grating Replica

The 607-STM Grating Replica is a carbon replica with Au/Pd shadowing for X-Y calibration with 2,160 lines/mm crossed lines. Made on a 400 square mesh, 3mm copper TEM grid; mounted on a 12mm stainless steel STM disc.

Magnification Calibration Calculator

PELCO® Technical Notes, Calibration Specimen for Scanning Tunneling Microscope, #607-STM (500KB PDF)
