Wafer Holders

15388-P    15390-P     15369-P

 15389-P     15382-P

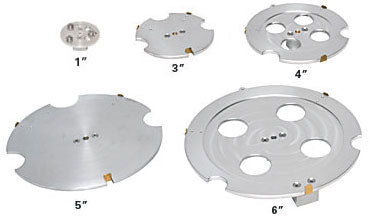

Wafer Holders with Pin for Wafers with a Flat; 1 - 6"

Six wafer holders for diameters varying from 1"-6" are available.  Made of aluminum with brass clips.  Each wafer holder has two fixed clips and one spring-loaded clip to secure the wafer on the holder. Cut-outs are provided for easy wafer removal except for 5". The 1" Wafer Holder uses two fixed tapered cones and one spring loaded tapered cone to hold the wafer. Standard 3.2mm (1/8") pin with a length of 9.5mm (3/8").

Six diameters available: 25mm (1"); 51mm (2"); 76mm (3"); 100mm (4"); 127mm (5"); 150mm (6")

100mm dia. (4") Wafer Holder holding a silicon wafer

25mm dia. (1") Wafer Holder securing a wafer with tapered cones

Screws used are 4-40 x 1/4 Flat Head, SS and 4-40 x 1/4 Tress HD, SS (15388-P)
Screws used are 1-72 x 1/8 Pan Head, SS and 4-40 x 1/4, Flat Head, SS (15390-P, 15369-P, 15389-P)
Screws used are 1-72 x 1/8 Pan Head, SS and 4-40 x 1/4, Flat Head, SS and 4-40 x 3/8 Flat Head, SS (15382-P)

15393-P

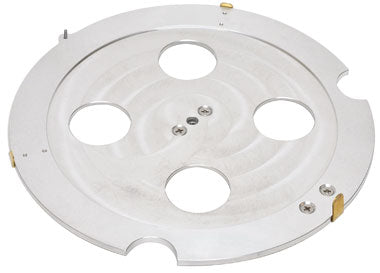

15391-P

Wafer Holders with Pin for Notch Style Wafers; 4 and 6"

Wafer holders for notch style wafers in 4" and 6" are available. Made of aluminum with brass clips. Each wafer holder has two fixed clips, a notch pin and a spring-loaded clip opposite the notch pin to secure the wafer on the holder.

Screws used are 1-72 x 1/8 Pan Head, SS and 4-40 x 1/4, Flat Head, SS (15393-P)
Screws used are 1-72 x 1/8 Pan Head, SS and 4-40 x 1/4, Flat Head, SS and 4-40 x 3/8 Flat Head, SS (15391-P)
