Tools and Tweezers for AFM/STM Specimen Discs

PELCO^® AFM Diskpenser

16204

A practical way to store and dispense AFM/STM discs. The plastic tubes in which the discs are packaged may be inserted into the PELCO^® Diskpenser. With a turn of the cylinder one disc is dispensed, ready to be picked up with the PELCO^® Disc Gripper as shown below. The PELCO^® Diskpenser will dispense either 10, 12 or 15mm Discs.

16220

---



Disc Punches

54740, 54741, 54742, 54743

punch circles from raw materials

SEM: For placing adhesive tapes or sheet material on specimen mounts, punch a conveniently sized circle, prior to mounting.

TEM: Punch circles from ACLAR® film for growing cells on a rod-type holder end for ultramicrotomy. Thinner, 2mil ACLAR® now available for easier punching.

Maximum thickness for punching: 0.067" (1.7mm)

---

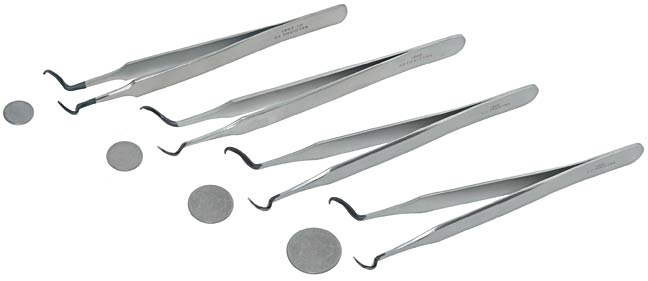

PELCO^® AFM Disc Grippers

1671, 1668, 1669, 1672

Specially designed rubber coated tips for picking up AFM/STM discs from a flat surface. Transfer Atomic Force Microscopy Discs from PELCO® AFM Diskpenser to PELCO^® AFM Workstation to Microscope and to PELCO^® AFM Disc Carrier or AFM Disc Storage Box with ease.

---



5599

Easily grasp AFM/STM cantilevers / probes with these precise, non-magnetic stainless steel AFM Probe Tweezers. 4-5/8" (117mm) long. Although these tweezers are made from non-magnetic stainless steel, magnetization can occur in the presence of strong magnetic fields.

---



5599-P

Precision formed, Swiss made, low carbon, non-magnetic, austenitic steel (material number 1.4435, DIN X2CrNiMo 18-14-3, AISI number 316L) for precise manipulation of cantilevers and probes. 4-3/4" (120mm). Non-magnetizable.

---



5596-TI

Easily grasp magnetic AFM/STM cantilevers / probes with these precise titanium, absolutely non-magnetic tweezers. 4-5/8" (117mm) long.

---
