Snap-Fit® Gelatin Capsules
embedding, specimen storage
popular for electron microscopy embedding
Current techniques involving the use of acrylic resins and dry ice temperatures for electron microscopy embedding require ultraviolet polymerization in many instances. Gelatin capsules have found a renewed popularity with these applications. Also useful for specimen storage, shipping and carrying of small specimens, apertures, and calibration specimens.
Be sure to pre-dry capsules before use. Flushing with dry nitrogen is recommended before resins are added to the capsules.
| Size | Length mm |
Diameter mm |
Volume ml |
| 000 | 26.14 | 9.55 | 1.37 |
| 00 | 23.30 | 8.18 | 0.95 |
| 0 | 21.20 | 7.34 | 0.68 |
| 1 | 19.00 | 6.63 | 0.50 |
| 2 | 17.50 | 6.07 | 0.37 |
| 3 | 15.50 | 5.56 | 0.30 |
| 4 | 13.90 | 5.05 | 0.21 |
Gelatin Capsule Holders
holds 18 or 32 gelatin capsules for embedding
Gelatin Capsule Holders for 18 Capsules

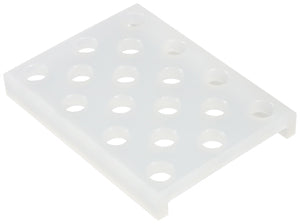

#130-12H shown holds 18 size 000 capsules
Gelatin Capsule Holders for 32 Capsules
#130-21H shown holds 32 size 3 capsules
Ambrose Mesa Mold
holds 12 size 00 gelatin capsules for embedding
Specimens are embedded against the large flat bottom surface of the mold, 7mm in diameter, for improved orientation. A BEEM® size 00 capsule with the tip removed can be inserted part way into the cavity, before filling with the plastic. Blue silicone rubber. Maximum temperature: 218°C (425°F).
Number of Cavities: 12
Numbering Outside of Cavities: 1-12
Mold Size: 97 x 38 x 11mm thick
