Pelcotec™ CDMS Critical Dimension Magnification Standards

Available as NIST Traceable or as Certified against NIST Standard

Easy to use and very useful for quick and precise SEM, FE-SEM, FIB, CD-SEM, LM, and AFM magnification calibration.

These calibration standards are unique, economically priced, yet fully-featured and traceable for a wide measurement range. They are made using the latest semiconductor and MEMS manufacturing techniques.

The Pelcotec™ CDMS Calibration Standard is available with two feature size ranges, which are both offered as traceable and certified standards, making a total of 4 versions:

Pelcotec™ CDMS-1T
Fully traceable with features from 2.0mm to 1µm for a magnification range from 10x - 20,000x; ideal for desktop SEMs and low to medium magnification applications.
Representative CDMS-1T Traceable Certificate (271KB PDF)

Pelcotec™ CDMS -0.1T
Fully traceable with features from 2.0mm to 100nm for a magnification range up to 10x - 200,000x; for all SEM and most FE-SEM applications.
Representative CDMS-0.1T Traceable Certificate (272KB PDF)

Pelcotec™ CDMS-1C
Individually certified against a NIST standard with features from 2.0mm to 1µm for a magnification range from 10x - 20,000x; ideal for desktop SEMs and low to medium magnification applications.
Representative CDMS-1C Conformance Certificate (190KB PDF)

Pelcotec™ CDMS-0.1C
Individually certified against a NIST standard with features from 2.0mm to 100nm for a magnification range up to 10x - 200,000x; for all SEM and most FE-SEM applications.
Representative CDMS-0.1C Conformance Certificate (190KB PDF)

Pelcotec™ Technical Notes for CDMS - Critical Dimension Magnification Standards (149KB PDF)

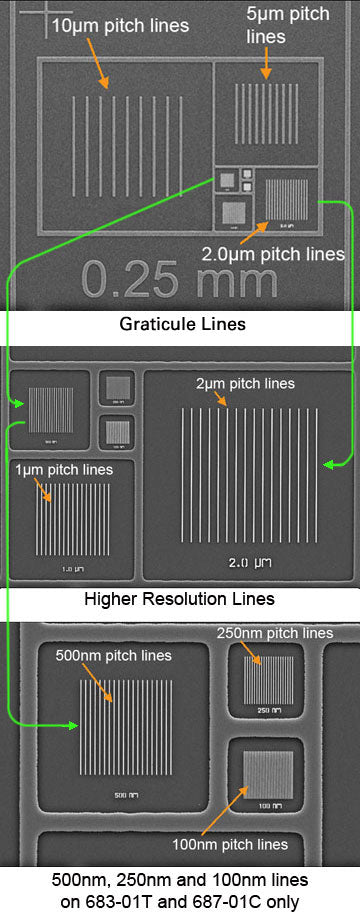

Feature sizes for the Pelcotec™ CDMS-1T and CDMS-1C are:
2mm, 1mm, 0.5mm, 0.25mm, 10µm, 5µm, 2µm and 1µm.

Feature sizes for the Pelcotec™ CDMS-0.1T & CDMS-0.1C are:
2mm, 1mm, 0.5mm, 0.25mm, 10µm, 5µm, 2µm, 1µm, 500nm, 250nm and 100nm.

Comparison Table Below

	Pelcotec™ CDMS-1	Pelcotec™ CDMS-0.1
Substrate: Silicon	✓	✓
Substrate size: 2.5 x 2.5mm	✓	✓
Substrate thickness: 525 ±10µm	✓	✓
Feature size: 2mm to 1µm	✓	✓
Feature size: 500, 250 and 100nm	—	✓
Feature material: 50nm Cr (2mm - 5µm)	✓	✓
Feature material: 20nm Cr/50nm Au (2µm and 1µm)	✓	✓
Feature material: 20nm Cr/50nm Au (500, 250 and 100 nm)	—	✓
Traceable at the wafer level to NIST	CDMS-1T versions	CDMS-0.1T versions
Direct certification of CDMS chip to a NIST standard	CDMS-1C versions	CDMS-0.1C versions
Available unmounted	✓	✓
SEM mounts A-R available	✓	✓
Precision better than 0.3%	✓	✓

The Pelcotec™ CDMS Critical Dimensions and Magnification Standards are made on an ultra flat silicon substrate with a precise 50nm chromium deposition for the features up to 5µm and a combination of 50nm gold over 20nm chromium for the features sizes from 2µm to 100nm. The Cr and Au/Cr on Si provides excellent contrast both in SE and BSE imaging mode. The features are easier to determine than on etched Si standards. Since the silicon substrate, the chromium and the chromium/gold features are all conductive, there are no charging issues with this calibration standard. Due to its sturdy construction the CDMS standard can be cleaned using a low power plasma cleaner.

The smaller features are nested for easy navigation and quick calibration. The accuracy of the features is 0.3% or better. The actual size of the standard is 2.5 x 2.5mm with a thickness of 525µm ±10µm. There is no coating on the Si surface. Plus, each Pelcotec™ CDMS calibration standard has a unique identification number.

They are available either unmounted or mounted on SEM holders A-R. For AFM applications the Pelcotec™ CDMS is mounted on a 12mm AFM disc; for LM applications it is mounted on a 25 x 75mm glass slide.

The standard may also be prepared on a custom mount of your choice.

Store the Pelcotec™ CDMS Calibration Standard in a vacuum desiccator such as the PELCO® SEM Sample Stub Vacuum Desiccator.

Pelcotec™ CDMS-1T

NIST traceable with features from 2mm to 1µm for magnification 10x - 20,000x, ideal for desktop SEM.

Feature sizes: 2mm, 1mm, 0.5mm, 0.25mm, 10µm, 5µm, 2µm, and 1µm

See mount selections, types A-R

Pelcotec™ CDMS-0.1T

NIST traceable with features from 2mm to 100nm for magnification 10x - 200,000x for SEM, FE-SEM and FIB.

Feature sizes: 2mm, 1mm, 0.5mm, 10µm, 5µm, 2µm, 1µm, 500nm, 250nm, and 100nm

See mount selections, types A-R

Pelcotec™ CDMS-1C

Certified against NIST standard with features from 2mm to 1µm for magnification 10x - 20,000x, ideal for desktop SEM.

Feature sizes: 2mm, 1mm, 0.5mm, 0.25mm, 10µm, 5µm, 2µm, and 1µm

See mount selections, types A-R

Pelcotec™ CDMS-0.1C

Certified against NIST standard with features from 2mm to 100nm for magnification 10x - 200,000x for SEM, FE-SEM and FIB.

Feature sizes: 2mm, 1mm, 0.5mm, 10µm, 5µm, 2µm, 1µm, 500nm, 250nm, and 100nm

See mount selections, types A-R

Documentation

SDS

Technical Notes
