PELCO X-Checker® X-Ray Reference Calibration for SEM

New improved PELCO X-Checker^®
available unmounted or on your choice of A-R mounts

PELCO X-Checker®

Monitor Energy Dispersive Spectrometer/SEM Systems

The updated PELCO X-Checker^®is a calibration aid to help you monitor the performance of your EDS X-ray system on an SEM. The PELCO X-Checker^®contains a series of standard materials on your choice of aluminum mount. With PELCO X-Checker^®, you can check your detector resolution and calibration, test for contamination on the detector window, monitor low-end sensitivity, and calibrate your image analysis software. When was the last time you checked the performance of your EDS system?

The #602-01 contains:

Manganese to measure full width at half max (FWHM) detector resolution
Aluminum and copper to check spectral calibration
Carbon to monitor calibration at the low end of the spectrum for thin window detectors.
Nickel TEM grid sizes, 40 x 40µm and 18 x 18µm, with ±5% accuracy, are furnished for checking image analysis software calibration. They also facilitate an easy test for monitoring the amount of vacuum pump oil contamination on the detector window

Instruction booklet and storage case included.

PELCO® Technical Notes, PELCO X-Checker® (710KB PDF)

See mount selections, types A-R

PELCO X-Checker® B

The addition of a boron nitride sample to the PELCO X-Checker^® B, #602-02 provides a more sensitive monitor of low end performance on thin window and windowless detectors.

Instruction booklet and storage case included.

PELCO® Technical Notes, PELCO X-Checker® (710KB PDF)

See mount selections, types A-R

PELCO X-Checker® EXTRA

EDS performance monitor contains the same elements as the #602-03 plus a fluorine source, in the form of PTFE, to test resolution at the fluorine K-alpha peak (industry standard for measuring low end resolution). A beryllium half grid is also added for ultimate test of low end detector performance.

Instruction booklet and storage case included.

PELCO® Technical Notes, PELCO X-Checker® (710KB PDF)

MSDS (134KB PDF)

See mount selections, types A-R

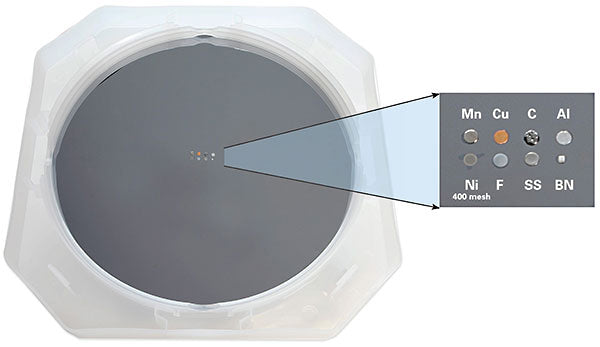

PELCO X-Checker® Wafer

The PELCO X-Checker^® Wafer is available for systems set up for silicon wafer handling. The PELCO X-Checker^® Wafer is available on standard 200mm (8") and 300mm (12") wafers, with eight standards for elemental and spatial calibrations.

The #602-20 and #602-21 contain:

Copper disc to check spectral calibration
Manganese 88%, nickel 12% alloy to measure full width at half max (FWHM) detector resolution
Nickel 400 mesh TEM grid for imaging calibration
PTFE as a fluorine source to measure low energy resolution
Carbon to monitor calibration at the low end of the spectrum for thin window detectors
Aluminum foil disc
Boron nitride to test low energy performance/peak separation
304 stainless steel for checking quantification

Instruction booklet and clamshell wafer storage case included.

PELCO® Technical Notes, PELCO X-Checker® (710KB PDF)

Documentation

SDS

Technical Notes

🚚 Estimated Delivery: 5 - 6 weeks from payment confirmation

View full details

Your cart
Variant	Variant total	Quantity	Price	Variant total
PELCO X-Checker®: Mn, Cu, C, 400 and 1000 mesh Ni grids, Unmounted (Unit: each)602-01	PELCO X-Checker®: Mn, Cu, C, 400 and 1000 mesh Ni grids, Unmounted (Unit: each)602-01 3.543,20 lei/ea	0,00 lei	Quantity	3.543,20 lei/ea	0,00 lei

PELCO X-Checker®: Mn, Cu, C, 400 and 1000 mesh Ni grids, A-Mount (Unit: each)602-01A	PELCO X-Checker®: Mn, Cu, C, 400 and 1000 mesh Ni grids, A-Mount (Unit: each)602-01A 3.599,27 lei/ea	0,00 lei	Quantity	3.599,27 lei/ea	0,00 lei

PELCO X-Checker®: Mn, Cu, C, 400 and 1000 mesh Ni grids, B-Mount (Unit: each)602-01B	PELCO X-Checker®: Mn, Cu, C, 400 and 1000 mesh Ni grids, B-Mount (Unit: each)602-01B 3.599,27 lei/ea	0,00 lei	Quantity	3.599,27 lei/ea	0,00 lei

PELCO X-Checker®: Mn, Cu, C, 400 and 1000 mesh Ni grids, C-Mount (Unit: each)602-01C	PELCO X-Checker®: Mn, Cu, C, 400 and 1000 mesh Ni grids, C-Mount (Unit: each)602-01C 3.599,27 lei/ea	0,00 lei	Quantity	3.599,27 lei/ea	0,00 lei

PELCO X-Checker®: Mn, Cu, C, 400 and 1000 mesh Ni grids, D-Mount (Unit: each)602-01D	PELCO X-Checker®: Mn, Cu, C, 400 and 1000 mesh Ni grids, D-Mount (Unit: each)602-01D 3.599,27 lei/ea	0,00 lei	Quantity	3.599,27 lei/ea	0,00 lei

PELCO X-Checker®: Mn, Cu, C, 400 and 1000 mesh Ni grids, E-Mount (Unit: each)602-01E	PELCO X-Checker®: Mn, Cu, C, 400 and 1000 mesh Ni grids, E-Mount (Unit: each)602-01E 3.599,27 lei/ea	0,00 lei	Quantity	3.599,27 lei/ea	0,00 lei

PELCO X-Checker®: Mn, Cu, C, 400 and 1000 mesh Ni grids, F-Mount (Unit: each)602-01F	PELCO X-Checker®: Mn, Cu, C, 400 and 1000 mesh Ni grids, F-Mount (Unit: each)602-01F 3.599,27 lei/ea	0,00 lei	Quantity	3.599,27 lei/ea	0,00 lei

PELCO X-Checker®: Mn, Cu, C, 400 and 1000 mesh Ni grids, customer to supply the mount. PLEASE ASK FOR THE OFFER (Unit: each)602-01G	PELCO X-Checker®: Mn, Cu, C, 400 and 1000 mesh Ni grids, customer to supply the mount. PLEASE ASK FOR THE OFFER (Unit: each)602-01G 0,00 lei/ea	0,00 lei	Quantity Sold out	0,00 lei/ea	0,00 lei

PELCO X-Checker®: Mn, Cu, C, 400 and 1000 mesh Ni grids, K-Mount (Unit: each)602-01K	PELCO X-Checker®: Mn, Cu, C, 400 and 1000 mesh Ni grids, K-Mount (Unit: each)602-01K 3.599,27 lei/ea	0,00 lei	Quantity	3.599,27 lei/ea	0,00 lei

PELCO X-Checker®: Mn, Cu, C, 400 and 1000 mesh Ni grids, L-Mount (Unit: each)602-01L	PELCO X-Checker®: Mn, Cu, C, 400 and 1000 mesh Ni grids, L-Mount (Unit: each)602-01L 3.599,27 lei/ea	0,00 lei	Quantity	3.599,27 lei/ea	0,00 lei

PELCO X-Checker®: Mn, Cu, C, 400 and 1000 mesh Ni grids, M-Mount (Unit: each)602-01M	PELCO X-Checker®: Mn, Cu, C, 400 and 1000 mesh Ni grids, M-Mount (Unit: each)602-01M 3.599,27 lei/ea	0,00 lei	Quantity	3.599,27 lei/ea	0,00 lei

PELCO X-Checker®: Mn, Cu, C, 400 and 1000 mesh Ni grids, O-Mount (Unit: each)602-01O	PELCO X-Checker®: Mn, Cu, C, 400 and 1000 mesh Ni grids, O-Mount (Unit: each)602-01O 3.599,27 lei/ea	0,00 lei	Quantity	3.599,27 lei/ea	0,00 lei

PELCO X-Checker®: Mn, Cu, C, 400 and 1000 mesh Ni grids, P-Mount (Unit: each)602-01P	PELCO X-Checker®: Mn, Cu, C, 400 and 1000 mesh Ni grids, P-Mount (Unit: each)602-01P 3.599,27 lei/ea	0,00 lei	Quantity	3.599,27 lei/ea	0,00 lei

PELCO X-Checker®: Mn, Cu, C, 400 and 1000 mesh Ni grids, Q-Mount (Unit: each)602-01Q	PELCO X-Checker®: Mn, Cu, C, 400 and 1000 mesh Ni grids, Q-Mount (Unit: each)602-01Q 3.599,27 lei/ea	0,00 lei	Quantity	3.599,27 lei/ea	0,00 lei

PELCO X-Checker®: Mn, Cu, C, 400 and 1000 mesh Ni grids, R-Mount (Unit: each)602-01R	PELCO X-Checker®: Mn, Cu, C, 400 and 1000 mesh Ni grids, R-Mount (Unit: each)602-01R 3.599,27 lei/ea	0,00 lei	Quantity	3.599,27 lei/ea	0,00 lei

PELCO X-Checker®: Mn, Cu, C, 400 and 1000 mesh Ni grids, on 12mm AFM Disc (Unit: each)602-01AFM	PELCO X-Checker®: Mn, Cu, C, 400 and 1000 mesh Ni grids, on 12mm AFM Disc (Unit: each)602-01AFM 3.599,27 lei/ea	0,00 lei	Quantity	3.599,27 lei/ea	0,00 lei

PELCO X-Checker®: Mn, Cu, C, 400 and 1000 mesh Ni grids, on 25 x 75mm glass slide (Unit: each)602-01S	PELCO X-Checker®: Mn, Cu, C, 400 and 1000 mesh Ni grids, on 25 x 75mm glass slide (Unit: each)602-01S 3.599,27 lei/ea	0,00 lei	Quantity	3.599,27 lei/ea	0,00 lei

PELCO X-Checker® B: Mn, Cu, Ni, C, and BN, 400 mesh Ni grid, Unmounted (Unit: each)602-02	PELCO X-Checker® B: Mn, Cu, Ni, C, and BN, 400 mesh Ni grid, Unmounted (Unit: each)602-02 4.133,62 lei/ea	0,00 lei	Quantity	4.133,62 lei/ea	0,00 lei

PELCO X-Checker® B: Mn, Cu, Ni, C, and BN, 400 mesh Ni grid, A-Mount (Unit: each)602-02A	PELCO X-Checker® B: Mn, Cu, Ni, C, and BN, 400 mesh Ni grid, A-Mount (Unit: each)602-02A 4.189,80 lei/ea	0,00 lei	Quantity	4.189,80 lei/ea	0,00 lei

PELCO X-Checker® B: Mn, Cu, Ni, C, and BN, 400 mesh Ni grid, B-Mount (Unit: each)602-02B	PELCO X-Checker® B: Mn, Cu, Ni, C, and BN, 400 mesh Ni grid, B-Mount (Unit: each)602-02B 4.189,80 lei/ea	0,00 lei	Quantity	4.189,80 lei/ea	0,00 lei

PELCO X-Checker® B: Mn, Cu, Ni, C, and BN, 400 mesh Ni grid, C-Mount (Unit: each)602-02C	PELCO X-Checker® B: Mn, Cu, Ni, C, and BN, 400 mesh Ni grid, C-Mount (Unit: each)602-02C 4.189,80 lei/ea	0,00 lei	Quantity	4.189,80 lei/ea	0,00 lei

PELCO X-Checker® B: Mn, Cu, Ni, C, and BN, 400 mesh Ni grid, D-Mount (Unit: each)602-02D	PELCO X-Checker® B: Mn, Cu, Ni, C, and BN, 400 mesh Ni grid, D-Mount (Unit: each)602-02D 4.189,80 lei/ea	0,00 lei	Quantity	4.189,80 lei/ea	0,00 lei

PELCO X-Checker® B: Mn, Cu, Ni, C, and BN, 400 mesh Ni grid, E-Mount (Unit: each)602-02E	PELCO X-Checker® B: Mn, Cu, Ni, C, and BN, 400 mesh Ni grid, E-Mount (Unit: each)602-02E 4.189,80 lei/ea	0,00 lei	Quantity	4.189,80 lei/ea	0,00 lei

PELCO X-Checker® B: Mn, Cu, Ni, C, and BN, 400 mesh Ni grid, F-Mount (Unit: each)602-02F	PELCO X-Checker® B: Mn, Cu, Ni, C, and BN, 400 mesh Ni grid, F-Mount (Unit: each)602-02F 4.189,80 lei/ea	0,00 lei	Quantity	4.189,80 lei/ea	0,00 lei

PELCO X-Checker® B: Mn, Cu, Ni, C, and BN, 400 mesh Ni grid, customer to supply the mouunt. PLEASE ASK FOR THE OFFER (Unit: each)602-02G	PELCO X-Checker® B: Mn, Cu, Ni, C, and BN, 400 mesh Ni grid, customer to supply the mouunt. PLEASE ASK FOR THE OFFER (Unit: each)602-02G 0,00 lei/ea	0,00 lei	Quantity Sold out	0,00 lei/ea	0,00 lei

PELCO X-Checker® B: Mn, Cu, Ni, C, and BN, 400 mesh Ni grid, K-Mount (Unit: each)602-02K	PELCO X-Checker® B: Mn, Cu, Ni, C, and BN, 400 mesh Ni grid, K-Mount (Unit: each)602-02K 4.189,80 lei/ea	0,00 lei	Quantity	4.189,80 lei/ea	0,00 lei

PELCO X-Checker® B: Mn, Cu, Ni, C, and BN, 400 mesh Ni grid, L-Mount (Unit: each)602-02L	PELCO X-Checker® B: Mn, Cu, Ni, C, and BN, 400 mesh Ni grid, L-Mount (Unit: each)602-02L 4.189,80 lei/ea	0,00 lei	Quantity	4.189,80 lei/ea	0,00 lei

PELCO X-Checker® B: Mn, Cu, Ni, C, and BN, 400 mesh Ni grid, M-Mount (Unit: each)602-02M	PELCO X-Checker® B: Mn, Cu, Ni, C, and BN, 400 mesh Ni grid, M-Mount (Unit: each)602-02M 4.189,80 lei/ea	0,00 lei	Quantity	4.189,80 lei/ea	0,00 lei

PELCO X-Checker® B: Mn, Cu, Ni, C, and BN, 400 mesh Ni grid, O-Mount (Unit: each)602-02O	PELCO X-Checker® B: Mn, Cu, Ni, C, and BN, 400 mesh Ni grid, O-Mount (Unit: each)602-02O 4.189,80 lei/ea	0,00 lei	Quantity	4.189,80 lei/ea	0,00 lei

PELCO X-Checker® B: Mn, Cu, Ni, C, and BN, 400 mesh Ni grid, P-Mount (Unit: each)602-02P	PELCO X-Checker® B: Mn, Cu, Ni, C, and BN, 400 mesh Ni grid, P-Mount (Unit: each)602-02P 4.189,80 lei/ea	0,00 lei	Quantity	4.189,80 lei/ea	0,00 lei

PELCO X-Checker® B: Mn, Cu, Ni, C, and BN, 400 mesh Ni grid, Q-Mount (Unit: each)602-02Q	PELCO X-Checker® B: Mn, Cu, Ni, C, and BN, 400 mesh Ni grid, Q-Mount (Unit: each)602-02Q 4.189,80 lei/ea	0,00 lei	Quantity	4.189,80 lei/ea	0,00 lei

PELCO X-Checker® B: Mn, Cu, Ni, C, and BN, 400 mesh Ni grid, R-Mount (Unit: each)602-02R	PELCO X-Checker® B: Mn, Cu, Ni, C, and BN, 400 mesh Ni grid, R-Mount (Unit: each)602-02R 4.189,80 lei/ea	0,00 lei	Quantity	4.189,80 lei/ea	0,00 lei

PELCO X-Checker® B: Mn, Cu, Ni, C, and BN, 400 mesh Ni grid, on 12mm AFM Disc (Unit: each)602-02AFM	PELCO X-Checker® B: Mn, Cu, Ni, C, and BN, 400 mesh Ni grid, on 12mm AFM Disc (Unit: each)602-02AFM 4.189,80 lei/ea	0,00 lei	Quantity	4.189,80 lei/ea	0,00 lei

PELCO X-Checker® B: Mn, Cu, Ni, C, and BN, 400 mesh Ni grid, on 25 x 75mm glass slide (Unit: each)602-02S	PELCO X-Checker® B: Mn, Cu, Ni, C, and BN, 400 mesh Ni grid, on 25 x 75mm glass slide (Unit: each)602-02S 4.189,80 lei/ea	0,00 lei	Quantity	4.189,80 lei/ea	0,00 lei

PELCO X-Checker® EXTRA: Mn, Cu, C, BN, F, 400 mesh Ni grid and Be half grid, Unmounted (Unit: each)602-03	PELCO X-Checker® EXTRA: Mn, Cu, C, BN, F, 400 mesh Ni grid and Be half grid, Unmounted (Unit: each)602-03 4.724,16 lei/ea	0,00 lei	Quantity	4.724,16 lei/ea	0,00 lei

PELCO X-Checker® EXTRA: Mn, Cu, C, BN, F, 400 mesh Ni grid and Be half grid, A-Mount (Unit: each)602-03A	PELCO X-Checker® EXTRA: Mn, Cu, C, BN, F, 400 mesh Ni grid and Be half grid, A-Mount (Unit: each)602-03A 4.780,33 lei/ea	0,00 lei	Quantity	4.780,33 lei/ea	0,00 lei

PELCO X-Checker® EXTRA: Mn, Cu, C, BN, F, 400 mesh Ni grid and Be half grid, B-Mount (Unit: each)602-03B	PELCO X-Checker® EXTRA: Mn, Cu, C, BN, F, 400 mesh Ni grid and Be half grid, B-Mount (Unit: each)602-03B 4.780,33 lei/ea	0,00 lei	Quantity	4.780,33 lei/ea	0,00 lei

PELCO X-Checker® EXTRA: Mn, Cu, C, BN, F, 400 mesh Ni grid and Be half grid, C-Mount (Unit: each)602-03C	PELCO X-Checker® EXTRA: Mn, Cu, C, BN, F, 400 mesh Ni grid and Be half grid, C-Mount (Unit: each)602-03C 4.780,33 lei/ea	0,00 lei	Quantity	4.780,33 lei/ea	0,00 lei

PELCO X-Checker® EXTRA: Mn, Cu, C, BN, F, 400 mesh Ni grid and Be half grid, D-Mount (Unit: each)602-03D	PELCO X-Checker® EXTRA: Mn, Cu, C, BN, F, 400 mesh Ni grid and Be half grid, D-Mount (Unit: each)602-03D 4.780,33 lei/ea	0,00 lei	Quantity	4.780,33 lei/ea	0,00 lei

PELCO X-Checker® EXTRA: Mn, Cu, C, BN, F, 400 mesh Ni grid and Be half grid, E-Mount (Unit: each)602-03E	PELCO X-Checker® EXTRA: Mn, Cu, C, BN, F, 400 mesh Ni grid and Be half grid, E-Mount (Unit: each)602-03E 4.780,33 lei/ea	0,00 lei	Quantity	4.780,33 lei/ea	0,00 lei

PELCO X-Checker® EXTRA: Mn, Cu, C, BN, F, 400 mesh Ni grid and Be half grid, F-Mount (Unit: each)602-03F	PELCO X-Checker® EXTRA: Mn, Cu, C, BN, F, 400 mesh Ni grid and Be half grid, F-Mount (Unit: each)602-03F 4.780,33 lei/ea	0,00 lei	Quantity	4.780,33 lei/ea	0,00 lei

PELCO X-Checker® EXTRA: Mn, Cu, C, BN, F, 400 mesh Ni grid and Be half grid, customer to supply the mount. PLEASE ASK FOR THE OFFER (Unit: each)602-03G	PELCO X-Checker® EXTRA: Mn, Cu, C, BN, F, 400 mesh Ni grid and Be half grid, customer to supply the mount. PLEASE ASK FOR THE OFFER (Unit: each)602-03G 0,00 lei/ea	0,00 lei	Quantity	0,00 lei/ea	0,00 lei

PELCO X-Checker® EXTRA: Mn, Cu, C, BN, F, 400 mesh Ni grid and Be half grid, K-Mount (Unit: each)602-03K	PELCO X-Checker® EXTRA: Mn, Cu, C, BN, F, 400 mesh Ni grid and Be half grid, K-Mount (Unit: each)602-03K 4.780,33 lei/ea	0,00 lei	Quantity	4.780,33 lei/ea	0,00 lei

PELCO X-Checker® EXTRA: Mn, Cu, C, BN, F, 400 mesh Ni grid and Be half grid, L-Mount (Unit: each)602-03L	PELCO X-Checker® EXTRA: Mn, Cu, C, BN, F, 400 mesh Ni grid and Be half grid, L-Mount (Unit: each)602-03L 4.780,33 lei/ea	0,00 lei	Quantity	4.780,33 lei/ea	0,00 lei

PELCO X-Checker® EXTRA: Mn, Cu, C, BN, F, 400 mesh Ni grid and Be half grid, M-Mount (Unit: each)602-03M	PELCO X-Checker® EXTRA: Mn, Cu, C, BN, F, 400 mesh Ni grid and Be half grid, M-Mount (Unit: each)602-03M 4.780,33 lei/ea	0,00 lei	Quantity	4.780,33 lei/ea	0,00 lei

PELCO X-Checker® EXTRA: Mn, Cu, C, BN, F, 400 mesh Ni grid and Be half grid, O-Mount (Unit: each)602-03O	PELCO X-Checker® EXTRA: Mn, Cu, C, BN, F, 400 mesh Ni grid and Be half grid, O-Mount (Unit: each)602-03O 4.780,33 lei/ea	0,00 lei	Quantity	4.780,33 lei/ea	0,00 lei

PELCO X-Checker® EXTRA: Mn, Cu, C, BN, F, 400 mesh Ni grid and Be half grid, P-Mount (Unit: each)602-03P	PELCO X-Checker® EXTRA: Mn, Cu, C, BN, F, 400 mesh Ni grid and Be half grid, P-Mount (Unit: each)602-03P 4.780,33 lei/ea	0,00 lei	Quantity	4.780,33 lei/ea	0,00 lei

PELCO X-Checker® EXTRA: Mn, Cu, C, BN, F, 400 mesh Ni grid and Be half grid, Q-Mount (Unit: each)602-03Q	PELCO X-Checker® EXTRA: Mn, Cu, C, BN, F, 400 mesh Ni grid and Be half grid, Q-Mount (Unit: each)602-03Q 4.780,33 lei/ea	0,00 lei	Quantity	4.780,33 lei/ea	0,00 lei

PELCO X-Checker® EXTRA: Mn, Cu, C, BN, F, 400 mesh Ni grid and Be half grid, R-Mount (Unit: each)602-03R	PELCO X-Checker® EXTRA: Mn, Cu, C, BN, F, 400 mesh Ni grid and Be half grid, R-Mount (Unit: each)602-03R 4.780,33 lei/ea	0,00 lei	Quantity	4.780,33 lei/ea	0,00 lei

PELCO X-Checker® EXTRA: Mn, Cu, C, BN, F, 400 mesh Ni grid and Be half grid, on 12mm AFM Disc (Unit: each)602-03AFM	PELCO X-Checker® EXTRA: Mn, Cu, C, BN, F, 400 mesh Ni grid and Be half grid, on 12mm AFM Disc (Unit: each)602-03AFM 4.780,33 lei/ea	0,00 lei	Quantity	4.780,33 lei/ea	0,00 lei

PELCO X-Checker® EXTRA: Mn, Cu, C, BN, F, 400 mesh Ni grid and Be half grid, on 25 x 75mm glass slide (Unit: each)602-03S	PELCO X-Checker® EXTRA: Mn, Cu, C, BN, F, 400 mesh Ni grid and Be half grid, on 25 x 75mm glass slide (Unit: each)602-03S 4.780,33 lei/ea	0,00 lei	Quantity	4.780,33 lei/ea	0,00 lei

PELCO X-Checker® Wafer, 200mm (8") (Unit: each)602-20	PELCO X-Checker® Wafer, 200mm (8") (Unit: each)602-20 10.629,38 lei/ea	0,00 lei	Quantity	10.629,38 lei/ea	0,00 lei

PELCO X-Checker® Wafer, 300mm (12") (Unit: each)602-21	PELCO X-Checker® Wafer, 300mm (12") (Unit: each)602-21 13.286,73 lei/ea	0,00 lei	Quantity	13.286,73 lei/ea	0,00 lei
